Schematic and parts list for: Hoover Model: S3557
This is a list of parts and a diagram and schematic for: Hoover Model: S3557
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

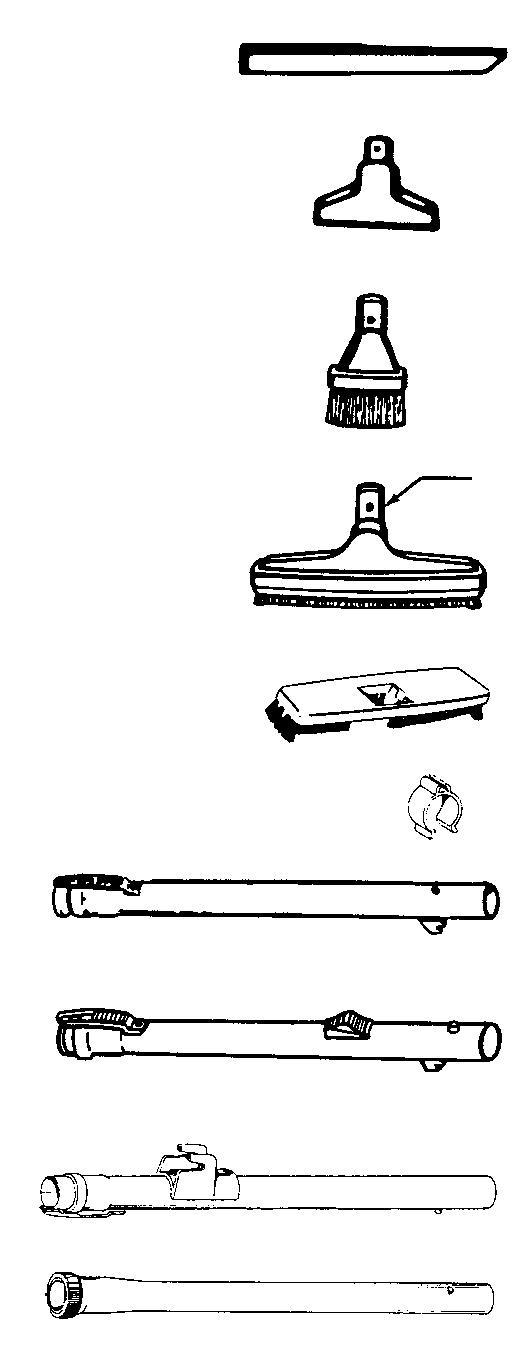

| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 04 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip - Ag | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 08 | Not Available | Hoover Extension Tube-20-Ax | 43453052 | Not Available |
| 08 | Not Available | Hoover Extension Tube - Bl - 20 | 43453058 | Not Available |
| 09 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 10 | Not Available | Hoover Extension Tube-Ax-20 | 43453095 | Not Available |
| 10 | Not Available | Hoover Extension Tube-Ax Gray Storage Clip) (Futura) | 43453098 | Not Available |
| 10 | Not Available | Hoover Ext. Tube-Ax-20-W/Cl (Black Storage Clip) (Windtunnel Canister) | 43453099 | Not Available |
| 11 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Reel Pedal-Ag-S | 38422155 | Not Available |
| 02 | Not Available | Hoover Cord Reel Brakearm-A | 38458034 | Not Available |
| 03 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 04 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 05 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 06 | Not Available | Hoover Motor Retainer Assembly (Incl. Items 7,44,45) | 41312040 | Not Available |
| 07 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 08 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 09 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 | Not Available | Hoover Motor Assembly (10.5 Amps) | 43576118 | Not Available |
| 11 | Not Available | Hoover Motor Assembly (10.3 Amps) | 43576126 | Not Available |
| 11 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 12 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 13 | Not Available | Hoover Cord Reel Assembly-Aap | 41911012 | Not Available |
| 20 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 21 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 24 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 29 | Not Available | Hoover Main Body-S3630/46/5 Incl. Items 9,24,30,31,33) | 42215003 | Not Available |
| 29 | Not Available | Hoover Main Body-Abu-S3559 S3571 (Incl. Items 9, 30, 33) | 42215084 | Not Available |
| 30 | Not Available | Hoover Receptacle Assembly-Aap | 46326059 | Not Available |
| 30 | Not Available | Hoover Receptacle Assembly-Ag- | 46326082 | Not Available |
| 31 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 32 | Not Available | Hoover Screw-S2095/97/99 | 21434288 | Not Available |
| 33 | Not Available | Hoover Cord Channel Cover-A | 36218020 | Not Available |
| 33 | Not Available | Hoover Cord Channel Cover-A | 36218021 | Not Available |
| 34 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 35 | Not Available | Hoover Futura/Spect Bag - 3-Pk Throw Away Bag Asseembly - 3 Pk. | 4010064S | Not Available |
| 36 | Not Available | Hoover Bag Lid Assembly-Ag-S35 (Incl. Items 37,42,43) | 42217136 | Not Available |
| 36 | Not Available | Hoover Bag Lid Assembly-S35 (Incl. Items 37,42,43) | 42217148 | Not Available |
| 36 | Not Available | Hoover Bag Lid-Abr-S3571 (Incl. Items 37, 42, 43) | 42217160 | Not Available |
| 37 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 38 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 39 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 40 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Switch | 28212026 | Not Available |
| 41 | Not Available | Hoover Switch-F5805/15/25 With Terminals - See Note 2 | 28218048 | Not Available |
| 42 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 43 | Not Available | Hoover Bag Lid Latch-Ag-S35 | 36153040 | Not Available |
| 43 | Not Available | Hoover Bag Lid Latch-Abr-S3 | 36153055 | Not Available |
| 44 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 45 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 46 | Not Available | Hoover Caster Spring - C504 | 38314022 | Not Available |
| 46 | Not Available | Hoover Spring-S3523 | 38314026 | Not Available |
| 47 | Not Available | Hoover Switch Mounting Plate | 34135014 | Not Available |
| 48 | Not Available | Hoover Motor Cover | OM100006 | Not Available |
| 48 | Not Available | Hoover Motor Cover | OM100196 | Not Available |
| 49 | Not Available | Hoover Top Support - S3525 | 58216013 | Not Available |
| 49 | Not Available | Hoover Bottom Support | 58211012 | Not Available |
| 49 | Not Available | Hoover Bottom Support | 58211011 | Not Available |
| 49 | No Image | OWNER'S MANUAL, FUTURA Part Number: 56513344 for Hoover | 56513344 | $11.71Read more |
| 49 | Not Available | Hoover Owner Manual-S3559/6 | 56513330 | Not Available |
| 49 | Not Available | Hoover Switch Pedal W/O Pos W/O Post - See Note 2 (Use With 28218048 Switch) | 38422184 | Not Available |
| 49 | Not Available | Hoover Switch Pedal-Ag-S358 | 38422159 | Not Available |
| 50 | No Image | POWER NOZZLE, S3545/S3549 FUTURA Part Number: 48438230 for Hoover | 48438230 | $142.66Read more |
| 50 | Not Available | Hoover Extention Tube-20-Ax | 43453052 | Not Available |
| 50 | Not Available | Hoover Hose-Ag-S3520 | 43433107 | Not Available |
| 50 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 50 | Not Available | Hoover Power Nozzle-Abe-S35 Powered Nozzle - Abe S3571 -(P-253) | 48438256 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose W/Sc-Abx/Ag-S35 | 43434242 | Not Available |
| 01 | Not Available | Hoover Hose Grip - Aap - S/ | 43466044 | Not Available |
| 01 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 01 | Not Available | Hoover Hose Grip Assembly-S35 | 43466072 | Not Available |
| 02 | Not Available | Hoover Suction Contol Ring | 38711006 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring | 38711012 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 03 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 04 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 05 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 05 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 05 | Not Available | Hoover Cl Tool Hose-S3510 | 38671034 | Not Available |
| 06 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 07 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 08 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 08 | Not Available | Hoover Hose Grip Assembly-Aap- | 43466054 | Not Available |
| 08 | Not Available | Hoover Hose-Abx/Ag-S3523 | 43434241 | Not Available |
| 09 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 10 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 11 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 11 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 12 | Not Available | Hoover Hose Connector-Ag-S3 | 38644044 | Not Available |
| 13 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 14 | Not Available | Hoover Hose-S3559 | 43448002 | Not Available |
| 14 | Not Available | Hoover Hose-Ag-S3520 | 43433107 | Not Available |
| 14 | Not Available | Hoover Plug Latch-Ag-S3603- | 36152029 | Not Available |
| 15 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 16 | Not Available | Hoover Suction Regulator-S3 | 34777005 | Not Available |
| 17 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 17 | Not Available | Hoover Cord Repair Kit-Spec Cord Repair Kit - 2W | 40300051 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 01 | Not Available | Hoover Motor Assembly | 43576118 | Not Available |
| 02 | Not Available | Hoover Balancing Ring | 31162006 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 05 | Not Available | Hoover Washer | 21312774 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly | 43551030 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly (Die Cast | 41551012 | Not Available |
| 07 | Not Available | Hoover Armature Assembly Comp | 44765230 | Not Available |
| 08 | Not Available | Hoover Field Assembly Complete | 45311068 | Not Available |
| 09 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Brush Housing | 168038AG | Not Available |
| 11 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp | 168506 | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing | 42192015 | Not Available |
| 16 | Not Available | Hoover Screw-Special | 21447221 | Not Available |
| 16 | Not Available | Hoover Bolt (Die Cast Diff.) | 36112003 | Not Available |
| 17 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 18 | Not Available | Hoover Balancing Ring/Nut | 36116023 | Not Available |
| 19 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 20 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 21 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 22 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 22 | Not Available | Hoover Bearing Spacer (Phenolic Diff.) | 31148011 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nozzle Body Assembly-Aa (Incl. It 28) | 42252201 | Not Available |
| 01 | Not Available | Hoover Powered Nozzle-Ag-S3 Power Nozzle - Ag - S3577, S3580-050 | 48438259 | Not Available |
| 01 | Not Available | Hoover Power Nozzle-Abe-S35 S3567, S3569, S3571, S3573 | 48438256 | Not Available |
| 01 | Not Available | Hoover Power Nozzle Assembly - S3621(Use 48438230) | 48438248 | Not Available |
| 01 | Not Available | Hoover Powered Nozzle-S3629 S3629 (Use 48438055) | 48438246 | Not Available |
| 01 | No Image | POWER NOZZLE, S3545/S3549 FUTURA Part Number: 48438230 for Hoover | 48438230 | $142.66Read more |
| 01 | Not Available | Hoover Powered Nozzle-Abe-S S3563 (Use 48438230) | 48438071 | Not Available |
| 01 | Not Available | Hoover Nozzle Body Assembly S3530, S3577 (Allergen Filtration Graphics) (Inc. Item 28) | 42252A52 | Not Available |
| 01 | Not Available | Hoover Nozzle Body Assembly-Ag- S3577, S3580-050 (Incl. Item 28) | 42252A09 | Not Available |
| 01 | Not Available | Hoover Nozzle Body-Abe-S356 (Incl. It 28) | 42252216 | Not Available |
| 02 | Not Available | Hoover Terminal-Insulated-U | 18972 | Not Available |
| 02 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 03 | Not Available | Hoover Not Required Part Or See Note Lead Wire - White | FNLA | Not Available |
| 04 | Not Available | Hoover Motor Assembly Complete | 43177062 | Not Available |
| 05 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 06 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 07 | Not Available | Hoover Screw | 21447003 | Not Available |
| 08 | Not Available | Hoover Rear Seal | 34253018 | Not Available |
| 09 | Not Available | Hoover Duct Cover Assembly. (Incl. Items 5,6,8,22) | 42256099 | Not Available |
| 10 | Not Available | Hoover Cord Assembly. | 46321088 | Not Available |
| 11 | Not Available | Hoover Strain Relief - 6460 | 163768 | Not Available |
| 12 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.23Read more |
| 13 | Not Available | Hoover Nozzle Connector | 43482114 | Not Available |
| 14 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $2.23Read more |
| 15 | Not Available | Hoover Seal | 34122014 | Not Available |
| 16 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 17 | Not Available | Hoover Base Plate Assembly-S36 (Incl. Items 18, 19) | 42246114 | Not Available |
| 17 | Not Available | Hoover Base Plate Assembly-Ag-S (Incl. Items 18, 19) | 42246115 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Screw-Self Tapping | 21479801 | Not Available |
| 21 | Not Available | Hoover Agitator Assembly Comp - S3563 | 48414051 | Not Available |
| 21 | No Image | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 22 | Not Available | Hoover Duct Cover Seal | 34123039 | Not Available |
| 23 | Not Available | Hoover Rib Shoe | 13261AY | Not Available |
| 24 | Not Available | Hoover Belt Guard-S3603,09, | 36923008 | Not Available |
| 25 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 26 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 27 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 28 | Not Available | Hoover Dirt Finder Lens | 39383094 | Not Available |
| 29 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 30 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 35 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |
