This is a list of parts and a diagram and schematic for: Hoover Model: S3530
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies

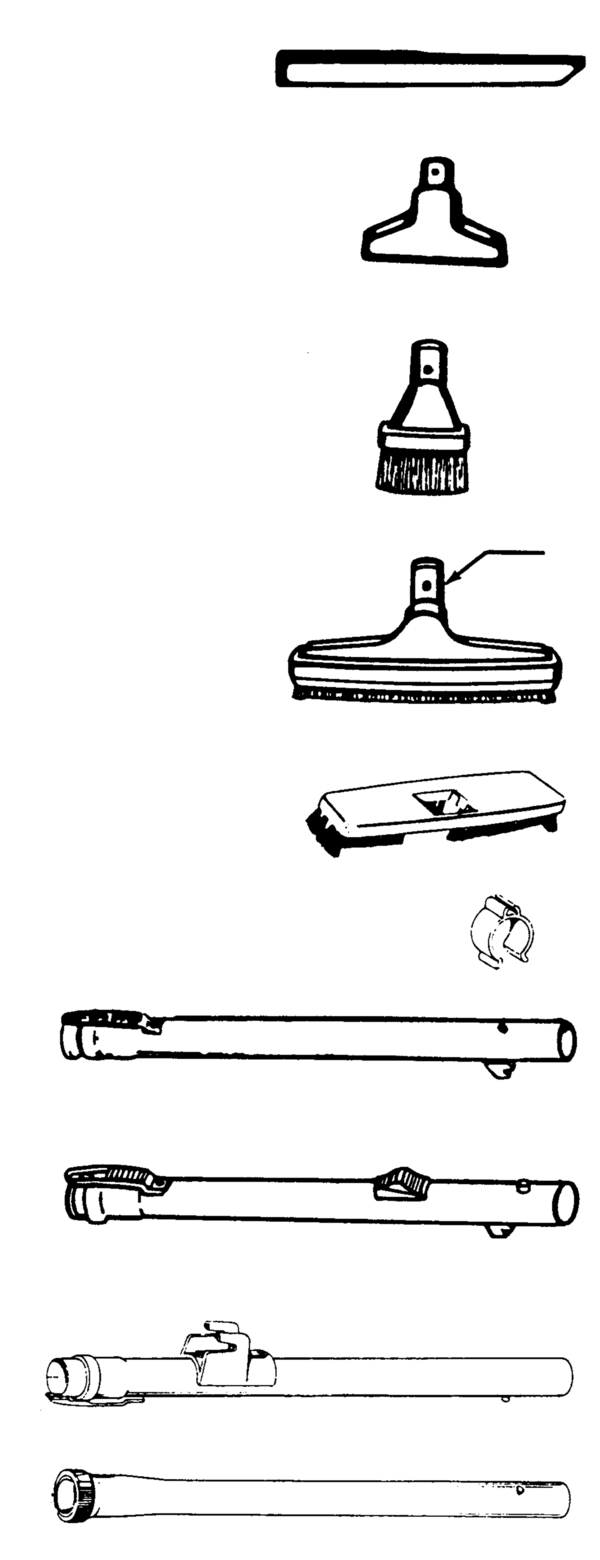

| # | Part image | Description | SKU | Price |
| 1 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 2 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 2 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $9.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $20.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Compatible alternateFloor Tool,White Metal Neck W/Pin Part Number: 38-1500-93 for Hoover Replacement More Product Details | 38150093 | $12.08Add to cart Special order — allow 2-4 weeks. |
| 6 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 7 | Not Available | Hoover Cord / Wand Clip - Black | 36172584 | Not Available |
| 8 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hoover Extension Tube-Ax-20 | 43453023 | Not Available |
| 11 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $39.59Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cord Reel Pedal - Black | 38422155 | Not Available |
| 2 | Not Available | Hoover Cord Reel Brake Arm | 38458034 | Not Available |
| 3 | Not Available | Hoover Spring-Fw-S3605 | 38314024 | Not Available |
| 4 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 6 | Not Available | Hoover Motor Retainer Assem | 41312040 | Not Available |
| 7 | Not Available | Hoover Retainer Seal-Rh-S35 | 34633003 | Not Available |
| 8 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 9 | Not Available | Hoover Furniture Guard-Ag-S | 36235069 | Not Available |
| 10 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 11 |  | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $160.49Read more |
| 11 | Not Available | Hoover Motor Assembly | 43576184 | Not Available |
| 12 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
| 13 | Not Available | Hoover Cord Reel Assembly | 41911014 | Not Available |
| 14 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 17 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 19 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 20 | Not Available | Hoover Attachment Cord-Ag-S | 46383288 | Not Available |
| 21 | Not Available | Hoover Ferrule | 36218018 | Not Available |
| 22 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 23 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 24 | Not Available | Hoover Wheel-Ag-S3585 | 38522065 | Not Available |
| 25 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 26 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 27 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 28 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 30 | Not Available | Hoover Receptacle Assem-Ag- | 46326082 | Not Available |
| 31 | Not Available | Hoover Wheel Carrier-Ag-S32 | 41432040 | Not Available |
| 32 | Not Available | Hoover Screw-Self Tapping | 21447223 | Not Available |
| 34 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 35 | Not Available | Hoover Type S Bag 3 Pack | 4010064S | Not Available |
| 36 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 37 | Not Available | Hoover Bag Collar Seal-Ag | 36424012 | Not Available |
| 38 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 39 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 40 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $4.00Add to cart |
| 42 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 43 | Not Available | Hoover Bag Lid Latch-Ag-S35 | 36153040 | Not Available |
| 44 | Not Available | Hoover Retainer Seal-Lh | 34633002 | Not Available |
| 45 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 46 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 47 | Not Available | Hoover Switch Mounting Plat | 34135014 | Not Available |
| 49 | Not Available | Hoover Switch Pedal W/O Pos | 38422184 | Not Available |
| 50 | No Image | OWNER'S MANUAL, FUTURA Part Number: 56513344 for Hoover | 56513344 | $11.71Read more |
| 52 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $12.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $9.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $10.99Read more |
| 52 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $20.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose-2W-Ag-S3530 | 43433113 | Not Available |
| 2 | Not Available | Hoover Hose Release Latch-A | 36153038 | Not Available |
| 3 | Not Available | Hoover Hose Grip-Rh-Ag | 39461018 | Not Available |
| 4 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 5 | Not Available | Hoover Splice - Ccs | 27613002 | Not Available |
| 6 | Not Available | Hoover Retaining Ring-Abr | 36131087 | Not Available |
| 7 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
| 8 | Not Available | Hoover Insulator-S3603,09,1 | 36913030 | Not Available |
| 9 | Not Available | Hoover Hose Grip-Lh-Ag-S361 | 39461017 | Not Available |
| 11 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 12 | Not Available | Hoover Inner Tube - Black | 38646081 | Not Available |
| 13 | Not Available | Hoover Connector-Bz-S3575 | 46325032 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Washer | 21312774 | Not Available |
| 3 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 4 | Not Available | Hoover Fan | 43551008 | Not Available |
| 5 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
| 6 | Not Available | Hoover Diffuser Assembly | 43551030 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Armature Assm Comp-S | 44765220 | Not Available |
| 9 | Not Available | Hoover Spring U3101/3 U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 11 | Not Available | Hoover Brush Housing-Only-S | 168038AG | Not Available |
| 12 | Not Available | Hoover Brush Housing Comp-S | 168506- | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679- | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing Assm-S | 42193025 | Not Available |
| 16 | Not Available | Hoover Field Lamination Bol | 21447222 | Not Available |
| 17 | Not Available | Hoover Lead Wire Assem. | 461760 | Not Available |
| 18 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 19 | Not Available | Hoover Field Coil-C2075 | 45311048 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | POWER NOZZLE, S3545/S3549 FUTURA Part Number: 48438230 for Hoover | 48438230 | $142.66Read more |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Motor Assembly Compl | 43177062 | Not Available |
| 5 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 6 | Not Available | Hoover Grommet | 36218016 | Not Available |
| 7 | Not Available | Hoover Screw | 21447003 | Not Available |
| 8 |  | Rear Seal For: hoover | 34253018 | $0.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hoover Duct Cover Assem. | 42256099 | Not Available |
| 10 | Not Available | Hoover Cord Assembly | 46321088 | Not Available |
| 11 | Not Available | Hoover Strain Relief - 6460 | 163768- | Not Available |
| 12 |  | SPRING, DETENT Part Number: 35276008 for Hoover | 35276008 | $2.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Assy., Nozzle Connector | 43482106 | Not Available |
| 14 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $1.96Read more |
| 15 |  | Seal For: hoover | 34122014 | $2.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.72Read more |
| 20 | Not Available | Hoover Screw - Self Tapping | 21479801 | Not Available |
| 21 | Not Available | Hoover Agitator Asm Comp - | 48414051 | Not Available |
| 21 |  | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $31.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Hoover Duct Cover Seal | 34123039 | Not Available |
| 23 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 24 | Not Available | Hoover Belt Guard | 36923008 | Not Available |
| 25 |  | No Longer available sub for MC-270B Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Read more |
| 26 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 27 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 28 | Not Available | Hoover Dirt Finder Lens | 39383094 | Not Available |
| 29 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 30 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 31 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 32 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 33 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 34 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 35 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |
