Schematic and parts list for: Hoover Model: S3527test

Schematic and parts list for: Hoover Model: S3527

This is a list of parts and a diagram and schematic for: Hoover Model: S3527

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: Canister

Popular Supplies

Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover

Product is special order please allow 2-4 weeks for delivery.

$3.73Add to cart

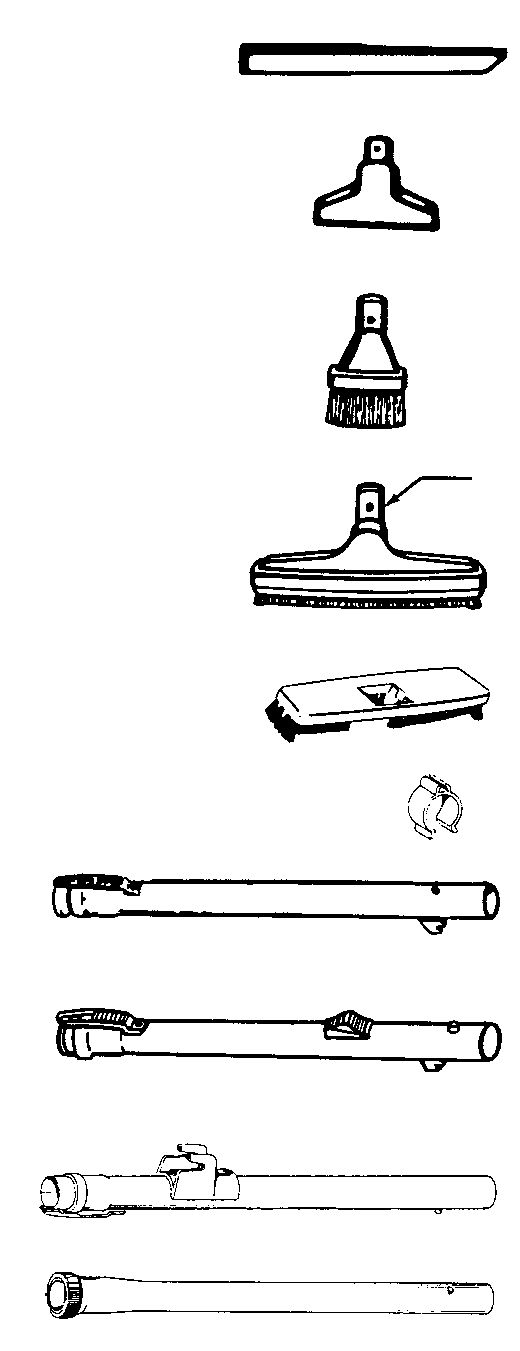

#	Part image	Description	SKU	Price
01	No Image	Crevice Tool, With Locking Tab More Product Details	H-38617017	$9.99Read more
02		Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover More Product Details	43414057	$10.55Add to cart Product is special order please allow 2-4 weeks for delivery.
02	Not Available	Hoover Furniture Nozzle	43414141	Not Available
03		Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover More Product Details	43414064	$3.88Add to cart Product is special order please allow 2-4 weeks for delivery.
04	Not Available	Hoover Swivel Connector	38644020	Not Available
05	Not Available	Hoover Swivel Connector	38644040	Not Available
05		Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover More Product Details	440009293	$13.39Add to cart Product is special order please allow 2-4 weeks for delivery.
06	Not Available	Hoover Brush Back	48447001	Not Available
07	Not Available	Hoover Cord/Wand Clip	36172584	Not Available
08		Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover More Product Details	43453027	$13.26Read more
08	Not Available	Hoover Extension Tube	43453052	Not Available
08	Not Available	Hoover Extension Tube	43453058	Not Available
09	Not Available	Hoover Extension Tube	43453023	Not Available
10	Not Available	Hoover Extension Tube	43453095	Not Available
10	Not Available	Hoover Extension Tube Gray Storage Clip) (Futura)	43453098	Not Available
10	Not Available	Hoover Extension Tube (Black Storage Clip) (Windtunnel Canister)	43453099	Not Available
11	No Image	WAND, STRAIGHT 20" W/LOCK PIN POLY More Product Details	H-43453043	$19.99Read more

#	Part image	Description	SKU	Price
01	Not Available	Hoover Hose With Sc S3513, S3515, S3517, S3527	43434242	Not Available
01	Not Available	Hoover Hose Grip	43466044	Not Available
01	Not Available	Hoover Hose Grip With Sc S3527	43466068	Not Available
01	Not Available	Hoover Hose Grip Assembly S3510	43466072	Not Available
02	Not Available	Hoover Suction Control Ring	38711006	Not Available
02	Not Available	Hoover Suction Control Ring S3527	38711012	Not Available
02	Not Available	Hoover Suction Control Ring S3510	38711014	Not Available
03	Not Available	Hoover Hose Connector Collage	36171025	Not Available
04	Not Available	Hoover Hose Sleeve	32156010	Not Available
05	Not Available	Hoover Hose	38671029	Not Available
05	Not Available	Hoover Hose S3527	38671033	Not Available
05	Not Available	Hoover Cl Tool Hose S3510	38671034	Not Available
06	Not Available	Hoover Hose Connector	38644044	Not Available
07	Not Available	Hoover Hose Release Latch	36153038	Not Available
08	Not Available	Hoover Hose Grip S3523	43466066	Not Available
08	Not Available	Hoover Hose Grip Assembly	43466054	Not Available
08	Not Available	Hoover Hose	43434241	Not Available
09	Not Available	Hoover Hose Connector	36171025	Not Available
10	Not Available	Hoover Hose Sleeve	32156010	Not Available
11	Not Available	Hoover Hose - Aav	38671029	Not Available
11	Not Available	Hoover Hose S3523	38671033	Not Available
12	Not Available	Hoover Hose Connector	38644044	Not Available
13	Not Available	Hoover Hose Release Latch	36153038	Not Available
14	Not Available	Hoover Hose-S3559	43448002	Not Available
14	Not Available	Hoover Hose S3520, S3535, S3567	43433107	Not Available
14	Not Available	Hoover Plug Latch	36152029	Not Available
15	Not Available	Hoover Hose Release Latch-A	36153038	Not Available
16	Not Available	Hoover Suction Regulator	34777005	Not Available
17	Not Available	Hoover Latch Ring-Ag-S3273	36153009	Not Available
17	Not Available	Hoover Cord Repair Kit-Spec Cord Repair Kit - 2W	40300051	Not Available

#	Part image	Description	SKU	Price
01	Not Available	Hoover Cord Wrap-Ag-S3523	39442034	Not Available
02	Not Available	Hoover Screw-Self Tapping	21447217	Not Available
03	Not Available	Hoover Motor Cover Assembly S3547 (Incl. Item 1)	41426119	Not Available
03	Not Available	Hoover Motor Cover S3527, S3510 (Incl. Item 1)	41426116	Not Available
03	Not Available	Hoover Motor Cover S3523 (Incl. Item 1)	41426115	Not Available
03	Not Available	Hoover Motor Cover Assembly S3511 (Incl. Item 1)	41426100	Not Available
03	Not Available	Hoover Motor Cover Assembly S3509 (Incl. Item 1)	41426098	Not Available
03	Not Available	Hoover Motor Cover Assembly S3519 (Incl. Item 1)	41426076	Not Available
04	Not Available	Hoover Terminals	12227	Not Available
04	Not Available	Hoover Wire Connector	27618508	Not Available
05	Not Available	Hoover Motor Retainer Assembly (Incl. Items 6,26,27)	41312040	Not Available
06	Not Available	Hoover Retainer Seal-Rh	34633003	Not Available
07	Not Available	Hoover Motor Mount	36322031	Not Available
08	Not Available	Hoover Furniture Guard-Ag-S	36235069	Not Available
09	Not Available	Hoover Motor Assembly	43576114	Not Available
09	Not Available	Hoover Motor Assembly-Futur 3509, S3511(7.9 Amps) (P-267) - S3509, S3511, S3519 (7.8 Amps)	43576126	Not Available
09	Not Available	Hoover Motor Assembly S3509, S3511, S3510 (7.3 Amps) (P-266)	43576184	Not Available
09	No Image	MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover More Product Details	43576186	$187.10Read more
10	Not Available	Hoover Attachment Cord-Ag-S S3510, S3523, S3527, S3547	46383289	Not Available
11	Not Available	Hoover Strain Relief-Ag-S35 S3547	36215034	Not Available
11	Not Available	Hoover Strain Relief-Ag-S35	36215033	Not Available
12	Not Available	Hoover Main Body-Abu-S3523 S3510, S3523, S3527 (Incl. Items 8, 13, 14, 15)	42215051	Not Available
12	Not Available	Hoover Main Body Assm-Ag-S3 S3547 (Incl. Items 8, 13, 14, 15)	42215052	Not Available
13	Not Available	Hoover Wheel-Ag-S3585	38522065	Not Available
14	Not Available	Hoover Pto Cover-Aap-S3515	37258130	Not Available
14	Not Available	Hoover Pto Cover-Abu-S3523 S3523, 27	37258134	Not Available
14	Not Available	Hoover Pto Cover-Ag-S3547 S3547	37258136	Not Available
15	Not Available	Hoover Wheel Carrier-Ag-S32	41432040	Not Available
16	Not Available	Hoover Bag Collar Support	36424010	Not Available
17	Not Available	Hoover Futura/Spect Bag - 3-Pk	4010064S	Not Available
18	Not Available	Hoover Switch Pedal With Post	38422162	Not Available
18	Not Available	Hoover Switch Pedal W/O Post (Use With 28218048 Switch)	38422164	Not Available
19	Not Available	Hoover Bag Collar Seal-Ag	36424012	Not Available
20	Not Available	Hoover Bag Lid Hinge	36151027	Not Available
21	Not Available	Hoover Filter Retainer	37944005	Not Available
22		Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover More Product Details	38765009	$3.73Add to cart Product is special order please allow 2-4 weeks for delivery.
23	Not Available	Hoover Bag Lid-Abb-S3510 S3510	42217172	Not Available
23	Not Available	Hoover Bag Lid-Abb-S3527 S3527 (Incl. Items 19, 24, 25)	42217156	Not Available
23	Not Available	Hoover Bag Lid-Aca-S3523 S3523 (Incl. Items 19, 24, 25)	42217155	Not Available
23	Not Available	Hoover Bag Lid Assem-Abb-S3 S3519 (Incl. Items 19,24,25)	42217138	Not Available
23	Not Available	Hoover Bag Lid Assem-Ag-S35 S3511 (Incl. Items 19, 24, 25)	42217136	Not Available
23	Not Available	Hoover Bag Lid Assm-Aas-S35 S3509 Lncl. Items 19 24 2	42217132	Not Available
23	Not Available	Hoover Bag Lid-Common-Ag/W S3547 (Incl. Items 19,24, 25)	42212135	Not Available
24	Not Available	Hoover Torsion Spring	38351009	Not Available
25	Not Available	Hoover Bag Lid Latch-Ag-S35 S3510, S3511, S3547	36153040	Not Available
25	Not Available	Hoover Bag Lid Latch-Aas-S3 S3509	36153041	Not Available
25	Not Available	Hoover Bag Lid Latch - S355 S3519, S3527	36153044	Not Available
25	Not Available	Hoover Bag Lid Latch S3523	36153054	Not Available
26	Not Available	Hoover Retainer Seal-Lh	34633002	Not Available
27	Not Available	Hoover Retainer Seal-Center	34123040	Not Available
28	Not Available	Hoover Switch	28212026	Not Available
28	Not Available	Hoover Switch-F5805/15/25 With Terminals	28218048	Not Available
29	Not Available	Hoover Switch Mounting Plate	34135014	Not Available
30	Not Available	Hoover Mid Pad - S3517	58368007	Not Available
30	Not Available	Hoover Top Support	58362004	Not Available
30	Not Available	Hoover Bottom Support - Rear	58211012	Not Available
30	Not Available	Hoover Bottom Support - Front	58211011	Not Available
30	Not Available	Hoover Owner Manual-S3510 S3510	56513348	Not Available
30	Not Available	Hoover Owner Manual - S3547	56513339	Not Available
30	Not Available	Hoover Owner Manual-S3523	56513332	Not Available
30	Not Available	Hoover Spring-S3523 S3510, S3523, S3527, S3547	38314026	Not Available
30	Not Available	Hoover Caster Spring	38314022	Not Available
32	Not Available	Hoover Hose W/Sc-Abx/Ag-S35 W S/C - S3511, S3519	43434242	Not Available
32	Not Available	Hoover Hose-Abx/Ag-S3523 S3509	43434241	Not Available
32	Not Available	Hoover Rug & Floor Nozzle S3510	43414172	Not Available
32	Not Available	Hoover Wheeled Rug & Floor Nozzle S3519	43414101	Not Available
32		Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover More Product Details	43414064	$3.88Add to cart Product is special order please allow 2-4 weeks for delivery.
32		Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover More Product Details	43414057	$10.55Add to cart Product is special order please allow 2-4 weeks for delivery.
32	No Image	WAND, STRAIGHT 20" W/LOCK PIN POLY More Product Details	H-43453043	$19.99Read more
32	No Image	Crevice Tool, With Locking Tab More Product Details	H-38617017	$9.99Read more
32	Not Available	Hoover Rug & Floor Nozzle Std -S3509, S3511	0M114169	Not Available
33	Not Available	Hoover Rug & Floor Nozzle S3547 (P-188)	43414170	Not Available
33		Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover More Product Details	43453027	$13.26Read more

#	Part image	Description	SKU	Price
01	Not Available	Hoover Nut	12028	Not Available
01	Not Available	Hoover Motor-S3523	43576161	Not Available
02	Not Available	Hoover Washer	21312774	Not Available
03	Not Available	Hoover Fan Cover - S1311	37196065	Not Available
04	Not Available	Hoover Fan	43551008	Not Available
05	Not Available	Hoover Bearing Spacer	31148011	Not Available
06	Not Available	Hoover Diffuser Assembly	43551030	Not Available
08	Not Available	Hoover Armature Assembly Comp	44765220	Not Available
09	Not Available	Hoover Spring U3101/3 U4201	38353004	Not Available
10	Not Available	Hoover Screw S3057-59-61	21429406	Not Available
11	Not Available	Hoover Brush Housing-Only-S	168038AG	Not Available
12	Not Available	Hoover Brush Housing Comp	168506	Not Available
13	Not Available	Hoover Carbon Brush Complete	167679	Not Available
14	Not Available	Hoover Wire Protect Bushing	169702BZ	Not Available
15	Not Available	Hoover Motor Housing Assmbly	42193025	Not Available
16	Not Available	Hoover Field Lamination Bold	21447222	Not Available
17	Not Available	Hoover Lead Wire Assembly	461760	Not Available
18	Not Available	Hoover Motor Mount	36322031	Not Available
19	Not Available	Hoover Field Coil-C2075	45311048	Not Available
