Schematic and parts list for: Hoover Model: S3515
This is a list of parts and a diagram and schematic for: Hoover Model: S3515
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

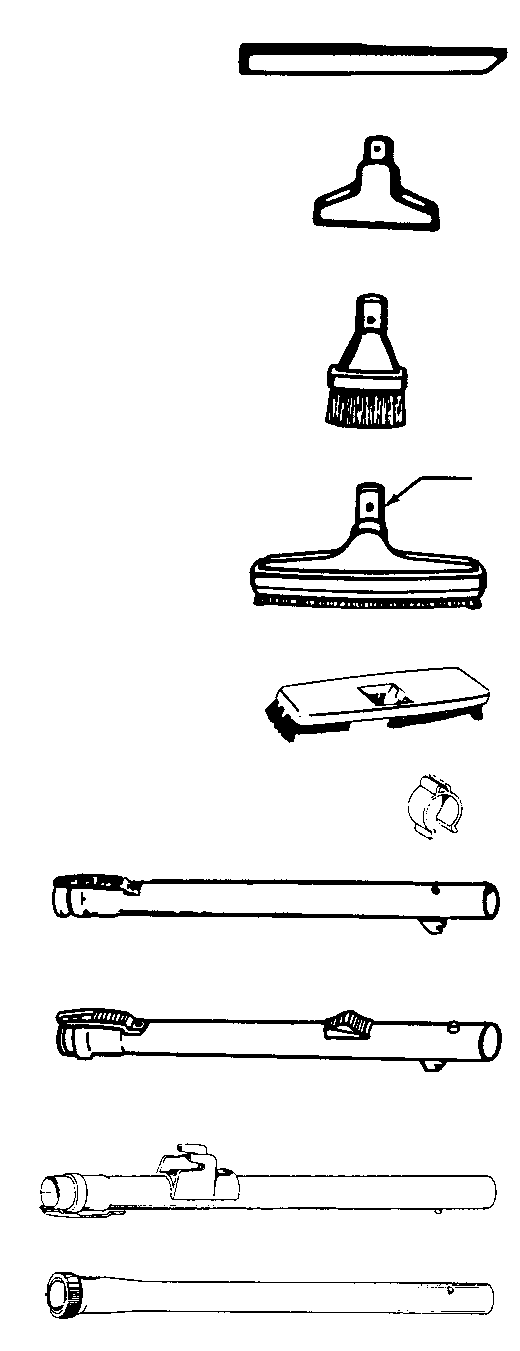

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 02 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Hoover Furniture Nozzle | 43414141 | Not Available |
| 03 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 04 | Not Available | Hoover Swivel Connector | 38644040 | Not Available |
| 05 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Hoover Brush Back -S3273 | 48447001 | Not Available |
| 07 | Not Available | Hoover Cord/Wand Clip | 36172584 | Not Available |
| 08 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 08 | Not Available | Hoover Extension Tube | 43453052 | Not Available |
| 08 | Not Available | Hoover Extension Tube | 43453058 | Not Available |
| 09 | Not Available | Hoover Extension Tube | 43453023 | Not Available |
| 10 | Not Available | Hoover Extension Tube | 43453095 | Not Available |
| 10 | Not Available | Hoover Extension Tube- Gray Storage Clip) (Futura) | 43453098 | Not Available |
| 10 | Not Available | Hoover Extension Tube- (Black Storage Clip) (Windtunnel Canister) | 43453099 | Not Available |
| 11 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hose With Sc | 43434242 | Not Available |
| 01 | Not Available | Hoover Hose Grip | 43466044 | Not Available |
| 01 | Not Available | Hoover Hose Grip With Sc S3527 | 43466068 | Not Available |
| 01 | Not Available | Hoover Hose Grip Assembly S3510 | 43466072 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring | 38711006 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring S3527 | 38711012 | Not Available |
| 02 | Not Available | Hoover Suction Control Ring S3510 | 38711014 | Not Available |
| 03 | Not Available | Hoover Hose Connector | 36171025 | Not Available |
| 04 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 05 | Not Available | Hoover Hose | 38671029 | Not Available |
| 05 | Not Available | Hoover Hose- S3527 | 38671033 | Not Available |
| 05 | Not Available | Hoover Clean Tool Hose-S3510 | 38671034 | Not Available |
| 06 | Not Available | Hoover Hose Connector | 38644044 | Not Available |
| 07 | Not Available | Hoover Hose Release Latch | 36153038 | Not Available |
| 08 | Not Available | Hoover Hose Grip-S1315 | 43466066 | Not Available |
| 08 | Not Available | Hoover Hose Grip Assembly | 43466054 | Not Available |
| 08 | Not Available | Hoover Hose-S3523 | 43434241 | Not Available |
| 09 | Not Available | Hoover Hose Connector | 36171025 | Not Available |
| 10 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 11 | Not Available | Hoover Hose | 38671029 | Not Available |
| 11 | Not Available | Hoover Hose- S3523 | 38671033 | Not Available |
| 12 | Not Available | Hoover Hose Connector | 38644044 | Not Available |
| 13 | Not Available | Hoover Hose Release Latch | 36153038 | Not Available |
| 14 | Not Available | Hoover Hose-S3559 | 43448002 | Not Available |
| 14 | Not Available | Hoover Hose-S3520 | 43433107 | Not Available |
| 14 | Not Available | Hoover Plug Latch-S3603 | 36152029 | Not Available |
| 15 | Not Available | Hoover Hose Release Latch | 36153038 | Not Available |
| 16 | Not Available | Hoover Suction Regulator | 34777005 | Not Available |
| 17 | Not Available | Hoover Latch Ring-S3273 | 36153009 | Not Available |
| 17 | Not Available | Hoover Cord Repair Kit Cord Repair Kit | 40300051 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Wrap-S3523 | 39442034 | Not Available |
| 02 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 03 | Not Available | Hoover Motor Cover-S3517 S3517 (Incl. Item 1) | 41426052 | Not Available |
| 03 | Not Available | Hoover Motor Cover Assembly S3513, S3515 (Incl. Item 1) | 41426055 | Not Available |
| 03 | Not Available | Hoover Motor Cover S3533 (Incl. Item 1) | 41426117 | Not Available |
| 04 | Not Available | Hoover Terminals | 12227 | Not Available |
| 05 | Not Available | Hoover Motor Retainer Assembly (Incl. Items 6,26,27) | 41312040 | Not Available |
| 06 | Not Available | Hoover Retainer Seal-Right Hand | 34633003 | Not Available |
| 07 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 08 | Not Available | Hoover Furniture Guard | 36235069 | Not Available |
| 09 | Not Available | Hoover Motor Assembly | 43576114 | Not Available |
| 09 | Not Available | Hoover Motor Assembly- S3515 (8.0 Amps) (P-235) | 43576116 | Not Available |
| 09 | Not Available | Hoover Motor Assembly- S3515, S3517 (P-249) | 43576118 | Not Available |
| 09 | Not Available | Hoover Motor Assembly- S3513 (P-267) | 43576126 | Not Available |
| 09 | No Image | MOTOR, FUTURA CANISTER S3567 S3569 S3573 S3577 Part Number: 43576186 for Hoover | 43576186 | $187.10Read more |
| 10 | Not Available | Hoover Attachment Cord- S3533 | 46383289 | Not Available |
| 11 | Not Available | Hoover Strain Relief- | 36215033 | Not Available |
| 12 | Not Available | Hoover Main Body Assembly- (Incl. Items 8,13,14,15) | 42215052 | Not Available |
| 13 | Not Available | Hoover Wheel-S3585 | 38522065 | Not Available |
| 14 | Not Available | Hoover Pto Cover-S3515 | 37258130 | Not Available |
| 14 | Not Available | Hoover Pto Cover-S3523 S3533 | 37258134 | Not Available |
| 15 | Not Available | Hoover Wheel Carrier- | 41432040 | Not Available |
| 16 | Not Available | Hoover Bag Collar Support | 36424010 | Not Available |
| 17 | Not Available | Hoover Futura/Spect Bag- Throw Away Bag- 3 Pack | 4010064S | Not Available |
| 18 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 19 | Not Available | Hoover Bag Collar Seal | 36424012 | Not Available |
| 20 | Not Available | Hoover Bag Lid Hinge | 36151027 | Not Available |
| 21 | Not Available | Hoover Filter Retainer | 37944005 | Not Available |
| 22 |  | Filter, :( Secondary Futura Spectrum S3639 Part Number: 38765009 for Hoover | 38765009 | $3.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Hoover Bag Lid Assembly- S3533 (Incl. Items 18, 19, 24, 25) | 42217150 | Not Available |
| 23 | Not Available | Hoover Bag Lid Assembly- S3517 (Incl. Items 18,19,24,25) | 42217135 | Not Available |
| 23 | Not Available | Hoover Bag Lid Assembly- S3515, S3513 (Incl. Items 18,19,24,25) | 42217107 | Not Available |
| 23 | Not Available | Hoover Bag Lid - S3517 S3517 (Incl. Items 18,19,24,25) | 42217065 | Not Available |
| 24 | Not Available | Hoover Torsion Spring | 38351009 | Not Available |
| 25 | Not Available | Hoover Bag Lid Latch- S3515, S3517, S3533 | 36153040 | Not Available |
| 25 | Not Available | Hoover Bag Lid Latch- S3513 | 36153042 | Not Available |
| 26 | Not Available | Hoover Retainer Seal-Left Hand | 34633002 | Not Available |
| 27 | Not Available | Hoover Retainer Seal-Center | 34123040 | Not Available |
| 28 | Not Available | Hoover Switch-F5805 With Terminals | 28218048 | Not Available |
| 28 | Not Available | Hoover Switch | 28212026 | Not Available |
| 29 | Not Available | Hoover Switch Mounting Plate | 34135014 | Not Available |
| 30 | Not Available | Hoover Caster Spring - C504 | 38314022 | Not Available |
| 30 | Not Available | Hoover Spring-S3523 | 38314026 | Not Available |
| 31 | Not Available | Hoover Mid Pad - S3517 | 58368007 | Not Available |
| 31 | Not Available | Hoover Top Support - S3517 | 58362004 | Not Available |
| 31 | Not Available | Hoover Bottom Support - Rear | 58211012 | Not Available |
| 31 | Not Available | Hoover Bottom Support - Front | 58211011 | Not Available |
| 31 | Not Available | Hoover Owner Manual-S3523 | 56513332 | Not Available |
| 31 | Not Available | Hoover Owner Manual-S3559 | 56513330 | Not Available |
| 31 | Not Available | Hoover Switch Pedal Without Post (Use With 28218048 Switch) | 38422164 | Not Available |
| 31 | Not Available | Hoover Switch Pedal - With Post | 38422162 | Not Available |
| 32 | Not Available | Hoover Extention Tube | 43453018 | Not Available |
| 32 | Not Available | Hoover Hose With Sc | 43434242 | Not Available |
| 32 | Not Available | Hoover Wheeled Rear & Front Nozzle | 43414101 | Not Available |
| 32 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 32 | | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Nut | 12028 | Not Available |
| 01 | Not Available | Hoover Motor Assembly | 43576118 | Not Available |
| 02 | Not Available | Hoover Balancing Ring | 31162006 | Not Available |
| 03 | Not Available | Hoover Fan Cover - S1311 | 37196065 | Not Available |
| 04 | Not Available | Hoover Fan | 43551008 | Not Available |
| 05 | Not Available | Hoover Washer | 21312774 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly- S3515, S3517, S3549 | 43551030 | Not Available |
| 06 | Not Available | Hoover Diffuser Assembly | 41551012 | Not Available |
| 07 | Not Available | Hoover Armature Assembly Complete | 44765230 | Not Available |
| 08 | Not Available | Hoover Field Assembly Complete | 45311068 | Not Available |
| 09 | Not Available | Hoover Spring- U4201 | 38353004 | Not Available |
| 10 | Not Available | Hoover Brush Housing | 168038AG | Not Available |
| 11 | Not Available | Hoover Screw S3057 | 21429406 | Not Available |
| 12 | Not Available | Hoover Brush Housing Complete | 168506 | Not Available |
| 13 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 14 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 15 | Not Available | Hoover Motor Housing | 42192015 | Not Available |
| 16 | Not Available | Hoover Screw-Special-S3517 | 21447221 | Not Available |
| 16 | Not Available | Hoover Bolt | 36112003 | Not Available |
| 17 | Not Available | Hoover Motor Mount | 36322031 | Not Available |
| 18 | Not Available | Hoover Balancing Ring/Nut | 36116023 | Not Available |
| 19 | Not Available | Hoover Thrust Washer-C2075 | 21312778 | Not Available |
| 20 | Not Available | Hoover Spring Washer-C2075 | 21345116 | Not Available |
| 21 | Not Available | Hoover Star Ring-C2075 | 24198002 | Not Available |
| 22 | Not Available | Hoover Spacer -C2075 | 31148009 | Not Available |
| 22 | Not Available | Hoover Bearing Spacer | 31148011 | Not Available |
