Schematic and parts list for: Hoover Model: S3471
This is a list of parts and a diagram and schematic for: Hoover Model: S3471
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

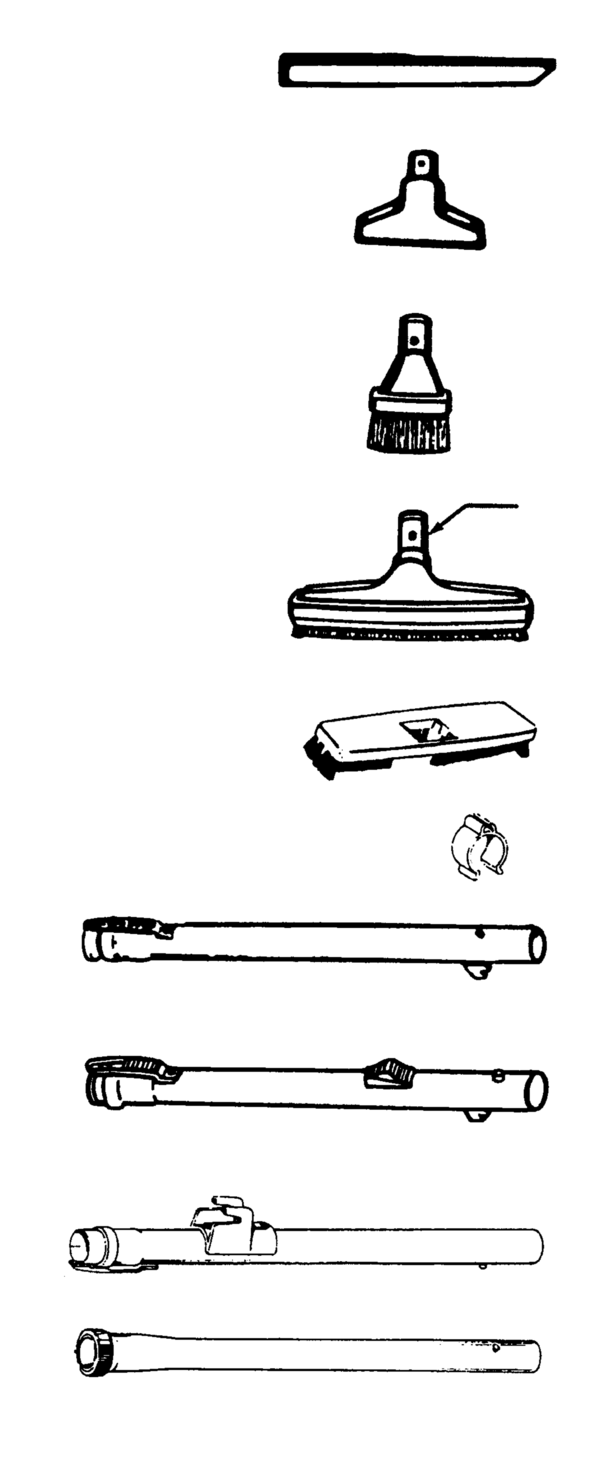

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 1 | Not Available | Hoover Crevice Tool - Aap | 38617018 | Not Available |
| 1 | No Image | CREVICE TOOL, POWERMAX CANISTER Part Number: 38617025 for Hoover | 38617025 | $6.32Read more |
| 2 | Not Available | Hoover Furniture Nozzle - A | 43414071 | Not Available |
| 2 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Furniture Nozzle-Abr | 43414141 | Not Available |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | DUST BRUSH, W/PIN CANISTER BLACK NYLON BRISTLES Part Number: 43414144 for Hoover Replacement | 43414144 | $12.57Read more |
| 4 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 4 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 4 | Not Available | Hoover Swivel Connector-Abr | 38644041 | Not Available |
| 5 | Not Available | Hoover Floor Brush - Aap | 43414088 | Not Available |
| 5 | Not Available | Hoover Floor Brush-Abr | 43414148 | Not Available |
| 5 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 7 | Not Available | Hoover Cord / Wand Clip - Black | 36172584 | Not Available |
| 8 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 8 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 8 | Not Available | Hoover Ext Tube - Bl - 20 | 43453058 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Drive Screw - S5539 | 21124105 | Not Available |
| 1 | Not Available | Hoover Hose Assembly - 3W - | 43433082 | Not Available |
| 2 | Not Available | Hoover Grip-Mv-S3279 | 38634067 | Not Available |
| 3 | Not Available | Hoover Hose Connector-S3279 | 38638030 | Not Available |
| 4 | Not Available | Hoover Hose 3W - Aab | 43433078 | Not Available |
| 4 | Not Available | Hoover Hose-3W-6Ft | 43433061 | Not Available |
| 5 | Not Available | Hoover Insulating Sleeve-S3 | 31712006 | Not Available |
| 6 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 7 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 8 | Not Available | Hoover Hose Grip-Lh-S3575 | 39461008 | Not Available |
| 9 | Not Available | Hoover Grip Cont Panel-Ag-S | 47551025 | Not Available |
| 10 | Not Available | Hoover Latch Ring-S3279 | 36153029 | Not Available |
| 11 | Not Available | Hoover Inner Tube-S3279 | 38646034 | Not Available |
| 12 | Not Available | Hoover Hose Grip-Rh-S3575 | 39461007 | Not Available |
| 13 | Not Available | Hoover Screw-S3279 | 21447124 | Not Available |
| 14 | Not Available | Hoover Retainer Ring-Mv | 36131027 | Not Available |
| 15 | No Image | PLUG, HOSE 3 PIN DIMENSION Part Number: 46521008 for Hoover | 46521008 | $13.92Read more |
| 16 | Not Available | Hoover Hose Repair Kit - Di | 46325024 | Not Available |
| 17 | Not Available | Hoover Wire Splice-S3281 | 27613003 | Not Available |
| 18 | Not Available | Hoover Switch | 28161051 | Not Available |
| 19 | Not Available | Hoover Latch Ring - Mv - S3 | 36153021 | Not Available |
| 19 | Not Available | Hoover Hose Assembly-2W-Aap | 43433087 | Not Available |
| 20 | Not Available | Hoover Suction Regulator-Mv | 34777007 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nameplate-S3281 | 51375073 | Not Available |
| 2 | Not Available | Hoover Lens-S3281 | 39382022 | Not Available |
| 3 | Not Available | Hoover Control Panel-Ag-S32 | 37214083 | Not Available |
| 4 | Not Available | Hoover Rear Deck-Mn-S3283 | 37221017 | Not Available |
| 5 | Not Available | Hoover Screw | 21447125 | Not Available |
| 6 | Not Available | Hoover Switch Button-Ag-S32 | 38421020 | Not Available |
| 7 | Not Available | Hoover Shield-S3281 | 37217007 | Not Available |
| 8 | Not Available | Hoover Nameplate | 51485012 | Not Available |
| 9 | Not Available | Hoover Transducer-S3281 | 47851003 | Not Available |
| 10 | Not Available | Hoover P C Board W/Leads - | 46851021 | Not Available |
| 11 | Not Available | Hoover Locking Plug-S3281 | 36152003 | Not Available |
| 12 | Not Available | Hoover Edge Connector-S3281 | 27719102 | Not Available |
| 13 | Not Available | Hoover Terminal-Insulated-U | 018972- | Not Available |
| 14 | Not Available | Hoover Terminals-0513 | 012227- | Not Available |
| 15 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 16 | Not Available | Hoover Screw | 012954- | Not Available |
| 17 | Not Available | Hoover Bracket-S3273 | 36924005 | Not Available |
| 18 | Not Available | Hoover Seal-S3277 | 31178027 | Not Available |
| 19 | Not Available | Hoover Brush Block-S3273 | 47342008 | Not Available |
| 20 | Not Available | Hoover Vent Tube-S3281 | 31725020 | Not Available |
| 21 | Not Available | Hoover Spring-S3281 | 38315010 | Not Available |
| 22 | Not Available | Hoover Spring-S3273 | 38356006 | Not Available |
| 23 | Not Available | Hoover Brake Pad | 36222008 | Not Available |
| 24 | Not Available | Hoover Pad-C2075 | 34132015 | Not Available |
| 24 | Not Available | Hoover Foam Pad-S3273 | 34132014 | Not Available |
| 25 | Not Available | Hoover Plug Housing - Ag | 37926009 | Not Available |
| 25 | Not Available | Hoover Plug Hsg-Mw-S3283 | 37926008 | Not Available |
| 26 | Not Available | Hoover Brake Arm-S3273 | 38458012 | Not Available |
| 27 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 28 | Not Available | Hoover Seal-S3273 | 34132008 | Not Available |
| 29 | Not Available | Hoover Cord Reel Assembly | 46831025 | Not Available |
| 30 | Not Available | Hoover Rear Panel - Ag | 42224005 | Not Available |
| 31 | Not Available | Hoover Attachment Cord-Aap- | 46383237 | Not Available |
| 32 | Not Available | Hoover Seal-S3273 | 34123025 | Not Available |
| 33 | Not Available | Hoover Ferrule-S3273 | 35253004 | Not Available |
| 34 | Not Available | Hoover Furniture Guard-Rh-M | 36235037 | Not Available |
| 35 | Not Available | Hoover Carbon Brush Complete | 167679- | Not Available |
| 36 | Not Available | Hoover Hi-Limit Thermo-S327 | 28382111 | Not Available |
| 37 | Not Available | Hoover Motor Assembly | 43578082 | Not Available |
| 38 | Not Available | Hoover Motor Cap-S3273 | 37196110 | Not Available |
| 39 | No Image | BELT, V WS2000 Part Number: 644017001 for Singer | 644017001 | $8.38Read more |
| 40 | Not Available | Hoover Seal-Lh-S3273 | 34214002 | Not Available |
| 41 | Not Available | Hoover Seal-S3273 | 34172026 | Not Available |
| 42 | Not Available | Hoover Seal-Rh-S3273 | 34214001 | Not Available |
| 43 | Not Available | Hoover Inside Wheel-S3273 | 43244021 | Not Available |
| 44 | Not Available | Hoover Outside Wheel-Mw-S32 | 32811006 | Not Available |
| 45 | Not Available | Hoover Tire - Ag | 38522053 | Not Available |
| 46 | Not Available | Hoover Screw # 8 - 10 X 1.625" - Self Tapping | 21447121 | Not Available |
| 47 | Not Available | Hoover Lower Case - Ag | 37212138 | Not Available |
| 47 | Not Available | Hoover Lower Case - Mw - S3 | 37212132 | Not Available |
| 48 | Not Available | Hoover Seal-S3273 | 38784013 | Not Available |
| 49 | Not Available | Hoover Caster Wheel-S3273 | 43244025 | Not Available |
| 50 | Not Available | Hoover Tube Adapter-S3273 | 32271003 | Not Available |
| 51 | Not Available | Hoover Seal-S3273 | 38784015 | Not Available |
| 52 | Not Available | Hoover Washer | 21328071 | Not Available |
| 53 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 54 | Not Available | Hoover Slide Latch-S3273 | 36152005 | Not Available |
| 55 | Not Available | Hoover Hose Module - Ag | 37218022 | Not Available |
| 55 | Not Available | Hoover Hose Moduel-Mw-S3283 | 37218021 | Not Available |
| 56 | Not Available | Hoover Slide Button-C2127,C | 38421011 | Not Available |
| 57 | Not Available | Hoover Receptacle-3W-S3281 | 46526006 | Not Available |
| 58 | Not Available | Hoover Clamp-S3273 | 36171009 | Not Available |
| 59 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 60 | Not Available | Hoover Main Frame | 37215106 | Not Available |
| 61 | Not Available | Hoover Bag Collar Support-S | 36425032 | Not Available |
| 62 | Not Available | Hoover 21447003 | 21447003 | Not Available |
| 63 | Not Available | Hoover Seal-S3273 | 38784017 | Not Available |
| 64 | Not Available | Hoover Airflow Control-S328 | 42983015 | Not Available |
| 65 | Not Available | Hoover Sail-S3281 | 38458020 | Not Available |
| 66 | Not Available | Hoover Magnet-S3281 | 39131001 | Not Available |
| 67 | Not Available | Hoover Filter-S3273 | 38765006 | Not Available |
| 68 | Not Available | Hoover Filter Retainer-S327 | 37944004 | Not Available |
| 69 | Not Available | Hoover Spring-S3273 | 38351006 | Not Available |
| 70 | Not Available | Hoover Bag Latch-S3273 | 36153026 | Not Available |
| 71 |  | Paper Bag, Hoover Type M Can Dimension DVC 3Pk Part Number: 406821 for Hoover Replacement | 406821 | $6.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | Hoover Furniture Guard-Lh-M | 36235027 | Not Available |
| 73 | Not Available | Hoover Screw | 21447017 | Not Available |
| 74 | Not Available | Hoover Spring-S3273 | 21378157 | Not Available |
| 75 | Not Available | Hoover Bag Lid - Ag | 42217106 | Not Available |
| 76 | Not Available | Hoover Latch-Mn-S3283 | 36152012 | Not Available |
| 76 | Not Available | Hoover Latch - Ag - S3635 | 36512013 | Not Available |
| 77 | No Image | SPRING, LATCH ASSY C2081-061 COMMERCIAL Part Number: 38313017 for Hoover | 38313017 | $0.37Read more |
| 78 | Not Available | Hoover Pop-Up Button-S3273 | 38411053 | Not Available |
| 79 | Not Available | Hoover Latch Retainer-S3273 | 36131048 | Not Available |
| 80 | Not Available | Hoover Seal-S3273 | 31526003 | Not Available |
| 81 | Not Available | Hoover Vent Tube-S3281 | 31724023 | Not Available |
| 82 | Not Available | Hoover Vent Tube-S3281 | 31724025 | Not Available |
| 83 | Not Available | Hoover Pcb Cover-S3281 | 37922005 | Not Available |
| 84 | Not Available | Hoover Seal-S3281 | 34123024 | Not Available |
| 85 | Not Available | Hoover Seal-S3281 | 34122010 | Not Available |
| 86 | Not Available | Hoover Pad-C2075 | 34132015 | Not Available |
| 87 | Not Available | Hoover Switch-S3281 | 28182001 | Not Available |
| 88 | Not Available | Hoover Screw-S3281 | 21447120 | Not Available |
| 89 | Not Available | Hoover Switch-S3273 | 47511029 | Not Available |
| 90 | Not Available | Hoover Spring | 38313021 | Not Available |
| 91 | Not Available | Hoover Pedal | 38426048 | Not Available |
| 92 | Not Available | Hoover Tool Lid - Aal - Cle | 36433024 | Not Available |
| 94 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 94 | | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 94 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 94 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 94 | Not Available | Hoover Power Nozzle - Aap - | 48438039 | Not Available |
| 94 | Not Available | Hoover Power Nozzle-S5697/9 | 48438255 | Not Available |
| 94 | Not Available | Hoover Hose-3W-Mv-S3281 | 43433024 | Not Available |

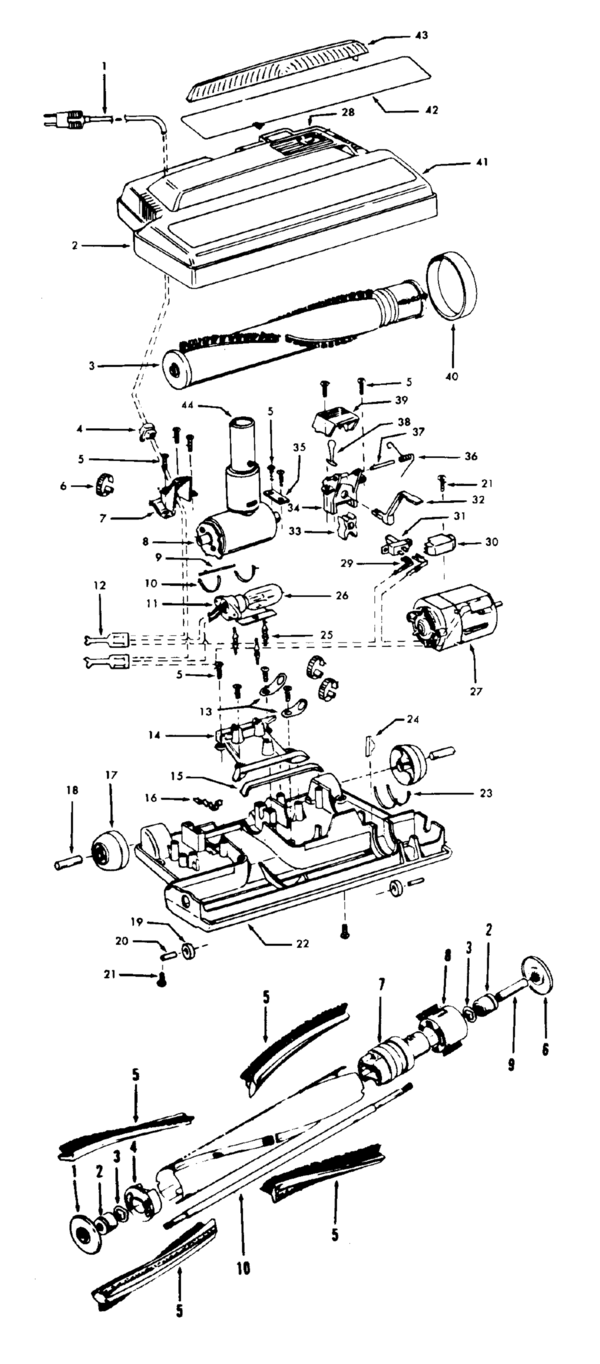

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Cord Assembly | 46321101 | Not Available |
| 1 | Not Available | Hoover Cord | 46321064 | Not Available |
| 1 | Not Available | Hoover Cord - Power Nozzle | 46321061 | Not Available |
| 2 | Not Available | Hoover Furniture Guard-My-S | 36231096 | Not Available |
| 2 | Not Available | Hoover Furniture Guard-Lu | 36231111 | Not Available |
| 2 | Not Available | Hoover Furniture Guard-Ms | 36231103 | Not Available |
| 2 | Not Available | Hoover Furniture Guard-Ww | 36231094 | Not Available |
| 3 | Not Available | Hoover Agitator-4B-S3199 | 48416030 | Not Available |
| 4 | Not Available | Hoover Carton-6460 | 163788- | Not Available |
| 5 | Not Available | Hoover Screw | 21447041 | Not Available |
| 6 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 7 | Not Available | Hoover Retainer Housing - A | 36131067 | Not Available |
| 7 | Not Available | Hoover Retainer Housing - A | 36131066 | Not Available |
| 7 | Not Available | Hoover Ret Housing | 36131033 | Not Available |
| 7 | Not Available | Hoover Retainer Hsg-Aak-S34 | 36131065 | Not Available |
| 7 | Not Available | Hoover Housing-Mx-S3275 | 36131023 | Not Available |
| 8 | Not Available | Hoover Nozz Conn | 43461016 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector Ass | 43461021 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector-Mp | 43461007 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector - A | 43461019 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector-Aak | 43461018 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector-Mn- | 43461015 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector-Mx- | 43461006 | Not Available |
| 8 | Not Available | Hoover Nozzle Connector-Lz | 43461004 | Not Available |
| 9 | Not Available | Hoover Seal | 34112005 | Not Available |
| 10 | Not Available | Hoover Seal | 34337003 | Not Available |
| 11 | Not Available | Hoover Dirt Finder Socket | 47171020 | Not Available |
| 12 | Not Available | Hoover Connector | 036120- | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 14 | Not Available | Hoover Duct Cover - Ag - S3 | 42256101 | Not Available |
| 14 | Not Available | Hoover Duct Cover (Ji) | 42256098 | Not Available |
| 15 | Not Available | Hoover Seal | 34123017 | Not Available |
| 16 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 17 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 21 | Not Available | Hoover Screw | 21447007 | Not Available |
| 22 | Not Available | Hoover Base Pl W/Post & Sho | 42246121 | Not Available |
| 23 | Not Available | Hoover Seal-Upper | 34378010 | Not Available |
| 23 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 24 | Not Available | Hoover Rib Shoe | 013261AY | Not Available |
| 25 | Not Available | Hoover Isolation Grommet S3 | 36218005 | Not Available |
| 26 | Not Available | Hoover Lid & Tool Rack | 42212088 | Not Available |
| 26 | Not Available | Hoover Bag Hsg Lid | 42212053 | Not Available |
| 26 | Not Available | Hoover Bag Housing Lid-Jm-S | 42212122 | Not Available |
| 26 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 26 | Not Available | Hoover Bag Hsg Lid | 42212059 | Not Available |
| 27 | Not Available | Hoover Cord Clip | 170362JM | Not Available |
