Schematic and parts list for: Hoover Model: S3332
This is a list of parts and a diagram and schematic for: Hoover Model: S3332
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

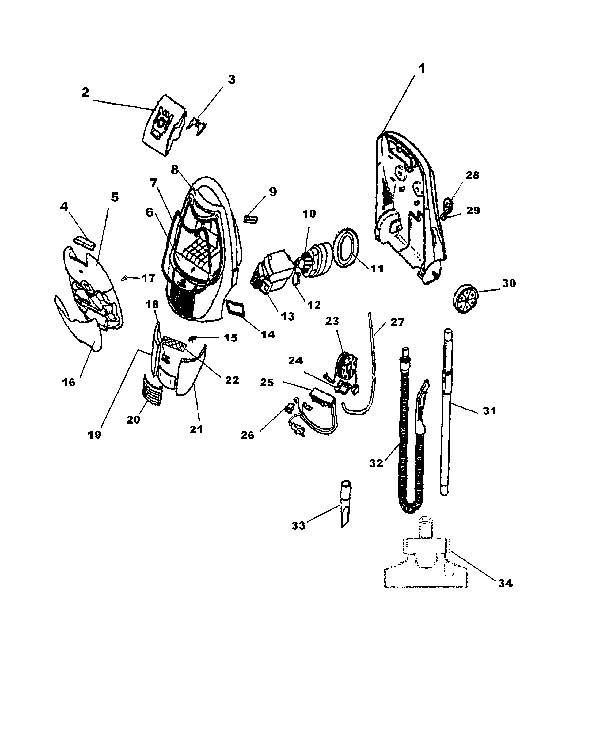

Parts for: Telios Canister Cleaner
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Lower Body Base Assembly | 59135008 | Not Available |
| 02 | No Image | Hoover 40101001 Vacuum Bag and Filter Set, Type H-30 Genuine Original Equipment Manufacutrer (OME) Part | 40101001 | $13.99Read more |
| 03 | Not Available | Hoover Bag Holder | 59135039 | Not Available |
| 04 | Not Available | Hoover Bag Door Latch | 59135015 | Not Available |
| 05 | Not Available | Hoover Bag Door - Metallic Red | 59135013 | Not Available |
| 06 | Not Available | Hoover Control Panel | 59135054 | Not Available |
| 07 | No Image | SEAL, BAG DOOR Part Number: 59135025 for Hoover | 59135025 | $2.14Read more |
| 08 | Not Available | Hoover Upper Body With Handle | 59135007 | Not Available |
| 09 | Not Available | Hoover Bag Check Indicator | 59135026 | Not Available |
| 10 |  | Motor, S3330 Part Number: 59135005 for Hoover | 59135005 | $82.38Read more |
| 11 | Not Available | Hoover Fan Case Seal | 59135004 | Not Available |
| 12 | Not Available | Hoover Rear Motor Mount | 59135006 | Not Available |
| 13 | Not Available | Hoover Motor Housing | 59135055 | Not Available |
| 14 | Not Available | Hoover Motor Housing Seal | 59135024 | Not Available |
| 15 | Not Available | Hoover Pedal Spring | 59135037 | Not Available |
| 16 | Not Available | Hoover Tool Cover - Metallic Red | 59135034 | Not Available |
| 17 | Not Available | Hoover Spring | 59135036 | Not Available |
| 18 | Not Available | Hoover Speed Control Knob | 59135056 | Not Available |
| 19 | Not Available | Hoover On/Off Pedal - Metallic Red | 59135050 | Not Available |
| 20 | Not Available | Hoover Filter Cover - Metallic Red | 59135032 | Not Available |
| 21 | Not Available | Hoover Cord Reel Pedal - Red | 59135052 | Not Available |
| 22 | Not Available | Hoover Noise Reducer | FNLA | Not Available |
| 23 | Not Available | Hoover Cord Reel Complete | 59135060 | Not Available |
| 24 | Not Available | Hoover Plug Pocket | 59135038 | Not Available |
| 25 | Not Available | Hoover Speed Control Module | 59135030 | Not Available |
| 26 | Not Available | Hoover Push Switch | 59135031 | Not Available |
| 27 | Not Available | Hoover Bag Check Indicator Tube | 59135029 | Not Available |
| 28 | Not Available | Hoover Caster Wheel Support | 59135012 | Not Available |
| 29 | Not Available | Hoover Tire Axle | 59135011 | Not Available |
| 30 | Not Available | Hoover Rear Wheel | 59135010 | Not Available |
| 31 |  | Wand, 19" Metal Telescopic S2200 Series Part Number: 59135019 for Hoover | 59135019 | $35.93Read more |
| 32 | Not Available | Hoover Hose Assembly Complete | 59135018 | Not Available |
| 33 | Not Available | Hoover Crevice Tool | 59135021 | Not Available |
| 34 | Not Available | Hoover Potentiometer / Harness | 59135061 | Not Available |
| 34 | Not Available | Hoover Floor Nozzle Brush | 59136049 | Not Available |
| 34 | Not Available | Hoover Red Lead With Fuse | 59135085 | Not Available |
| 34 | No Image | MOTOR HOUSING, FOAM Part Number: 59135086 for Hoover | 59135086 | $0.94Read more |
| 34 | Not Available | Hoover Floor Nozzle Complete | 59136026 | Not Available |
| 34 | Not Available | Hoover Furniture Nozzle | 59135022 | Not Available |
| 34 | Not Available | Hoover Furniture Brush | 59135023 | Not Available |
| 34 | Not Available | Hoover Screw | 59135016 | Not Available |
| 34 | Not Available | Hoover Vent Tube | 59135049 | Not Available |
