Schematic and parts list for: Hoover Model: S3201
This is a list of parts and a diagram and schematic for: Hoover Model: S3201
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

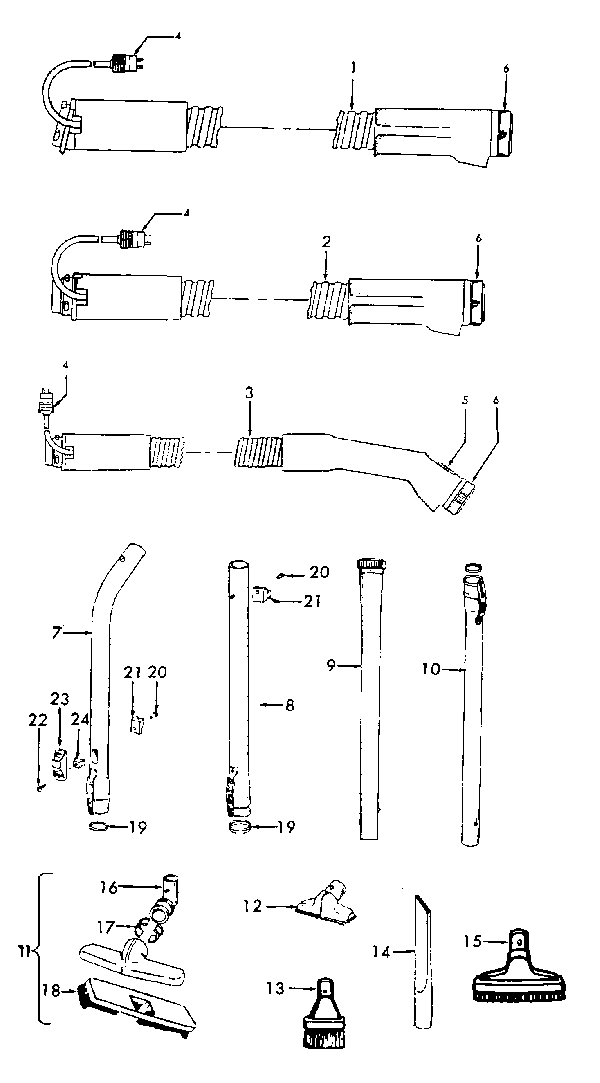

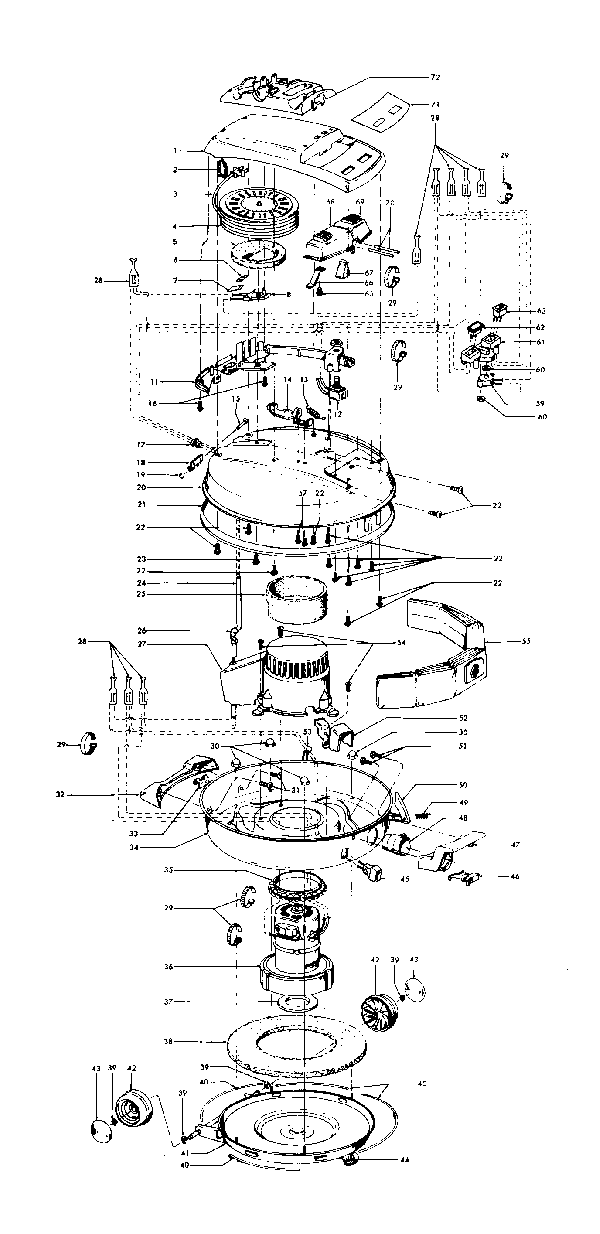

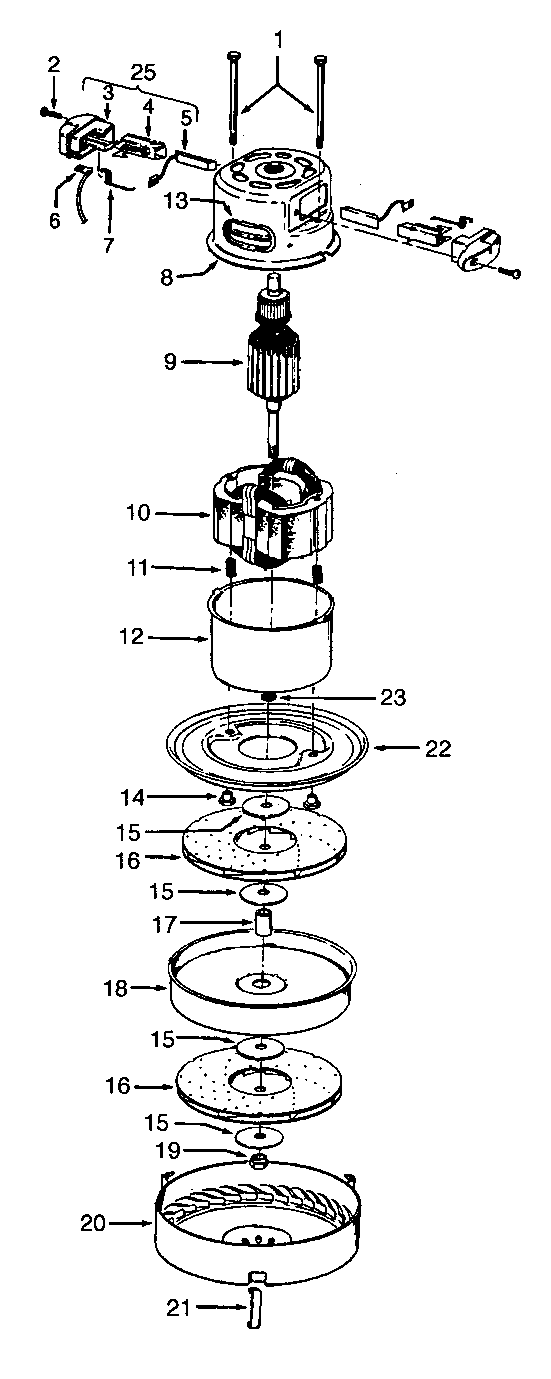

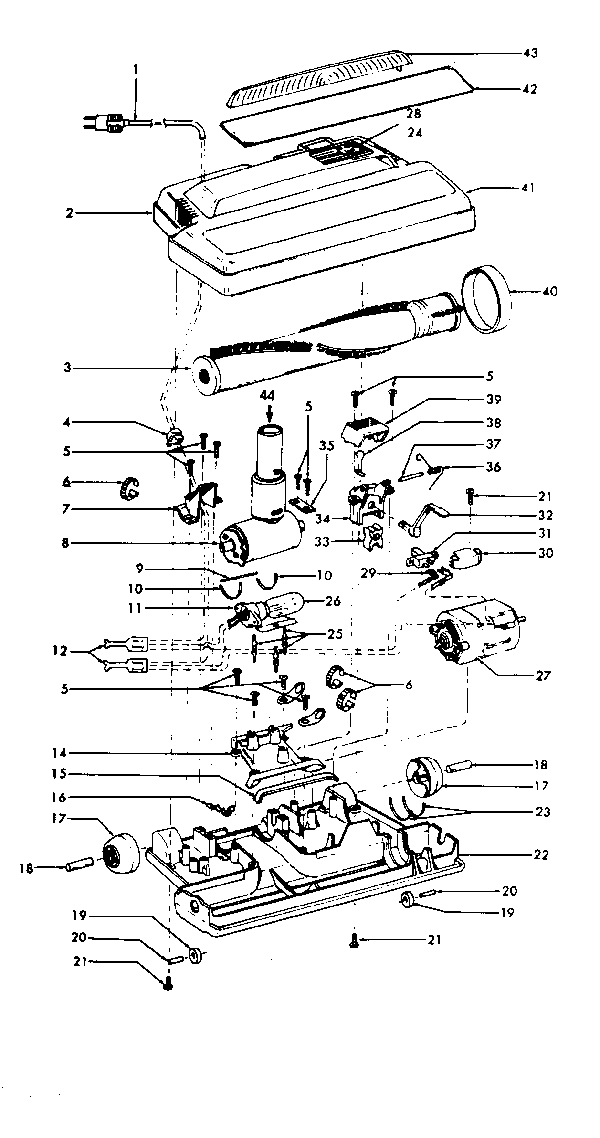

Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Thread Guard U3101 | 41435018 | Not Available |
| 02 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 04 | Not Available | Hoover Agitator End U3101 | 36422001 | Not Available |
| 04 | Not Available | Hoover Agitator End S3425-060 | 41435023 | Not Available |
| 05 | Not Available | Hoover Agitator Brush | 48445017 | Not Available |
| 06 | Not Available | Hoover Agitator Shaft | 160070 | Not Available |
| 08 | Not Available | Hoover Agitator End Pulley | 38537002 | Not Available |
| 09 | Not Available | Hoover Thread Guard U3101 | 41435021 | Not Available |
| 09 | Not Available | Hoover Agitator Assembly S3181, S3189, S3191 | 48416009 | Not Available |
| 10 | Not Available | Hoover Thread Guard Left Hand | 48495AY | Not Available |
| 11 | | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 13 | Not Available | Hoover Agitator End | 41435023 | Not Available |
| 14 | Not Available | Hoover Agitator Brush | 48445017 | Not Available |
| 15 | Not Available | Hoover Thread Guard U3101/3 | 41435018 | Not Available |
| 16 | Not Available | Hoover End Pulley | 38537008 | Not Available |
| 17 | Not Available | Hoover Brush Ring-S3199 | 48418001 | Not Available |
| 18 | Not Available | Hoover Spacer | 31722019 | Not Available |
| 19 | Not Available | Hoover Agitator Shaft | 32724005 | Not Available |
| 20 | Not Available | Hoover Agitator-4B-S3199 | 48416030 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Reel Cover | 37215115 | Not Available |
| 01 | Not Available | Hoover Cord Reel Cover | 37215117 | Not Available |
| 02 | Not Available | Hoover Cord Guide | 36218014 | Not Available |
| 03 | Not Available | Hoover Attachment Cord 25' | 0M100206 | Not Available |
| 03 | Not Available | Hoover Attachment Cord 23' | 46383308 | Not Available |
| 04 | Not Available | Hoover Cord Reel Assembly | 46831106 | Not Available |
| 05 | Not Available | Hoover Seal-S3129 | 31193010 | Not Available |
| 06 | Not Available | Hoover Speed Nut-S3129 | 21366004 | Not Available |
| 07 | Not Available | Hoover Wire Shield-S3187 | 34141004 | Not Available |
| 08 | Not Available | Hoover Brush Block Assembly | 47348045 | Not Available |
| 11 | Not Available | Hoover Cover Plate-S3237 | 37215137 | Not Available |
| 11 | Not Available | Hoover Cover Plate-S3199 | 37215136 | Not Available |
| 11 | Not Available | Hoover Cover Plate-S3153 | 37215135 | Not Available |
| 12 | No Image | SWITCH, S3199 CELEBRITY ONLY Part Number: 28212004 for Hoover | 28212004 | $19.57Read more |
| 13 | Not Available | Hoover Spring-S3129 | 38332001 | Not Available |
| 14 | Not Available | Hoover Brake | 43138024 | Not Available |
| 15 | No Image | SWITCH, MC6601, MCV6602, MCV6603 Part Number: AMC414-7938 for Panasonic | AMC4147938 | $18.91Read more |
| 16 | Not Available | Hoover Screw | 21447003 | Not Available |
| 17 | Not Available | Hoover Strain Relief Bushing | 27482120 | Not Available |
| 18 | Not Available | Hoover Hinge Leaf-Upper | 35214004 | Not Available |
| 19 | Not Available | Hoover Retaining Ring | 48123AV | Not Available |
| 20 | Not Available | Hoover Upper Shell-S3141 | 42211267 | Not Available |
| 21 | Not Available | Hoover Furniture Guard | 170361JM | Not Available |
| 21 | Not Available | Hoover Furniture Guard | 170361LR | Not Available |
| 21 | Not Available | Hoover Furniture Guard | 170361LZ | Not Available |
| 22 | Not Available | Hoover Screw | 21447014 | Not Available |
| 23 | Not Available | Hoover Screw | 21447003 | Not Available |
| 24 | Not Available | Hoover Pigtail Cord | 46511006 | Not Available |
| 25 | Not Available | Hoover Filter-S3125 | 38764006 | Not Available |
| 26 | Not Available | Hoover Strain Relief | 27482227 | Not Available |
| 27 | No Image | MOTOR COVER-OEM HOOVER DELUXE CELEBRITY Part Number: 37196070 for Hoover | 37196070 | $13.03Read more |
| 28 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 29 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 30 | Not Available | Hoover Nut | 21851003 | Not Available |
| 31 | Not Available | Hoover Screw | 21447014 | Not Available |
| 32 | Not Available | Hoover Rest Pad-S3123 | 36921008 | Not Available |
| 32 | Not Available | Hoover Rest Pad-S3193 | 36921011 | Not Available |
| 33 | Not Available | Hoover Hinge Leaf-Lower | 170348AW | Not Available |
| 34 | Not Available | Hoover Interm Shell-S3237 | 42213029 | Not Available |
| 35 | Not Available | Hoover Motor Mount-Upper | 169293 | Not Available |
| 36 | Not Available | Hoover Motor-3.7 | 43577093 | Not Available |
| 37 | Not Available | Hoover Compression Pad | 31178015 | Not Available |
| 38 | Not Available | Hoover Muffler-S3183 | 31178012 | Not Available |
| 39 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 40 | Not Available | Hoover Gasket-S3183 | 34111002 | Not Available |
| 41 | Not Available | Hoover Bottom Pan-S3237 | 41421276 | Not Available |
| 41 | Not Available | Hoover Bottom Pan-S3239 | 41421277 | Not Available |
| 42 | Not Available | Hoover Rear Wheel-S3199 | 38522026 | Not Available |
| 42 | Not Available | Hoover Rear Wheel | 38522032 | Not Available |
| 43 | Not Available | Hoover Wheel Cover | 37912013 | Not Available |
| 43 | Not Available | Hoover Wheel Cover-S3001 | 169242 | Not Available |
| 44 | Not Available | Hoover Caster Wheel | 23737202 | Not Available |
| 45 | Not Available | Hoover Receptacle | 46326096 | Not Available |
| 46 | Not Available | Hoover Latch S3057 | 36151012 | Not Available |
| 47 | Not Available | Hoover Handle-Md-S3239 | 39457012 | Not Available |
| 47 | Not Available | Hoover Handle-M-S3237 | 39457011 | Not Available |
| 47 | Not Available | Hoover Handle-Lu-S3191 | 39457009 | Not Available |
| 47 | Not Available | Hoover Handle-Jm-S3A01 | 39457006 | Not Available |
| 48 | Not Available | Hoover Bag Coll Connector | 170352AG | Not Available |
| 49 | Not Available | Hoover Latch Link Spring | 048512FW | Not Available |
| 50 | Not Available | Hoover Latch | 016439LT | Not Available |
| 50 | Not Available | Hoover Shell Cover Latch | 016439JX | Not Available |
| 50 | Not Available | Hoover Shell Cover Latch | 016439EW | Not Available |
| 51 | Not Available | Hoover Screw | 21447024 | Not Available |
| 52 | Not Available | Hoover Wire Cover-S3141 | 37959020 | Not Available |
| 53 | Not Available | Hoover Retainer Clip - Form | 34723001 | Not Available |
| 54 | Not Available | Hoover Screw | 017001FW | Not Available |
| 55 | Not Available | Hoover Celebrity Bag - 3-Pack | 4010009H | Not Available |
| 57 | Not Available | Hoover Screw | 38198 | Not Available |
| 59 | Not Available | Hoover Vacuum Switch-S3141 | 28375002 | Not Available |
| 60 | Not Available | Hoover Foam Seal-S3141 | 31144003 | Not Available |
| 61 | Not Available | Hoover Switch Mount-S3141 | 42914004 | Not Available |
| 62 | Not Available | Hoover Indicator Light-S314 | 27333004 | Not Available |
| 63 | Not Available | Hoover Switch-S3141 | 28162006 | Not Available |
| 65 | Not Available | Hoover Screw | 21447017 | Not Available |
| 66 | Not Available | Hoover Cam-S3129 | 34661007 | Not Available |
| 67 | Not Available | Hoover Pedal Spring-S3129 | 34783003 | Not Available |
| 68 | Not Available | Hoover Brake Pedal-S3199 | 38433057 | Not Available |
| 68 | Not Available | Hoover Brake Pedal-S3237 | 38433060 | Not Available |
| 68 | Not Available | Hoover Brake Pedal-S3239 | 38433061 | Not Available |
| 69 | Not Available | Hoover Switch Pedal-S323 | 38433047 | Not Available |
| 69 | Not Available | Hoover Switch Pedal-S319 | 38433052 | Not Available |
| 69 | Not Available | Hoover Switch Pedal-S319 | 38433053 | Not Available |
| 70 | Not Available | Hoover Shaft-S3129 | 31514004 | Not Available |
| 71 | Not Available | Hoover Nameplate-S3237 | 51375048 | Not Available |
| 71 | Not Available | Hoover Nameplate-S3199 | 51375052 | Not Available |
| 71 | Not Available | Hoover Nameplate-S3201 | 51375053 | Not Available |
| 72 | Not Available | Hoover Bottom Support | 58343015 | Not Available |
| 72 | Not Available | Hoover Owner Manual-S3237 | 56513194 | Not Available |
| 72 | Not Available | Hoover Owner Manual-S3199 | 56513133 | Not Available |
| 72 | Not Available | Hoover Power Nozzle | 48438059 | Not Available |
| 72 | Not Available | Hoover Power Nozzle | 48438056 | Not Available |
| 72 | Not Available | Hoover Power Nozzle | 48438055 | Not Available |
| 72 | Not Available | Hoover Commutator Block | 46831076 | Not Available |
| 72 | Not Available | Hoover Cur Carry Hose | 43433085 | Not Available |
| 72 | Not Available | Hoover Tool Rack-S3237 | 36433034 | Not Available |
| 72 | Not Available | Hoover Tool Rack-S3199 | 36433032 | Not Available |
| 72 | Not Available | Hoover Tool Rack-S3153 | 36433031 | Not Available |
| 72 | Not Available | Hoover Top Support-S3129 | 58346003 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cur Carry Hose | 43433085 | Not Available |
| 02 | Not Available | Hoover El Hose 5-1/2' | 43433032 | Not Available |
| 03 | Not Available | Hoover Hose-2W-S/C | 43433067 | Not Available |
| 03 | Not Available | Hoover Hose Complete-2 Wire | 43433081 | Not Available |
| 03 | Not Available | Hoover Hose Assembly | 43433084 | Not Available |
| 03 | Not Available | Hoover Hose-2W-S3420 | 43433111 | Not Available |
| 04 | Not Available | Hoover Repair Kit | 46321076 | Not Available |
| 05 | Not Available | Hoover Suction Regulator | 34777007 | Not Available |
| 05 | Not Available | Hoover Suction Regulator | 34777005 | Not Available |
| 06 | Not Available | Hoover Latch Ring | 36153009 | Not Available |
| 07 | Not Available | Hoover Hose Tube Assembly | 43468055 | Not Available |
| 08 | Not Available | Hoover Extension Wand | 43453035 | Not Available |
| 08 | Not Available | Hoover Extension Tube | 43453052 | Not Available |
| 08 | Not Available | Hoover Extension Tube | 43453058 | Not Available |
| 08 | Not Available | Hoover Extension Wand | 43453086 | Not Available |
| 09 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 10 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 11 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Furniture Nozzle | 38614023 | Not Available |
| 12 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 15 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 15 | Not Available | Hoover Furniture Brush | 43414016 | Not Available |
| 16 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 16 | Not Available | Hoover Swivel Connector | 38644040 | Not Available |
| 17 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 18 | Not Available | Hoover Brush Back -S3273 | 48447001 | Not Available |
| 19 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 20 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 21 | Not Available | Hoover Cord Clip - Mv | 36171008 | Not Available |
| 22 | Not Available | Hoover Screw | 13275 | Not Available |
| 23 | Not Available | Hoover Suction Reg | 13142AG | Not Available |
| 24 | Not Available | Hoover Suction Regulator | 013257BZ | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Field Lamination Bolt | 12022 | Not Available |
| 01 | Not Available | Hoover Motor-3.7 | 43577093 | Not Available |
| 01 | Not Available | Hoover Motor-2.6 S3195 | 43577101 | Not Available |
| 02 | Not Available | Hoover Screw -S3057 | 21429406 | Not Available |
| 03 | Not Available | Hoover Br Housing | 168038 | Not Available |
| 04 | Not Available | Hoover Brush Housing Complete | 168506 | Not Available |
| 05 | Not Available | Hoover Carbon Brush Complete | 167679 | Not Available |
| 06 | Not Available | Hoover Terminal-S3005 | 27666551 | Not Available |
| 07 | Not Available | Hoover Spring U3101 | 38353004 | Not Available |
| 08 | Not Available | Hoover Motor Housing-Upper | 169706 | Not Available |
| 09 | Not Available | Hoover Armature-S3137 | 44765078 | Not Available |
| 09 | Not Available | Hoover Armature-S3153 | 44765106 | Not Available |
| 10 | Not Available | Hoover Field-S3137 | 45311017 | Not Available |
| 10 | Not Available | Hoover Field-S3153 | 45311018 | Not Available |
| 11 | Not Available | Hoover Spring | 38311016 | Not Available |
| 11 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 12 |  | HOUSING, LOWER MOTOR Part Number: 41823001 for Hoover | 41823001 | $18.79Read more |
| 13 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 14 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| 15 | Not Available | Hoover Washer | 21312774 | Not Available |
| 16 | Not Available | Hoover Fan-S3153 | 43566006 | Not Available |
| 17 | Not Available | Hoover Spacer-S3003 | 31732003H | Not Available |
| 18 | Not Available | Hoover Interstage Complete | 169712 | Not Available |
| 19 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 20 | Not Available | Hoover Diffuser | 37218005 | Not Available |
| 21 | Not Available | Hoover Spring Clip-Long | 34786002 | Not Available |
| 22 | Not Available | Hoover Motor Mounting Plate | 169713FW | Not Available |
| 23 | Not Available | Hoover Spacer | 31148002 | Not Available |
| 25 | Not Available | Hoover Brush Housing Complete | 168506 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Cord Assembly | 46321005 | Not Available |
| 02 | Not Available | Hoover Furniture Guard- S3201, S3219, S3233 | 36231096 | Not Available |
| 02 | Not Available | Hoover Furniture Guard- S3199 | 36231110 | Not Available |
| 03 | Not Available | Hoover Agitator | 48416030 | Not Available |
| 04 | Not Available | Hoover Strain Relief | 163768 | Not Available |
| 05 | Not Available | Hoover Screw | 21447041 | Not Available |
| 06 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 07 | Not Available | Hoover Retainer Housing- S3201, S3219, S3233 | 36131020 | Not Available |
| 07 | Not Available | Hoover Housing- S3199 | 36131024 | Not Available |
| 08 | Not Available | Hoover Nozzle Connector Assembly | 43461021 | Not Available |
| 09 | Not Available | Hoover Seal | 34112005 | Not Available |
| 10 | Not Available | Hoover Seal | 34337003 | Not Available |
| 11 | Not Available | Hoover Socket | 47171009 | Not Available |
| 12 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 14 | Not Available | Hoover Duct Cover | 42256098 | Not Available |
| 15 | Not Available | Hoover Seal | 34123017 | Not Available |
| 16 | Not Available | Hoover Detent Spring | 35276001 | Not Available |
| 17 | Not Available | Hoover Wheel | 32175025 | Not Available |
| 18 | Not Available | Hoover Wheel Shaft-S3199 | 31523005 | Not Available |
| 19 |  | Wheel, :( Front Quadraflex Power Nozzle Part Number: 32761001 for Hoover | 32761001 | $4.29Read more |
| 20 | Not Available | Hoover Wheel Shaft | 31522004 | Not Available |
| 21 | Not Available | Hoover Screw | 21447007 | Not Available |
| 22 | Not Available | Hoover Base Plate With Post (Inc. Items 17, 18, 19, 20, 23) | 42246121 | Not Available |
| 23 | Not Available | Hoover Seal-Lower | 34337004 | Not Available |
| 23 | Not Available | Hoover Seal-Upper | 34378010 | Not Available |
| 24 | Not Available | Hoover Nameplate- S3199 | 51865018 | Not Available |
| 24 | Not Available | Hoover Indicator Nameplate- S3201, S3219, S3233 | 51371010 | Not Available |
| 25 | Not Available | Hoover Isolation Grommet | 36218005 | Not Available |
| 26 | Not Available | Hoover Dirt Finder Lamp | 27317307 | Not Available |
| 27 | Not Available | Hoover Motor - Power Nozzle | 43177073 | Not Available |
| 28 | Not Available | Hoover Indicator Lens S3147 | 39382013 | Not Available |
| 29 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 30 | Not Available | Hoover Shield | 37258082 | Not Available |
| 31 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 32 | Not Available | Hoover Indicator | 51151053 | Not Available |
| 33 | Not Available | Hoover Switch Actuator | 34361001 | Not Available |
| 34 | Not Available | Hoover Actuator Housing | 42262032 | Not Available |
| 35 | Not Available | Hoover Retainer | 36131017 | Not Available |
| 36 | No Image | SPRING, TORSION Part Number: 38353007 for Hoover | 38353007 | $2.59Read more |
| 37 | Not Available | Hoover Pivot Pin | 31523006 | Not Available |
| 38 | Not Available | Hoover Depressor | 38458002 | Not Available |
| 39 | Not Available | Hoover Switch Pedal- S3201, S3219, S3233 | 38433044 | Not Available |
| 39 | Not Available | Hoover Switch Pedal | 38433066 | Not Available |
| 40 | No Image | Belt, Old Style Hoover Power Nozzle | 38528011 | $5.99Add to cart |
| 41 | Not Available | Hoover Nozzle Body S3201, S3219, S3233 | 42252057 | Not Available |
| 41 | Not Available | Hoover Nozzle Body S3199 | 42252189 | Not Available |
| 42 | Not Available | Hoover Nameplate- S3201, S3219 | 52125092 | Not Available |
| 42 | Not Available | Hoover Nameplate- S3199 | 51375041 | Not Available |
| 43 | Not Available | Hoover Lens | 39383060 | Not Available |
| 44 | Not Available | Hoover Swivel Tube- S3201, S3219, S3233, S3199 | 43457037 | Not Available |
| 44 | Not Available | Hoover Power Nozzle- S3201, S3219, S3233 | 48438055 | Not Available |
| 44 | Not Available | Hoover Power Nozzle- S3199 | 48438056 | Not Available |
