Schematic and parts list for: Hoover Model: S3185
This is a list of parts and a diagram and schematic for: Hoover Model: S3185
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

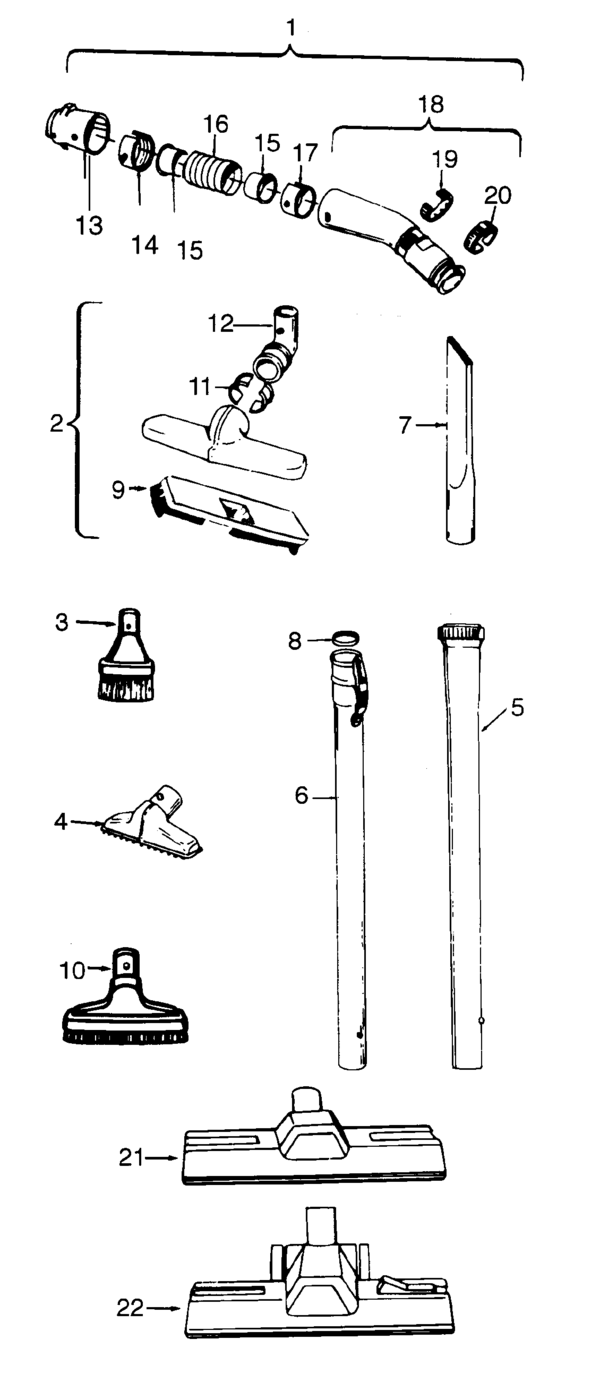

Parts for: Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hose-Jm-Molded-Spiri | 43434130 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-S/C- | 43434125 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-Molded-6 | 43434231 | Not Available |
| 1 | Not Available | Hoover Hose-Ag/Abx-6 | 43434233 | Not Available |
| 1 | Not Available | Hoover Hose Complete-Abx | 43434191 | Not Available |
| 1 | Not Available | Hoover Hose-Jm-S3203 | 43434155 | Not Available |
| 1 | Not Available | Hoover Hose-Aap-7-Molded-Sp | 43434131 | Not Available |
| 1 | Not Available | Hoover Aav Molded Hose S/C- | 43434126 | Not Available |
| 1 | Not Available | Hoover Hose-Jm | 43434065 | Not Available |
| 1 | Not Available | Hoover Hose Assem-C2075-080 | 43434013 | Not Available |
| 2 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Floor Brush-Jm | 43414072 | Not Available |
| 3 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Furniture Nozzle-S10 | 38614020 | Not Available |
| 4 | Not Available | Hoover Furniture Nozzle - A | 38614024 | Not Available |
| 4 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Extension Tube-Poly | 43453037 | Not Available |
| 5 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| 6 | Not Available | Hoover Ext Tube-20-Ax | 43453052 | Not Available |
| 7 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 8 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 9 | Not Available | Hoover Brush Back -S3273-S3 | 48447001 | Not Available |
| 10 | Not Available | Hoover Furniture Brush-Ag | 43414016 | Not Available |
| 10 | Not Available | Hoover Multi-Purpose Brush | 43414015 | Not Available |
| 11 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644020 | Not Available |
| 12 | Not Available | Hoover Swivel Connector - A | 38644040 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag | 32855003 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap-S | 38638019 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Aap | 38638017 | Not Available |
| 13 | Not Available | Hoover Hose Connector-Ag-S3 | 38638039 | Not Available |
| 14 | Not Available | Hoover Hose Connector Colla | 38671011 | Not Available |
| 14 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 16 | Not Available | Hoover Hose-Abx-S3393-040 | 38671033 | Not Available |
| 16 | Not Available | Hoover Hose - Aav | 38671029 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 17 | Not Available | Hoover Hose Connector Colla | 36171025 | Not Available |
| 18 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 18 | Not Available | Hoover Hose Grip-Ag-S1315 | 43466066 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711007 | Not Available |
| 19 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 20 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 21 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 22 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |

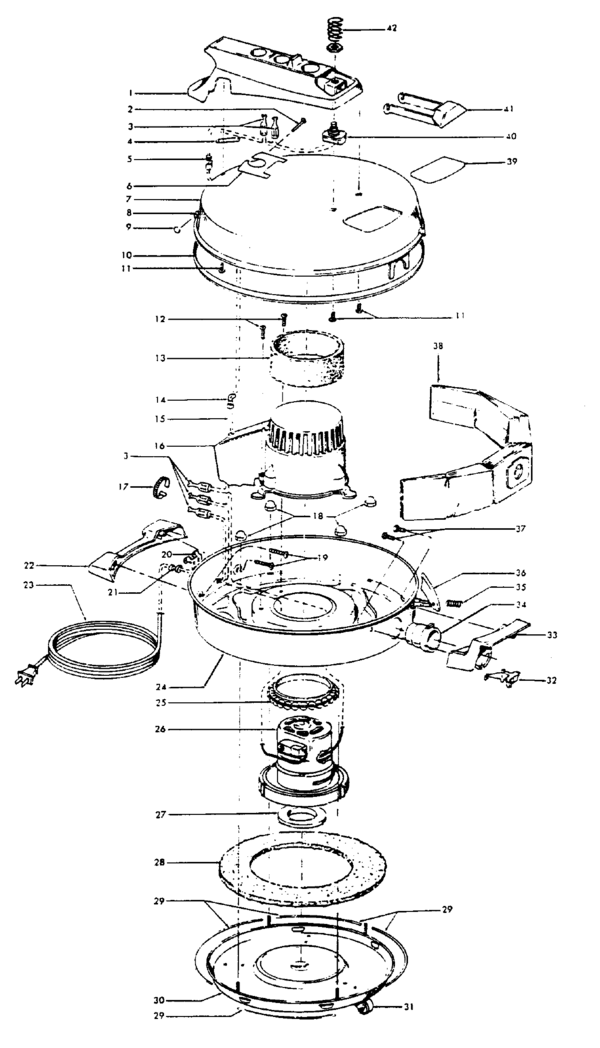

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Tool Rack-Kx-S3135 | 36433002 | Not Available |
| 2 | Not Available | Hoover Pin | 047938- | Not Available |
| 3 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 4 | Not Available | Hoover Speed Nut-S3125 | 21366003 | Not Available |
| 5 | Not Available | Hoover Strain Relief | 27482124 | Not Available |
| 6 | Not Available | Hoover Wire Shield-S3125 | 34363002 | Not Available |
| 7 | Not Available | Hoover Upper Shell - Jm | 42211338 | Not Available |
| 8 | Not Available | Hoover Hinge Leaf-Upper-S31 | 35214004 | Not Available |
| 9 | Not Available | Hoover Ret Ring | 48123AV- | Not Available |
| 10 | Not Available | Hoover Furniture Guard-S305 | 170361JM | Not Available |
| 11 | Not Available | Hoover Screw - S3005 | 166735EF | Not Available |
| 12 | Not Available | Hoover Screw | 017001FW | Not Available |
| 13 | Not Available | Hoover Filter-S3125 | 38764006 | Not Available |
| 14 | Not Available | Hoover Strain Relief | 27482227 | Not Available |
| 15 | Not Available | Hoover Pigtail Cord-S3125 | 46311112 | Not Available |
| 16 | Not Available | Hoover Motor Cover-Jm-S3125 | 37196060 | Not Available |
| 17 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 18 | Not Available | Hoover Nut | 21851003 | Not Available |
| 19 | Not Available | Hoover Screw | 21447014 | Not Available |
| 20 | Not Available | Hoover Hinge Leaf-Lower | 170348AW | Not Available |
| 21 | Not Available | Hoover Strain Relief | 27482301 | Not Available |
| 22 | Not Available | Hoover Rest Pad-Jj-S3123 | 36921008 | Not Available |
| 23 | Not Available | Hoover Attach Cord -App-S31 | 46363224 | Not Available |
| 24 | Not Available | Hoover Intermediate Shell - | 42213367 | Not Available |
| 25 | Not Available | Hoover Motor Mount-Upper S3003 | 169293- | Not Available |
| 26 | Not Available | Hoover Motor-1.7-S3183 | 43177017 | Not Available |
| 27 | Not Available | Hoover Compression Pad-S318 | 31178015 | Not Available |
| 28 | Not Available | Hoover Muffler-S3183 | 31178012 | Not Available |
| 29 | Not Available | Hoover Gasket-S3183 | 34111002 | Not Available |
| 30 | Not Available | Hoover Bottom Pan - Jm | 41421326 | Not Available |
| 31 | Not Available | Hoover Caster Wheel | 23737202 | Not Available |
| 32 | Not Available | Hoover Latch S3057-59-61 | 36151012 | Not Available |
| 33 | Not Available | Hoover Handle-Jm-S3A01 | 39457006 | Not Available |
| 34 | Not Available | Hoover Bag Coll Connector | 170352AG | Not Available |
| 35 | Not Available | Hoover Latch Link Spring-85 | 048512FW | Not Available |
| 36 | Not Available | Hoover Shell Cover Latch Co | 016439JX | Not Available |
| 37 | Not Available | Hoover Screw | 21447024 | Not Available |
| 38 | Not Available | Hoover Celebrity Bag - 3-Pk | 4010009H | Not Available |
| 39 | Not Available | Hoover Nameplate-S3183 | 52125056 | Not Available |
| 40 | Not Available | Hoover Switch | 28212026 | Not Available |
| 41 | Not Available | Hoover Switch Button-Jr-S31 | 38456069 | Not Available |
| 42 | Not Available | Hoover Bottom Support - S31 | 58343015 | Not Available |
| 42 | Not Available | Hoover Owner Manual-S3185 | 56513132 | Not Available |
| 42 | Not Available | Hoover Top Support - S3217 | 58347002 | Not Available |
| 42 | No Image | SPRING, PUSH SWITCH SPIRIT 3487 Part Number: 38314002 for Hoover | 38314002 | $1.63Read more |

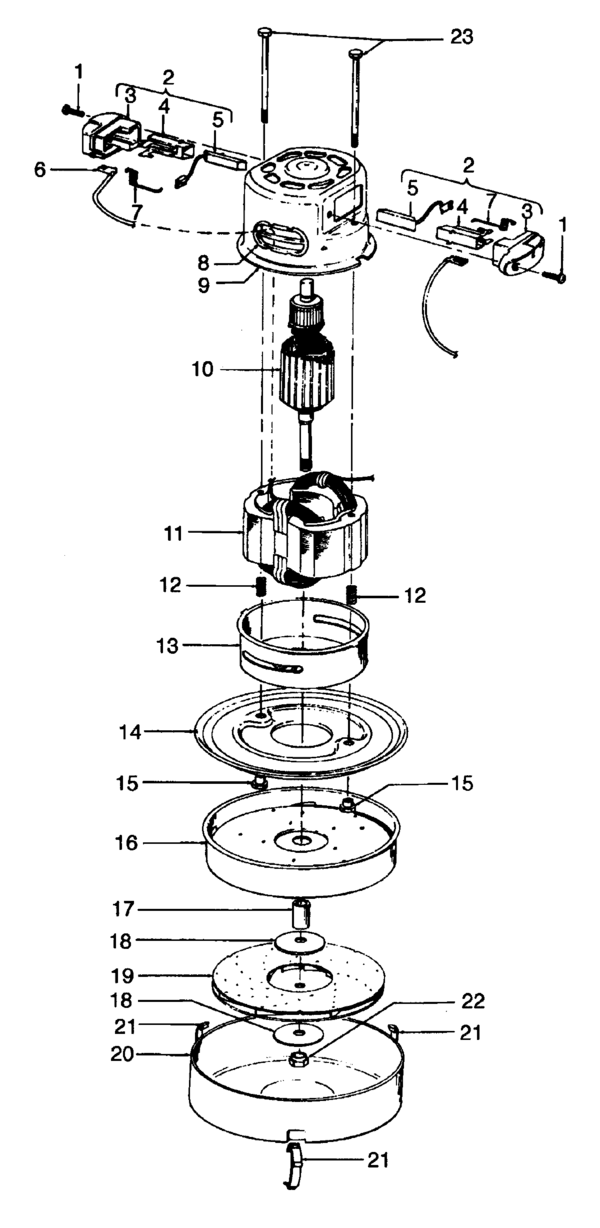

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw S3057-59-61 | 21429406 | Not Available |
| 2 |  | Hoover Conquest, Spirit, PowerMax Vacuum Carbon Brush W/Carrier, Spring 47318008 | 47318008 | $12.99Read more |
| 3 | Not Available | Hoover Brush Housing-Only-S | 167696AG | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Carbon Brush And Terminal | 167681- | Not Available |
| 6 | Not Available | Hoover Terminal-S3005 | 27666551 | Not Available |
| 7 | Not Available | Hoover Spring | 38353604 | Not Available |
| 8 | Not Available | Hoover Wire Protect Bushing | 169702BZ | Not Available |
| 9 | Not Available | Hoover Motor Housing-Upper- | 169707- | Not Available |
| 10 | Not Available | Hoover Armature-S3183 | 44765153 | Not Available |
| 11 | Not Available | Hoover Field-S3121 | 45311021 | Not Available |
| 12 | Not Available | Hoover Spring-S3005 | 167721FW | Not Available |
| 13 | No Image | HOUSING, LOWER MOTOR CELEBRITY 3005/3159/3167 Part Number: 41823002 for Hoover | 41823002 | $18.04Read more |
| 14 | Not Available | Hoover Motor Mounting Plate | 169713FW | Not Available |
| 15 | Not Available | Hoover Nut - Special S3005 | 167695EF | Not Available |
| 16 | Not Available | Hoover Interstage Complete- | 169712- | Not Available |
| 17 | Not Available | Hoover Fan Spacer-S1015-075 | 31742010 | Not Available |
| 18 | Not Available | Hoover Washer | 21312774 | Not Available |
| 19 | Not Available | Hoover Fan-S3153 | 43566006 | Not Available |
| 20 | Not Available | Hoover Diffuser | 37218005 | Not Available |
| 21 | Not Available | Hoover Spring Clip-Long | 34786002 | Not Available |
| 22 | Not Available | Hoover Nut-S3005 | 33426001 | Not Available |
| 23 | Not Available | Hoover Field Lamination Bol | 33421004 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 43414170 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414140 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414139 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle-A | 43414121 | Not Available |
| 1 | Not Available | Hoover Rug & Floor Nozzle | 0M114169 | Not Available |
| 2 | Not Available | Hoover Nozzle Tube-Ag-S1221 | 38646039 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Noz-Abe- | 38615182 | Not Available |
| 3 | Not Available | Hoover Rug & Floor Nozzle-A | 38615153 | Not Available |
| 4 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 5 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 6 | Not Available | Hoover Brush Housing-Abr-S1 | 36414018 | Not Available |
| 7 | Not Available | Hoover Spring-2910 | 166649- | Not Available |
| 8 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 9 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever - S | 38454004 | Not Available |
| 10 | Not Available | Hoover Brush Back Lever-Abn | 38454006 | Not Available |
| 11 | Not Available | Hoover Washer-Felt-S2095/97 | 21329105 | Not Available |
| 12 | Not Available | Hoover Wheeled R & F Noz-Aa | 43414101 | Not Available |
| 13 | Not Available | Hoover Nozzle Connector - A | 38646045 | Not Available |
| 14 | Not Available | Hoover Wheel/Axle Assembly | 43244043 | Not Available |
| 15 | Not Available | Hoover Wheel Bearing-Aat-S2 | 38511016 | Not Available |
| 16 | Not Available | Hoover Rug & Floor Nozzle | 43414117 | Not Available |
| 17 | Not Available | Hoover Roller - S2095 | 38521018 | Not Available |
| 18 | Not Available | Hoover Roller Axle - S2095 | 31511004 | Not Available |
| 19 | Not Available | Hoover Slider - Ag - S2099 | 38451008 | Not Available |
| 20 | Not Available | Hoover Brush Housing - Mv - | 36414013 | Not Available |
| 21 | No Image | SPRING, CONQUEST Part Number: 166649FW for Hoover | 166649FW | $1.99Read more |
| 22 | Not Available | Hoover Brush Back Assm-S209 | 48443004 | Not Available |
| 23 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 24 | Not Available | Hoover Seal - S2099 | 34122013 | Not Available |
| 25 | Not Available | Hoover Pedal - Mv- S2099 | 38434015 | Not Available |
