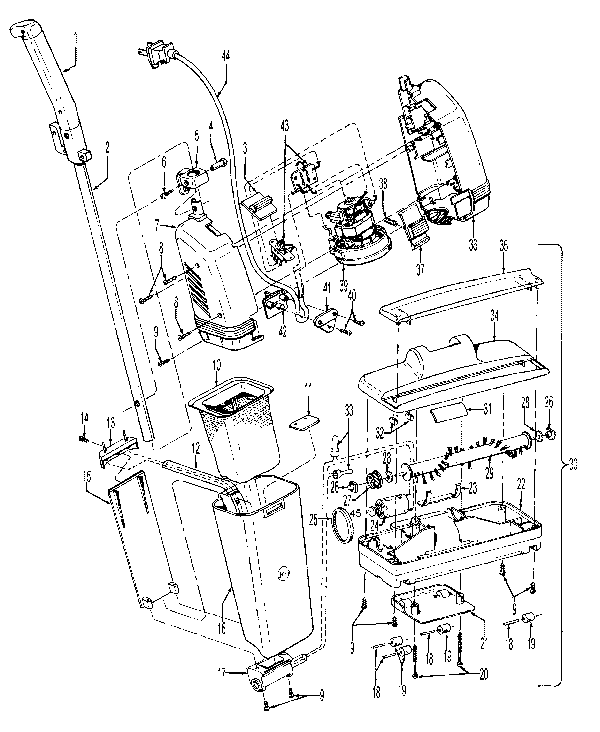

This is a list of parts and a diagram and schematic for: Hoover Model: S2203
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Handle Assembly-S2203 | 59139222 | Not Available |
| 02 | Not Available | Hoover Pipe-S2203/S2211 | 59139246 | Not Available |
| 03 | Not Available | Hoover Switch Button-S2203/ | 59139240 | Not Available |
| 04 | Not Available | Hoover Pipe Screw-S2203/S22 | 59139224 | Not Available |
| 05 | Not Available | Hoover Hook-S2203 | 59139252 | Not Available |
| 06 |  | Pipe Screw / Hoover S2203 For: hoover | 59139223 | $2.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Hoover Housing-Rh-S2203 | 59139239 | Not Available |
| 08 | Not Available | Hoover Screw - S1147 | 59139209 | Not Available |
| 09 | Not Available | Hoover Screw - S1147 | 59139209 | Not Available |
| 10 | Not Available | Hoover Filter Assembly-S2203/S | 59139219 | Not Available |
| 16 | Not Available | Hoover Dirt Cup/Nozzle Assembly ( Inc. Items 11 Thru 35) | 59139237 | Not Available |
| 18 | Not Available | Hoover Roller Shaft-S2203/S | 59139234 | Not Available |
| 19 | Not Available | Hoover Roller-S2203/S2211 | 59139233 | Not Available |
| 23 | Not Available | Hoover Seal-S2203/S2211 | 59139245 | Not Available |
| 24 | Not Available | Hoover Agitator Motor-S2203 Agitator Motor (Item 45 Pulley Not Included) | 59139230 | Not Available |
| 25 | Not Available | Hoover Belt-S2203/S2211 | 59139232 | Not Available |
| 26 | Not Available | Hoover Agitator Bearing-S22 | 59139228 | Not Available |
| 29 | Not Available | Hoover Agitator Assembly-S220 ( Inc. Items 26,27,28) | 59139227 | Not Available |
| 30 | Not Available | Hoover Dirt Cup/Nozzle Assembly ( Inc. It. 11 Thru 35) | 59139237 | Not Available |
| 31 | Not Available | Hoover Seal-S2203/S2211 | 59139244 | Not Available |
| 33 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 36 | Not Available | Hoover Housing-Lh-S2203 Housing - Lh | 59139238 | Not Available |
| 37 | Not Available | Hoover Dirt Cup Latch-S2203 | 59139241 | Not Available |
| 38 | Not Available | Hoover Latch Spring-S2203/S | 59139242 | Not Available |
| 39 | Not Available | Hoover Fan Motor-S2203 | 59139220 | Not Available |
| 41 | Not Available | Hoover Cord Holder (A)-S220 | 59139249 | Not Available |
| 42 | Not Available | Hoover Cord Holder (B)-S220 | 59139250 | Not Available |
| 43 | Not Available | Hoover Pcb Assembly S2203 Pcb Assembly | 59139226 | Not Available |
| 44 | Not Available | Hoover Cord Assembly-S2203 Cord Assembly | 59139251 | Not Available |
