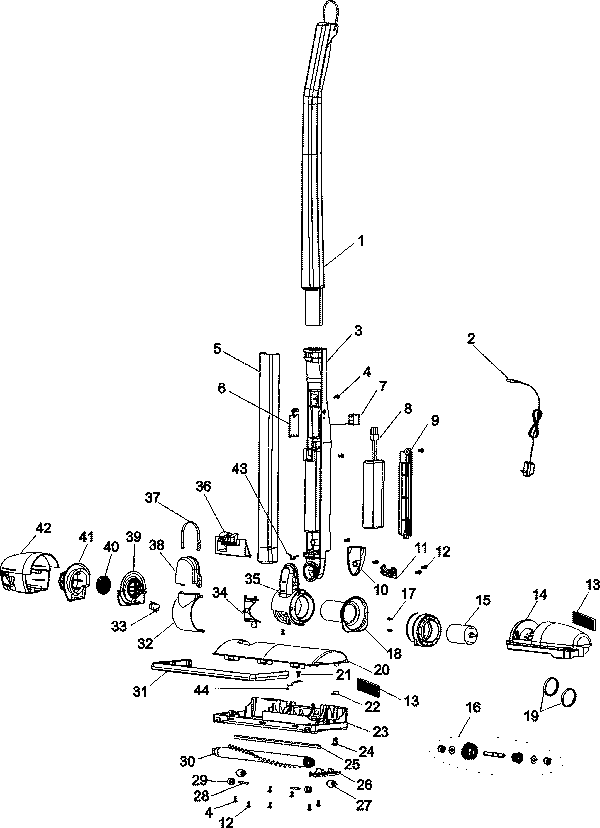

This is a list of parts and a diagram and schematic for: Hoover Model: S2105
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Slider Rechargeable Broom
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Upper Handle Assembly | 93001477 | Not Available |
| 02 | Not Available | Hoover Adapter - Input 120 V / Output 9 V | 93001484 | Not Available |
| 03 | Not Available | Hoover Handle Base | 93001472 | Not Available |
| 04 | Not Available | Hoover Screw - 5/8" | 93001478 | Not Available |
| 05 | Not Available | Hoover Handle Cover | 93001473 | Not Available |
| 06 | Not Available | Hoover Pcb Control Board | 93001483 | Not Available |
| 07 | Not Available | Hoover Rocker Switch | 93001482 | Not Available |
| 08 | Not Available | Hoover Batter Pack Assembly | 93001443 | Not Available |
| 09 | Not Available | Hoover Battery Cover | 93001475 | Not Available |
| 10 | Not Available | Hoover Terminal Cover | 93001474 | Not Available |
| 11 | Not Available | Hoover Joint Holder | 93001462 | Not Available |
| 12 | Not Available | Hoover Screw - 1/2" | 93001479 | Not Available |
| 13 | Not Available | Hoover Outlet Filter | 93001451 | Not Available |
| 14 | Not Available | Hoover Upper Case Assembly With Filter | 93001465 | Not Available |
| 15 | No Image | MOTOR, W/FAN Part Number: 93001456 for Hoover | 93001456 | $20.85Read more |
| 16 | Not Available | Hoover Relay Pulley Assembly | 93001455 | Not Available |
| 17 | Not Available | Hoover Screw | 93001486 | Not Available |
| 18 | Not Available | Hoover Fan Casing | 93001466 | Not Available |
| 19 | Not Available | Hoover Timing Belt | 93001454 | Not Available |
| 20 | Not Available | Hoover Nozzle Cover | 93001469 | Not Available |
| 21 | Not Available | Hoover Screw - 3/8" | 93001480 | Not Available |
| 22 | Not Available | Hoover Rock Peace - B | 93001450 | Not Available |
| 23 | Not Available | Hoover Lower Case Assembly | 93001444 | Not Available |
| 24 | Not Available | Hoover Rock Peace - A | 93001449 | Not Available |
| 25 | Not Available | Hoover Rubber Squeegee | 93001452 | Not Available |
| 26 | Not Available | Hoover Lower Case Cover | 93001453 | Not Available |
| 28 | Not Available | Hoover Roller Shaft | 93001447 | Not Available |
| 29 | Not Available | Hoover Roller | 93001445 | Not Available |
| 30 | Not Available | Hoover Agitator / Brush Roll Assembly | 93001457 | Not Available |
| 31 | Not Available | Hoover Bumper | 93001458 | Not Available |
| 32 | Not Available | Hoover Casing Cover - Front | 93001460 | Not Available |
| 33 | Not Available | Hoover Micro Switch Assembly | 93001487 | Not Available |
| 34 | Not Available | Hoover Cord Holder | 93001463 | Not Available |
| 35 | No Image | HOUSING, MOTOR 2105 Part Number: 93001459 for Hoover | 93001459 | $4.26Read more |
| 36 | No Image | NOZZLE, W/KNOB S2105 Part Number: 93001468 for Hoover | 93001468 | $4.40Read more |
| 37 | Not Available | Hoover Stopper Belt | 93001464 | Not Available |
| 38 | Not Available | Hoover Casing Cover - Rear | 93001461 | Not Available |
| 39 | Not Available | Hoover Filter Fan Casing Assembly With Filter | 93001467 | Not Available |
| 40 | Not Available | Hoover Inlet Filter | 93001481 | Not Available |
| 41 | Not Available | Hoover Filter Assembly | 93001471 | Not Available |
| 42 | No Image | DIRT CUP, STICK VAC S2105 Part Number: 93001470 for Hoover | 93001470 | $5.50Read more |
| 43 | Not Available | Hoover Stopper | 93001476 | Not Available |
| 44 | Not Available | Hoover Spring | 93001485 | Not Available |
