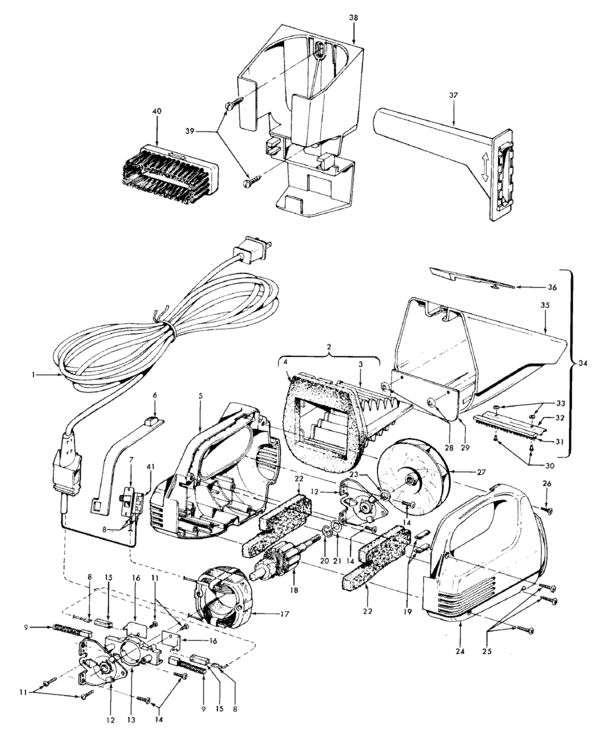

This is a list of parts and a diagram and schematic for: Hoover Model: S1071
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Canister
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Filter Assembly - He | 43615051 | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Switch Actuator-Ag-S | 38452057 | Not Available |
| 9 | Not Available | Hoover Mtr Br & Spring Assm | 47311007 | Not Available |
| 11 | Not Available | Hoover Screw | 21447028 | Not Available |
| 12 | Not Available | Hoover Mtr Bracket & Brg As | 43265005 | Not Available |
| 13 | Not Available | Hoover Motor Brush Holder-S | 36315001 | Not Available |
| 14 | Not Available | Hoover Screw - Self Tapping | 21447229 | Not Available |
| 15 | Not Available | Hoover Insulating Pod-S1059 | 27464208 | Not Available |
| 16 | Not Available | Hoover Connector Strip-S105 | 34561001 | Not Available |
| 18 | Not Available | Hoover Armature & Fan Assm- | 44731028 | Not Available |
| 19 | Not Available | Hoover Bumper-S1059 | 36222018 | Not Available |
| 20 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 21 | Not Available | Hoover Washer-S1059 | 21312776 | Not Available |
| 22 | Not Available | Hoover Exhaust Filter-S1059 | 34284003 | Not Available |
| 23 |  | End Nut Washer For Pd Shaft-Pwr Dr Dam For: hoover | 160030 | $0.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Hoover Screw-S1059 | 21447122 | Not Available |
| 26 | Not Available | Hoover Screw-S1059 | 21447105 | Not Available |
| 27 | Not Available | Hoover Fan-S1059 | 43565004 | Not Available |
| 28 | Not Available | Hoover Retainer | 014092- | Not Available |
| 29 | Not Available | Hoover Valve-S1059 | 34145005 | Not Available |
| 30 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 31 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 32 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 33 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 35 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 36 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 37 | Not Available | Hoover Crevice Tool-Ag-S105 | 38617009 | Not Available |
| 38 | Not Available | Hoover Cleaner Tool Rack-S1 | 36433025 | Not Available |
| 39 | Not Available | Hoover Screw Packet-S1073 | 40201053 | Not Available |
| 40 | Not Available | Hoover Dusting Brush Assm-S | 48451001 | Not Available |
| 41 | Not Available | Hoover Shield | 37258082 | Not Available |
