Schematic and parts list for: Hoover Model: L2020

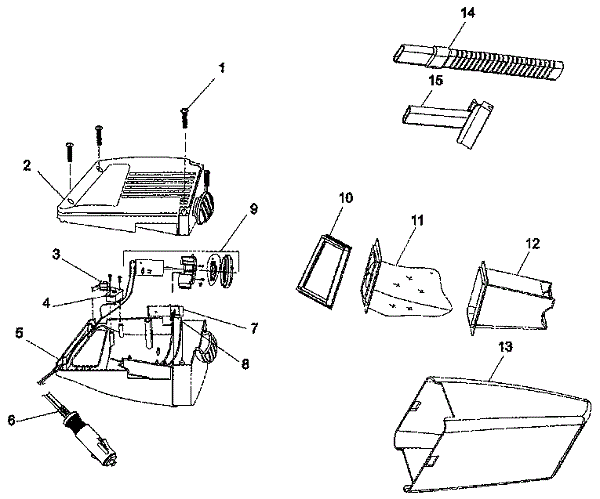

This is a list of parts and a diagram and schematic for: Hoover Model: L2020
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: RoadRat Wet/Dry Car Vacuum
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Screw | 59139113 | Not Available |
| 02 | Not Available | Hoover Housing - Right | 93001806 | Not Available |
| 03 | Not Available | Hoover Switch Button | 59139173 | Not Available |
| 04 | Not Available | Hoover Switch | 93001807 | Not Available |
| 05 | Not Available | Hoover Housing - Left | 93001808 | Not Available |
| 06 | No Image | ASSEMBLY, POWER CORD ASSEMBLY Part Number: 93001809 for Hoover | 93001809 | $8.60Read more |
| 07 | Not Available | Hoover Latch Button | 93001810 | Not Available |
| 08 | Not Available | Hoover Latch Button Spring | 93001811 | Not Available |
| 09 | Not Available | Hoover Motor And Fan Assembly | 93001812 | Not Available |
| 10 | Not Available | Hoover Filter Seal | 93001813 | Not Available |
| 11 | Not Available | Hoover Filter Support Assembly | 59139102 | Not Available |
| 12 | Not Available | Hoover Separator | 59139170 | Not Available |
| 13 | Not Available | Hoover Dirt Cup | 93001814 | Not Available |
| 14 | Not Available | Hoover Crevice Tool | 59139122 | Not Available |
| 15 | Not Available | Hoover Squeegee | 59139123 | Not Available |
