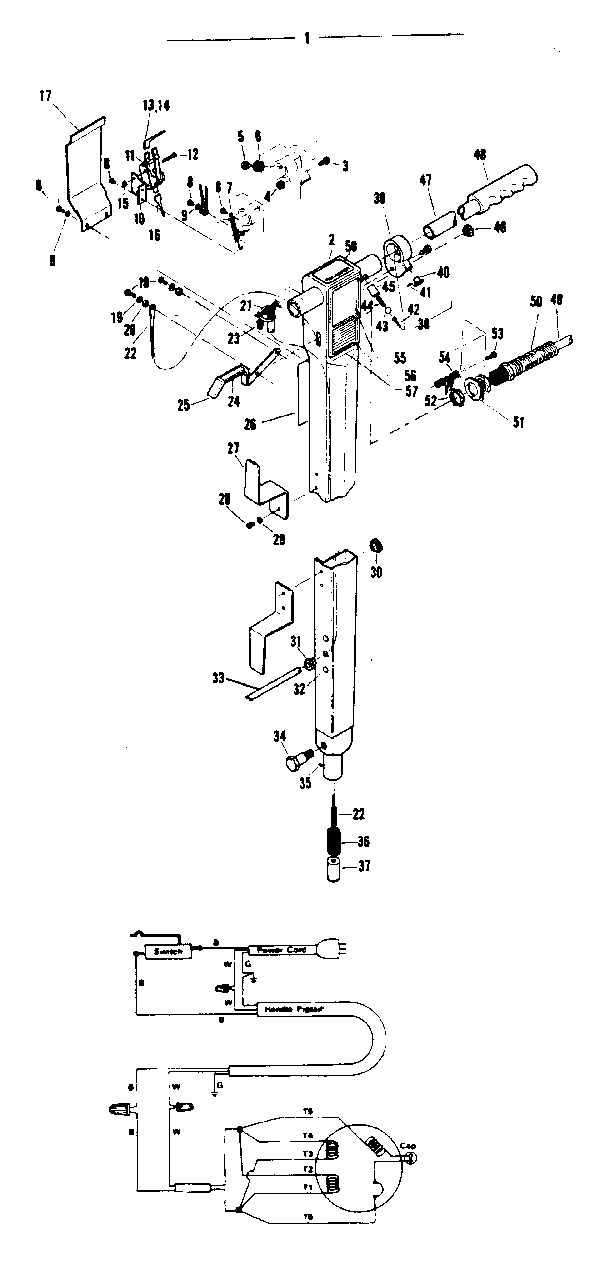

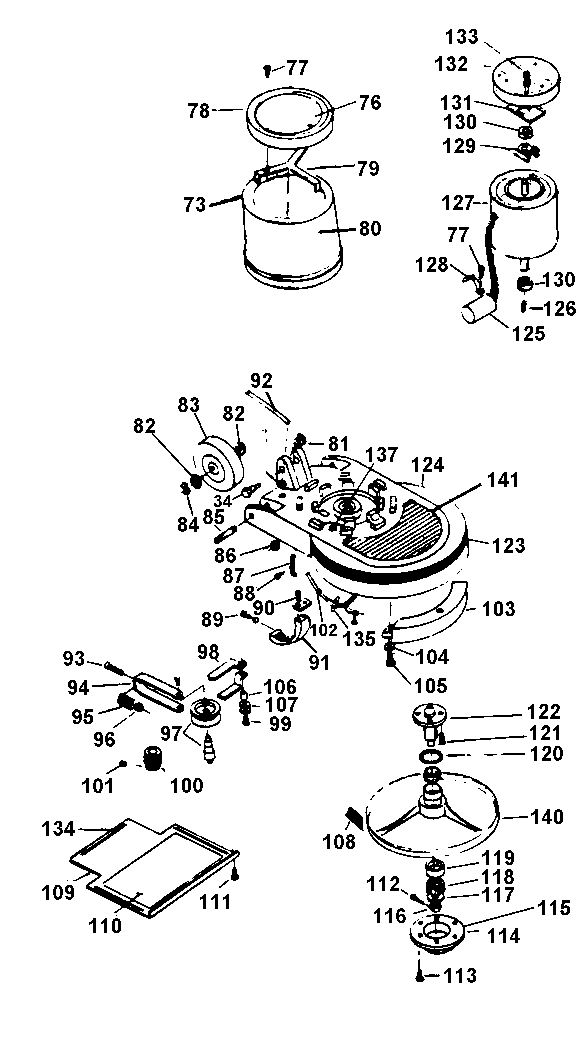

This is a list of parts and a diagram and schematic for: Hoover Model: F7091
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Handle Assembly | 59131373 | Not Available |
| 02 | Not Available | Hoover Handle Weldment | 59131374 | Not Available |
| 05 | Not Available | Hoover Screw-F7089/91 | 59131375 | Not Available |
| 07 | Not Available | Hoover Spring-F7089/91 | 59131376 | Not Available |
| 10 | Not Available | Hoover Bracket-F7089/91 | 59131377 | Not Available |
| 11 | Not Available | Hoover Switch-F7089/91 | 59131378 | Not Available |
| 13 | Not Available | Hoover Tab-Receptacle | 59131379 | Not Available |
| 14 | Not Available | Hoover Insulator-F7089 | 59131380 | Not Available |
| 16 | Not Available | Hoover Insulator-Flag | 59131381 | Not Available |
| 17 | Not Available | Hoover Cover-F7089/91 | 59131382 | Not Available |
| 19 | Not Available | Hoover Washer-Bowed | 59131383 | Not Available |
| 20 | Not Available | Hoover Spacer-F7089 | 59131384 | Not Available |
| 21 | Not Available | Hoover Tie-Cable-S7083 | 59131196 | Not Available |
| 22 | Not Available | Hoover Cable-F7089 | 59131386 | Not Available |
| 23 | Not Available | Hoover Nut-Wire-S7083 | 59131366 | Not Available |
| 24 | Not Available | Hoover Decal-Handle | 59131388 | Not Available |
| 25 | Not Available | Hoover Lever-F7089 | 59131389 | Not Available |
| 26 | Not Available | Hoover Decal-Warning | 59131390 | Not Available |
| 27 | Not Available | Hoover Hook-Cord-F7089 | 59131391 | Not Available |
| 30 | Not Available | Hoover Plug Button | 59131392 | Not Available |
| 31 | Not Available | Hoover Strain Relief | 59131393 | Not Available |
| 32 | Not Available | Hoover Plug Button | 59131394 | Not Available |
| 33 | Not Available | Hoover Cord Set-F7089 | 59131221 | Not Available |
| 34 | Not Available | Hoover Bolt-Pivot-F7089 | 59131396 | Not Available |
| 36 | Not Available | Hoover Spring-F7089 | 59131397 | Not Available |
| 37 | Not Available | Hoover Plunger-F7089 | 59131398 | Not Available |
| 38 | Not Available | Hoover Safety Lock Assembly, Include Items 39 - 45 | 59131399 | Not Available |
| 39 | Not Available | Hoover Collar Assembly | 59131231 | Not Available |
| 40 | Not Available | Hoover Collar-F7089 | 59131232 | Not Available |
| 41 | Not Available | Hoover Knob-S7083 | 59131034 | Not Available |
| 42 | Not Available | Hoover Pin-Spring-S7083 | 59131035 | Not Available |
| 43 | Not Available | Hoover Ball- F7089 | 59131235 | Not Available |
| 44 | Not Available | Hoover Spring-F7089 | 59131236 | Not Available |
| 45 | Not Available | Hoover Bushing-F7089/91 | 59131237 | Not Available |
| 46 | Not Available | Hoover Plug Button | 59131238 | Not Available |
| 47 | Not Available | Hoover Tube-Handle | 59131239 | Not Available |
| 48 | Not Available | Hoover Handle Grip | 59131240 | Not Available |
| 49 | Not Available | Hoover Cord Set-F7089/9 | 59131241 | Not Available |
| 50 | Not Available | Hoover Strain Relief | 59131242 | Not Available |
| 51 | Not Available | Hoover Washer-F7089 | 59131243 | Not Available |
| 52 | Not Available | Hoover Nut-Hex-F7089 | 59131244 | Not Available |
| 55 | Not Available | Hoover Decal-F7089 | 59131245 | Not Available |
| 57 | Not Available | Hoover Decal-Plate-F708 | 59131248 | Not Available |
| 58 | Not Available | Hoover Decal-Warning-F7 | 59131249 | Not Available |
| # | Part image | Description | SKU | Price |
| 76 | Not Available | Hoover Decal-F7089 | 59131317 | Not Available |
| 78 | Not Available | Hoover Spinning-F7089 | 59131318 | Not Available |
| 79 | Not Available | Hoover Clamp-Shroud | 59131319 | Not Available |
| 80 | Not Available | Hoover Decal-F7089 | 59131320 | Not Available |
| 81 | Not Available | Hoover Bearing-Sleeve | 59131321 | Not Available |
| 82 | Not Available | Hoover Washer-S7085 | 59131091 | Not Available |
| 83 | Not Available | Hoover Wheel-F7089 5.00 X 1.25 | 59131223 | Not Available |
| 84 | Not Available | Hoover Washer-Bowed Spr | 59131092 | Not Available |
| 85 | Not Available | Hoover Axle-F7089 | 59131226 | Not Available |
| 87 | Not Available | Hoover Clamp-Bumper | 59131326 | Not Available |
| 91 | Not Available | Hoover Ratchet-Casting | 59131327 | Not Available |
| 92 | Not Available | Hoover Cord Set-F7089/9 14/3 X.59 Male Plug | 59131221 | Not Available |
| 94 | Not Available | Hoover Bracket-F7089/91 | 59131329 | Not Available |
| 95 | Not Available | Hoover Spring-F7089/91/ | 59131330 | Not Available |
| 97 | Not Available | Hoover Idler Assembly | 59131331 | Not Available |
| 98 | Not Available | Hoover Bracket-Idler | 59131332 | Not Available |
| 100 | Not Available | Hoover Sheave-F7089 | 59131333 | Not Available |
| 102 | Not Available | Hoover Grommet-F7089 | 59131334 | Not Available |
| 106 | Not Available | Hoover Bushing-Bracket- | 59131017 | Not Available |
| 108 | Not Available | Hoover Belt-Poly | 59131338 | Not Available |
| 110 | Not Available | Hoover Decal-Instruction | 59131341 | Not Available |
| 114 | Not Available | Hoover Drive Cap--F7089 | 59131342 | Not Available |
| 115 | Not Available | Hoover Gasket | 59131343 | Not Available |
| 116 | Not Available | Hoover Nut-Slotted | 59131344 | Not Available |
| 117 | Not Available | Hoover Washer | 59131015 | Not Available |
| 118 | Not Available | Hoover Bearing | 59131346 | Not Available |
| 119 | Not Available | Hoover Bearing | 59131347 | Not Available |
| 120 | Not Available | Hoover Seal-Shaft | 59131348 | Not Available |
| 122 | Not Available | Hoover Stud-Shaft | 59131349 | Not Available |
| 125 | Not Available | Hoover Capacitor | 59131354 | Not Available |
| 126 | Not Available | Hoover Key-Square | 59131355 | Not Available |
| 128 | Not Available | Hoover Clamp | 59131358 | Not Available |
| 129 | Not Available | Hoover Switch-Centrifugal | 59131359 | Not Available |
| 130 | Not Available | Hoover Bearing-Ball | 59131360 | Not Available |
| 131 | Not Available | Hoover Switch-Stationary | 59131361 | Not Available |
| 132 | Not Available | Hoover End Bell-F7089/9 | 59131362 | Not Available |
| 134 | Not Available | Hoover Gasket | 59131020 | Not Available |
| 135 | Not Available | Hoover Nut-Wire-S7083 | 59131366 | Not Available |
| 136 | Not Available | Hoover Clamp-Cord-F7089 | 59131367 | Not Available |
| 137 | Not Available | Hoover Strain Relief | 59131368 | Not Available |
| 138 | Not Available | Hoover Strain Relief | 59131222 | Not Available |
| 139 | Not Available | Hoover Bearing-Ball | 59131370 | Not Available |
| 140 | Not Available | Hoover Pulley-F7089 | 59131371 | Not Available |
| 141 | Not Available | Hoover Decal-F7089 | 59131372 | Not Available |
