Schematic and parts list for: Hoover Model: F6215
This is a list of parts and a diagram and schematic for: Hoover Model: F6215
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac Agility

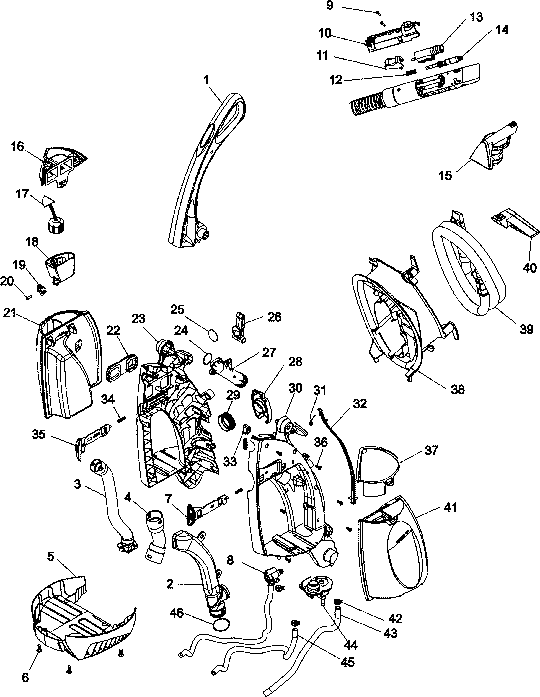

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Upper Handle Assemby | 90001045 | Not Available |
| 02 | Not Available | Hoover Solution Duct | 90001110 | Not Available |
| 03 | Not Available | Hoover Air Hose Complete | 90001079 | Not Available |
| 04 | Not Available | Hoover Recovery Hose Complete | 43434082 | Not Available |
| 05 |  | COVER, HANDLE LOWER F6205 Part Number: 90001069 for Hoover | 90001069 | $18.79Read more |
| 06 | Not Available | Hoover Screw | 21447003 | Not Available |
| 07 | Not Available | Hoover Solution Tank Release Latch | 90001054 | Not Available |
| 08 | Not Available | Hoover Quick Disconnect Assembly | 90001095 | Not Available |
| 09 | Not Available | Hoover Screw | 21447239 | Not Available |
| 10 | Not Available | Hoover Wand Cover | 92001002 | Not Available |
| 11 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Spring | 38312019 | Not Available |
| 13 | Not Available | Hoover Wand Valve Assembly - Small Nipple | 43513023 | Not Available |
| 14 | Not Available | Hoover Nozzle / Valve Assembly | 43412007 | Not Available |
| 15 | Not Available | Hoover Brush Assembly - Turbine | 48434006 | Not Available |
| 15 | Not Available | Hoover Nozzle Body - Turbine | 38613038 | Not Available |
| 15 | Not Available | Hoover Turbine Nozzle | 91001003 | Not Available |
| 16 | Not Available | Hoover Recovery Lid Cover Assembly | 90001089 | Not Available |
| 17 | Not Available | Hoover Float | 90001041 | Not Available |
| 18 | Not Available | Hoover Separator Channel | 90001040 | Not Available |
| 19 | Not Available | Hoover Float Glide | 90001042 | Not Available |
| 21 | Not Available | Hoover Recovery Tank Complete - Lavender | 42272169 | Not Available |
| 22 | Not Available | Hoover Seal | 38783034 | Not Available |
| 23 | Not Available | Hoover Lower Handle Assembly - Right | 90001049 | Not Available |
| 24 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 25 | Not Available | Hoover Medallion | 51661020 | Not Available |
| 26 | Not Available | Hoover Latch Upper Handle | 36151052 | Not Available |
| 27 | Not Available | Hoover Air Return Elbow | 38643021 | Not Available |
| 28 | Not Available | Hoover Door - Tool Port | 90001071 | Not Available |
| 29 | Not Available | Hoover Seal - Tool Port | 90001078 | Not Available |
| 30 | Not Available | Hoover Lower Handle Assembly - Left | 39466085 | Not Available |
| 31 | Not Available | Hoover Spring | 90001048 | Not Available |
| 32 | Not Available | Hoover Control Rod - Lower | 90001053 | Not Available |
| 33 | Not Available | Hoover Tolerance Spacker | 90001072 | Not Available |
| 34 | Not Available | Hoover Spring | 90001037 | Not Available |
| 35 | Not Available | Hoover Recovery Tank Release Handle | 90001051 | Not Available |
| 36 | Not Available | Hoover Screw | 21447003 | Not Available |
| 37 | Not Available | Hoover Lid Cover - Solution Tank | 37274078 | Not Available |
| 38 |  | Caddy, Tool Agility F6212/F6207/F6215 Part Number: 36433193 for Hoover | 36433193 | $22.36Read more |
| 39 | Not Available | Hoover Cleaning Tool Hose | 91001008 | Not Available |
| 40 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 41 | Not Available | Hoover Valve Seal | 38784086 | Not Available |
| 41 | Not Available | Hoover Solution Tank Assembly - Lavender | 90001091 | Not Available |
| 41 | Not Available | Hoover Spring Valve | 90001259 | Not Available |
| 41 | Not Available | Hoover Valve Stem | 90001261 | Not Available |
| 42 | Not Available | Hoover Hose Clamp | 25411015 | Not Available |
| 43 | Not Available | Hoover Tubing | 90001075 | Not Available |
| 44 | Not Available | Hoover Reservoir - Welded | 90001073 | Not Available |
| 45 | Not Available | Hoover Tubing | 90001076 | Not Available |
| 46 | Not Available | Hoover O-Ring Hose End | 90001103 | Not Available |
| 47 | Not Available | Hoover Cord Wrap - Magnesium Gray | 39442048 | Not Available |

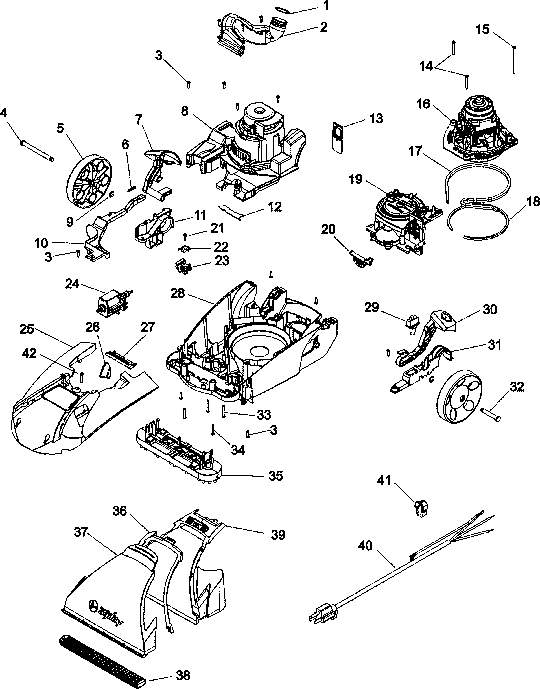

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 02 | Not Available | Hoover Recovery Duct | 90001104 | Not Available |
| 02 | Not Available | Hoover Screw - Self Tapping | 21447242 | Not Available |
| 03 | Not Available | Hoover Screw | 21447003 | Not Available |
| 04 | No Image | PEDAL, RUG & FLOOR SELECT U11MA UPRIGHT Part Number: 6490001107 for Sanyo | 6490001107 | $23.55Read more |
| 05 | Not Available | Hoover Rear Wheel | 38522089 | Not Available |
| 06 | Not Available | Hoover Spring - Turbine | 38331006 | Not Available |
| 07 | Not Available | Hoover Handle Release Pedal | 90001064 | Not Available |
| 08 | Not Available | Hoover Motor Cover | 90001061 | Not Available |
| 09 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 10 | Not Available | Hoover Actuator Arm - Turbine | 38458074 | Not Available |
| 11 | Not Available | Hoover Trunnion Cover - Right | 90001067 | Not Available |
| 12 | Not Available | Hoover Motor Cover Seal | 90001111 | Not Available |
| 13 | Not Available | Hoover Filter And Screen Assembly | 43613018 | Not Available |
| 14 | Not Available | Hoover Screw - Self Tapping | 21447232 | Not Available |
| 15 | Not Available | Hoover Screw - 3.125" | 21447246 | Not Available |
| 16 | No Image | Hoover SteamVac SpinScrub Carpet Cleaner F5915900 -Ametek motor E47185 122082-0 440005480 | 440005480 | $59.99Read more |
| 17 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 18 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 19 | No Image | Turbine for hoover models F6212-900 F6205-900 F6210-900 F6215-900 F6215-910 F6207-900 PN: 91001002 43191010 | 91001002 | $50.00Read more |
| 19 | Not Available | Hoover Bearing - Turbine | 91001075 | Not Available |
| 20 | Not Available | Hoover Valve Door | 90001068 | Not Available |
| 21 | Not Available | Hoover Screw | 21447003 | Not Available |
| 22 | Not Available | Hoover Switch | 90001112 | Not Available |
| 23 | Not Available | Hoover Switch Bracket | 90001062 | Not Available |
| 24 | Not Available | Hoover Pump Assembly | 90001105 | Not Available |
| 25 |  | HOOD, F6215-900 Part Number: 90001085 for Hoover | 90001085 | $38.67Read more |
| 26 | Not Available | Hoover Indicator Knob | 38421114 | Not Available |
| 27 | Not Available | Hoover Seal Recovery Duct | 90001059 | Not Available |
| 28 | Not Available | Hoover Main Body Assembly | 37272105 | Not Available |
| 29 | Not Available | Hoover Switch | 28218061 | Not Available |
| 30 | No Image | PEDAL, SWITCH EXTRACTOR F6205 Part Number: 38434036 for Hoover | 38434036 | $8.33Read more |
| 31 | No Image | COVER, TRUNNION LEFT HAND Part Number: 90001066 for Hoover | 90001066 | $4.00Read more |
| 32 | Not Available | Hoover Rear Wheel Axle - Left | 90001108 | Not Available |
| 33 | Not Available | Hoover Screw | 21479438 | Not Available |
| 34 | Not Available | Hoover Screw | 21447236 | Not Available |
| 35 | No Image | Hoover 5 brush block for extractor steam vacs F7205-900, F7210-900, F7220-900, F7552-900, F6212-900, F6205-900, F6210-900, F6215-900, F6215-910 and F6207-900 | 48437029 | $29.99Read more |
| 36 | Not Available | Hoover Nozzle Seal | 90001058 | Not Available |
| 37 | Not Available | Hoover Front Plate - Nozzle - Clear | 37275069 | Not Available |
| 38 | Not Available | Hoover Bare Floor Tool - Foam | 91001007 | Not Available |
| 39 | Not Available | Hoover Back Plate - Nozzle | 90001057 | Not Available |
| 40 | Not Available | Hoover Power Cord | 90001109 | Not Available |
| 41 | Not Available | Hoover Cord Retainer | 90001281 | Not Available |
| 41 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
