Schematic and parts list for: Hoover Model: F6213
This is a list of parts and a diagram and schematic for: Hoover Model: F6213
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

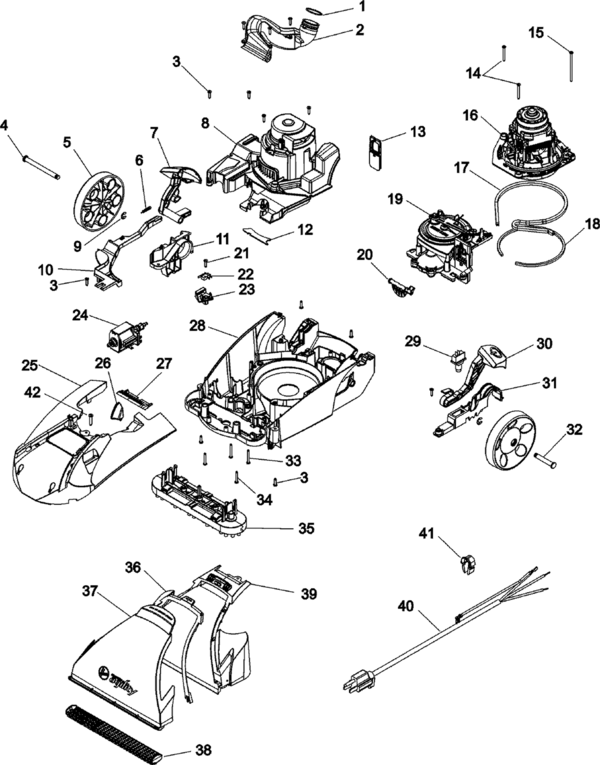

Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 2 | Not Available | Hoover Body Screw # 8 -10 X .625" - Self Tapping | 21447242 | Not Available |
| 2 | Not Available | Hoover Recovery Duct | 90001104 | Not Available |
| 3 | Not Available | Hoover Screw | 21447003 | Not Available |
| 4 | No Image | PEDAL, RUG & FLOOR SELECT U11MA UPRIGHT Part Number: 6490001107 for Sanyo | 6490001107 | $23.55Read more |
| 5 | Not Available | Hoover Wheel-Rear | 90001065 | Not Available |
| 6 | Not Available | Hoover Spring - Turbine Actuator | 38331006 | Not Available |
| 7 | Not Available | Hoover Handle Release Pedal | 90001064 | Not Available |
| 8 | Not Available | Hoover Motor Cover | 90001061 | Not Available |
| 9 | Not Available | Hoover E-Clip / Lock Ring | 160017- | Not Available |
| 10 | No Image | PEDAL, HANDLE RELEASE U8/U10/U11 Part Number: 6490001060 for Sanyo | 6490001060 | $14.97Read more |
| 11 | Not Available | Hoover Trunnion Cover-Rh | 90001067 | Not Available |
| 12 | Not Available | Hoover Seal-Motor Cover | 90001111 | Not Available |
| 13 | Not Available | Hoover Filter Cassette & Screen Assm | 43613018 | Not Available |
| 14 | Not Available | Hoover Screw-Self Tapping-F | 21447232 | Not Available |
| 15 | Not Available | Hoover Screw-Sv 3.125 | 21447246 | Not Available |
| 16 | No Image | Hoover SteamVac SpinScrub Carpet Cleaner F5915900 -Ametek motor E47185 122082-0 440005480 | 440005480 | $59.99Read more |
| 17 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 18 | Not Available | Hoover Motor Seal | 34113004 | Not Available |
| 19 | No Image | Turbine for hoover models F6212-900 F6205-900 F6210-900 F6215-900 F6215-910 F6207-900 PN: 91001002 43191010 | 91001002 | $50.00Read more |
| 19 | Not Available | Hoover Bearing - Turbine | 91001075 | Not Available |
| 20 | Not Available | Hoover Valve Door | 90001068 | Not Available |
| 21 | Not Available | Hoover Screw | 21447003 | Not Available |
| 22 | Not Available | Hoover Switch | 90001112 | Not Available |
| 23 | Not Available | Hoover Switch Bracket | 90001062 | Not Available |
| 24 | Not Available | Hoover Pump Assem | 90001105 | Not Available |
| 26 | Not Available | Hoover Indicator Knob-Ahb | 90001116 | Not Available |
| 27 | Not Available | Hoover Seal-Recovery Duct | 90001059 | Not Available |
| 28 | Not Available | Hoover Main Body Assem | 90001036 | Not Available |
| 29 | Not Available | Hoover Switch | 90001106 | Not Available |
| 30 | Not Available | Hoover Switch Actuation Pedal | 90001063 | Not Available |
| 31 | No Image | COVER, TRUNNION LEFT HAND Part Number: 90001066 for Hoover | 90001066 | $4.00Read more |
| 32 | Not Available | Hoover Rear Wheel Axle-Lh | 90001108 | Not Available |
| 33 | Not Available | Hoover Screw | 21479438 | Not Available |
| 34 | Not Available | Hoover Screw - Cord Clip Extension | 21447236 | Not Available |
| 35 | No Image | Hoover 5 brush block for extractor steam vacs F7205-900, F7210-900, F7220-900, F7552-900, F6212-900, F6205-900, F6210-900, F6215-900, F6215-910 and F6207-900 | 48437029 | $29.99Read more |
| 36 | Not Available | Hoover Nozzle Seal | 90001058 | Not Available |
| 37 | Not Available | Hoover Nozzle Front Plate-Cp | 37275063 | Not Available |
| 38 | Not Available | Hoover Bare Floor Cl Tool Foam | 91001007 | Not Available |
| 39 | Not Available | Hoover Nozzle Back Plate-Cp | 37275064 | Not Available |
| 40 | Not Available | Hoover Power Cord | 90001109 | Not Available |
| 41 | Not Available | Hoover Cord Retainer | 90001281 | Not Available |
| 42 | Not Available | Hoover Owner Manual | 56518199NC | Not Available |
| 42 | Not Available | Hoover Cable Tie | 27479307 | Not Available |

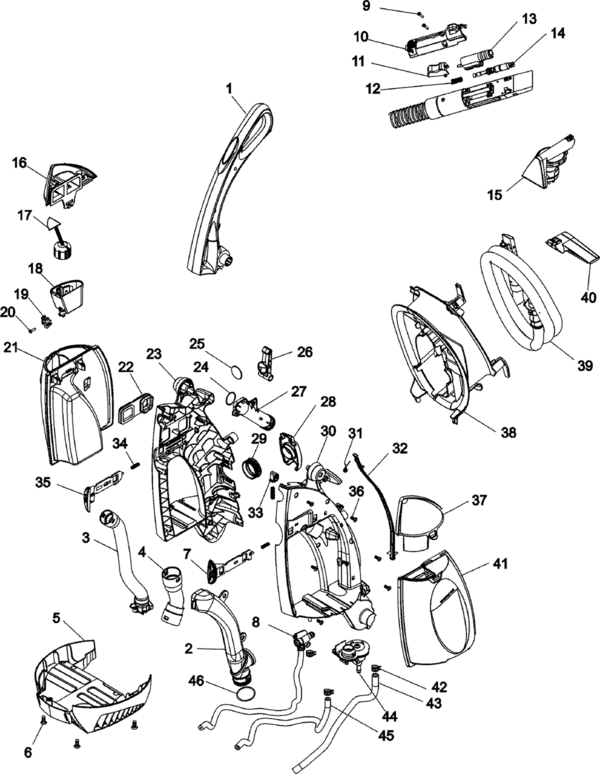

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Upper Handle Assem | 90001045 | Not Available |
| 2 | Not Available | Hoover Solution Duct | 90001204 | Not Available |
| 3 | Not Available | Hoover Air Hose Complete | 90001079 | Not Available |
| 4 | Not Available | Hoover Hose Comp Recovery | 90001080 | Not Available |
| 5 |  | COVER, HANDLE LOWER F6205 Part Number: 90001069 for Hoover | 90001069 | $18.79Read more |
| 6 | Not Available | Hoover Screw | 21447003 | Not Available |
| 7 | Not Available | Hoover Solution Tank Release Latch | 90001054 | Not Available |
| 8 | Not Available | Hoover Quick Disconnect Assem | 90001095 | Not Available |
| 9 | Not Available | Hoover Screw - Silver | 21447239 | Not Available |
| 10 | Not Available | Hoover Wand Cover-Mv | 92001002 | Not Available |
| 11 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Spring | 38312019 | Not Available |
| 13 | Not Available | Hoover Wand Valve Assembly | 91001060 | Not Available |
| 14 | Not Available | Hoover Nozzle And Valve Assembly | 43412007 | Not Available |
| 15 | Not Available | Hoover Brush Roll - Turbine Power Hand Tool | 48434006 | Not Available |
| 15 | Not Available | Hoover Nozzle Body - Turbine (91001003) | 38613038 | Not Available |
| 15 | Not Available | Hoover Turbine And Gear Assembly | 91001003 | Not Available |
| 16 | Not Available | Hoover Lid Cvr Asy Rec Tank-Aja | 37274109 | Not Available |
| 17 | Not Available | Hoover Float | 90001041 | Not Available |
| 18 | Not Available | Hoover Separator Channel | 90001040 | Not Available |
| 19 | Not Available | Hoover Float Glide | 90001042 | Not Available |
| 20 | Not Available | Hoover Screw-Self Tapping | 90001266 | Not Available |
| 21 | Not Available | Hoover Rec Tank Asy Comp-Aja | 42272171 | Not Available |
| 21 | Not Available | Hoover Rec Tank Asy Welded-Aja | 38777102 | Not Available |
| 22 | Not Available | Hoover Seal | 90001050 | Not Available |
| 23 | Not Available | Hoover Lower Handle Assem Rh-Mv | 90001049 | Not Available |
| 24 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 25 | Not Available | Hoover Medallion | 51661020 | Not Available |
| 26 | Not Available | Hoover Latch-Upper Handle-Mv | 90001352 | Not Available |
| 27 | Not Available | Hoover Air Return Elbow | 90001077 | Not Available |
| 28 | Not Available | Hoover Door-Tool Port | 90001071 | Not Available |
| 29 | Not Available | Hoover Seal-Tool | 90001078 | Not Available |
| 30 | Not Available | Hoover Lower Handle Assem Lh-Mv | 90001052 | Not Available |
| 31 | Not Available | Hoover Spring | 90001048 | Not Available |
| 32 | Not Available | Hoover Control Rod Lower | 90001053 | Not Available |
| 33 | Not Available | Hoover Tolerance Spacer | 90001072 | Not Available |
| 34 | Not Available | Hoover Spring | 90001037 | Not Available |
| 35 | Not Available | Hoover Rec Tank Rel Handle | 90001051 | Not Available |
| 36 | Not Available | Hoover Screw | 21447003 | Not Available |
| 37 | Not Available | Hoover Lid Cvr Asy Sol Tank-Aja | 37274108 | Not Available |
| 38 | Not Available | Hoover Cord Wrap - Magnesium Gray | 39442048 | Not Available |
| 38 | Not Available | Hoover Tool Caddy | 90001055 | Not Available |
| 39 | Not Available | Hoover Cleaning Tool Hose-Bm | 91001008 | Not Available |
| 40 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 41 | Not Available | Hoover Valve Seal | 90001260 | Not Available |
| 41 | Not Available | Hoover Sol Tank Asy Welded-Aja | 38777103 | Not Available |
| 41 | Not Available | Hoover Valve Stem | 90001261 | Not Available |
| 41 | Not Available | Hoover Spring Valve | 90001259 | Not Available |
| 42 | Not Available | Hoover Hose Clamp | 25411015 | Not Available |
| 43 | Not Available | Hoover Tubing | 90001075 | Not Available |
| 44 | Not Available | Hoover Reservoir-Welded | 90001073 | Not Available |
| 45 | Not Available | Hoover Tubing | 90001076 | Not Available |
| 46 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
