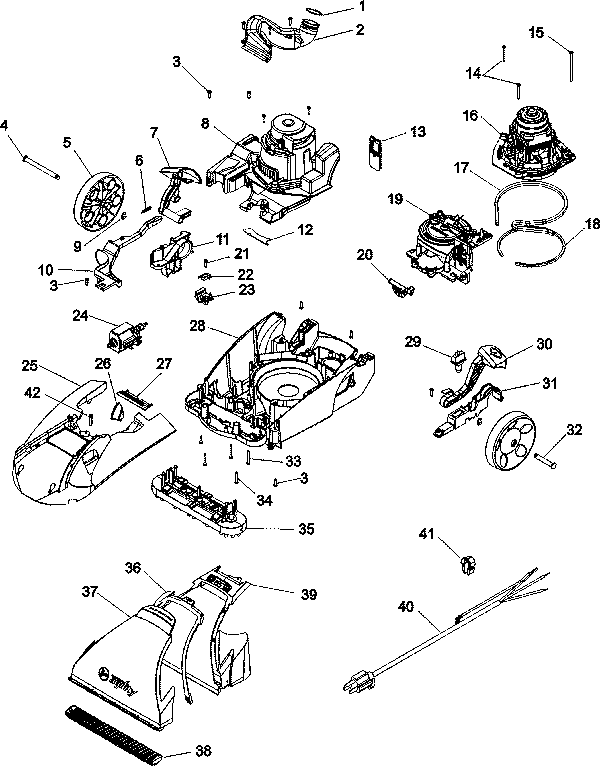

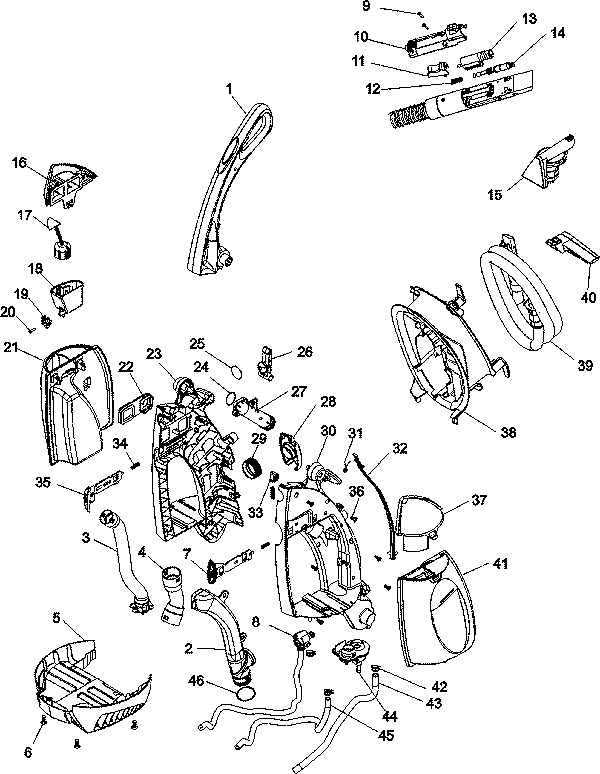

This is a list of parts and a diagram and schematic for: Hoover Model: F6210
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac Agility TurboPower
| # | Part image | Description | SKU | Price |
| 02 | Not Available | Hoover Solution Duct | 90001204 | Not Available |
| 03 | Not Available | Hoover Air Hose Complete | 90001079 | Not Available |
| 04 | Not Available | Hoover Hose Comp Recovery | 43434082 | Not Available |
| 05 |  | COVER, HANDLE LOWER F6205 Part Number: 90001069 for Hoover | 90001069 | $20.67Read more |
| 06 | Not Available | Hoover Screw | 21447003 | Not Available |
| 07 | Not Available | Hoover Solution Tank Release Latch | 90001054 | Not Available |
| 08 | Not Available | Hoover Quick Disconnect Assem | 90001095 | Not Available |
| 09 | Not Available | Hoover Screw | 21447239 | Not Available |
| 10 | Not Available | Hoover Wand Cover-Mv | 92001002 | Not Available |
| 11 |  | Trigger, Black SteamVac FH50044 Part Number: 38433074 for Hoover | 38433074 | $2.16Read more |
| 12 |  | Spring-Hoover Steam-Vac 5411/5837 For: hoover | 38312019 | $2.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Nozzle/Valve Assembly Includes O-Rings | 43412007 | Not Available |
| 17 | Not Available | Hoover Float | 90001041 | Not Available |
| 18 | Not Available | Hoover Separator Channel | 90001040 | Not Available |
| 19 | Not Available | Hoover Float Glide | 90001042 | Not Available |
| 20 | Not Available | Hoover Exp-Screw-Self Tappi | 21447004 | Not Available |
| 22 | Not Available | Hoover Seal | 90001050 | Not Available |
| 23 | Not Available | Hoover Lower Handle Assem Rh-Mv Includes 22, 34, 35 | 90001049 | Not Available |
| 24 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 25 | Not Available | Hoover Medallion | 51661020 | Not Available |
| 26 | Not Available | Hoover Latch Upper Handle | 90001070 | Not Available |
| 27 | Not Available | Hoover Air Return Elbow | 90001077 | Not Available |
| 28 | Not Available | Hoover Door-Tool Port | 90001071 | Not Available |
| 29 | Not Available | Hoover Seal-Tool | 90001078 | Not Available |
| 30 | Not Available | Hoover Lower Handle Assembly Lh-Mv Includes 31, 32, 48, 34 | 90001052 | Not Available |
| 31 | Not Available | Hoover Spring | 90001048 | Not Available |
| 32 | Not Available | Hoover Control Rod Lower | 90001053 | Not Available |
| 33 | Not Available | Hoover Tolerance Spacer | 90001072 | Not Available |
| 34 | Not Available | Hoover Spring | 90001037 | Not Available |
| 35 | Not Available | Hoover Receiving Tank Release Handle | 90001051 | Not Available |
| 36 | Not Available | Hoover Screw | 21447003 | Not Available |
| 40 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Read more |
| 42 |  | Clamp-Hoover F6210 Agility Hose For: hoover | 25411015 | $1.96Read more |
| 43 | Not Available | Hoover Tubing | 90001075 | Not Available |
| 44 | Not Available | Hoover Reservoir-Welded | 90001073 | Not Available |
| 45 | Not Available | Hoover Tubing | 90001076 | Not Available |
| 46 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover O-Ring Hose Ends | 90001103 | Not Available |
| 03 | Not Available | Hoover Screw | 21447003 | Not Available |
| 04 | No Image | PEDAL, RUG & FLOOR SELECT U11MA UPRIGHT Part Number: 6490001107 for Sanyo | 6490001107 | $23.55Read more |
| 05 | Not Available | Hoover Wheel-Rear | 90001065 | Not Available |
| 06 | Not Available | Hoover Spring-Turbine Act | 38331006 | Not Available |
| 07 | Not Available | Hoover Handle Release Pedal | 90001064 | Not Available |
| 08 | Not Available | Hoover Motor Cover | 90001061 | Not Available |
| 09 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 10 | No Image | PEDAL, HANDLE RELEASE U8/U10/U11 Part Number: 6490001060 for Sanyo | 6490001060 | $11.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Trunnion Cover-Rh | 90001067 | Not Available |
| 12 | Not Available | Hoover Seal-Motor Cover | 90001111 | Not Available |
| 13 | Not Available | Hoover Filter Cassette & Screen Assm | 43613018 | Not Available |
| 14 | Not Available | Hoover Screw-Self Tapping-F | 21447232 | Not Available |
| 15 | Not Available | Hoover Screw-Sv 3.125" | 21447246 | Not Available |
| 16 |  | Hoover SteamVac SpinScrub Carpet Cleaner F5915900 -Ametek motor E47185 122082-0 440005480 | 440005480 | $65.99Read more |
| 17 | Not Available | Hoover Motor Base Seal | 38781048 | Not Available |
| 18 |  | Gasket-Hoover Steamer Motor Seal For: hoover | 34113004 | $1.96Read more |
| 19 |  | Turbine for hoover models F6212-900 F6205-900 F6210-900 F6215-900 F6215-910 F6207-900 PN: 9100100... | 91001002 | $55.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Hoover Turbine Bearing | 91001075 | Not Available |
| 20 | Not Available | Hoover Valve Door | 90001068 | Not Available |
| 21 | Not Available | Hoover Screw | 21447003 | Not Available |
| 22 | Not Available | Hoover Switch | 90001102 | Not Available |
| 23 | Not Available | Hoover Switch Bracket | 90001062 | Not Available |
| 24 | Not Available | Hoover Pump Assem | 90001105 | Not Available |
| 25 |  | HOOD, F6215-900 Part Number: 90001085 for Hoover | 90001085 | $42.82Read more |
| 26 | Not Available | Hoover Indicator Knob-Ahb | 90001116 | Not Available |
| 27 | Not Available | Hoover Seal-Recovery Duct | 90001059 | Not Available |
| 28 | Not Available | Hoover Main Body Assem | 90001036 | Not Available |
| 29 | Not Available | Hoover Switch | 90001106 | Not Available |
| 30 | Not Available | Hoover Switch Actuation Pedal | 90001063 | Not Available |
| 31 | No Image | COVER, TRUNNION LEFT HAND Part Number: 90001066 for Hoover | 90001066 | $4.40Read more |
| 32 | Not Available | Hoover Rear Wheel Axle-Lh | 90001108 | Not Available |
| 33 | Not Available | Hoover Screw | 21479438 | Not Available |
| 34 | Not Available | Hoover Screw | 21447236 | Not Available |
| 35 |  | Hoover 5 brush block for extractor steam vacs F7205-900, F7210-900, F7220-900, F7552-900, F6212-9... | 48437029 | $32.99Read more |
| 36 | Not Available | Hoover Nozzle Seal | 90001058 | Not Available |
| 37 | Not Available | Hoover Nozzle Front Plate | 90001056 | Not Available |
| 38 | Not Available | Hoover Bare Floor Cleaning Tool Foam | 91001007 | Not Available |
| 39 | Not Available | Hoover Nozzle Back Plate Assem Includes Nozzle Seal | 90001057 | Not Available |
| 40 | Not Available | Hoover Attachment Cord Assembly | 90001109 | Not Available |
| 41 | Not Available | Hoover Cord Retainer | 90001119 | Not Available |
| 42 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
