Schematic and parts list for: Hoover Model: F5835

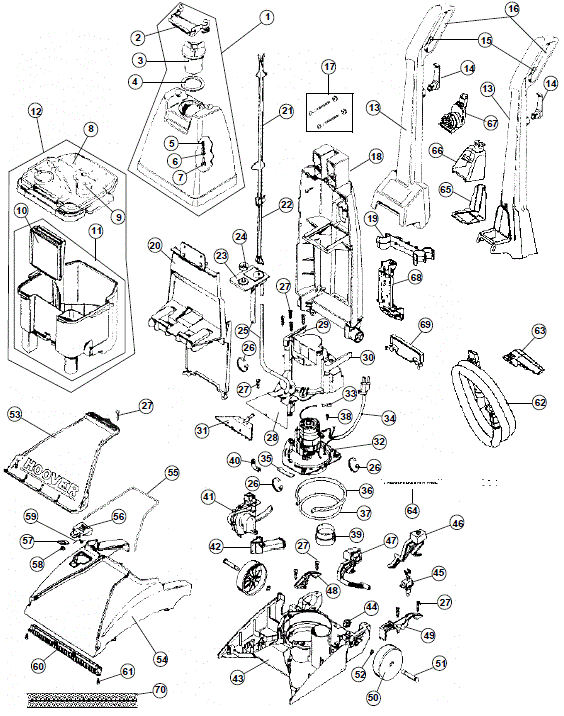

This is a list of parts and a diagram and schematic for: Hoover Model: F5835
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac Supreme
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Solution Tank Assembly With Cap Frost Translucent | 440007358 | Not Available |
| 01 | No Image | ***USE H-440001251TANK, SOLUTION WITH CAP STORM G Part Number: 304040001 for Hoover | 304040001 | $39.63Read more |
| 02 | No Image | Handle, Satin Silver Plastic Solution Tank C3820 | H-522209001 | $12.99Read more |
| 02 | Not Available | Hoover Solution Tank Handle - Magnesium Gray | 39457053 | Not Available |
| 03 | Not Available | Hoover Solution Tank Cap-Black | 42272158 | Not Available |
| 04 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 05 | Not Available | Hoover Spring | 38312014 | Not Available |
| 06 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 07 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 08 | Not Available | Hoover Float Retainer Seal | 38784070 | Not Available |
| 08 | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| 08 | Not Available | Hoover Recovery Tank Lid With Filter | 42272111 | Not Available |
| 08 |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 | Not Available | Hoover Filter - Recovery Tank Lid | 38762014 | Not Available |
| 10 | Not Available | Hoover Duct | 38777106 | Not Available |
| 11 | Not Available | Hoover Recovery Tank With Revise Duct - Storm Gray | 522207001 | Not Available |
| 12 | Not Available | Hoover Recovery Tank Assembly With Duct, Filter, And Lid - Storm Gray | 38777081 | Not Available |
| 13 | Not Available | Hoover Upper Handle Assembly | 522248001 | Not Available |
| 14 | Not Available | Hoover Cord Wrap - Shadow Gray | 39442056 | Not Available |
| 15 | Not Available | Hoover Control Lever - Black | 38434028 | Not Available |
| 16 | Not Available | Hoover Upper Handle Lever Guard - Magnsm Gray | 39458009 | Not Available |
| 17 |  | Nut & Bolt, Handle Hardware SteamVac F6020 2Pk Part Number: 40201245 for Hoover | 40201245 | $5.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Lower Handle Assembly Complete Magnesium Gray | 39466108 | Not Available |
| 19 | Not Available | Hoover Hose Holder - Shadow Gray | 522196001 | Not Available |
| 19 | Not Available | Hoover Hose Holder - Magnesium Gray | 36433205 | Not Available |
| 20 | Not Available | Hoover Handle Cover - Magnesium Gray | 37276029 | Not Available |
| 21 | Not Available | Hoover Control Rod - Upper | 38458037 | Not Available |
| 22 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 23 | Not Available | Hoover Reservoir Assembly | 43516012 | Not Available |
| 24 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 25 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 26 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 27 | Not Available | Hoover Screw | 21447020 | Not Available |
| 28 | Not Available | Hoover Motor / Distribution Cover Kit | 37196139 | Not Available |
| 29 | Not Available | Hoover Tank Release Latch - Right Magnsm Gray | 36151043 | Not Available |
| 29 |  | Latch, RH Recover Tank SteamVac FH50021/FH50025 Part Number: 440007360 for Hoover | 440007360 | $5.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | hoover model f5905-900 left tank release latch part number H-522194002 per essco | WP10825 | $10.50Read more |
| 30 | Not Available | Hoover Tank Release Latch - Left Magnsm Gray | 36151044 | Not Available |
| 31 | Not Available | Hoover Distributor Assembly | 43411006 | Not Available |
| 32 | Not Available | Hoover Motor Assembly | 27212079 | Not Available |
| 33 | Not Available | Hoover Terminals | 012227-- | Not Available |
| 34 | Not Available | Hoover Power Cord - 21' | 46583125 | Not Available |
| 35 | Not Available | Hoover Motor Housing Seal | 34122021 | Not Available |
| 36 | Not Available | Hoover Motor Base Seal | 38781039 | Not Available |
| 37 | Not Available | Hoover Motor Intake Seal | 38784064 | Not Available |
| 38 | Not Available | Hoover Screw - 3.125" | 21447246 | Not Available |
| 39 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 40 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 41 | No Image | Hoover pump for model F5815 F5825 F5857 F50044 steam vacs pon 43582018 | 43582018 | $30.00Read more |
| 42 | Not Available | Hoover Elbow Duct | 38664001 | Not Available |
| 43 | Not Available | Hoover Nozzle Base - Magnesium Gray | 37272114 | Not Available |
| 44 | Not Available | Hoover Cord Retainer - Black | 90001281 | Not Available |
| 45 | Not Available | Hoover Switch | 28218061 | Not Available |
| 46 | Not Available | Hoover Switch Actuator Lever - Satin Silver | 522203001 | Not Available |
| 46 | Not Available | Hoover Switch Actuator Lever - Black | 38434025 | Not Available |
| 47 | Not Available | Hoover Handle Release Lever - Black | 38458042 | Not Available |
| 47 | Not Available | Hoover Handle Release Lever - Satin Silver | 522205001 | Not Available |
| 48 | Not Available | Hoover Trunnion Cover - Right Magnesium Gray | 36131124 | Not Available |
| 48 | Not Available | Hoover Trunnion Cover - Right Shadow Gray | 522193001 | Not Available |
| 49 | Not Available | Hoover Trunnion Cover - Left Shadow Gray | 522193002 | Not Available |
| 49 | Not Available | Hoover Trunnion Cover - Left Magnesium Gray | 36131125 | Not Available |
| 50 | Not Available | Hoover Rear Wheel - Magnesium Gray | 38522091 | Not Available |
| 50 | Not Available | Hoover Rear Wheel - Black | 522206001 | Not Available |
| 51 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 52 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 53 | Not Available | Hoover Nozzle Front - Clear | 90001248 | Not Available |
| 54 | Not Available | Hoover Nozzle Hood - Mystic Lime Green | 90001249 | Not Available |
| 55 | Not Available | Hoover Nozzle Seal | 38781037 | Not Available |
| 56 | Not Available | Hoover Hose Access Door - Mystic Lime Green | 37257314 | Not Available |
| 57 | Not Available | Hoover Access Door Seal | 38783019 | Not Available |
| 58 | Not Available | Hoover Hose Access Door Speed Nut | 21362006 | Not Available |
| 59 | Not Available | Hoover Access Door Spring | 38351017 | Not Available |
| 60 |  | Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
| 61 | Not Available | Hoover Screw - Self Tapping | 21447228 | Not Available |
| 62 | Not Available | Hoover Hose Assembly - Magnesium Gray | 90001351 | Not Available |
| 63 |  | Hoover Upholstery Tool for Shampooers | WP11565 | $9.99Add to cart |
| 64 | Not Available | Hoover Nozzle Clean Out Tool | 39514003 | Not Available |
| 65 | Not Available | Hoover Tool Holder - Magnesium Gray | 36433212 | Not Available |
| 65 | Not Available | Hoover Tool Holder - Shadow Gray | 522195001 | Not Available |
| 66 | Not Available | Hoover Tool Cover - Clear | 37276033 | Not Available |
| 67 | No Image | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| 68 | Not Available | Hoover Lower Tool Holder - Magnesium Gray | 36433234 | Not Available |
| 68 | Not Available | Hoover Screw - Lower Tool Holder | 21447041 | Not Available |
| 69 | Not Available | Hoover Solution Tube Cover - Magnesium Gray | 37276035 | Not Available |
| 69 | Not Available | Hoover Solution Tube Cover - Shadow Gray | 522199001 | Not Available |
| 70 | Not Available | Hoover Bare Floor Tool Assembly | 440007192 | Not Available |
