Schematic and parts list for: Hoover Model: F5821

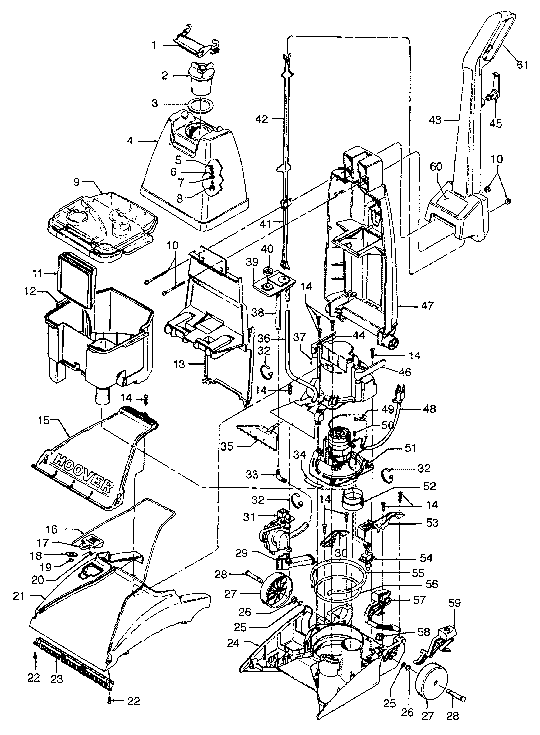

This is a list of parts and a diagram and schematic for: Hoover Model: F5821
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Steam Vac
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Pet Stain/Odor Remover 32 Oz. Pet Stain And Odor Remover - 32 Oz. | 40305032 | Not Available |
| xx | Not Available | Hoover Bare Floor-32Oz Bare Floor Solution - 32 Oz. | 40303032 | Not Available |
| xx | Not Available | Hoover Pre-Cleaner-32 Oz(6) Pre-Spotter Solution 32 Oz. | 40302032 | Not Available |
| xx | Not Available | Hoover Pre-Cleaner-16Oz(12) Pre-Spotter Solution W/ Sprayer 16 Oz. | AH30610 | Not Available |
| xx | Not Available | Hoover Carpet Deter-64Oz(6) | 40301064 | Not Available |
| xx | Not Available | Hoover Carpet Deter-1Gal(4) | 40301004 | Not Available |
| 01 | Not Available | Hoover Tool Converter-F5815 | 38655002 | Not Available |
| 01 | Not Available | Hoover Hose/Noz Body/Tank (Inc. Items 1,2,3, & 5) | 40309044 | Not Available |
| 02 | Not Available | Hoover Hose With Collars | 38671035 | Not Available |
| 03 | Not Available | Hoover Wand Valve Assem-F58 | 43516006 | Not Available |
| 04 | Not Available | Hoover Carpet Clng Solution 16Oz | 57333016 | Not Available |
| 05 | Not Available | Hoover Upholstery Nozzle-F5 | 38619011 | Not Available |
| 06 | Not Available | Hoover Tube Strap-F5815/25 | 36172033 | Not Available |
| 07 | Not Available | Hoover Connector/Coupler Sl | 43513007 | Not Available |
| 08 | Not Available | Hoover Solution Tubing Assm (Inc. Item 7) | 0M100168 | Not Available |
| 09 | Not Available | Hoover Spot Brush-F5851/55/ | 48448001 | Not Available |
| 10 | Not Available | Hoover Corner Tool-F5851/55 | 38619018 | Not Available |
| 11 | Not Available | Hoover Edge Tool-F5851/55/5 | 38619019 | Not Available |
| 12 | Not Available | Hoover Nozzle Clean Out Too | 39514001 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Door Assem-F5831-900 F5832-900, F5832-910 | 37257206 | Not Available |
| xx | Not Available | Hoover Tank Filter Foam Filter - Recovery Tank Lid | 43611041 | Not Available |
| xx | Not Available | Hoover Bare Floor Cleaning F5821, F5824-900, F5825, F5826-900 | 440007192 | Not Available |
| xx | Not Available | Hoover Bare Floor Solution- F5815, F5821 | 57337216 | Not Available |
| xx | Not Available | Hoover Motor-Sv-Hoover(New) F5822, F5826-900 - Models After 10/16/01 | 43576203 | Not Available |
| xx | Not Available | Hoover Motor-Sv-Ametek F5822, F5824-900, F5826-900, F5832-900, F5832-910 | 43576212 | Not Available |
| xx | Not Available | Hoover Cord(Ametek Mtr) 3W - (Use With Ametek Motor) | 46583066 | Not Available |
| xx | Not Available | Hoover Hood-Ag-F5826-900 - Ag- F5824-900, F5826-900 (Incl. It. 15 Thru 23) | 37271071 | Not Available |
| xx | Not Available | Hoover Cord Wrap-F5853-900 F5826-900, F5832-900, F5832-910 | 39442039 | Not Available |
| xx | Not Available | Hoover Float Assembly | 43538001 | Not Available |
| xx | Not Available | Hoover Sprayer - F5825 F5817, F5825 | 43412003 | Not Available |
| xx | Not Available | Hoover Hose/Noz Body/Tank Recovery Tank / Cleaning Tool Hose Assem. | 40309044 | Not Available |
| xx | Not Available | Hoover Hood W/Door Opening Abc - F5832-900, F5832-910 | 37271034 | Not Available |
| xx | No Image | Hoover 302598001 Upholstery Tool, Air Driven Extactor | 302598001 | $32.99Read more |
| xx | Not Available | Hoover Nameplate-F5832910 F5824-900, F5832-900, F5832-910 | 52313110 | Not Available |
| xx | Not Available | Hoover Hose Caddy - F5825 F5817, 5825 | 36433092 | Not Available |
| xx |  | Retainer, Float SteamVac/Extractor FH50025/F5809 Part Number: 38719027 for Hoover | 38719027 | $4.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx | Not Available | Hoover Seal-Fl. Ret.-Steam | 38784070 | Not Available |
| xx | Not Available | Hoover Wall Rack Hdwe F5817, F5825 | 40201142 | Not Available |
| xx | Not Available | Hoover Pre-Cleaner-16Oz(12) F5817, F5825 | AH30610 | Not Available |
| xx | Not Available | Hoover Hose Assembly F5822, F5824-900, F5826-900, F5832-900, F5832-910 | 40309007 | Not Available |
| xx | Not Available | Hoover Lower Rack Assem.-F5 F5824-900, F5826-900, F5832-900, F5832-910 | 41426030 | Not Available |
| xx |  | Hoover HOOVER 48447002 STATIONARY BRUSH for models F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 48447002 | $10.00Read more |
| xx | Not Available | Hoover Door-Ag-F5826-900 F5824-900, F5826-900 (Inc. It. 18 & 19) | 37257277 | Not Available |
| xx | Not Available | Hoover Front/Rear Support | 58461019 | Not Available |
| xx | Not Available | Hoover Mid Support | 58346006 | Not Available |
| xx | Not Available | Hoover Front/Bottom Support F5821 | 58332025 | Not Available |
| xx | Not Available | Hoover Bottom Rear Support | 58332024 | Not Available |
| xx | Not Available | Hoover Rear Support | 58315006 | Not Available |
| xx | Not Available | Hoover Carpet Clng Solution 16Oz | 57333016 | Not Available |
| xx | Not Available | Hoover Upper Handle-F5833-9 F5824-900, F5826-900, F5832-900, F5832-910 | 48663181 | Not Available |
| xx | Not Available | Hoover Solution Tubing Assm | 0M100168 | Not Available |
| 01 | Not Available | Hoover Solution Tank Handle | 39457016 | Not Available |
| 02 | Not Available | Hoover Solution Tank Cap | 42272002 | Not Available |
| 03 |  | Gasket, :( Circular Tank SteamVac/Uprights Part Number: 38784062 for Hoover | 38784062 | $1.57Read more |
| 04 | Not Available | Hoover Solution Tank | 440007358 | Not Available |
| 05 | Not Available | Hoover Spring | 38312014 | Not Available |
| 06 | Not Available | Hoover Washer-Brass (Used On Early Models Produced Prior To 12/97) Service Bulletin 6/97 | 21312518 | Not Available |
| 07 |  | Gasket, Tank Valve Seal FloorMate/SteamVac Part Number: 440013804 for Hoover | 440013804 | $4.81Read more |
| 08 | Not Available | Hoover Valve Stem | 440009753 | Not Available |
| 09 | Not Available | Hoover Recovery Tank Lid | 42272111 | Not Available |
| 10 | Not Available | Hoover Handle Hardware Assem | 40201149 | Not Available |
| 11 | Not Available | Hoover Duct | 38661003 | Not Available |
| 12 | Not Available | Hoover Recovery Tank-Service ( Incl. Items 9,11 ) | 38777081 | Not Available |
| 13 | Not Available | Hoover Handle Cover | 37276001 | Not Available |
| 14 | Not Available | Hoover Screw | 21447020 | Not Available |
| 16 | Not Available | Hoover Seal (Noz. Frt. Plat | 38781037 | Not Available |
| 17 | Not Available | Hoover Door Assem - F5815 F5815, F5821, F5822 (Incl. It. 18 & 19) | 37257102 | Not Available |
| 17 | Not Available | Hoover Door Assem - F5825 F5825 (Incl. It. 18 & 19) | 37257103 | Not Available |
| 17 | Not Available | Hoover Door-F5817 F5817 (Incl. It. 18 & 19) | 37257104 | Not Available |
| 17 | Not Available | Hoover Door Assem. - F5827 (Incl. It. 18 & 19) | 37257140 | Not Available |
| 18 | Not Available | Hoover Seal | 38783019 | Not Available |
| 19 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 20 | Not Available | Hoover Spring -Access Door | 38351017 | Not Available |
| 21 | Not Available | Hoover Hood - F5815 F5815, F5821, F5822 (Incl. It. 15 Thru 23) | 37271030 | Not Available |
| 21 | Not Available | Hoover Hood - F5825 F5825 (Incl. It. 15 Thru 23) | 37271031 | Not Available |
| 21 | Not Available | Hoover Hood Assem - F5827 F5817, F5827 (Incl. It. 15 Thru 23) | 37271033 | Not Available |
| 22 | Not Available | Hoover Screw-Self-Tapping | 21447228 | Not Available |
| 23 | Not Available | Hoover Brush Back Assem. | 440007473 | Not Available |
| 24 | Not Available | Hoover Main Body (Incl. It. 55) F5817, F5825 Late Models (See Note) F5822, F5824-900, F5826-900, F5832-900, F5832-910 | 37272095 | Not Available |
| 24 | Not Available | Hoover Main Body - F5815/25 (Incl. It. 55) F5815, F5821, F5827, F5817 & F5825 Early Models - See Note | 37272081 | Not Available |
| 25 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 27 | Not Available | Hoover Rear Wheel | 38522076 | Not Available |
| 28 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 29 | Not Available | Hoover Elbow Duct | 38664001 | Not Available |
| 30 | Not Available | Hoover Trunion Cover - Rh | 36131085 | Not Available |
| 31 | Not Available | Hoover Pump Assembly Complete | 43582003 | Not Available |
| 32 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 33 | Not Available | Hoover Elbow Connector | 33241001 | Not Available |
| 34 | Not Available | Hoover Motor Housing Seal | 34122021 | Not Available |
| 35 | Not Available | Hoover Distributor Assem. | 43411006 | Not Available |
| 36 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 37 |  | COVER, MOTOR ASSY Part Number: 40309005 for Hoover | 40309005 | $24.70Read more |
| 38 | No Image | Tuber service assembly alternate to 440003975 for models F5851 F5855 F5859 F5837-900 F5837-960 F5839-900 F5865-900 F5867-900 F5868-900 F5869-900 F5869-960 F5869-990 F5881-900 F5883-900 F5883-960 F5883-990 F5884-900 F5884-980 | 40309002 | $25.00Read more |
| 39 | Not Available | Hoover Reservoir Assem-F581 | 43516008 | Not Available |
| 40 | Not Available | Hoover Solution Tank Seal | 38784060 | Not Available |
| 41 | Not Available | Hoover Control Rod - Lower | 38458033 | Not Available |
| 42 | Not Available | Hoover Control Rod - Upper | 38458031 | Not Available |
| 43 | Not Available | Hoover Upper Handle | 48663170 | Not Available |
| 44 | Not Available | Hoover Tank Release Latch-R | 36151019 | Not Available |
| 45 | Not Available | Hoover Cord Wrap | 39442041 | Not Available |
| 46 | Not Available | Hoover Tank Release Latch-L | 36151029 | Not Available |
| 47 | Not Available | Hoover Lower Handle F5817, F5825, Late Models (See Note) F5824-900, F5826-900, F5832-900, F5832-910 | 39466033 | Not Available |
| 47 | Not Available | Hoover Lower Handle Comp-Abu F5815, F5821, F5827, F5817 & F5825 Early Models - See Note | 39466030 | Not Available |
| 48 | Not Available | Hoover Cord-Steam Vac-33' Attachment Cord 33 Ft. - 3W (Use With Hoover Motor) | 46583125 | Not Available |
| 48 | No Image | CORD, 31' STEAMER WHITE WIRE STRIPPED Part Number: 46583012 for Hoover | 46583012 | $28.91Read more |
| 49 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 50 | Not Available | Hoover Screw-Tapping | 21447240 | Not Available |
| 51 | Not Available | Hoover Motor Kit-Wv Replaces Gs Motor | 40309009 | Not Available |
| 52 | Not Available | Hoover Standpipe Seal | 38784063 | Not Available |
| 53 | Not Available | Hoover Trunion Cover - Lh | 36131086 | Not Available |
| 54 | Not Available | Hoover Switch-F5805/15/25 | 28218048 | Not Available |
| 55 | Not Available | Hoover Motor Base Seal | 38781039 | Not Available |
| 56 | Not Available | Hoover Motor Intake Seal | 38784064 | Not Available |
| 57 | Not Available | Hoover Handle Release Lever Service F5815, F5821, F5827, F5817 & F5825 Early Models - See Note | 38458040 | Not Available |
| 57 | Not Available | Hoover Handle Release Lever F5817, F5825 Late Models (See Note) F5822, F5824-900, F5826-900 | 38458042 | Not Available |
| 58 | Not Available | Hoover Cord Retainer | 36172054 | Not Available |
| 59 | Not Available | Hoover Switch Actuator Lever | 38434025 | Not Available |
| 60 | Not Available | Hoover Nameplate F5815, F5825 | 52313013 | Not Available |
| 60 | Not Available | Hoover Nameplate-F5827 F5827 | 52313015 | Not Available |
| 60 | Not Available | Hoover Nameplate-F5817 F5817; F5821 | 52313014 | Not Available |
| 61 | Not Available | Hoover Handle Lever Guard-Abu | 39458005 | Not Available |
