Schematic and parts list for: Hoover Model: F4300
This is a list of parts and a diagram and schematic for: Hoover Model: F4300
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Bare Floor Cleaner
Popular Supplies

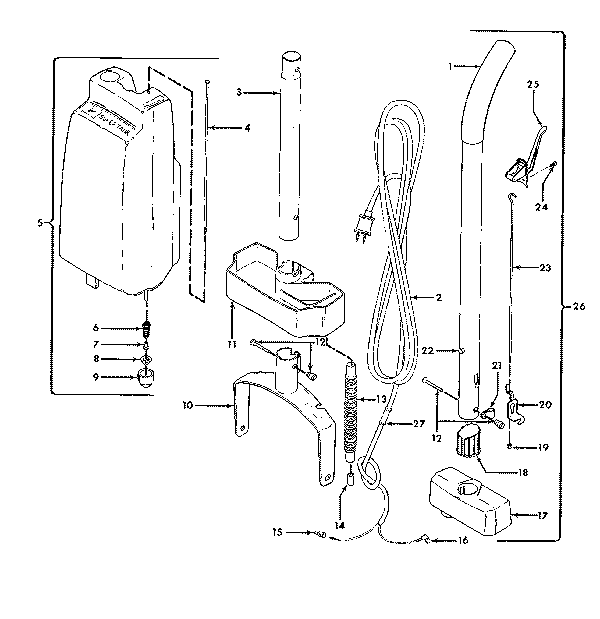

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Handle Grip | 39454072 | Not Available |
| 02 | Not Available | Hoover Attachment / Power Cord | 46383068 | Not Available |
| 03 | Not Available | Hoover Lower Handle | 32284026 | Not Available |
| 04 | Not Available | Hoover Valve Rod - Tank | 019717 | Not Available |
| 05 | Not Available | Hoover Tank Complete - Cool Gray | 43632028 | Not Available |
| 06 | Not Available | Hoover Valve Spring | 017314 | Not Available |
| 07 |  | Bissell Style 8 and 14 Belts | 011120014341 | $7.49Add to cart |
| 08 | Not Available | Hoover Tank Cap Liner | 015796 | Not Available |
| 09 | Not Available | Hoover Valve Cap | 37911006 | Not Available |
| 10 | Not Available | Hoover Bail Arm Assembly | 41415002 | Not Available |
| 11 | Not Available | Hoover Tank Support | 36431020 | Not Available |
| 12 | Not Available | Hoover Handle Bolt And Nut | 0428294AW | Not Available |
| 13 | Not Available | Hoover Distributor Hose | 017473 | Not Available |
| 14 | Not Available | Hoover Plug | 162180 | Not Available |
| 15 | Not Available | Hoover Wire Nut | 048969 | Not Available |
| 16 | Not Available | Hoover Terminal - Flag | 161876 | Not Available |
| 17 | Not Available | Hoover Tank Cap | 37274056 | Not Available |
| 18 | Not Available | Hoover Tank Cap Lock | 36143005 | Not Available |
| 19 | Not Available | Hoover Nut | 162067 | Not Available |
| 20 | Not Available | Hoover Valve Control Bracket | 162069AY | Not Available |
| 21 | Not Available | Hoover Cord Clamp | 012910 | Not Available |
| 22 | Not Available | Hoover Rivet | 017252 | Not Available |
| 23 | Not Available | Hoover Control Rod | 162068 | Not Available |
| 24 | Not Available | Hoover Screw | 017942 | Not Available |
| 25 | Not Available | Hoover Control Housing | 43138005 | Not Available |
| 26 | Not Available | Hoover Bottom Support | 58347001 | Not Available |
| 26 | Not Available | Hoover Upper Handle - Chromium Plated | 48648022 | Not Available |
| 26 | Not Available | Hoover End Support | 58343008 | Not Available |

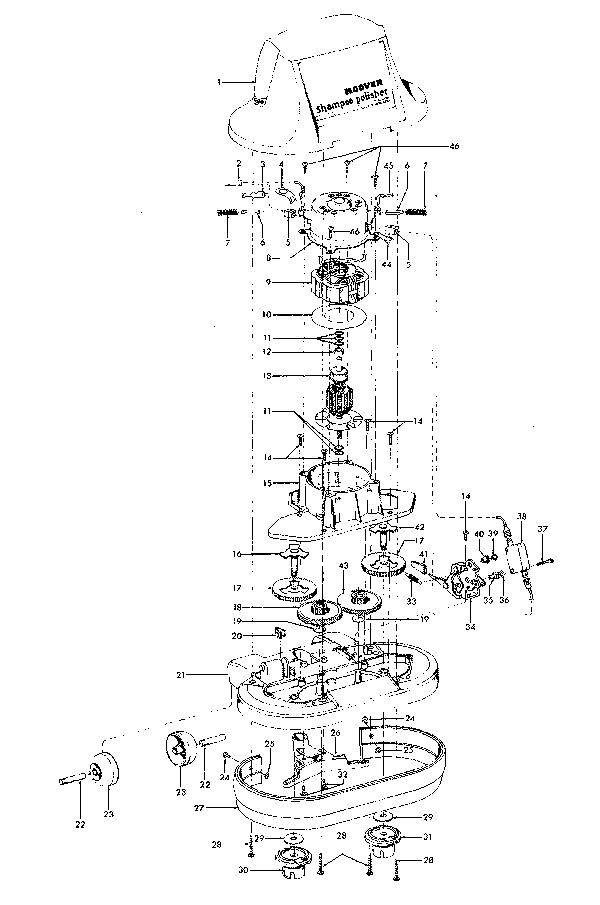

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hood / Cover With Name Plate | 42271029 | Not Available |
| 02 | Not Available | Hoover Power Cord | 46383068 | Not Available |
| 03 | Not Available | Hoover Terminal | 012227 | Not Available |
| 04 | Not Available | Hoover Lead Wire Holder | 013190 | Not Available |
| 05 | Not Available | Hoover Lead Wire Collar | 049379 | Not Available |
| 06 | Not Available | Hoover Motor Brush | 47311005 | Not Available |
| 07 | Not Available | Hoover Motor Brush Spring | 38311009 | Not Available |
| 08 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| 09 | Not Available | Hoover Field Assembly | 45314011 | Not Available |
| 10 | Not Available | Hoover Baffle | 012653 | Not Available |
| 11 | Not Available | Hoover Washer | 21312720 | Not Available |
| 12 | Not Available | Hoover Spacker | 31148006 | Not Available |
| 13 | Not Available | Hoover Armature | 023445 | Not Available |
| 14 | Not Available | Hoover Screw | 21447007 | Not Available |
| 15 | Not Available | Hoover Gear Cover Assembly | 012165 | Not Available |
| 16 | Not Available | Hoover Brush Shaft Insert - Right | 168405 | Not Available |
| 17 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
| 18 | Not Available | Hoover Idler Gear - Right | 035675BZ | Not Available |
| 19 | Not Available | Hoover Washer | 21312724 | Not Available |
| 20 | Not Available | Hoover Retainer | 36131030 | Not Available |
| 21 | Not Available | Hoover Gear Housing Complete | 42273011 | Not Available |
| 22 | Not Available | Hoover Wheel Shaft | 31523008 | Not Available |
| 23 | Not Available | Hoover Wheel | 32175025 | Not Available |
| 24 | Not Available | Hoover Rivet | 049571AY | Not Available |
| 25 | Not Available | Hoover Washer | 21312788 | Not Available |
| 26 | Not Available | Hoover Distributor Assembly | 43486003 | Not Available |
| 27 | Not Available | Hoover Furniture Guard - Cool Gray | 36231152 | Not Available |
| 28 | Not Available | Hoover Screw | 21447020 | Not Available |
| 29 | Not Available | Hoover Washer | 21312756 | Not Available |
| 29 | Not Available | Hoover Washer | 21312757 | Not Available |
| 30 | Not Available | Hoover Brush Carrier - Right | 017309 | Not Available |
| 31 | Not Available | Hoover Brush Carrier - Left | 017308 | Not Available |
| 32 | Not Available | Hoover Screw | 21447003 | Not Available |
| 33 | Not Available | Hoover Handle Control Lever | 012891 | Not Available |
| 34 | Not Available | Hoover Bail Mounting Bracket | 165104 | Not Available |
| 35 | Not Available | Hoover Nut - Special | 21388105 | Not Available |
| 36 | Not Available | Hoover Washer | 21312761 | Not Available |
| 37 | Not Available | Hoover Screw - Machine | 012892 | Not Available |
| 38 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 39 | Not Available | Hoover Eyelet | 014360 | Not Available |
| 40 | Not Available | Hoover Switch Insulator | 014377 | Not Available |
| 41 | Not Available | Hoover Foot Pad | 034207AG | Not Available |
| 42 | Not Available | Hoover Brush Shaft And Insert - Left | 168404 | Not Available |
| 43 | Not Available | Hoover Idler Gear - Left | 035674 | Not Available |
| 44 | Not Available | Hoover Wire Holder | 045517 | Not Available |
| 45 | Not Available | Hoover Lead Wire - White | 46116001 | Not Available |
| 46 | Not Available | Hoover Screw | 214793DA | Not Available |
| 46 | Not Available | Hoover Name Plate - Hood | 52313009 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Scrubbing Brush | 48436047 | Not Available |
| 02 | Not Available | Hoover Rug Shampoo Brush | 48437005 | Not Available |
| 03 | Not Available | Hoover Cleaning And Waxing Pads - Pair Yellow Applies Wax | 018362 | Not Available |
| 03 | Not Available | Hoover Cleaning And Waxing Pads - Pair White Buffs Wax | 013195 | Not Available |
| 04 | Not Available | Hoover Rug Shampoo Attachment | 37275005 | Not Available |
| 05 | Not Available | Hoover Pad Fasteners | 015844 | Not Available |
| 06 | Not Available | Hoover Wool Buffing Pad - Pair | 018360 | Not Available |
| 07 | Not Available | Hoover Felt Buffing Pad - Pair | 018361 | Not Available |
| 07 | Not Available | Hoover Soft Cloth Pad - Pair | 48483003 | Not Available |
| 08 | Not Available | Hoover Polishing Scrub Brush | 48436045 | Not Available |
| 08 | Not Available | Hoover Rug And Carpet Shampoo - 32 Oz | 40301200 | Not Available |
| 08 | Not Available | Hoover Bare Floor Cleaner - 32 Oz | 40303032 | Not Available |
| 08 | Not Available | Hoover Rug And Carpet Shampoo - 16 Oz | 57333001 | Not Available |
