Schematic and parts list for: Hoover Model: F2300

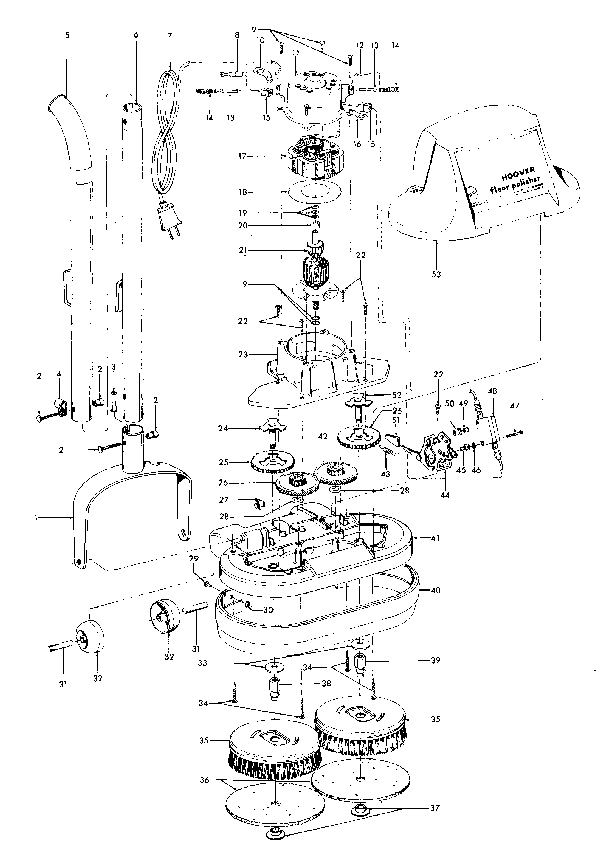

This is a list of parts and a diagram and schematic for: Hoover Model: F2300
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Polishing/Scrub Brush | 48436045 | Not Available |
| 01 | Not Available | Hoover Scrubbing Br/Br Carr | 48436047 | Not Available |
| 02 | Not Available | Hoover Rug Shampoo Brushes- | 15636 | Not Available |
| 02 | Not Available | Hoover Rug Shampoo Brush-Lo | 48437005 | Not Available |
| 03 | Not Available | Hoover Cleaning & Waxing | 13195 | Not Available |
| 03 | Not Available | Hoover Clean-Wax Pads-Pair- | 18362 | Not Available |
| 04 | Not Available | Hoover Rug Shampoo Attachment | 37275005 | Not Available |
| 04 | Not Available | Hoover Rug Attachment F5300 | 37275018 | Not Available |
| 04 | Not Available | Hoover Rug Shampoo Attachment | 016543JX | Not Available |
| 05 | Not Available | Hoover Plastic Fastener | 32172004 | Not Available |
| 05 | Not Available | Hoover Pad Fasteners | 15844 | Not Available |
| 06 | Not Available | Hoover Lambs Wool Buffing Pair | 18360 | Not Available |
| 06 | Not Available | Hoover Pad Pair | 13197 | Not Available |
| 07 | Not Available | Hoover Felt Buffing Pads-Pair | 18361 | Not Available |
| 07 | Not Available | Hoover Soft Cloth Pads | 48483003 | Not Available |
| 07 | Not Available | Hoover Polishing Pad Env As | 48432014 | Not Available |
| 08 | Not Available | Hoover Polishing Brush | 35613 | Not Available |
| 08 | Not Available | Hoover Polishing/Scrub Brush | 48436045 | Not Available |
| 09 | Not Available | Hoover Bare Floor-32Oz | 40303032 | Not Available |
| 09 | Not Available | Hoover Rug & Carpet Shampoo | 57333001 | Not Available |
| 09 | Not Available | Hoover Rug/Carpet Shampoo(12) | 40301200 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Exp-Bail Arm | 41415002 | Not Available |
| 02 | Not Available | Hoover Bolt & Nut | 48294AW | Not Available |
| 03 |  | INSTRUCTION PACK, DC33 Part Number: 920145-04 for Dyson | 92014504 | $15.86Read more |
| 04 |  | BRUSH ROLL ASSY-#88 F.Q. PWR NOZZLE LATE-OEM 1291001600 | FQ2000 | $33.10Read more |
| 05 | Not Available | Hoover Handle-Upper | 48643005 | Not Available |
| 05 | Not Available | Hoover Handle Upper | 35568JM | Not Available |
| 06 | Not Available | Hoover Handle-Lower | 48631184 | Not Available |
| 06 | Not Available | Hoover Handle Lower | 35007JM | Not Available |
| 07 | Not Available | Hoover Attachment Cord | 46363281 | Not Available |
| 07 | Not Available | Hoover Exp-Attachment Cord | 46363338 | Not Available |
| 08 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 09 | Not Available | Hoover Screw | 017001FW | Not Available |
| 10 | Not Available | Hoover Lead Wire Holder | 13190 | Not Available |
| 11 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| 12 | Not Available | Hoover Lead Wire | 46116001 | Not Available |
| 13 | Not Available | Hoover Exp-Motor Brush & Sp (Inc. Item 14) | 47311005 | Not Available |
| 14 | Not Available | Hoover Motor Brush Spring | 38311009 | Not Available |
| 15 | Not Available | Hoover Lead Wire Collar 535 | 49379 | Not Available |
| 16 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 17 | Not Available | Hoover Field Assembly | 23444 | Not Available |
| 17 | Not Available | Hoover Field Assembly | 45314011 | Not Available |
| 18 | Not Available | Hoover Baffle | 12653 | Not Available |
| 19 | Not Available | Hoover Washer | 21312720 | Not Available |
| 20 | Not Available | Hoover Spacer | 31148006 | Not Available |
| 21 | Not Available | Hoover Armature 5350 | 23445 | Not Available |
| 22 | Not Available | Hoover Screw | 21447007 | Not Available |
| 23 | Not Available | Hoover Gear Cover Assembly | 12165 | Not Available |
| 24 | Not Available | Hoover Brush Shaft & Insert Rh . | 168402 | Not Available |
| 25 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
| 26 | Not Available | Hoover Idler Gear-Rh | 035675BZ | Not Available |
| 27 | Not Available | Hoover Retainer | 36131030 | Not Available |
| 28 | Not Available | Hoover Washer | 21312724 | Not Available |
| 29 | Not Available | Hoover Rivet | 049571AY | Not Available |
| 30 | Not Available | Hoover Washer | 21312788 | Not Available |
| 31 | Not Available | Hoover Wheel Shaft | 31523008 | Not Available |
| 32 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 33 | Not Available | Hoover Washer | 21312756 | Not Available |
| 34 | Not Available | Hoover Screw | 21447020 | Not Available |
| 35 | Not Available | Hoover Polishing Brush | 35613 | Not Available |
| 35 | Not Available | Hoover Polishing Brush | 48436046 | Not Available |
| 36 | Not Available | Hoover Polishing Pad Env As (Incl. Pad Fasteners) | 48432014 | Not Available |
| 36 | Not Available | Hoover Soft Cloth Pads-Pr.- Incl. Pad Fasteners) | 48483002 | Not Available |
| 37 | Not Available | Hoover Plastic Fastener | 32172004 | Not Available |
| 38 | Not Available | Hoover Shaft & Nut-Rh 5350 | 35583 | Not Available |
| 39 | Not Available | Hoover Shaft & Nut-Lh-5350 | 35584 | Not Available |
| 40 | Not Available | Hoover Furniture Guard | 36231132 | Not Available |
| 40 | Not Available | Hoover Furniture Guard | 36231152 | Not Available |
| 41 | Not Available | Hoover Gear Housing Comp - (Incl. Items 31,32) | 42273010 | Not Available |
| 42 | Not Available | Hoover Idler Gear-Left Hand | 35674 | Not Available |
| 43 | No Image | PCB, 3530 CANISTER Part Number: 61289-1 for Eureka | 612891 | $36.66Read more |
| 44 | Not Available | Hoover Bail Mounting Bracket With Switch (Incl. Items 43,45,46,47,48,49,50) | 165104 | Not Available |
| 45 | Not Available | Hoover Nut-Special | 21388105 | Not Available |
| 46 | Not Available | Hoover Washer | 21312761 | Not Available |
| 47 | Not Available | Hoover Screw-Machine | 12892 | Not Available |
| 48 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 49 | Not Available | Hoover Eyelet 5131 | 14360 | Not Available |
| 50 | Not Available | Hoover Switch Insulator 513 | 14377 | Not Available |
| 51 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 51 | Not Available | Hoover Foot Pad-Acn-F2300/4 | 38426003 | Not Available |
| 52 | Not Available | Hoover Brush Shaft & Insert Lh | 168403 | Not Available |
| 53 | Not Available | Hoover Hood Complete - Aam | 42271011 | Not Available |
| 53 | Not Available | Hoover Hood With Nameplate | 42271012 | Not Available |
| 54 | Not Available | Hoover Bottom Supp-5100 Series | 58347001 | Not Available |
| 54 | Not Available | Hoover Owner Manual | 56518106 | Not Available |
| 54 | Not Available | Hoover Hood Nameplate | 52313040 | Not Available |
| 54 | Not Available | Hoover Handle Grip | 39454072 | Not Available |
| 55 | Not Available | Hoover Rug Shampooer | 15116 | Not Available |
| 55 | Not Available | Hoover Pad Pair | 13197 | Not Available |
| 55 | Not Available | Hoover Cleaning & Waxing Pa | 13195 | Not Available |
| 55 | Not Available | Hoover Polishing Pad Env | 48432014 | Not Available |
| 56 | Not Available | Hoover Bare Floor-32Oz | 40303032 | Not Available |
| 56 | Not Available | Hoover Polishing Pad Env | 48432014 | Not Available |
| 56 | Not Available | Hoover Polishing Brush | 48436046 | Not Available |
| 56 | Not Available | Hoover Soft Cloth Pads- | 48483002 | Not Available |
