Schematic and parts list for: Hoover Model: F2101

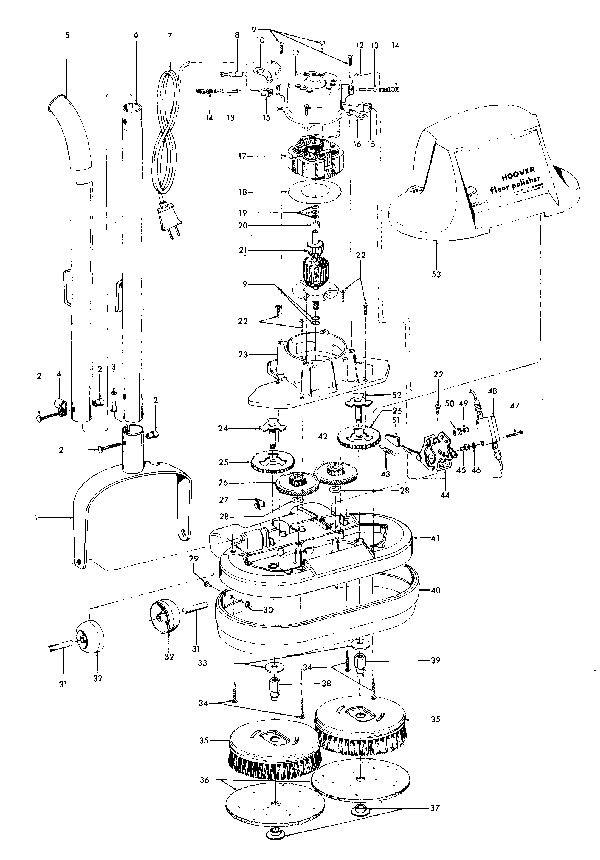

This is a list of parts and a diagram and schematic for: Hoover Model: F2101
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Polishing/Scrub Brush F4143, F4251, F4251-060, F4255, F4323 | 48436045 | Not Available |
| 01 | Not Available | Hoover Scrubbing Brush F5019, F5047 | 48436047 | Not Available |
| 02 | Not Available | Hoover Rug Shampoo Brush F5019, F5047 | 15636 | Not Available |
| 02 | Not Available | Hoover Rug Shampoo Brush F31 1 9, F4143, F4251, F4251-060, F4255, F4300, F4323 | 48437005 | Not Available |
| 03 | Not Available | Hoover Cleaning & Waxing Pads | 13195 | Not Available |
| 03 | Not Available | Hoover Clean-Wax Pads-Pair- | 18362 | Not Available |
| 04 | Not Available | Hoover Rug Shampoo Attach F5019, F5047 | 37275005 | Not Available |
| 04 | Not Available | Hoover Rug Attach-Ag-F5300 F5300, F5300-060 | 37275018 | Not Available |
| 04 | Not Available | Hoover Rug Shampoo Attach | 016543JX | Not Available |
| 05 | Not Available | Hoover Plastic Fastener-F20 F4255-040 | 32172004 | Not Available |
| 05 | Not Available | Hoover Pad Fasteners-3600 F4143, F4251, F4251-060, F4255, F4323, F5019, F5047, F5300, F5300-060 | 15844 | Not Available |
| 06 | Not Available | Hoover Lambs Wool Buffing Pair F4255, F5019, F5047, F5300, F5300-060 (F5300-060 Packed With 2 Pairs) | 18360 | Not Available |
| 06 | Not Available | Hoover Pad Pair F4255-040 | 13197 | Not Available |
| 07 | Not Available | Hoover Felt Buffing Pads-Pair F4143, F4251, F4300, F5300, F5300-060 ( F4251-060, F5019, F5047 | 18361 | Not Available |
| 07 | Not Available | Hoover Soft Cloth Pads F4300, F5300, F5300-060 (F5300-060 Packed With 2 Pairs) | 48483003 | Not Available |
| 07 | Not Available | Hoover Polishing Pad F4255-040 | 48432014 | Not Available |
| 08 | Not Available | Hoover Polishing Brush-5350 F4255-040 | 35613 | Not Available |
| 08 | Not Available | Hoover Polishing/Scrub Brush F4300 | 48436045 | Not Available |
| 09 | Not Available | Hoover Bare Floor-32Oz Bare Floor Solution - 32 Oz. - F4300, F5300, F5300-060 | 40303032 | Not Available |
| 09 | Not Available | Hoover Rug & Carpet Shampoo 16 Oz. - F4300, F5300, F5300-060 | 57333001 | Not Available |
| 09 | Not Available | Hoover Rug/Carpet Shampoo(12) | 40301200 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Exp-Bail Arm | 41415002 | Not Available |
| 02 | Not Available | Hoover Bolt & Nut | 48294AW- | Not Available |
| 03 |  | INSTRUCTION PACK, DC33 Part Number: 920145-04 for Dyson | 92014504 | $15.86Read more |
| 04 |  | BRUSH ROLL ASSY-#88 F.Q. PWR NOZZLE LATE-OEM 1291001600 | FQ2000 | $33.10Read more |
| 05 | Not Available | Hoover Handle-Upper-Ax-F230 F2300 | 48643005 | Not Available |
| 05 | Not Available | Hoover Handle Upper F2101 | 35568JM- | Not Available |
| 06 | Not Available | Hoover Handle-Lower-Ax-F230 F2300 | 48631184 | Not Available |
| 06 | Not Available | Hoover Handle Lower F2101 | 35007JM- | Not Available |
| 07 | Not Available | Hoover Attach Cord - Aap | 46363281 | Not Available |
| 07 | Not Available | Hoover Attach Cord F2300 | 46363338 | Not Available |
| 08 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 09 | Not Available | Hoover Screw | 017001FW | Not Available |
| 10 | Not Available | Hoover Lead Wire Holder-F42 | 13190 | Not Available |
| 11 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| 12 | Not Available | Hoover Lead Wire -White - F | 46116001 | Not Available |
| 13 | Not Available | Hoover Motor Brush (Inc. Item 14) | 47311005 | Not Available |
| 14 | Not Available | Hoover Motor Brush Spring | 38311009 | Not Available |
| 15 | Not Available | Hoover Lead Wire Collar 535 | 49379 | Not Available |
| 16 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 17 | Not Available | Hoover Field Assembly 5350 F2101 | 23444 | Not Available |
| 17 | Not Available | Hoover Field Assembly F2300 | 45314011 | Not Available |
| 18 | Not Available | Hoover Baffle | 12653 | Not Available |
| 19 | Not Available | Hoover Washer | 21312720 | Not Available |
| 20 | Not Available | Hoover Spacer | 31148006 | Not Available |
| 21 | Not Available | Hoover Armature 5350 | 23445 | Not Available |
| 22 | Not Available | Hoover Screw | 21447007 | Not Available |
| 23 | Not Available | Hoover Gear Cover Assembly | 12165 | Not Available |
| 24 | Not Available | Hoover Brush Shaft & Insert Right Hand . | 168402 | Not Available |
| 25 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
| 26 | Not Available | Hoover Idler Gear-Right Hand-S486 | 035675BZ | Not Available |
| 27 | Not Available | Hoover Retainer - Bz - F210 | 36131030 | Not Available |
| 28 | Not Available | Hoover Washer | 21312724 | Not Available |
| 29 | Not Available | Hoover Rivet | 049571AY | Not Available |
| 30 | Not Available | Hoover Washer - F2101 | 21312788 | Not Available |
| 31 | Not Available | Hoover Wheel Shaft - Ay - F | 31523008 | Not Available |
| 32 | Not Available | Hoover Wheel-Ag | 32175025 | Not Available |
| 33 | Not Available | Hoover Washer | 21312756 | Not Available |
| 34 | Not Available | Hoover Screw | 21447020 | Not Available |
| 35 | Not Available | Hoover Polishing Brush-5350 | 35613 | Not Available |
| 35 | Not Available | Hoover Polishing Brush-F230 F2300 | 48436046 | Not Available |
| 36 | Not Available | Hoover Polishing Pad Env As (Incl. Pad Fasteners) | 48432014 | Not Available |
| 36 | Not Available | Hoover Soft Cloth Pads (Incl. Pad Fasteners) | 48483002 | Not Available |
| 37 | Not Available | Hoover Plastic Fastener-F20 | 32172004 | Not Available |
| 38 | Not Available | Hoover Shaft & Nut-Right Hand- 5350 | 35583 | Not Available |
| 39 | Not Available | Hoover Shaft & Nut-Left Hand- 5350 | 35584 | Not Available |
| 40 | Not Available | Hoover Furniture Guard F2101 | 36231132 | Not Available |
| 40 | Not Available | Hoover Furniture Guard F2300 | 36231152 | Not Available |
| 41 | Not Available | Hoover Gear Housing Complete - (Incl. Items 31,32) | 42273010 | Not Available |
| 42 | Not Available | Hoover Idler Gear-Left Hand | 35674 | Not Available |
| 43 | No Image | PCB, 3530 CANISTER Part Number: 61289-1 for Eureka | 612891 | $36.66Read more |
| 44 | Not Available | Hoover Bail Mounting Bracket With Switch (Incl. Items 43,45,46,47,48,49,50) | 165104 | Not Available |
| 45 | Not Available | Hoover Nut-Special | 21388105 | Not Available |
| 46 | Not Available | Hoover Washer | 21312761 | Not Available |
| 47 | Not Available | Hoover Screw-Machine | 12892 | Not Available |
| 48 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 49 | Not Available | Hoover Eyelet 5131 | 14360 | Not Available |
| 50 | Not Available | Hoover Switch Insulator 513 | 14377 | Not Available |
| 51 | Not Available | Hoover Foot Pad | 034207AG | Not Available |
| 51 | Not Available | Hoover Foot Pad F2300 | 38426003 | Not Available |
| 52 | Not Available | Hoover Brush Shaft & Insert Left Hand | 168403 | Not Available |
| 53 | Not Available | Hoover Hood Complete - Aam F2101 | 42271011 | Not Available |
| 53 | Not Available | Hoover Hood W/Nameplate-F32 W/ Nameplate - Ag - F2300 | 42271012 | Not Available |
| 54 | Not Available | Hoover Bottom Support-5100 Series | 58347001 | Not Available |
| 54 | Not Available | Hoover Owner Manual-F2300 | 56518106 | Not Available |
| 54 | Not Available | Hoover Hood Nameplate-F2300 F2300 | 52313040 | Not Available |
| 54 | Not Available | Hoover Handle Grip-Ag-F2300 F2300 | 39454072 | Not Available |
| 55 | Not Available | Hoover Rug Shampooer F2101 | 15116 | Not Available |
| 55 | Not Available | Hoover Pad Pair F2101 | 13197 | Not Available |
| 55 | Not Available | Hoover Cleaning & Waxing Pad F2101 | 13195 | Not Available |
| 55 | Not Available | Hoover Polishing Pad F2101 | 48432014 | Not Available |
| 56 | Not Available | Hoover Bare Floor-32Oz F2300 Bare Floor Solution - 32 Oz. | 40303032 | Not Available |
| 56 | Not Available | Hoover Polishing Pad F2300 | 48432014 | Not Available |
| 56 | Not Available | Hoover Polishing Brush-F230 F2300 | 48436046 | Not Available |
| 56 | Not Available | Hoover Soft Cloth Pads F2300 | 48483002 | Not Available |
