Schematic and parts list for: Hoover Model: F2003
This is a list of parts and a diagram and schematic for: Hoover Model: F2003
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SteamVac
Popular Supplies

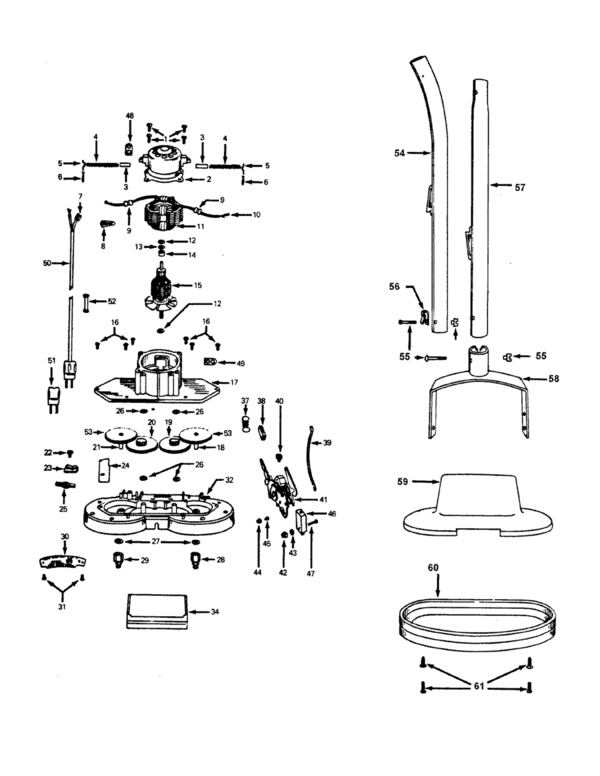

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 017001FW | Not Available |
| 2 | Not Available | Hoover Motor Cap Assembly | 42197002 | Not Available |
| 3 | Not Available | Hoover Motor Brush 5350 | 049351- | Not Available |
| 4 | Not Available | Hoover Motor Brush Spring-5 | 049423- | Not Available |
| 5 | Not Available | Hoover Retainer | 049397- | Not Available |
| 6 | Not Available | Hoover Pin | 049435- | Not Available |
| 7 | Not Available | Hoover Terminal | 160356- | Not Available |
| 8 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 9 | Not Available | Hoover Lead Wire Collar 535 | 049379- | Not Available |
| 10 | Not Available | Hoover Terminal | 014197- | Not Available |
| 11 | Not Available | Hoover Field Assembly 5350 | 023444- | Not Available |
| 12 | Not Available | Hoover Washer | 21312720 | Not Available |
| 13 | Not Available | Hoover Washer | 015865- | Not Available |
| 14 | Not Available | Hoover Insulator | 049344- | Not Available |
| 15 | Not Available | Hoover Armature 5350 | 023445- | Not Available |
| 16 | Not Available | Hoover Screw | 049417AZ | Not Available |
| 17 | Not Available | Hoover Gear Cover Assembly | 012165- | Not Available |
| 18 | Not Available | Hoover Brush Shaft & Insert Lh | 168403- | Not Available |
| 19 | Not Available | Hoover Idler Gear-Left Hand | 035674- | Not Available |
| 20 | Not Available | Hoover Idler Gear-Rh-S486 | 035675BZ | Not Available |
| 21 | Not Available | Hoover Brush Shaft & Insert Rh | 168402- | Not Available |
| 22 | Not Available | Hoover Screw 5140 | 014378- | Not Available |
| 23 | Not Available | Hoover Cord Clamp | 012910- | Not Available |
| 24 | Not Available | Hoover Cord Insulator | 014367- | Not Available |
| 25 | Not Available | Hoover Bail Shaft Rh-5350 | 049388AY | Not Available |
| 26 | Not Available | Hoover Washer | 21312724 | Not Available |
| 27 | Not Available | Hoover Washer | 21312756 | Not Available |
| 28 | Not Available | Hoover Shaft & Nut-Lh-5350 | 035584- | Not Available |
| 29 | Not Available | Hoover Shaft & Nut-Rh 5350 | 035583- | Not Available |
| 30 | Not Available | Hoover Data Plate-F2003 | 52373001 | Not Available |
| 31 | Not Available | Hoover Screw | 049508- | Not Available |
| 32 | Not Available | Hoover Gear Housing Comp - | 42273011 | Not Available |
| 34 | Not Available | Hoover Hood Adapter | 017074AG | Not Available |
| 37 | Not Available | Hoover Handle Control Lever | 012891- | Not Available |
| 38 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 39 | Not Available | Hoover Lead Wire By Foot | 012574- | Not Available |
| 40 | Not Available | Hoover Screw | 049429- | Not Available |
| 41 | Not Available | Hoover Bail Mounting Bracke | 43138001 | Not Available |
| 42 | Not Available | Hoover Nut-Special | 21388105 | Not Available |
| 43 | Not Available | Hoover Washer | 21312761 | Not Available |
| 44 | Not Available | Hoover Switch Insulator 513 | 014377- | Not Available |
| 45 | Not Available | Hoover Eyelet 5131 | 014360- | Not Available |
| 46 | No Image | SWITCH, 5488 POLISHER/ SHAMPOOER 5488 Part Number: 019512AH for Hoover | 019512AH | $14.05Read more |
| 47 | Not Available | Hoover Screw-Machine | 012892- | Not Available |
| 48 | Not Available | Hoover Lead Wire Holder-F42 | 013190- | Not Available |
| 49 | Not Available | Hoover Wire Holder | 045517- | Not Available |
| 50 | Not Available | Hoover Obsolete Dls | 012887HH | Not Available |
| 50 | Not Available | Hoover Exp-Attach. Cord | 46363338 | Not Available |
| 51 | Not Available | Hoover Service Plug Assembl | 035380- | Not Available |
| 52 |  | INSTRUCTION PACK, DC33 Part Number: 920145-04 for Dyson | 92014504 | $15.86Read more |
| 53 | Not Available | Hoover Brush Gear | 38541002 | Not Available |
| 54 | Not Available | Hoover Handle Upr | 35568JM- | Not Available |
| 54 | Not Available | Hoover Handle Assy-Upper-51 | 049137LL | Not Available |
| 55 | Not Available | Hoover Bolt & Nut | 48294AW- | Not Available |
| 56 | Not Available | Hoover Cord Clamp | 012910- | Not Available |
| 57 | Not Available | Hoover Handle Lwr | 35007JM- | Not Available |
| 57 | Not Available | Hoover Handle-Lower Half-51 | 035007LL | Not Available |
| 58 | Not Available | Hoover Bail Arm | 41415003 | Not Available |
| 59 | Not Available | Hoover Hood Assembly-5158 | 167015DL | Not Available |
| 59 | Not Available | Hoover Hood Assem F2003-101 | 167015JX | Not Available |
| 59 | Not Available | Hoover Hood Assembly | 167015EY | Not Available |
| 60 | Not Available | Hoover Furniture Guard | 017874JM | Not Available |
| 61 | Not Available | Hoover Screw A120 | 016728- | Not Available |
| 65 | Not Available | Hoover Washer-Special-5300 | 012622- | Not Available |
| 65 | Not Available | Hoover Brush Shaft Bushing- | 168505- | Not Available |

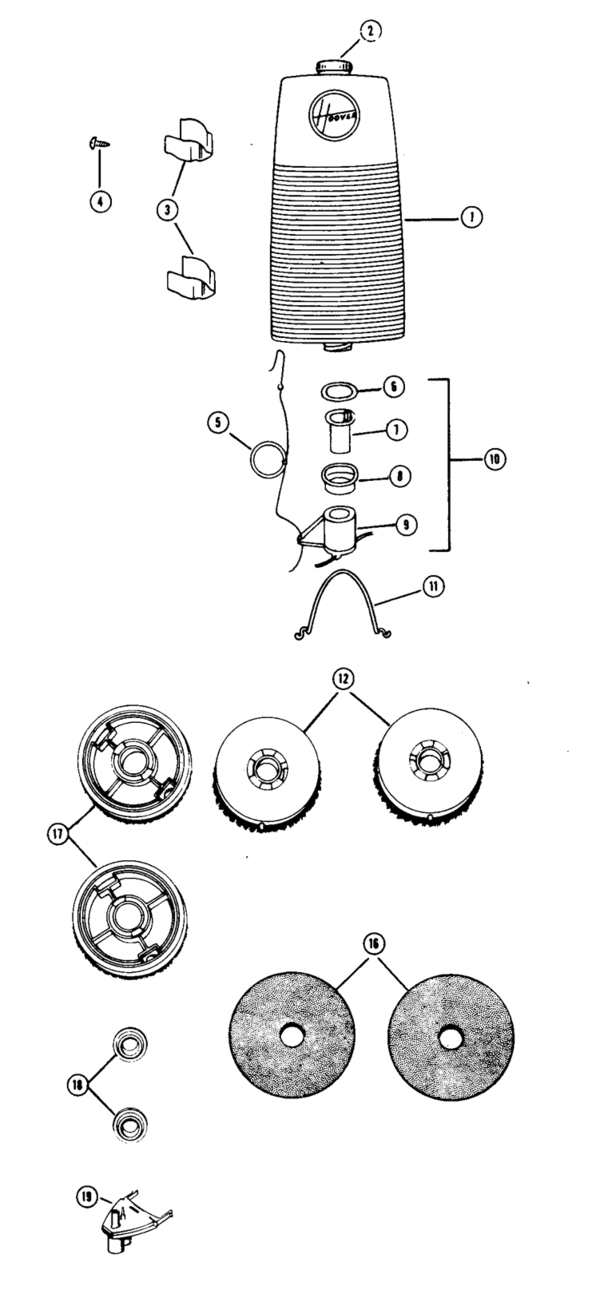

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Liquid Dispenser Tank | 014464BZ | Not Available |
| 2 | Not Available | Hoover Tank Cap | 014486JM | Not Available |
| 3 | Not Available | Hoover Clamp Spring Clip | 049482JM | Not Available |
| 4 | Not Available | Hoover Screw | 160548- | Not Available |
| 5 | Not Available | Hoover Pull Cord Hook & Rin | 035413- | Not Available |
| 6 | Not Available | Hoover Gasket | 049539- | Not Available |
| 7 | Not Available | Hoover Valve Body 5130 | 035412- | Not Available |
| 8 | Not Available | Hoover Cap | 049490- | Not Available |
| 9 | Not Available | Hoover Valve Sleeve & Hose | 035415- | Not Available |
| 10 | Not Available | Hoover Valve Assem | 43516003 | Not Available |
| 11 |  | PRE MOTOR SMALL POWERFORCE Bissell repair part number: 2035576 | 2035576 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Hoover Polishing Brush-5350 | 035613- | Not Available |
| 16 | Not Available | Hoover Polishing Pad Env As | 48432014 | Not Available |
| 17 | Not Available | Hoover Rug Shampooer | 015116- | Not Available |
| 18 | Not Available | Hoover Plastic Fastener-F20 | 32172004 | Not Available |
| 18 | Not Available | Hoover Plastic Fastener | 013131- | Not Available |
| 19 | Not Available | Hoover Foam - Wax Dispenser | 015217-A | Not Available |
