This is a list of parts and a diagram and schematic for: Hoover Model: C9025
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

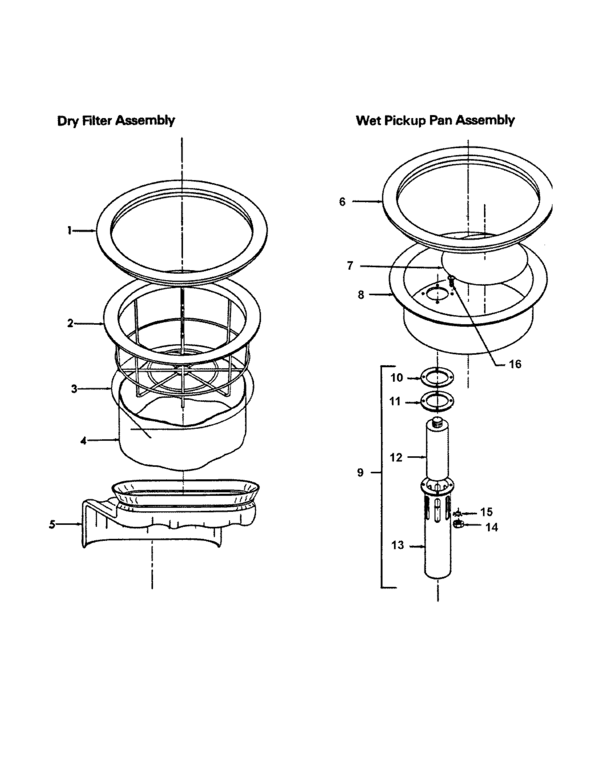

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Air Seal Gasket | 59137298 | Not Available |
| 2 | Not Available | Hoover Filter Frame | 59137299 | Not Available |
| 3 | Not Available | Hoover Bag Tie Wire | 59137300 | Not Available |
| 4 | Not Available | Hoover Filter Bag | 59137301 | Not Available |
| 5 | Not Available | Hoover Never Clog Bag | 59137302 | Not Available |
| 6 | Not Available | Hoover Air Seal Gasket | 59137298 | Not Available |
| 7 | Not Available | Hoover Decal | 59137304 | Not Available |
| 8 | Not Available | Hoover Wet Pickup Pan | 59137305 | Not Available |
| 9 | Not Available | Hoover Wet Pickup Float Ass | 59137306 | Not Available |
| 10 | Not Available | Hoover Gasket | 59137307 | Not Available |
| 11 | Not Available | Hoover Washer-Reinforcing | 59137308 | Not Available |
| 12 | Not Available | Hoover Float Assembly | 59137309 | Not Available |
| 13 | Not Available | Hoover Float Tube | 59137310 | Not Available |
| 14 | Not Available | Hoover Nut | 59137318 | Not Available |
| 15 | Not Available | Hoover Washer-Lock-843 | 019772- | Not Available |
| 16 | Not Available | Hoover Screw | 59137316 | Not Available |

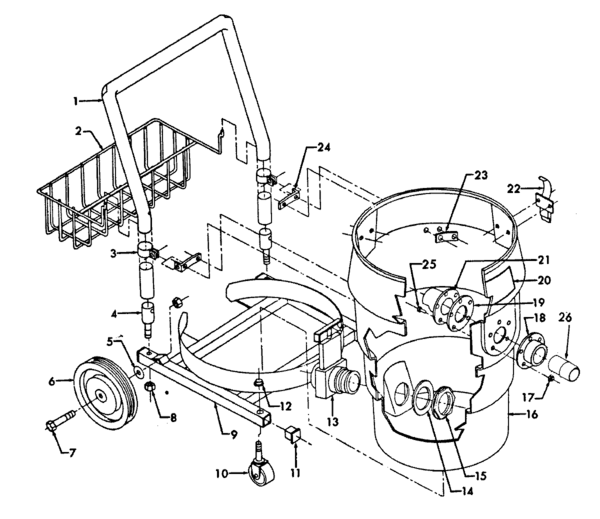

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Tool Basket | 59137268 | Not Available |
| 3 | Not Available | Hoover Clamp | 59137269 | Not Available |
| 4 | Not Available | Hoover Handle Support | 59137270 | Not Available |
| 5 | Not Available | Hoover Washer | 59137271 | Not Available |
| 6 | Not Available | Hoover Rear Wheel | 59137272 | Not Available |
| 7 | Not Available | Hoover Axle | 59137273 | Not Available |
| 8 | Not Available | Hoover Hex Nut | 59137274 | Not Available |
| 10 | Not Available | Hoover Caster Non-Locking | 59137278 | Not Available |
| 11 | Not Available | Hoover Trim Plug | 59137279 | Not Available |
| 12 | Not Available | Hoover Hub Cap | 59137280 | Not Available |
| 13 | Not Available | Hoover Dump Valve | 59137281 | Not Available |
| 14 | Not Available | Hoover Gasket | 59137282 | Not Available |
| 15 | Not Available | Hoover Flange Nut | 59137283 | Not Available |
| 17 | Not Available | Hoover Cap Nut | 59137287 | Not Available |
| 18 | Not Available | Hoover Inlet Connector | 59137288 | Not Available |
| 19 | Not Available | Hoover Inlet Gasket | 59137289 | Not Available |
| 21 | Not Available | Hoover Scoop | 59137290 | Not Available |
| 22 | Not Available | Hoover Clamp | 59137291 | Not Available |
| 23 | Not Available | Hoover Back Up Plate | 59137292 | Not Available |
| 24 | Not Available | Hoover Handle Bracket | 59137293 | Not Available |
| 25 | Not Available | Hoover Screw | 59137315 | Not Available |
| 26 |  | Hose Adapter C9023 Hoover Commercial For: hoover | 59137329 | $29.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
