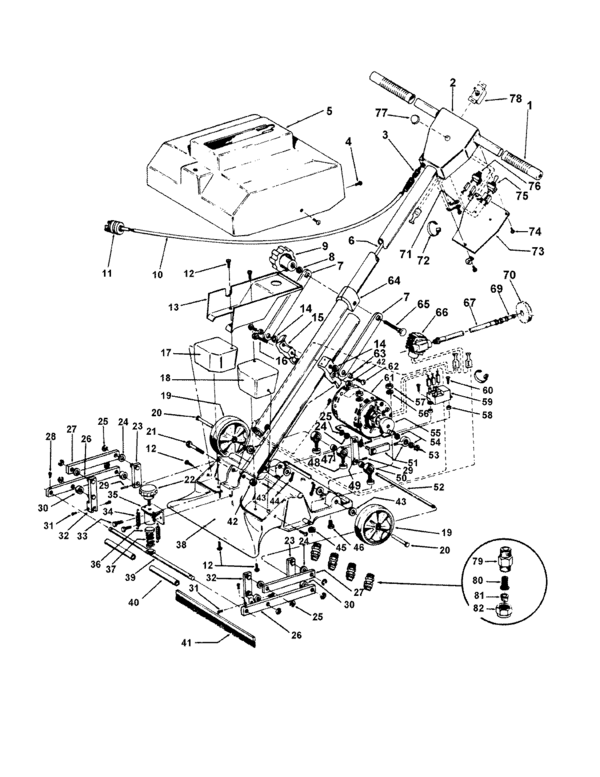

This is a list of parts and a diagram and schematic for: Hoover Model: C9015
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Coupler-Female-C | 1308187- | Not Available |
| 1 | Not Available | Hoover Handle Grip-C | 1031323- | Not Available |
| 3 | Not Available | Hoover Strain Relief-C | 1122322- | Not Available |
| 4 | Not Available | Hoover Screw-C | 1105542- | Not Available |
| 5 | Not Available | Hoover Cover-C | 37271003 | Not Available |
| 6 | Not Available | Hoover Handle Cord-C9015-Ch | 46611008 | Not Available |
| 7 | Not Available | Hoover Adj Arm - C9015 | 34234002 | Not Available |
| 8 |  | Washer-Hoover 7069/7071 Pulley For: hoover | 163110 | $0.72Read more |
| 9 | Not Available | Hoover Adj Knob-C | 1580329- | Not Available |
| 10 | Not Available | Hoover Attach Cord-Hp-24-C9 | 59181051 | Not Available |
| 11 | Not Available | Hoover Twist Lock Plug-C901 | 1557455- | Not Available |
| 12 | Not Available | Hoover Screw-C | 1105542- | Not Available |
| 13 | Not Available | Hoover Splash Tray-C9015-Ch | 35154003 | Not Available |
| 14 | Not Available | Hoover Washer-C | 1107635- | Not Available |
| 15 | Not Available | Hoover Tube Clamp - Pivot - | 36171022 | Not Available |
| 16 | Not Available | Hoover Hex Bolt-C | 1105547- | Not Available |
| 17 | Not Available | Hoover Weight | 1968268- | Not Available |
| 18 | Not Available | Hoover Weight | 1968269- | Not Available |
| 19 | Not Available | Hoover Wheel-C | 1862271- | Not Available |
| 20 | Not Available | Hoover Axle-C | 1163272- | Not Available |
| 21 | Not Available | Hoover Bolt-C3003 | 1105555- | Not Available |
| 22 | Not Available | Hoover Brush Knob-C | 1580333- | Not Available |
| 24 | | Washer-Hoover 7069/7071 Pulley For: hoover | 163110 | $0.72Read more |
| 25 | Not Available | Hoover E-Clip / Lock Ring | 160017- | Not Available |
| 26 | Not Available | Hoover Lower Dr Link - C901 | 43143080 | Not Available |
| 27 | Not Available | Hoover Upper Dr Link - C901 | 43143084 | Not Available |
| 28 | Not Available | Hoover Screw-C9013 | 1105548- | Not Available |
| 30 | Not Available | Hoover Spacer-C | 1516289- | Not Available |
| 31 | Not Available | Hoover Screw-C9005 | 1105529- | Not Available |
| 32 | Not Available | Hoover Brush Dr Link - C901 | 43228012 | Not Available |
| 33 | Not Available | Hoover Bolt-C | 1105527- | Not Available |
| 34 | Not Available | Hoover Spring-C | 1169307- | Not Available |
| 35 | Not Available | Hoover Spring Support Tube- | 1000014- | Not Available |
| 36 | Not Available | Hoover Spring Cap - C9015 | 37911024 | Not Available |
| 37 | Not Available | Hoover Spring-C | 1169306- | Not Available |
| 39 | Not Available | Hoover Rear Wheel Assembly - Dark Charcoal Gray | 43244009 | Not Available |
| 40 | Not Available | Hoover Sleeve-C | 1011303- | Not Available |
| 41 | Not Available | Hoover Brush-C9005 | 1558263- | Not Available |
| 42 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
| 43 | Not Available | Hoover Washer-C | 1107635- | Not Available |
| 44 | Not Available | Hoover Cotter Pun-C | 1107643- | Not Available |
| 45 | Not Available | Hoover Nut-C | 1107645- | Not Available |
| 46 | Not Available | Hoover Bolt-C3003 | 1105501- | Not Available |
| 47 | Not Available | Hoover Set Collar-C9015 | 1175287- | Not Available |
| 48 | Not Available | Hoover Post Spacer-C | 1216288- | Not Available |
| 49 | Not Available | Hoover Inside Dr Link-S9015 | 1000158- | Not Available |
| 50 | Not Available | Hoover Bearing Post-C9015-C | 36963007 | Not Available |
| 51 | Not Available | Hoover Drive Link-Chemko | 43228006 | Not Available |
| 52 | Not Available | Hoover Drive Shaft-C9015-Ch | 32543010 | Not Available |
| 53 | Not Available | Hoover Snap Ring-C9013 | 1172300- | Not Available |
| 54 | Not Available | Hoover Washer-C9013 | 1107662- | Not Available |
| 56 | Not Available | Hoover Washer-C9013 | 1107662- | Not Available |
| 57 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
| 58 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 60 | Not Available | Hoover Screw | 017001FW | Not Available |
| 62 | Not Available | Hoover Screw-C3003 | 1105517- | Not Available |
| 63 | Not Available | Hoover Bushing-C | 1312331- | Not Available |
| 64 | Not Available | Hoover Tube Clamp - C9015 | 36171021 | Not Available |
| 65 | Not Available | Hoover Pivot Bolt-C | 1105546- | Not Available |
| 66 | Not Available | Hoover Solenoid-C9015-Chemk | 43514001 | Not Available |
| 67 | Not Available | Hoover Pressure Hose-C9015- | 43443006 | Not Available |
| 69 | Not Available | Hoover Quik Connect-Male-C9 | 1318084- | Not Available |
| 70 | Not Available | Hoover Gasket-Chemko | 38784009 | Not Available |
| 71 | Not Available | Hoover Ring Tongue Terminal | 27661503 | Not Available |
| 72 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 73 | Not Available | Hoover Cover Plate-C | 1000167- | Not Available |
| 74 | Not Available | Hoover Screw-C3005001-C | 1105586- | Not Available |
| 75 | Not Available | Hoover Switch-C9015-Chemko | 28128008 | Not Available |
| 76 | Not Available | Hoover Push Button Switch-C | 1524320- | Not Available |
| 77 | Not Available | Hoover Control Knob-Sg915 | 1000165- | Not Available |
| 78 | Not Available | Hoover Speed Control - 115V | 1000210- | Not Available |
| 79 | Not Available | Hoover Spray Body-C9001 | 1309386- | Not Available |
| 80 | Not Available | Hoover Spray Screen-C9001 | 1321092- | Not Available |
| 81 | Not Available | Hoover Spray Tip-C9015 | 1351261- | Not Available |
| 82 | Not Available | Hoover Spray Collar-C9001 | 1328095- | Not Available |
