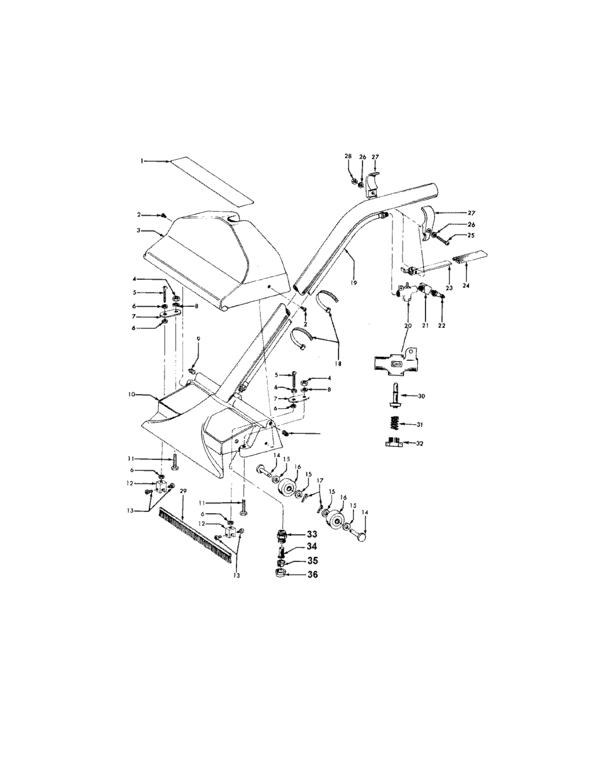

This is a list of parts and a diagram and schematic for: Hoover Model: C9007
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nameplate-C9007-Chem | 51664013 | Not Available |
| 2 | Not Available | Hoover Screw-C3005 | 1105512- | Not Available |
| 3 | Not Available | Hoover Shroud-C9007-Chemko | 37271007 | Not Available |
| 4 | Not Available | Hoover Nut-C3003 | 1107628- | Not Available |
| 5 | Not Available | Hoover Screw-C | 1105537- | Not Available |
| 6 | Not Available | Hoover Nut-S7001 | 1107611- | Not Available |
| 7 | Not Available | Hoover Spring-C9007-Chemko | 34213009 | Not Available |
| 8 | Not Available | Hoover Washer-C3003 | 1107627- | Not Available |
| 9 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 10 | Not Available | Hoover Vac Head & Tube-C900 | 43465005 | Not Available |
| 11 | Not Available | Hoover Bolt-C | 1105540- | Not Available |
| 12 | Not Available | Hoover Brush Holder-C | 1214189- | Not Available |
| 13 | Not Available | Hoover Screw-C9005 | 1105529- | Not Available |
| 14 | Not Available | Hoover Clevis Pin-C9007-Che | 21151005 | Not Available |
| 15 | Not Available | Hoover Washer-C9013 | 1107673- | Not Available |
| 16 | Not Available | Hoover Wheel-C9007-Chemko | 38521022 | Not Available |
| 17 | Not Available | Hoover Cotter Pin-C9007-Che | 1107003- | Not Available |
| 18 | Not Available | Hoover Wire Tie-C9001 | 1539097- | Not Available |
| 19 | Not Available | Hoover Solution Hose-C9007- | 43446002 | Not Available |
| 20 | Not Available | Hoover Control Valve-C9001 | 1349086- | Not Available |
| 21 | Not Available | Hoover Elbow-C9013 | 1328085- | Not Available |
| 22 | Not Available | Hoover Quik Connect-Male-C9 | 1318084- | Not Available |
| 23 | Not Available | Hoover Cont Valve Lever-C90 | 38452091 | Not Available |
| 24 | Not Available | Hoover Valve Lever Sleeve-C | 25696402 | Not Available |
| 25 | Not Available | Hoover Screw-C9001 | 1105516- | Not Available |
| 26 | Not Available | Hoover Washer | 21312710 | Not Available |
| 27 | Not Available | Hoover Valve Bracket-C9013 | 38719011 | Not Available |
| 28 | Not Available | Hoover Lock Nut-C3003 | 1107602- | Not Available |
| 29 | Not Available | Hoover Brush-C9005 | 1558263- | Not Available |
| 30 | Not Available | Hoover Stem Assembly-C9001 | 38719025 | Not Available |
| 31 | Not Available | Hoover Spring-C9001-254Ae-1 | 38313034 | Not Available |
| 32 | Not Available | Hoover Cap-C9001 254Ae-3 | 38717003 | Not Available |
| 33 | Not Available | Hoover Spray Body-C9001 | 1309386- | Not Available |
| 34 | Not Available | Hoover Spray Screen-C9001 | 1321092- | Not Available |
| 35 | Not Available | Hoover Spray Tip-C9007 | 1351260- | Not Available |
| 36 | Not Available | Hoover Spray Collar-C9001 | 1328095- | Not Available |
