This is a list of parts and a diagram and schematic for: Hoover Model: C6075
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Battery Cable Assembly- Short Cable | 59187115 | Not Available |
| 2 | Not Available | Hoover Battery Cable Assembly- Long Cable | 59187116 | Not Available |
| 3 | Not Available | Hoover Charger Plug/Leads | 59187217 | Not Available |
| 4 | Not Available | Hoover Battery (Warehouse) | 27163001 | Not Available |
| 5 | Not Available | Hoover Battery Tray | 59187119 | Not Available |
| 6 | Not Available | Hoover Batt Cable-Positive | 59187117 | Not Available |
| 7 | Not Available | Hoover Batt Cable-Negative | 59187118 | Not Available |
| 8 | Not Available | Hoover Charger (Warehouse) | 27149001 | Not Available |

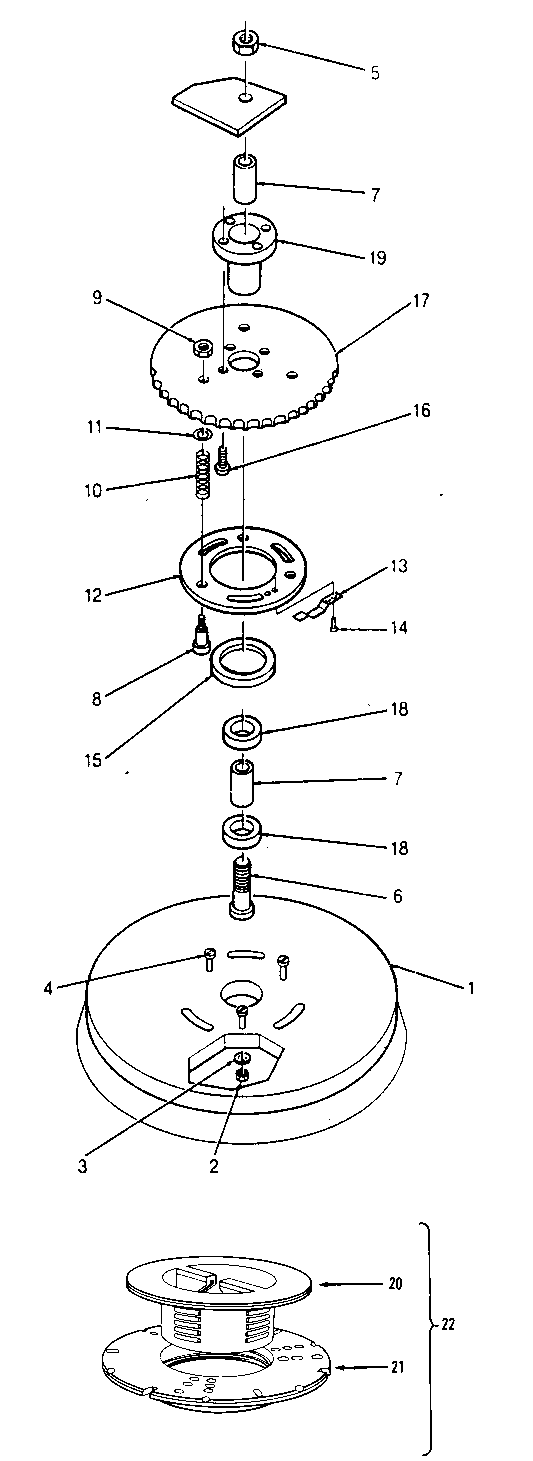

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Hex Nut | 59187018 | Not Available |
| 3 | Not Available | Hoover Flat Washer | 59187050 | Not Available |
| 4 | Not Available | Hoover Brush Lug | 59187034 | Not Available |
| 5 | Not Available | Hoover Fine Thread Nut | 59187031 | Not Available |
| 6 | Not Available | Hoover Hollow Bolt | 59187124 | Not Available |
| 7 | Not Available | Hoover Hub Spacer | 59187125 | Not Available |
| 8 | Not Available | Hoover Shoulder Bolt | 21751008 | Not Available |
| 9 | Not Available | Hoover Flange Lock Nut | 59187004 | Not Available |
| 10 | Not Available | Hoover Spring Brush Level | 38314008 | Not Available |
| 11 | Not Available | Hoover Washer | 59187057 | Not Available |
| 13 | Not Available | Hoover Spring Clip | 36172049 | Not Available |
| 14 | Not Available | Hoover Rivet | 21286006 | Not Available |
| 15 | Not Available | Hoover Rubber Ring | 31178036 | Not Available |
| 16 | Not Available | Hoover Screw- Hex Bolt | 59187030 | Not Available |
| 17 | Not Available | Hoover Brush Drive Sprocket | 38551001 | Not Available |
| 18 | Not Available | Hoover Brush Housing | 59187102 | Not Available |
| 20 | Not Available | Hoover Lock Ring | 171166 | Not Available |
| 21 | Not Available | Hoover Center Hub C5041 | 171151 | Not Available |
| 22 | Not Available | Hoover Centre Locks | 59187195 | Not Available |

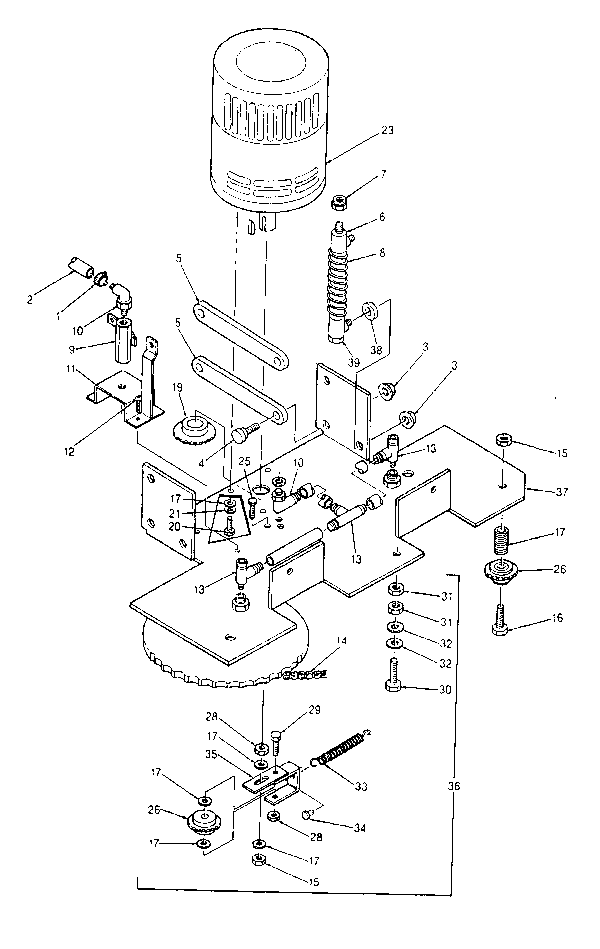

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Clamp Hose | 59187147 | Not Available |
| 2 | Not Available | Hoover Pvc Tubing | 66655640 | Not Available |
| 3 | Not Available | Hoover Flange Lock Nut Nut - Flange Lock | 59187004 | Not Available |
| 4 | Not Available | Hoover Bolt Shoulder Bolt | 59187009 | Not Available |
| 5 | Not Available | Hoover Parallel Arm | 59187079 | Not Available |
| 6 | Not Available | Hoover Brush Lift Swivel Arm Assembly | 59187215 | Not Available |
| 7 | Not Available | Hoover Nylon Lock Nut | 59187010 | Not Available |
| 8 | Not Available | Hoover Strip Pressure- Spring - Strip Pressure | 59187103 | Not Available |
| 10 | Not Available | Hoover Nylon Elbow-90 Degrees | 59187132 | Not Available |
| 11 | Not Available | Hoover Bracket-Water Valve Bracket | 59187084 | Not Available |
| 12 | Not Available | Hoover Button Head Phillips Screw | 59187024 | Not Available |
| 13 | Not Available | Hoover T Pvc | 59187130 | Not Available |
| 15 | Not Available | Hoover Nylonlock Nut- Nut - Lock | 59187012 | Not Available |
| 16 | Not Available | Hoover Screw Cap- Screw - Cap | 59187011 | Not Available |
| 17 | Not Available | Hoover Washer- Spacer - Idler Sprocket | 59187013 | Not Available |
| 19 | Not Available | Hoover Sprocket-Brush Drive | 43114001 | Not Available |
| 20 | Not Available | Hoover Screw Cap- | 59187007 | Not Available |
| 21 | Not Available | Hoover Lock Washer | 59187008 | Not Available |
| 23 | Not Available | Hoover Motor | 43175001 | Not Available |
| 25 | Not Available | Hoover Screw- Cap | 59187011 | Not Available |
| 26 | Not Available | Hoover Sprocket-Idler (Use 43121001) | 43114002 | Not Available |
| 28 | Not Available | Hoover Nut | 59187052 | Not Available |
| 29 | Not Available | Hoover Cap Screw | 59187042 | Not Available |
| 30 | Not Available | Hoover Screw- Cap | 59187019 | Not Available |
| 31 | Not Available | Hoover Hex Nut | 59187018 | Not Available |
| 32 | Not Available | Hoover Washer | 59187013 | Not Available |
| 33 | Not Available | Hoover Chain Tensioner Spring | 59187180 | Not Available |
| 34 | Not Available | Hoover Pin | 59187053 | Not Available |
| 35 | Not Available | Hoover Bracket | 59187183 | Not Available |
| 36 | Not Available | Hoover Chain Tensioner Assembly- (Incl. Items 15,17,26,28,29,30,31,32,33,34,35) | 43121001 | Not Available |
| 37 | Not Available | Hoover Brush Plate | 59187071 | Not Available |
| 38 | Not Available | Hoover Br Spacer Lift Assembly | 59187150 | Not Available |
| 39 | Not Available | Hoover Bolt | 59187120 | Not Available |
| 40 | Not Available | Hoover Key-Square- 3/16" X 3/16" X 1-1/4" | 59131355 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Right Handle | 59187168 | Not Available |
| 3 | Not Available | Hoover Hub Coupling | 59187169 | Not Available |
| 4 | Not Available | Hoover Drive Rod | 59187170 | Not Available |
| 5 | Not Available | Hoover Spring Anchor Hubs | 59187171 | Not Available |
| 6 | Not Available | Hoover Flex Drive Shaft | 59187172 | Not Available |
| 7 | Not Available | Hoover Cam Coupling Unit | 59187173 | Not Available |
| 8 | Not Available | Hoover Potentiometer | 47531005 | Not Available |
| 9 | Not Available | Hoover Bracket - Switch Mounting | 59187166 | Not Available |
| 10 | Not Available | Hoover Roll Bar Handle Assembly | 59187174 | Not Available |
| 11 | Not Available | Hoover Drive Pin | 59187175 | Not Available |
| 12 | Not Available | Hoover Torsion Spring | 59187176 | Not Available |
| 13 | Not Available | Hoover Pin - Spring | 59187241 | Not Available |
| 14 | Not Available | Hoover Tension Pin | 59187242 | Not Available |
| 15 | Not Available | Hoover Set Screw | 59187243 | Not Available |
| 16 | Not Available | Hoover Micro Switch | 59187177 | Not Available |
| 17 | Not Available | Hoover Screw | 59187043 | Not Available |
| 18 | Not Available | Hoover Hex Nut | 59187039 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Lock Washer (1/2") | 59187026 | Not Available |
| 3 | Not Available | Hoover Hex Head Cap | 59187114 | Not Available |
| 4 | Not Available | Hoover Nylon Lock Nut | 59187010 | Not Available |
| 5 | Not Available | Hoover Hex Nut | 59187018 | Not Available |
| 6 | Not Available | Hoover Socket Head Cap Screw | 59187027 | Not Available |
| 7 | Not Available | Hoover Squeegee Tension Spring | 59187104 | Not Available |
| 8 | Not Available | Hoover Sq Pivot- Rod End Bearing | 59187113 | Not Available |
| 9 | Not Available | Hoover Wing Nut-Skoo4134 | 59187025 | Not Available |
| 10 | Not Available | Hoover Squeegee Cable Assembly | 59187218 | Not Available |
| 11 | Not Available | Hoover Hex Nut | 59187046 | Not Available |
| 12 | Not Available | Hoover Gasket Squeegee | 59187112 | Not Available |
| 13 | Not Available | Hoover Screw | 59187035 | Not Available |
| 14 | Not Available | Hoover Squeegee Bumper Wheel | 59187097 | Not Available |
| 15 | Not Available | Hoover Screw-Squeege Body | 59187029 | Not Available |
| 17 | Not Available | Hoover Rubber Back Up Squeegy | 39512005 | Not Available |
| 18 | Not Available | Hoover Squeegee - Rear | 39512004 | Not Available |
| 19 | Not Available | Hoover Machine Screw | 59187058 | Not Available |
| 21 | Not Available | Hoover Squeegee-Front | 39512003 | Not Available |
| 22 | Not Available | Hoover Plastic Insert-C6075 | 59187282 | Not Available |
| 24 | Not Available | Hoover Squeegee "T" Bar | 59187080 | Not Available |

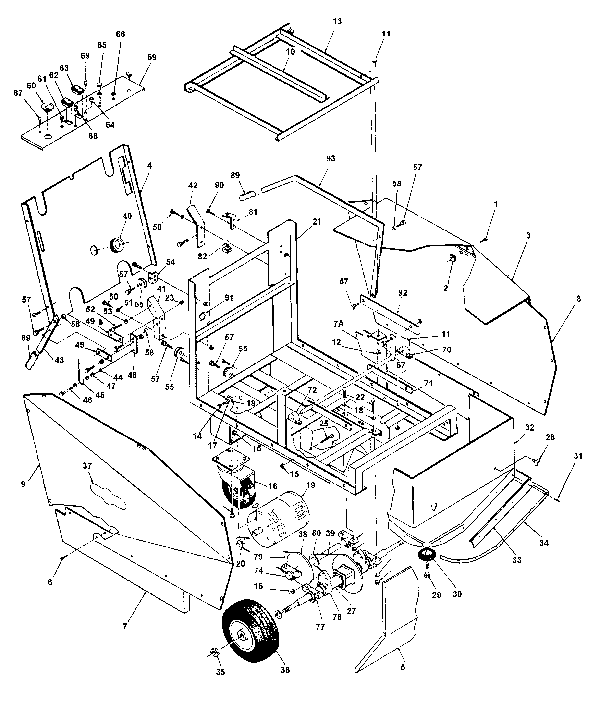

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw - Self Tapping | 21434826 | Not Available |
| 2 | Not Available | Hoover Tinnerman Clip | 59187033 | Not Available |
| 3 | Not Available | Hoover Top Cover | 59187090 | Not Available |
| 4 | Not Available | Hoover Rear Panel | 59187089 | Not Available |
| 5 | Not Available | Hoover Front Side Panel | 59187088 | Not Available |
| 6 | Not Available | Hoover Button Head Phillips | 59187024 | Not Available |
| 7 | Not Available | Hoover Right Hand Skirt Panel | 59187092 | Not Available |
| 8 | Not Available | Hoover Left Side Panel | 59187086 | Not Available |
| 9 | Not Available | Hoover Right Side Panel | 59187087 | Not Available |
| 10 | Not Available | Hoover T Bar Battery Tray | 59187073 | Not Available |
| 11 | Not Available | Hoover Screw Cap | 59187019 | Not Available |
| 12 | Not Available | Hoover Hex Nut | 59187018 | Not Available |
| 13 | Not Available | Hoover Tray - C6075 | 41948002 | Not Available |
| 14 | Not Available | Hoover Screw Cap | 59187007 | Not Available |
| 15 | Not Available | Hoover Nylon Lock Nut | 59187056 | Not Available |
| 16 | Not Available | Hoover Caster | 59187095 | Not Available |
| 17 | Not Available | Hoover Lock Washer | 59187008 | Not Available |
| 18 | Not Available | Hoover Washer | 59187013 | Not Available |
| 19 | Not Available | Hoover Traction Motor | 27231012 | Not Available |
| 20 | Not Available | Hoover Sprocket | 38538003 | Not Available |
| 21 | Not Available | Hoover Main Frame | 59187069 | Not Available |
| 22 | Not Available | Hoover Screw Cap | 59187003 | Not Available |
| 23 | Not Available | Hoover Flange Lock Nut | 59187004 | Not Available |
| 25 | Not Available | Hoover Screw Cap | 59187007 | Not Available |
| 27 | Not Available | Hoover Differential | 59187234 | Not Available |
| 28 | Not Available | Hoover Thumb Screw (Shroud) | 59187111 | Not Available |
| 29 | Not Available | Hoover Screw | 59187035 | Not Available |
| 30 | Not Available | Hoover Shroud Bumper Wheel- | 59187096 | Not Available |
| 31 | Not Available | Hoover Screw-Thread Cutting | 21452545 | Not Available |
| 33 | Not Available | Hoover Shroud Splash Skirt- C6075, C6077 (Cut To Fit) | 59187110 | Not Available |
| 35 | Not Available | Hoover Axle Nut | 59187006 | Not Available |
| 36 | Not Available | Hoover Pneumatic Wheel | 59187094 | Not Available |
| 37 | Not Available | Hoover Model Decal | 59187070 | Not Available |
| 40 | Not Available | Hoover Rubber Grommet | 59187148 | Not Available |
| 41 | Not Available | Hoover Right Handle Support | 59187160 | Not Available |
| 42 | Not Available | Hoover Left Handle Support | 59187161 | Not Available |
| 43 | Not Available | Hoover Squeegee Lift Handle | 59187163 | Not Available |
| 44 | Not Available | Hoover Spacer | 59187044 | Not Available |
| 45 | Not Available | Hoover Squeegee Cable Assembly | 59187218 | Not Available |
| 46 | Not Available | Hoover Screw | 59187045 | Not Available |
| 47 | Not Available | Hoover Keps Nut | 59187046 | Not Available |
| 48 | Not Available | Hoover Squeegee Ld Link | 59187165 | Not Available |
| 50 | Not Available | Hoover Screw | 59187047 | Not Available |
| 51 | Not Available | Hoover Washer | 53187048 | Not Available |
| 52 | Not Available | Hoover Screw | 59187049 | Not Available |
| 53 | Not Available | Hoover Flat Washer | 59187050 | Not Available |
| 54 | Not Available | Hoover Puley Bracket Upper | 59187162 | Not Available |
| 55 | Not Available | Hoover Pulley -Squeegee Cab | 59187109 | Not Available |
| 57 | Not Available | Hoover Bolt | 59187009 | Not Available |
| 58 | Not Available | Hoover Br Spacer Lift Assembly | 59187150 | Not Available |
| 61 | Not Available | Hoover Circuit Breaker- 30 Amp | 27854011 | Not Available |
| 62 | Not Available | Hoover Switch-Vac/Main Power | 28161056 | Not Available |
| 63 | Not Available | Hoover Switch-Vac/Main Power | 28161056 | Not Available |
| 64 | Not Available | Hoover Circuit Breaker- 25 Amp | 27854010 | Not Available |
| 65 | Not Available | Hoover Cable& Knob Water Connect | 59187133 | Not Available |
| 66 | Not Available | Hoover Lock & 2 Keys | 59187157 | Not Available |
| 67 | Not Available | Hoover Switch Sko 32268 | 47511031 | Not Available |
| 68 | Not Available | Hoover Light-Vac Switch | 59187144 | Not Available |
| 69 | Not Available | Hoover Main Switch Red-Sko3 | 59187143 | Not Available |
| 70 | Not Available | Hoover Bushing-Left Side | 59187077 | Not Available |
| 71 | Not Available | Hoover Br Lift Pivot Arm | 59187076 | Not Available |
| 72 | Not Available | Hoover Bushing-Right Side | 59187078 | Not Available |
| 74 | Not Available | Hoover Jackshaft | 59187149 | Not Available |
| 75 | Not Available | Hoover Pillow Bl-Jack Shaft | 59187101 | Not Available |
| 76 | Not Available | Hoover Flange Bearing | 59187182 | Not Available |
| 77 | Not Available | Hoover Axle Pillow Block | 59187100 | Not Available |
| 79 | Not Available | Hoover Lg Sprocket | 59187098 | Not Available |
| 80 | Not Available | Hoover Sm Sprocket | 59187099 | Not Available |
| 81 | Not Available | Hoover Bracket-Brush | 59187085 | Not Available |
| 82 | Not Available | Hoover Switch Brush | 59187145 | Not Available |
| 89 | Not Available | Hoover Grip Squeegy Lever Handle | 59187106 | Not Available |
| 90 | Not Available | Hoover Screw | 59187020 | Not Available |
| 91 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 92 | Not Available | Hoover Arm Brush Lever | 59187075 | Not Available |
| 93 | Not Available | Hoover Brush Lever | 59187074 | Not Available |
| 94 | Not Available | Hoover Key-Square- 3/16" X 3/16" X 1-1/4" | 59131355 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Vac Motor- Plug Female | 59187141 | Not Available |
| 3 | Not Available | Hoover Lint Filter (Snaps On Motor) | 59187139 | Not Available |
| 4 | Not Available | Hoover Gasket-Cut-C6075 | 38781031 | Not Available |
| 5 | Not Available | Hoover Vac Pot Assembly- (Incl. Item 6) | 59187204 | Not Available |
| 6 | Not Available | Hoover Filter Screen | 59187305 | Not Available |
| 7 | Not Available | Hoover Gasket-C6075 | 38781031 | Not Available |
| 8 | Not Available | Hoover Hose Vac Assembly | 59187198 | Not Available |
| 10 | Not Available | Hoover Elbow 90 Degree- | 59187136 | Not Available |
| 11 | Not Available | Hoover Tube 6" | 59187137 | Not Available |
| 14 | Not Available | Hoover Knob | 59187127 | Not Available |
| 15 | Not Available | Hoover Lid | 59187126 | Not Available |
| 17 | Not Available | Hoover Valve Dump | 59187107 | Not Available |
| 18 | Not Available | Hoover Float | 59187156 | Not Available |
| 19 | Not Available | Hoover Knurled Nut | 59187040 | Not Available |
| 20 | Not Available | Hoover Caster Stem Insert | 23743155 | Not Available |
| 21 | Not Available | Hoover Screw | 59187038 | Not Available |
| 22 | Not Available | Hoover Hex Nut- | 59187039 | Not Available |
| 23 | Not Available | Hoover Brass Nut- | 59187037 | Not Available |
| 24 | Not Available | Hoover Brass Screw | 59187036 | Not Available |
| 25 | Not Available | Hoover Brass Rod- | 59187225 | Not Available |
| 26 | Not Available | Hoover Bracket- | 59187153 | Not Available |
| 27 | Not Available | Hoover Switch- Micro Switch | 59187154 | Not Available |
| 28 | Not Available | Hoover Wire Lead Vac Motor- Plug - Male | 59187142 | Not Available |
| 29 | Not Available | Hoover Tank Adapter | 59187128 | Not Available |
| 30 | Not Available | Hoover Dump Hose Assembly | 59187389 | Not Available |
| # | Part image | Description | SKU | Price |
| 3 | Not Available | Hoover Solenoid- Single Pole | 28452005 | Not Available |
| 4 | Not Available | Hoover Solenoid- Double Pole | 28452004 | Not Available |
| 6 | Not Available | Hoover Resistor | 59187158 | Not Available |
| 7 | Not Available | Hoover Diode | 28722010 | Not Available |
| 8 | Not Available | Hoover Resistor | 28531013 | Not Available |
| 9 | Not Available | Hoover Resistor Ind Light- Resistor (Indicator Lights) | 59187159 | Not Available |
| 11 | Not Available | Hoover Aluminum Panel Aluminum Panel (Only) | 59187179 | Not Available |
| 12 | Not Available | Hoover Fuse- 3 Amp | 27821103 | Not Available |
| 13 | Not Available | Hoover Fuse Holder | 47534019 | Not Available |
Report errors on this page HERE
