This is a list of parts and a diagram and schematic for: Hoover Model: C3007
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

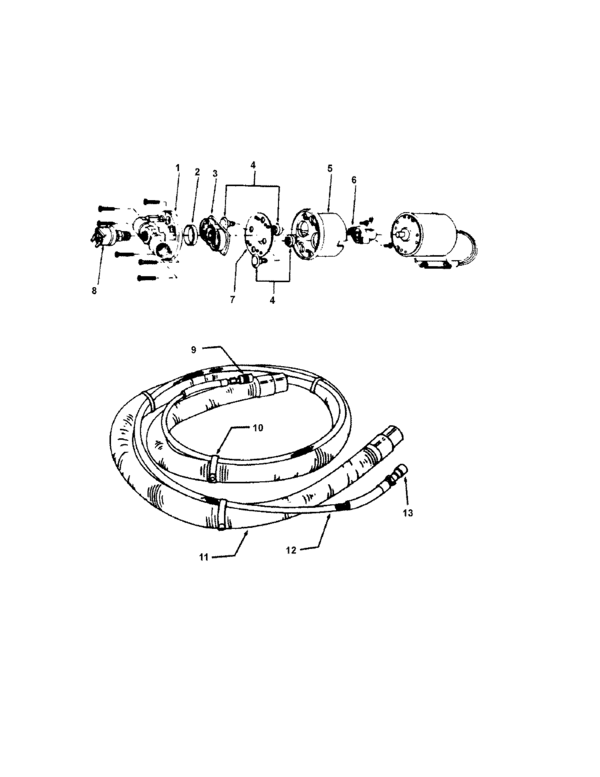

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Pump Housing-C | 1535697 | Not Available |
| 2 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 4 | Not Available | Hoover Piston-C | 1549696 | Not Available |
| 5 | Not Available | Hoover Bearing Cover-C | 1535699 | Not Available |
| 6 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 9 | Not Available | Hoover Quick Connect-Female | 1308061 | Not Available |
| 10 | Not Available | Hoover Hose Tie-C | 1539057 | Not Available |
| 11 | Not Available | Hoover Vac Hose-20-C3005 | 1538181 | Not Available |
| 12 | Not Available | Hoover Sol Hose-20-C3005-Ch | 43446007 | Not Available |
| 13 | Not Available | Hoover Quick Connect-Female | 1308062 | Not Available |

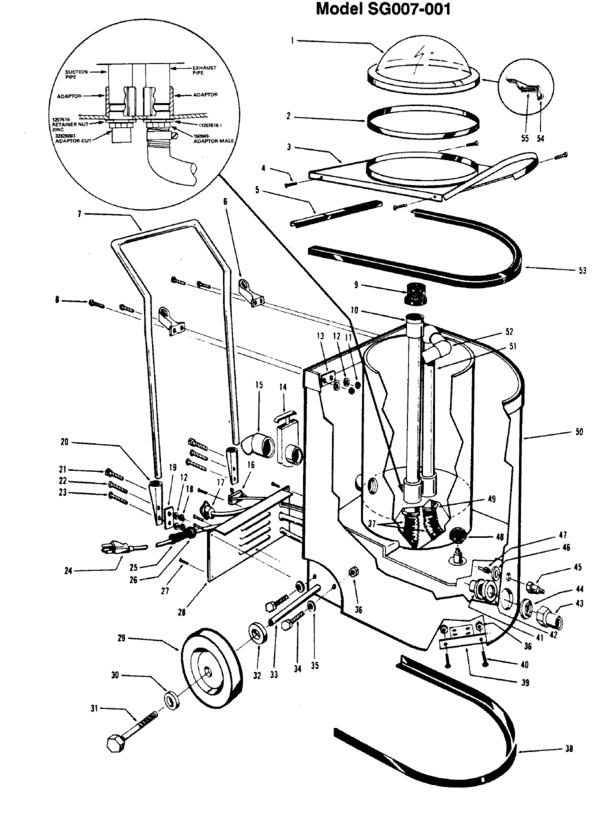

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Dome Assembly | 42271005 | Not Available |
| 2 | Not Available | Hoover Vac Tank Gasket-C300 | 38781009 | Not Available |
| 3 | Not Available | Hoover Top Cover-Lu - C3007 | 42272017 | Not Available |
| 4 | Not Available | Hoover Screw-C | 1105542 | Not Available |
| 5 | Not Available | Hoover Gasket-19-C3007-Chem | 36231089 | Not Available |
| 6 | Not Available | Hoover Top Stanchion - C300 | 36951006 | Not Available |
| 7 | Not Available | Hoover Handle - C3007 | 33253003 | Not Available |
| 8 | Not Available | Hoover Screw-10-24 X1/2 | 1305001 | Not Available |
| 9 | Not Available | Hoover Filter - C3007 | 43611012 | Not Available |
| 10 | Not Available | Hoover Suction Pipe Assembl | 43457022 | Not Available |
| 11 | Not Available | Hoover Nut-C | 1307683 | Not Available |
| 12 | Not Available | Hoover Washer-C3003 | 1307682 | Not Available |
| 13 | Not Available | Hoover Top Stanchion - C300 | 36951006 | Not Available |
| 14 | Not Available | Hoover Discharge Valve - C3 | 43536005 | Not Available |
| 15 | Not Available | Hoover Elbow-C | 1528027 | Not Available |
| 16 | Not Available | Hoover Switch-C | 1524214 | Not Available |
| 17 | Not Available | Hoover Receptacle - C3007 | 27764001 | Not Available |
| 18 | Not Available | Hoover Nut-C | 1307684 | Not Available |
| 19 | Not Available | Hoover Handle Plate - Lower | 34144008 | Not Available |
| 20 | Not Available | Hoover Lower Stanchion - C3 | 36953008 | Not Available |
| 21 | Not Available | Hoover Bolt-C | 1105527 | Not Available |
| 22 | Not Available | Hoover Screw-10-24 X 1/2 | 1305001 | Not Available |
| 23 | Not Available | Hoover Screw-C3007 | 21774004 | Not Available |
| 24 | Not Available | Hoover Attachment Cord Asse | 46583157 | Not Available |
| 25 | Not Available | Hoover Strain Relief Spring | 1122115 | Not Available |
| 27 | Not Available | Hoover Screw-C | 1105542 | Not Available |
| 28 | Not Available | Hoover Wiring Panel-C | 1223247 | Not Available |
| 29 | Not Available | Hoover Wheel - C3007 | 38522009 | Not Available |
| 30 | Not Available | Hoover Washer-C | 1107635 | Not Available |
| 31 | Not Available | Hoover Bolt-C | 1105541 | Not Available |
| 32 | Not Available | Hoover Spacer-Nylon - C3007 | 31166010 | Not Available |
| 33 | Not Available | Hoover Axle-C | 1163231 | Not Available |
| 34 | Not Available | Hoover Bolt-C | 1105551 | Not Available |
| 35 | Not Available | Hoover Washer-C3003 | 1107605 | Not Available |
| 36 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
| 37 | Not Available | Hoover Hose-C | 1538228 | Not Available |
| 38 | Not Available | Hoover Furniture Guard-Ag-C | 36231032 | Not Available |
| 39 | Not Available | Hoover Base Mount Bracke | 36431022 | Not Available |
| 40 | Not Available | Hoover Bolt-C | 1105536 | Not Available |
| 41 | Not Available | Hoover Male Adapter-C | 1511224 | Not Available |
| 42 | Not Available | Hoover Retainer Nut-C | 1207616 | Not Available |
| 43 | Not Available | Hoover Hose Adapter - C3007 | 43457017 | Not Available |
| 44 | Not Available | Hoover Retainer Nut-C | 1207616 | Not Available |
| 45 | Not Available | Hoover Quick Connect-C3003 | 1308006 | Not Available |
| 46 | Not Available | Hoover Washer-S7001 | 1107604 | Not Available |
| 47 | Not Available | Hoover Barbed Fitting-S7001 | 1309007 | Not Available |
| 48 | Not Available | Hoover Filter - C3007 | 43611014 | Not Available |
| 49 | Not Available | Hoover Hose Clamp-C3003 | 1114083 | Not Available |
| 50 | Not Available | Hoover Tank-La - C3007-071 | 42272042 | Not Available |
| 51 | Not Available | Hoover Exhaust Pipe Assembl | 43457025 | Not Available |
| 52 | Not Available | Hoover Elbow - C3007 | 43471004 | Not Available |
| 53 | Not Available | Hoover Gasket - C3007 | 36231088 | Not Available |
| 54 | Not Available | Hoover Dome Protector-C3007 | 36233030 | Not Available |
| 55 | Not Available | Hoover Dome Seal-C3007-Chem | 38784011 | Not Available |

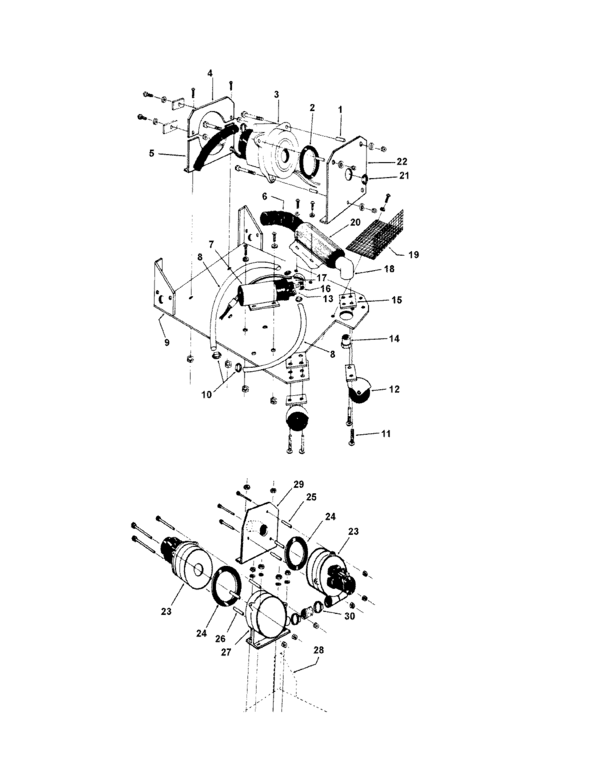

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Spacer-C | 1216693 | Not Available |
| 2 | Not Available | Hoover O-Ring-C | 1055451 | Not Available |
| 3 | Not Available | Hoover Vac Motor-C3005 Chem | 43576027 | Not Available |
| 4 | Not Available | Hoover Top Separator - C300 | 36321016 | Not Available |
| 5 | Not Available | Hoover Bottom Separator - C | 41312019 | Not Available |
| 6 | Not Available | Hoover Hose-C | 1538202 | Not Available |
| 7 | Not Available | Hoover Pump C3003-055 | 43585015 | Not Available |
| 8 | Not Available | Hoover Hose - C3007 | 38631011 | Not Available |
| 9 | Not Available | Hoover Base Plate-C3007-Che | 41431018 | Not Available |
| 10 | Not Available | Hoover Hose Clamp | 25411049 | Not Available |
| 11 | Not Available | Hoover Screw-S7001 | 1105533 | Not Available |
| 12 | Not Available | Hoover Caster-C | 1502241 | Not Available |
| 13 | Not Available | Hoover Barb Adapter-C | 1509009 | Not Available |
| 14 | Not Available | Hoover Bushing-C | 1512200 | Not Available |
| 15 | Not Available | Hoover Nut Plate | 1120218 | Not Available |
| 16 | Not Available | Hoover Pressure Switch-C300 | 1524734 | Not Available |
| 17 | Not Available | Hoover Elbow-S7001 | 1509010 | Not Available |
| 18 | Not Available | Hoover Elbow-C | 1528199 | Not Available |
| 19 | Not Available | Hoover Screen Guard - C3007 | 38766012 | Not Available |
| 20 | Not Available | Hoover Muffler-C3007 | 1000140 | Not Available |
| 21 | Not Available | Hoover Hose Clamp-C3003 | 1114083 | Not Available |
| 22 | Not Available | Hoover Motor Bracket - C300 | 41312010 | Not Available |
| 23 | Not Available | Hoover Vac Motor-C3005-001 | 43177038 | Not Available |
| 24 | Not Available | Hoover Gasket - C3007 | 38784032 | Not Available |
| 25 | Not Available | Hoover Spacer-C | 1216013 | Not Available |
| 26 | Not Available | Hoover Spacer-Chemko | 31734013 | Not Available |
| 27 | Not Available | Hoover Diffuser - C3007 | 43551025 | Not Available |
| 28 | Not Available | Hoover Base Plate-C | 1101204 | Not Available |
| 29 | Not Available | Hoover Motor Bracket - C300 | 41312010 | Not Available |
| 30 | Not Available | Hoover Hose Clamp-C3005 | 1114203 | Not Available |
