This is a list of parts and a diagram and schematic for: Hoover Model: C3005
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum

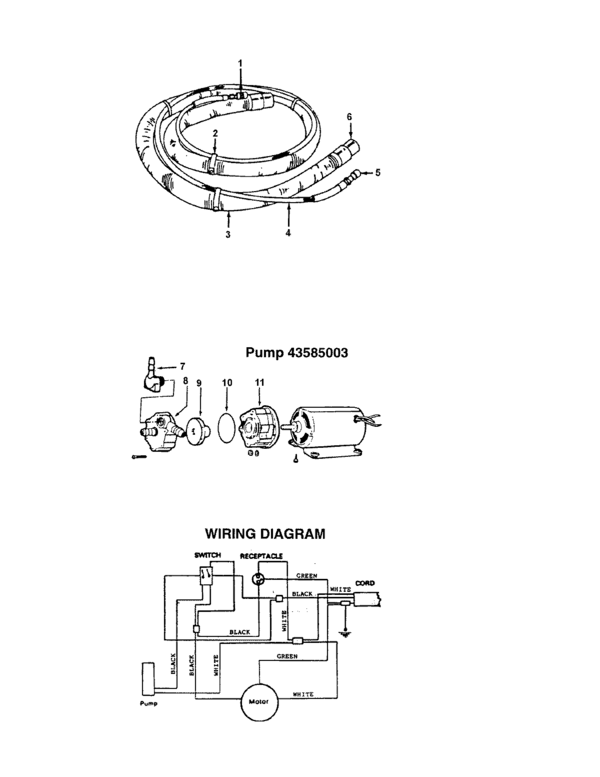

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Quick Connect-Female | 1308061 | Not Available |
| 2 | Not Available | Hoover Hose Tie-C | 1539057 | Not Available |
| 5 | Not Available | Hoover Quick Connect-Female | 1308062 | Not Available |
| 6 | Not Available | Hoover Cuff - Ag | 33283002 | Not Available |
| 7 | Not Available | Hoover Elbow-C3003 | 1528005 | Not Available |
| 8 | Not Available | Hoover Pump Body-C | 1535006 | Not Available |
| 9 | Not Available | Hoover Pump Repair Kit - C3 | 40300009 | Not Available |
| 10 | Not Available | Hoover O-Ring-C | 1055001 | Not Available |
| 11 | Not Available | Hoover Pump Repair Kit - C3 | 40300009 | Not Available |

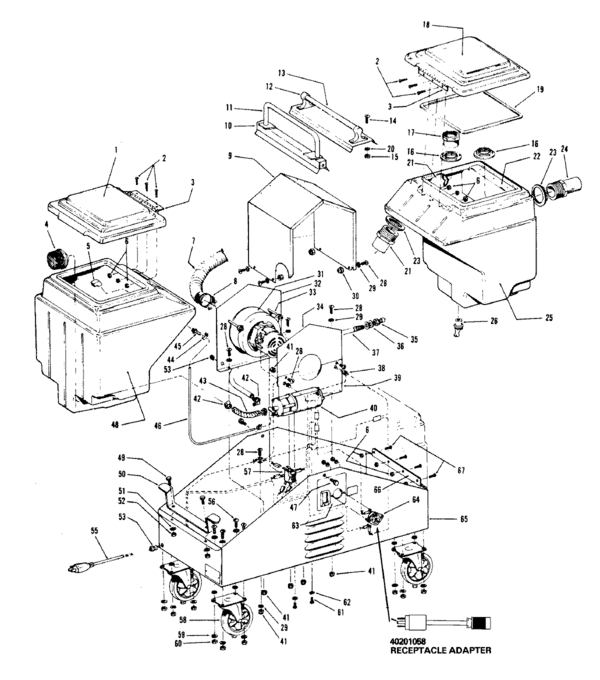

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover S0L Tank Cover-C3005 | 42272076 | Not Available |
| 2 | Not Available | Hoover Screw-C3005 | 1305527 | Not Available |
| 3 | Not Available | Hoover Hinge-C3005 | 41133001 | Not Available |
| 4 | Not Available | Hoover Filter - C3007 | 43611014 | Not Available |
| 5 | Not Available | Hoover Brass Elbow-C | 1328433 | Not Available |
| 6 | Not Available | Hoover Brass Nut-C3003 | 1307631 | Not Available |
| 7 | Not Available | Hoover Vac Hose-C3003 Chemk | 43431020 | Not Available |
| 8 | Not Available | Hoover Hose Clamp-C3003 | 1114083 | Not Available |
| 9 | Not Available | Hoover Motor Housing - C300 | 42192035 | Not Available |
| 10 | Not Available | Hoover Mounting Plate - Lu | 41943002 | Not Available |
| 11 | Not Available | Hoover Handle-C3003 | 33123010 | Not Available |
| 12 | Not Available | Hoover Stachion-C | 1204122 | Not Available |
| 13 | Not Available | Hoover Handle Tube-C3005 | 31753002 | Not Available |
| 14 | Not Available | Hoover Screw-C3005 | 1105522 | Not Available |
| 15 | Not Available | Hoover Nut-C3005 | 1107612 | Not Available |
| 16 | Not Available | Hoover Brass Nut-C | 1307617 | Not Available |
| 17 | Not Available | Hoover Intake Screen-C3003 | 43611018 | Not Available |
| 18 | Not Available | Hoover Vac Tank Cover-C3005 | 42272075 | Not Available |
| 19 | Not Available | Hoover Vacuum Tank Gasket-2 | 38785007 | Not Available |
| 20 | Not Available | Hoover Washer-C3005 | 1107610 | Not Available |
| 22 | Not Available | Hoover Deflector Plate-C300 | 34557001 | Not Available |
| 23 | Not Available | Hoover Retainer Nut-C | 1207616 | Not Available |
| 24 | Not Available | Hoover Male Adapter-C | 1509049 | Not Available |
| 26 | Not Available | Hoover Drain Plug-C3005 | 1557125 | Not Available |
| 28 | Not Available | Hoover Screw-C9013 | 21781154 | Not Available |
| 29 | Not Available | Hoover Lock Washer D6047 | 164929 | Not Available |
| 30 | Not Available | Hoover Lock Nut-C3003 | 1107602 | Not Available |
| 31 | Not Available | Hoover Vac Motor-C3005 Chem | 43576027 | Not Available |
| 32 | Not Available | Hoover Motor Mount-C3005 Ch | 41312008 | Not Available |
| 33 | Not Available | Hoover Spacer-C | 1216693 | Not Available |
| 34 | Not Available | Hoover Top Separator - C300 | 36321016 | Not Available |
| 35 | Not Available | Hoover Quick Connect-C3003 | 1308006 | Not Available |
| 36 | Not Available | Hoover Washer-C9001 | 21312794 | Not Available |
| 37 | Not Available | Hoover Sol Hose-27-C300500 | 43443005 | Not Available |
| 38 | Not Available | Hoover Bushing-C3003 | 1512102 | Not Available |
| 39 | Not Available | Hoover Bottom Separator - C | 41312019 | Not Available |
| 40 | Not Available | Hoover Pump-Chemko | 43585003 | Not Available |
| 41 | Not Available | Hoover Lock Nut-C3003 | 1107602 | Not Available |
| 42 | Not Available | Hoover Hose Clamp | 25411049 | Not Available |
| 43 | Not Available | Hoover Hose-C3003 | 1038000 | Not Available |
| 44 | Not Available | Hoover Hose Clamp-C3003 | 1114477 | Not Available |
| 45 | Not Available | Hoover Hose Adapter-C | 1309141 | Not Available |
| 49 | Not Available | Hoover Bolt-C3003 | 1105501 | Not Available |
| 50 | Not Available | Hoover Cord Wrap | 43152001 | Not Available |
| 51 | Not Available | Hoover Washer-C3003 | 1107605 | Not Available |
| 52 | Not Available | Hoover Nut-C2075 | 21854103 | Not Available |
| 55 | Not Available | Hoover Attachment Cord Asse | 46583157 | Not Available |
| 56 | Not Available | Hoover Hex Bolt-C3003 | 1105567 | Not Available |
| 57 | Not Available | Hoover Rocker Switch-3 Position Wht | 1524106 | Not Available |
| 58 | Not Available | Hoover Swivel Wheel | 23737106 | Not Available |
| 59 | Not Available | Hoover Washer-C3003 | 1107627 | Not Available |
| 60 | Not Available | Hoover Nut-C3003 | 1107628 | Not Available |
| 61 | Not Available | Hoover Screw-C3003 | 1105503 | Not Available |
| 62 | Not Available | Hoover Washer | 21312710 | Not Available |
| 63 | Not Available | Hoover Switch Guard-C3003 | 37923021 | Not Available |
| 64 | Not Available | Hoover Receptacle - C3007 | 27764001 | Not Available |
| 66 | Not Available | Hoover Hinge-C3005 | 41132003 | Not Available |
| 67 | Not Available | Hoover Screw-C3005 | 1305527 | Not Available |
