Schematic and parts list for: Hoover Model: C1634
This is a list of parts and a diagram and schematic for: Hoover Model: C1634
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial E-Z Empty Dirt Cup - Hoover Professional Bagless
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Support Spring | 38335009 | Not Available |
| 2 | Not Available | Hoover Cloth Bag Assembly - Black | 43667056 | Not Available |
| 3 | Not Available | Hoover Bag Expander | 35173001 | Not Available |
| 4 | Not Available | Hoover Seal | 34122009 | Not Available |
| 5 | Not Available | Hoover Dust Cup Assembly | 43675188 | Not Available |
| 6 | Not Available | Hoover Latch - Black | 36155011 | Not Available |
| 7 | Not Available | Hoover Gasket | 34123020 | Not Available |
| 8 | Not Available | Hoover Dirt Cup | 38775001 | Not Available |
| 9 | Not Available | Hoover Bag And Dirt Cup Assembly - Black | 43675188 | Not Available |
| 10 | Not Available | Hoover Indicator | 51151037 | Not Available |
| 11 | Not Available | Hoover Nozzle Adjustment Lever - Black | 38456044 | Not Available |
| 12 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 13 | Not Available | Hoover Screw | 012954-- | Not Available |
| 14 | Not Available | Hoover Bail / Handle Fork Cover Plate | 37954004 | Not Available |
| 15 | Not Available | Hoover Wire Nut | 048969-- | Not Available |
| 16 | Not Available | Hoover Lock Washer | 21354155 | Not Available |
| 17 | Not Available | Hoover Insulator / Strain Relief | 36913026 | Not Available |
| 18 | Not Available | Hoover Screw | 23187363 | Not Available |
| 19 | Not Available | Hoover Handle Bolt | 21631302 | Not Available |
| 20 | Not Available | Hoover Handle Retainer Plate | 35463011 | Not Available |
| 22 | Not Available | Hoover Bail / Handle Fork | 41416051 | Not Available |
| 23 | Not Available | Hoover Nut | 012560-- | Not Available |
| 24 | Not Available | Hoover Lower Handle | 48631134 | Not Available |
| 25 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 26 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Hoover Handle Assembly | 48646093 | Not Available |
| 28 | Not Available | Hoover Upper Handle Assembly | 48646093 | Not Available |
| 29 | Not Available | Hoover Handle Grip | 39454070 | Not Available |
| 30 | Not Available | Hoover Power Cord - 50' | 46583009 | Not Available |
| 31 | Not Available | Hoover Cord Retainer | 34785017 | Not Available |
| 32 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 33 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 34 | Not Available | Hoover Circular Clip | 24735022 | Not Available |
| 35 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 36 | Not Available | Hoover Clamp | 36425023 | Not Available |
| 37 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Hoover Mounting Bracket | 35217006 | Not Available |
| 39 | Not Available | Hoover Shaft | 613802AY | Not Available |
| 40 | Not Available | Hoover Switch | 28212017 | Not Available |
| 41 | Not Available | Hoover Foot Pad - Black | 38426080 | Not Available |
| 42 | Not Available | Hoover Handle Roll Pin | 12002663 | Not Available |
| 43 | Not Available | Hoover Spring | 048409FW | Not Available |
| 44 | Not Available | Hoover Bag Flange Clamp Lever | 019907-- | Not Available |
| 45 | Not Available | Hoover Lock Ring | 013730-- | Not Available |
| 46 | Not Available | Hoover Cord / Tubing Assembly | 46515007 | Not Available |
| 47 | Not Available | Hoover Handle Lever | 38456050 | Not Available |
| 48 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 49 | Not Available | Hoover Cam Follower - Plastic | 43263005 | Not Available |
| 50 | Not Available | Hoover Wheel Shaft And Support | 41431013 | Not Available |
| 51 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 52 | Not Available | Hoover Spring | 161513-- | Not Available |
| 53 | Not Available | Hoover Washer | 21312806 | Not Available |
| 54 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 55 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 56 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 57 | Not Available | Hoover Retainer And Sleeving | 41119009 | Not Available |
| 58 | Not Available | Hoover Screw | 21447220 | Not Available |
| 59 | Not Available | Hoover Washer | 168278AY | Not Available |
| 60 | Not Available | Hoover Rivet | 012997AW | Not Available |
| 61 | Not Available | Hoover Retainer | 36951004 | Not Available |
| 62 | Not Available | Hoover Rivet | 21256134 | Not Available |
| 63 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 64 | Not Available | Hoover Hood / Nozzle Cover | 42251336 | Not Available |
| 65 | Not Available | Hoover Hood Panel - Black | 37246044 | Not Available |
| 66 | Not Available | Hoover Hood Name Plate | 52115214 | Not Available |
| 67 | Not Available | Hoover Furniture Guard | 36231151 | Not Available |
| 68 | Not Available | Hoover Screw | 045533AY | Not Available |
| 69 | Not Available | Hoover Lock Washer | 014062-- | Not Available |
| 70 | Not Available | Hoover Motor And Seal Kit | 43574191 | Not Available |
| 71 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 72 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 73 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 74 | Not Available | Hoover Front Wheel Carrier | 034791AG | Not Available |
| 75 | Not Available | Hoover Washer | 21312724 | Not Available |
| 76 | Not Available | Hoover Front Wheel Shaft | 047457AY | Not Available |
| 77 | Not Available | Hoover Rivet | 048422-- | Not Available |
| 78 | Not Available | Hoover Main Body - Nozzle Base Black | 42242277 | Not Available |
| 79 | Not Available | Hoover Support Washer | 21312781 | Not Available |
| 80 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 81 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 83 | Not Available | Hoover Thread Guard - Left | 048495AY | Not Available |
| 83 | Not Available | Hoover Agitator Brush - Back | 48445001 | Not Available |
| 83 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | Hoover Agitator End Assembly | 41435070 | Not Available |
| 83 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 83 | Not Available | Hoover Thrust Spring | 035366-- | Not Available |
| 83 | Not Available | Hoover Thread Guard - Right | 012985AY | Not Available |
| 83 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 83 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 84 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 84 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 86 | Not Available | Hoover Bottom Plate / Nozzle Guard - Plastic | 37245081 | Not Available |
| 87 | Not Available | Hoover Latch | 36153006 | Not Available |
| 88 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 89 | Not Available | Hoover Screw | 21447020 | Not Available |
| 90 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 91 | Not Available | Hoover Axle / Bag Flange Retainer | 35434040 | Not Available |
| 92 | Not Available | Hoover Rear Wheel - Black | 38521019 | Not Available |
| 93 | Not Available | Hoover Wheel Reatiner | 32182001 | Not Available |
| 94 | Not Available | Hoover Bail / Handle Fork Shaft | 161509AY | Not Available |
| 95 | Not Available | Hoover Rivet | 21256094 | Not Available |
| 96 | Not Available | Hoover Cord Clip - Black | 39441016 | Not Available |
| 97 | Not Available | Hoover Bag Clip And Spring | 41128021 | Not Available |
| 98 | Not Available | Hoover Fuse Assembly - 8a / 250c | 440001219 | Not Available |

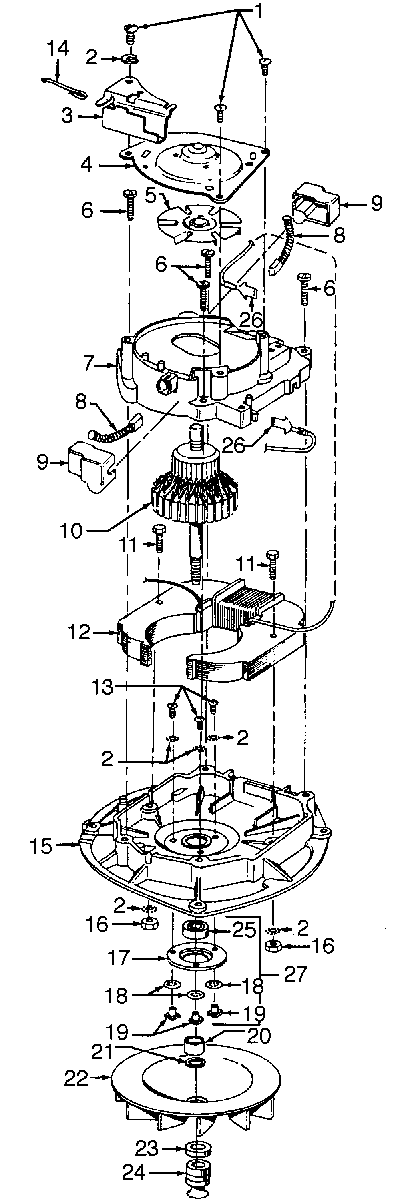

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 045533AY | Not Available |
| 2 | Not Available | Hoover Lock Washer | 014062-- | Not Available |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan - Plastic | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535-- | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap | 36315003 | Not Available |
| 10 | Not Available | Hoover Armature | 44768043 | Not Available |
| 11 | Not Available | Hoover Field Bolt | 045118-- | Not Available |
| 12 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | Not Available | Hoover Indicator Guide Screw | 35276006 | Not Available |
| 15 | Not Available | Hoover Motor Case - Left | 42193006 | Not Available |
| 16 | Not Available | Hoover Hex Nut | 015673-- | Not Available |
| 17 | Not Available | Hoover Bearing Retainer - 8mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Lock Washer | 019772-- | Not Available |
| 19 | Not Available | Hoover Nut | 045251-- | Not Available |
| 20 | Not Available | Hoover Fan Spacker - 8mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563-- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer - Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley - Heat In | 38532005 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Terminal | 014320-- | Not Available |
| 27 | Not Available | Hoover Motor Housing - Left | 42193006 | Not Available |
