Schematic and parts list for: Hoover Model: C1627
This is a list of parts and a diagram and schematic for: Hoover Model: C1627
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
Popular Supplies

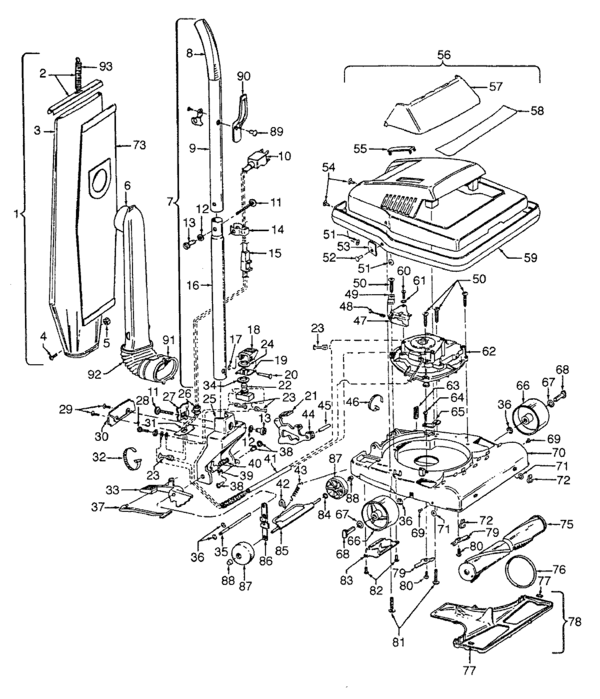

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Oper. Instruction Fo | 56711135 | Not Available |
| xx | Not Available | Hoover Front Support-C1067 | 58343025 | Not Available |
| xx | Not Available | Hoover Assem. Instruction S | 56711133 | Not Available |
| xx | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| xx | Not Available | Hoover Rear Support - U4391 | 58366012 | Not Available |
| 1 | Not Available | Hoover Outer Bag Comp.-C143 | 43675187 | Not Available |
| 2 | Not Available | Hoover Bag Clip And Spring Assembly | 41128007 | Not Available |
| 3 | Not Available | Hoover Cloth Bag-Aaw/Ag-C16 | 43674201 | Not Available |
| 4 | Not Available | Hoover Screw | 21765159 | Not Available |
| 5 | Not Available | Hoover Nut | 015854EF | Not Available |
| 6 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 7 | Not Available | Hoover Handle Complete - Ax | 48646093 | Not Available |
| 8 | Not Available | Hoover Handle Grip - Bu | 39454070 | Not Available |
| 9 | Not Available | Hoover Handle-Upper Half-Ax | 48643091 | Not Available |
| 10 | No Image | CORD, 35' Part Number: 46583149 for Hoover | 46583149 | $41.72Read more |
| 11 | Not Available | Hoover Handle Bolt-U7047/45 | 21631302 | Not Available |
| 12 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 14 | Not Available | Hoover Cord Retainer | 34785017 | Not Available |
| 15 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 16 | Not Available | Hoover Lower Handle - Ax | 48631134 | Not Available |
| 17 | Not Available | Hoover Circlip | 24735022 | Not Available |
| 18 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 19 | Not Available | Hoover 35217006 | 35217006 | Not Available |
| 20 | Not Available | Hoover Shaft - 1330 | 613802AY | Not Available |
| 21 | Not Available | Hoover Foot Pad-Ag -C1E03 | 38426080 | Not Available |
| 22 | Not Available | Hoover Switch | 28212017 | Not Available |
| 23 | Not Available | Hoover Wire Nut | 048969- | Not Available |
| 24 | Not Available | Hoover Nut | 012560- | Not Available |
| 25 | Not Available | Hoover Bail | 41416064 | Not Available |
| 26 | Not Available | Hoover Strain Relief-U7047/ | 039049- | Not Available |
| 27 | Not Available | Hoover Handle Retainer Plat | 35463011 | Not Available |
| 28 | Not Available | Hoover Screw-Sems-U7047/45/ | 23187363 | Not Available |
| 29 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 30 | Not Available | Hoover Bail Cover Plate | 37954001 | Not Available |
| 31 | Not Available | Hoover Strain Relief Mounti | 34223004 | Not Available |
| 32 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 33 | Not Available | Hoover Noz Adj Lever-Ag | 38456044 | Not Available |
| 34 | Not Available | Hoover Lock Washer - Specia | 21354155 | Not Available |
| 35 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 36 | Not Available | Hoover Lock Ring | 013730- | Not Available |
| 37 | Not Available | Hoover Indicator-Ag-Printed | 51151034 | Not Available |
| 38 | Not Available | Hoover Handle Cont Rol Pin | 011735- | Not Available |
| 39 | Not Available | Hoover Bag Flange Clamp Lever | 019907- | Not Available |
| 40 | Not Available | Hoover Spring - Bag Flange Clamp | 048409FW | Not Available |
| 41 | Not Available | Hoover Cord / Tubing Assembly | 46515007 | Not Available |
| 42 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 43 | Not Available | Hoover Spring | 161513- | Not Available |
| 44 | Not Available | Hoover Hdl Cont Lever | 38456050 | Not Available |
| 45 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 46 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 47 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 48 | Not Available | Hoover Indicator Guide Spri | 35276006 | Not Available |
| 49 | Not Available | Hoover Retainer & Sleeving | 41119009 | Not Available |
| 50 | Not Available | Hoover Screw-U4581-910 | 21447220 | Not Available |
| 51 | Not Available | Hoover Washer | 168278AY | Not Available |
| 52 | Not Available | Hoover Rivet | 12997AW- | Not Available |
| 53 | Not Available | Hoover Retainer-Bu-U4153 | 36951004 | Not Available |
| 54 | Not Available | Hoover Rivet | 21256134 | Not Available |
| 55 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 56 | Not Available | Hoover Hood Assembly - Aaw | 42251168 | Not Available |
| 57 | Not Available | Hoover Panel - Aaw | 37246040 | Not Available |
| 58 | Not Available | Hoover Hood Nameplate-C1627 | 52115199 | Not Available |
| 59 | Not Available | Hoover Furniture Guard - Bu | 36231151 | Not Available |
| 60 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 61 | Not Available | Hoover Lock Washer | 014062- | Not Available |
| 62 | Not Available | Hoover Motor & Seal Kit | 40309020 | Not Available |
| 63 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 64 | Not Available | Hoover Screw - Self Tapping | 21447229 | Not Available |
| 65 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 66 | Not Available | Hoover Front Wheel | 34791AG- | Not Available |
| 67 | Not Available | Hoover Washer | 21312724 | Not Available |
| 68 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 69 | Not Available | Hoover Rivet | 048422- | Not Available |
| 70 | Not Available | Hoover Main Body / Nozzle Base - Black | 42242277 | Not Available |
| 71 | Not Available | Hoover Support Washer-Uprig | 21312781 | Not Available |
| 72 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 73 | No Image | PAPER BAG, :) HVR TYPE A ALLERGAN 3PK Part Number: H4010100A for Hoover Replacement | H4010100A | $8.22Read more |
| 75 | Not Available | Hoover Agitator End Assembl | 41435070 | Not Available |
| 75 | Not Available | Hoover Thread Guard Lh | 48495AY- | Not Available |
| 75 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 75 | Not Available | Hoover Thread Guard Rh | 12985AY- | Not Available |
| 75 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 75 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 75 | Not Available | Hoover Agitator Thrust Spring | 035366- | Not Available |
| 75 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 76 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 77 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 78 | Not Available | Hoover Bottom Plate - Plast | 37245081 | Not Available |
| 79 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 80 | Not Available | Hoover Screw - Self Tapping | 21447229 | Not Available |
| 81 | Not Available | Hoover Screw | 21447020 | Not Available |
| 82 | Not Available | Hoover Screw - Self Tapping | 21447229 | Not Available |
| 83 | Not Available | Hoover Axle/Bag Flange Reta | 35434040 | Not Available |
| 84 | Not Available | Hoover Washer | 21312806 | Not Available |
| 85 | Not Available | Hoover Wheel Shaft & Suppor | 41431013 | Not Available |
| 86 | Not Available | Hoover Cam Follower-Plastic | 43263005 | Not Available |
| 87 | Not Available | Hoover Rear Wheel - Ag | 38521019 | Not Available |
| 88 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 89 | Not Available | Hoover Rivet | 21256094 | Not Available |
| 90 | Not Available | Hoover Cord Clip - Black | 39441016 | Not Available |
| 91 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 92 | Not Available | Hoover Bellows-Jm | 38673009 | Not Available |
| 93 | Not Available | Hoover Spring - Bag Closure Clip Order 41128007 | 38336019 | Not Available |

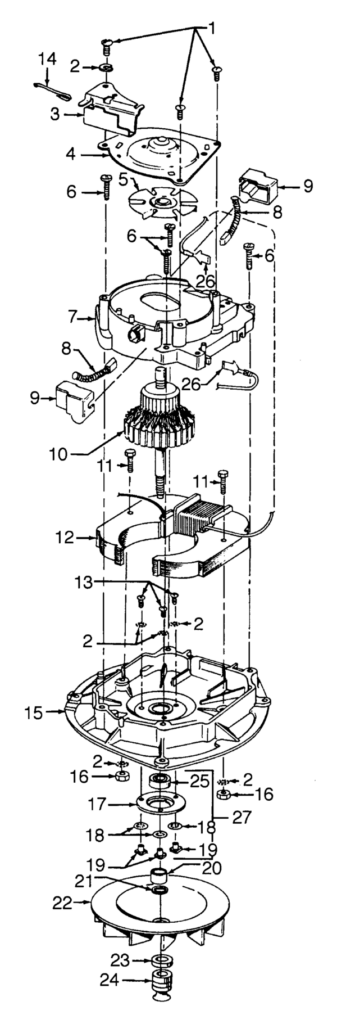

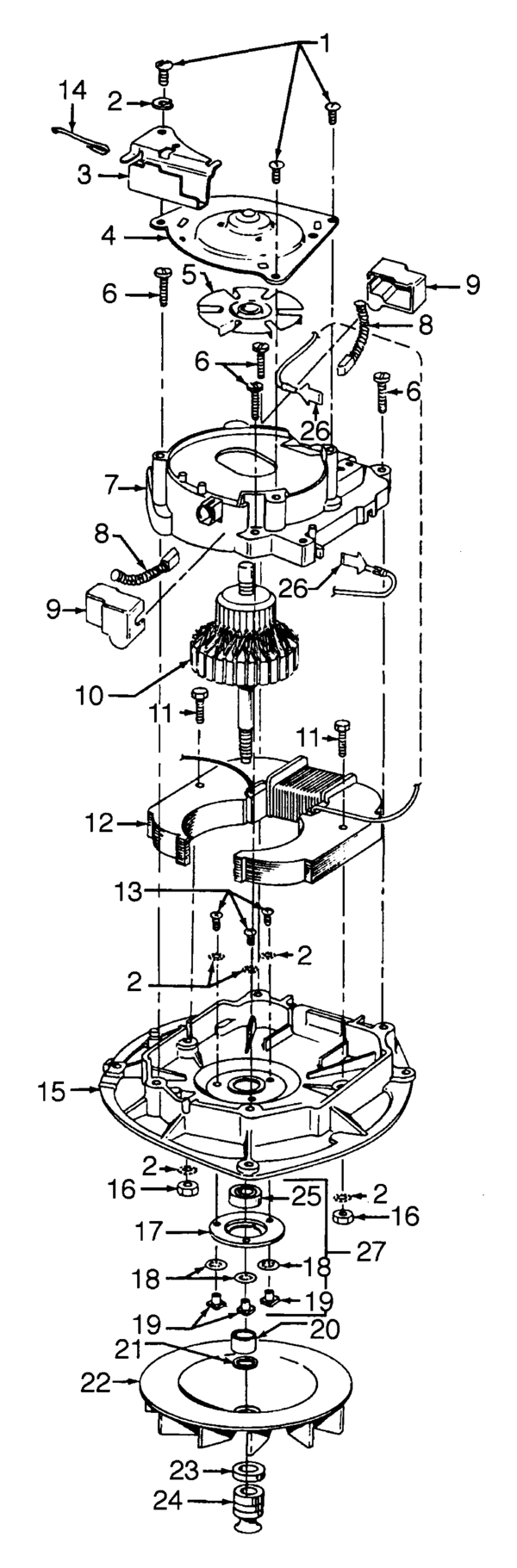

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 2 | Not Available | Hoover Lock Washer | 014062- | Not Available |
| 3 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan-Plastic-U44 | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535- | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing-U | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 10 | Not Available | Hoover Armature | 44768043 | Not Available |
| 11 | Not Available | Hoover Field Bolt | 045118- | Not Available |
| 12 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | Not Available | Hoover Indicator Guide Spri | 35276006 | Not Available |
| 15 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex 5140 | 015673- | Not Available |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock-843 | 019772- | Not Available |
| 19 | Not Available | Hoover Nut | 045251- | Not Available |
| 20 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer-Heat Insulati | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley-Heat In | 38532009 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Terminal 1060 | 014320- | Not Available |
| 27 | Not Available | Hoover Bearing Assem Comp-8 | 43267006 | Not Available |
