Schematic and parts list for: Hoover Model: C1431010
This is a list of parts and a diagram and schematic for: Hoover Model: C1431010
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Cloth Bagged Upright - Hoover Guardsman
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Power Cord - 50' | 46583009 | Not Available |
| 2 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 3 | Not Available | Hoover Mounting Bracket | 35217006 | Not Available |
| 4 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 5 | Not Available | Hoover Switch | 28212017 | Not Available |
| 6 | Not Available | Hoover Wire Nut | 048969-- | Not Available |
| 7 | Not Available | Hoover Shaft | 613802AY | Not Available |
| 8 | Not Available | Hoover Nut | 012560-- | Not Available |
| 9 | Not Available | Hoover Circular Clip | 24735022 | Not Available |
| 10 | Not Available | Hoover Handle Assembly Complete - Chromium Plate | 48646093 | Not Available |
| 11 | Not Available | Hoover Handle Grip - Transparent | 39454070 | Not Available |
| 12 | Not Available | Hoover Cord Retainer | 34785017 | Not Available |
| 13 | Not Available | Hoover Cord Clip - Black | 39441016 | Not Available |
| 14 | Not Available | Hoover Upper Handle | 48646093 | Not Available |
| 15 | Not Available | Hoover Lower Handle - Chromium Plate | 48631134 | Not Available |
| 16 | Not Available | Hoover Lock Washer | 21354155 | Not Available |
| 17 | Not Available | Hoover Insulator / Strain Relief | 36913026 | Not Available |
| 18 | Not Available | Hoover Handle Bolt | 21631302 | Not Available |
| 19 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 20 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Hoover Outer Cloth Bag Complete - Black Zipper Bag | 43675187 | Not Available |
| 22 | Not Available | Hoover Bag Clip Spring | 38336019 | Not Available |
| 23 | Not Available | Hoover Bag Clip And Spring Assembly | 41128007 | Not Available |
| 24 | Not Available | Hoover Outer Cloth Bag - Bag Only Gray Dump Bag | 43674221 | Not Available |
| 25 | Not Available | Hoover Nut | 015854EF | Not Available |
| 26 | Not Available | Hoover Screw | 017206-- | Not Available |
| 27 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 28 | Not Available | Hoover Motor Assembly And Seal Kit | 43574191 | Not Available |
| 29 | Not Available | Hoover Hood / Nozzle Cover - Black | 42251015 | Not Available |
| 30 | Not Available | Hoover Screw | 21447220 | Not Available |
| 31 | Not Available | Hoover Baffle | 34287012 | Not Available |
| 32 | Not Available | Hoover Retainer And Sleeving | 41119009 | Not Available |
| 33 | No Image | BUMPER, C1429 UPRIGHT Part Number: 36231042 for Hoover | 36231042 | $12.15Read more |
| 34 | Not Available | Hoover Rivet - Furniture Guard | 012997AW | Not Available |
| 35 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 36 | Not Available | Hoover Lock Ring | 013730-- | Not Available |
| 37 | Not Available | Hoover Bail / Handle Fork Shaft | 161509AY | Not Available |
| 38 | Not Available | Hoover Nozzle Adjustment Lever - Black | 38452051 | Not Available |
| 39 | Not Available | Hoover Bail / Handle Fork | 41416051 | Not Available |
| 40 | Not Available | Hoover Foot Pad - Black | 38426080 | Not Available |
| 41 | Not Available | Hoover Handle Control Lever - Black | 43137047 | Not Available |
| 42 | Not Available | Hoover Handle Retainer Plate | 35463011 | Not Available |
| 43 | Not Available | Hoover Bail / Handle Fork Plate | 37954004 | Not Available |
| 44 | Not Available | Hoover Screw | 23187363 | Not Available |
| 45 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 46 | Not Available | Hoover Handle Control Roll Pin | 12002663 | Not Available |
| 47 | Not Available | Hoover Spring | 048409FW | Not Available |
| 48 | Not Available | Hoover Bag Flange Clamp Lever | 019907-- | Not Available |
| 49 | Not Available | Hoover Spring | 161513-- | Not Available |
| 50 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 51 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 52 | Not Available | Hoover Rear Wheel - Black | 38521019 | Not Available |
| 53 | Not Available | Hoover Cam Follower - Plastic | 43263003 | Not Available |
| 54 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 55 | Not Available | Hoover Washer | 21312806 | Not Available |
| 56 | Not Available | Hoover Axle / Bag Flange Retainer | 35434040 | Not Available |
| 57 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 58 | Not Available | Hoover Front Wheel Shaft | 047457AY | Not Available |
| 59 | Not Available | Hoover Bottom Plate / Nozzle Guard - Plastic | 37245081 | Not Available |
| 60 | Not Available | Hoover Washer | 21312724 | Not Available |
| 61 | Not Available | Hoover Front Wheel | 034791AG | Not Available |
| 62 | Not Available | Hoover Screw | 21447020 | Not Available |
| 63 | Not Available | Hoover Rivet | 048422-- | Not Available |
| 64 | Not Available | Hoover Support Washer | 21312781 | Not Available |
| 65 | Not Available | Hoover Latch | 36153006 | Not Available |
| 66 | Not Available | Hoover Screw - Self Tapping | 017001FW | Not Available |
| 67 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 68 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 69 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 70 |  | MAIN BODY, GUARDSMAN Part Number: 42242269 for Hoover | 42242269 | $151.92Read more |
| 71 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 72 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 73 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 75 | No Image | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 76 | Not Available | Hoover Fuse Assembly - 8a / 250c | 440001219 | Not Available |

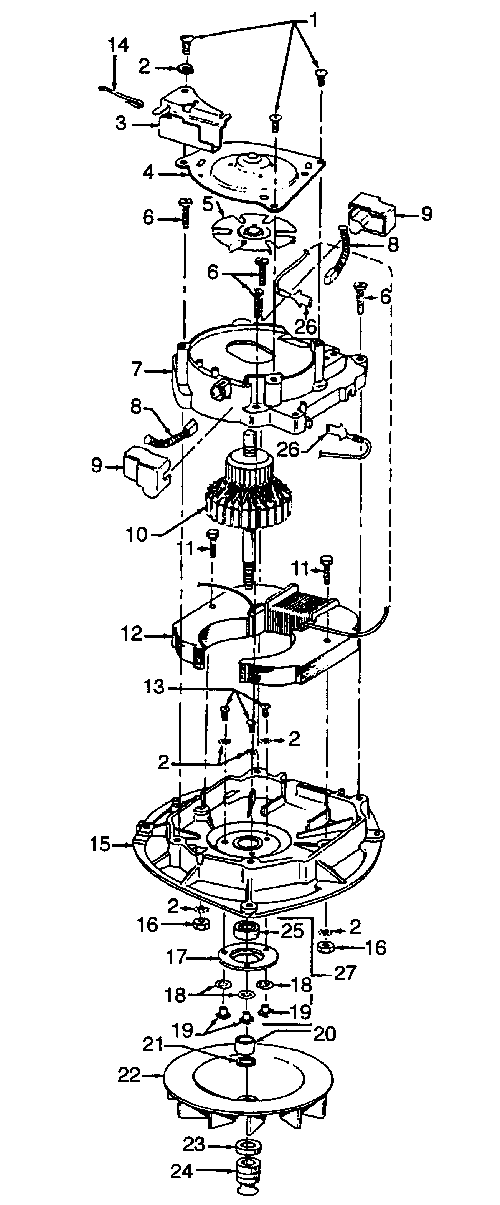

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | Not Available | Hoover Lock Washer | 014062-- | Not Available |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan - Plastic | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535-- | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap | 36315003 | Not Available |
| 10 | No Image | ARMATURE, C1407 Part Number: 44768049 for Hoover | 44768049 | $66.70Read more |
| 11 | Not Available | Hoover Field Bolt | 045118-- | Not Available |
| 12 | Not Available | Hoover Field Coil | 45412035 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | Not Available | Hoover Indicator Guide Spring | 35276006 | Not Available |
| 15 | Not Available | Hoover Motor Case - Left | 42193006 | Not Available |
| 16 | Not Available | Hoover Hex Nut | 015673-- | Not Available |
| 17 | Not Available | Hoover Bearing Retainer - 8mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer Lock | 019772-- | Not Available |
| 19 | Not Available | Hoover Nut | 045251-- | Not Available |
| 20 | Not Available | Hoover Fan Spacker - 8mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563-- | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover Washer - Heat Insulation | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor Pulley | 38532005 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Terminal | 014320-- | Not Available |
| 27 | Not Available | Hoover Motor And Seal Kit | 43574191 | Not Available |
| 27 | Not Available | Hoover Motor Case - Left | 42193006 | Not Available |
