Schematic and parts list for: Hoover Model: C1065
This is a list of parts and a diagram and schematic for: Hoover Model: C1065
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard & Sp - | 49180 | Not Available |
| 1 | Not Available | Hoover Thread Guard-Lh | 36423003 | Not Available |
| 2 |  | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | No Image | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 4 | Not Available | Hoover Agitator Assembly R.H. Helix (Molded Thread Guards) | 48414007 | Not Available |
| 4 | Not Available | Hoover Agitator Assembly | 48414006 | Not Available |
| 4 | Not Available | Hoover 4 Brush Agitator Lightweight Commercial (Use 160646Bz Brush & 36422003 Agitator | 48414003 | Not Available |
| 4 | Not Available | Hoover Agitator - Four Brush Heavy Duty Commercial (Use 47159 Brush-Long, 47160 Brush-Short) | 48414002 | Not Available |
| 4 | Not Available | Hoover Agitator End Assembly | 41435070 | Not Available |
| 4 | Not Available | Hoover Agitator Assembly Comp- High Performance Cleaners | 41435005 | Not Available |
| 4 | Not Available | Hoover Agitator Complete Standard Performance, R.H. Helix (Metal Thread Guards) | 169371MF | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 4 | Not Available | Hoover Agitator End 65 (Early Model Standard Performance Cleaners, L.H. Helix) | 22554 | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Agitator Brush-Nylon 8 Mil (Early Model Standard Performance Cleaners, L.H. Helix) | 012998BZ | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 12981 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft (Used W/Molded Thread Guards) | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard Rh | 12985AY | Not Available |
| 7 | Not Available | Hoover Thread Guard-Rh | 36423007 | Not Available |
| 8 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture Brush | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Swivel Connector | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Curved Tube Assembly | 43466037 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag | 58544004 | Not Available |
| 26 | Not Available | Hoover Hose Connector-Short (Use With Continuous Convolution Hose) | 32288007 | Not Available |
| 26 | Not Available | Hoover Hose Connector (Use With Circular Ribbed Hose) | 32288003 | Not Available |
| 27 | Not Available | Hoover Hose Assembly Comp | 43434203 | Not Available |
| 27 | Not Available | Hoover Hose Less Ends Molded (Circular- Ribbed) | 38671001 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 28 | No Image | FAN, ROTATING Part Number: 31213-1 for Lamb | 312131 | $23.17Read more |
| 29 | Not Available | Hoover Hose Connector (Use With Circular Ribbed Hose) | 36171025 | Not Available |
| 29 | Not Available | Hoover Hose Connector (Use With Continuous Convolution Hose) | 36116006 | Not Available |
| 30 | Not Available | Hoover Hose Grip W/Sc W/Rings Ag (Use W/Continuous Convolution Hose) | 43466068 | Not Available |
| 30 | Not Available | Hoover Hose Connector Curve (W/O Suction Regulator) (Use W/Circular Ribbed Hose) | 43466055 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring | 36153021 | Not Available |
| 34 | Not Available | Hoover Hose Assembly Comp Ribbed Without Suction Regulator | 43434209 | Not Available |
| 34 | Not Available | Hoover Hose Assembly Comp | 43434203 | Not Available |
| 47 | Not Available | Hoover Extension Wand | 43458001 | Not Available |
| 48 | No Image | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard & Sp - | 49180 | Not Available |
| 1 |  | CORD, 50' 18/2 W/ROUND HANDLE CORD SLEEVE ORANGE Part Number: 46323122 for Hoover | 46323122 | $50.78Read more |
| 2 | | Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 3 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 4 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 4 | Not Available | Hoover Switch Cover | 37258110 | Not Available |
| 5 | Not Available | Hoover Agitator Brush Back | 48445001 | Not Available |
| 6 | Not Available | Hoover Switch | 281770KD | Not Available |
| 6 | Not Available | Hoover Agitator Shaft | 32724008 | Not Available |
| 7 | Not Available | Hoover Thread Guard - Rh | 012985AY | Not Available |
| 7 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 8 | Not Available | Hoover Switch Case | 37214070 | Not Available |
| 9 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 10 | Not Available | Hoover Cord Retainer | 34253010 | Not Available |
| 11 | Not Available | Hoover Cord Protector | 36216002 | Not Available |
| 12 | Not Available | Hoover Cord Clip | 39441016 | Not Available |
| 13 | Not Available | Hoover Rivet | 21256094 | Not Available |
| 14 | Not Available | Hoover Upper Handle | 48643020 | Not Available |
| 15 | Not Available | Hoover Handle Nut | 32277021 | Not Available |
| 16 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 17 | Not Available | Hoover Nut Shield | 31323001 | Not Available |
| 17 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Insulator | 36913007 | Not Available |
| 19 | No Image | CORD, UPPER HANDLE W/PLUG U7063 Part Number: 47155005 for Hoover | 47155005 | $12.26Read more |
| 20 | No Image | CORD, C1433 Part Number: 46321033 for Hoover | 46321033 | $19.25Read more |
| 21 | Not Available | Hoover Lower Handle-Ax | 32284018 | Not Available |
| 22 | Not Available | Hoover Support Spring | 38335009 | Not Available |
| 23 | Not Available | Hoover Bag Clip & Spring - | 41128007 | Not Available |
| 23 | Not Available | Hoover Bag Clip & Spring | 41424025 | Not Available |
| 24 | Not Available | Hoover Outer Bag | 43674221 | Not Available |
| 24 | Not Available | Hoover Cloth Bag Jx/Ee | 43674096 | Not Available |
| 25 | Not Available | Hoover Screw | 21765159 | Not Available |
| 26 | Not Available | Hoover Nut | 015854EF | Not Available |
| 28 | Not Available | Hoover Bag Flange With Sealant | 41424011 | Not Available |
| 29 | Not Available | Hoover Foot Pad | 38426080 | Not Available |
| 34 | Not Available | Hoover Screw | 21481752 | Not Available |
| 36 | Not Available | Hoover Bail Grip 65 | 34192 | Not Available |
| 37 | Not Available | Hoover Handle Retainer Plate | 35463011 | Not Available |
| 38 | Not Available | Hoover Tubing | 31728022 | Not Available |
| 39 | Not Available | Hoover Bail | 41416038 | Not Available |
| 40 | Not Available | Hoover Handle Control Lever | 43137047 | Not Available |
| 42 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 43 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 44 | Not Available | Hoover Nozzle Adj Lever | 38452051 | Not Available |
| 45 | Not Available | Hoover Washer | 21312724 | Not Available |
| 46 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 47 | Not Available | Hoover Spring | 048409FW | Not Available |
| 48 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 52 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 53 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 54 | Not Available | Hoover Washer | 21312772 | Not Available |
| 55 | Not Available | Hoover Screw | 21479347 | Not Available |
| 56 | Not Available | Hoover Cam Follower-Plastic | 43263003 | Not Available |
| 57 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 58 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 59 | Not Available | Hoover Spring | 161513 | Not Available |
| 60 | Not Available | Hoover Hood | 167364JM | Not Available |
| 61 | Not Available | Hoover Screw | 015738EF | Not Available |
| 62 | No Image | MOTOR, 1 SPEED W/O GUIDE CONVERTIBLE DECADE C1069 Part Number: 43574193 for Hoover | 43574193 | $162.40Read more |
| 63 | Not Available | Hoover Screw | 21447220 | Not Available |
| 64 | Not Available | Hoover Baffle | 35437010 | Not Available |
| 65 | Not Available | Hoover Retainer | 34312011 | Not Available |
| 67 | Not Available | Hoover Rivet-Tubular | 32242004 | Not Available |
| 69 | Not Available | Hoover Screw | 21447020 | Not Available |
| 70 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 71 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 72 | Not Available | Hoover Axle/Bag Flange Retainer | 35434040 | Not Available |
| 73 | Not Available | Hoover Screw | 017001FW | Not Available |
| 74 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 76 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 77 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 78 | No Image | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 79 | Not Available | Hoover Support Washer | 21312781 | Not Available |
| 80 | Not Available | Hoover Latch | 36153006 | Not Available |
| 81 | Not Available | Hoover Latch | 36153006 | Not Available |
| 82 | Not Available | Hoover Screw - Self Tapping | 21447229 | Not Available |
| 83 | Not Available | Hoover Main Body | 42242213 | Not Available |
| 84 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 86 | Not Available | Hoover Rivet-Semi Tubular | 012503EF | Not Available |
| 87 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 88 | Not Available | Hoover Agitator Assembly Comp- | 41435005 | Not Available |
| 89 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 90 | Not Available | Hoover Support Pad (Use W/Metal Bottom Plate) | 34111001 | Not Available |
| 91 | Not Available | Hoover Bottom Plate | 37245081 | Not Available |
| 91 | Not Available | Hoover Bottom Plate Complete | 42246008 | Not Available |
| 93 | Not Available | Hoover Furniture Guard | 36231036 | Not Available |
| 94 | Not Available | Hoover Handle Comp | 48643040 | Not Available |
| 95 | Not Available | Hoover Outer Bag Comp | 43675187 | Not Available |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Nozzle Position Bracket Assembly | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 59 | Not Available | Hoover Hose Complete (Commercial) (Use W/Converter 34202 Or 35190) | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short 65 | 34355 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector (Use W/Hose 22671) | 35190 | Not Available |
| 64 | Not Available | Hoover Connector Converter (Use W/Hose 22671) | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete Tufflex (Std. Rear Conversion) | 012864JM | Not Available |
| 68 | Not Available | Hoover Hose-Ultraflex-50 Ft | 169460JM | Not Available |
| 68 | Not Available | Hoover Hose-Tuflex-Jm-50 Ft | 43431011 | Not Available |

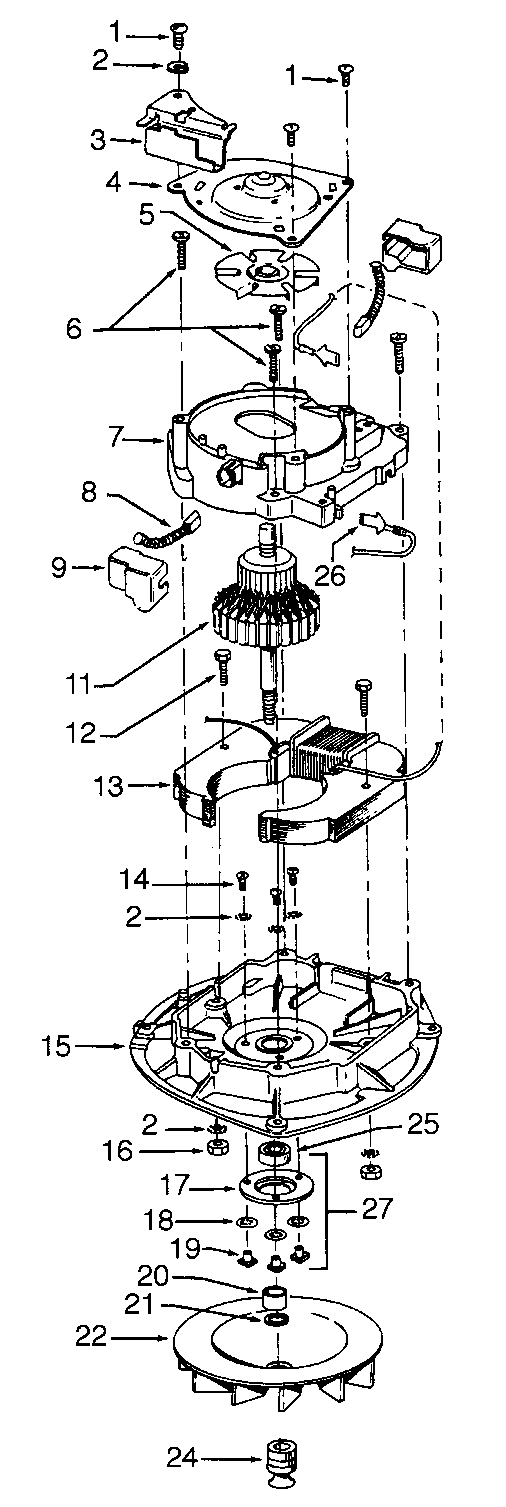

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Assembly | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Ventilating Fan | 38755004 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap | 36315003 | Not Available |
| 11 | Not Available | Hoover Armature | 44768051 | Not Available |
| 12 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 13 | Not Available | Hoover Field Coil | 45412015 | Not Available |
| 14 | Not Available | Hoover Screw | 21772501 | Not Available |
| 15 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex | 15673 | Not Available |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563 | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 24 | Not Available | Hoover Motor Pulley | 43251003 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Hoover Bearing Assembly Comp | 43267006 | Not Available |
| 28 | Not Available | Hoover Indicator Guide | 35276006 | Not Available |
