Schematic and parts list for: Eureka Model: CV107BF
This is a list of parts and a diagram and schematic for: Eureka Model: CV107BF
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

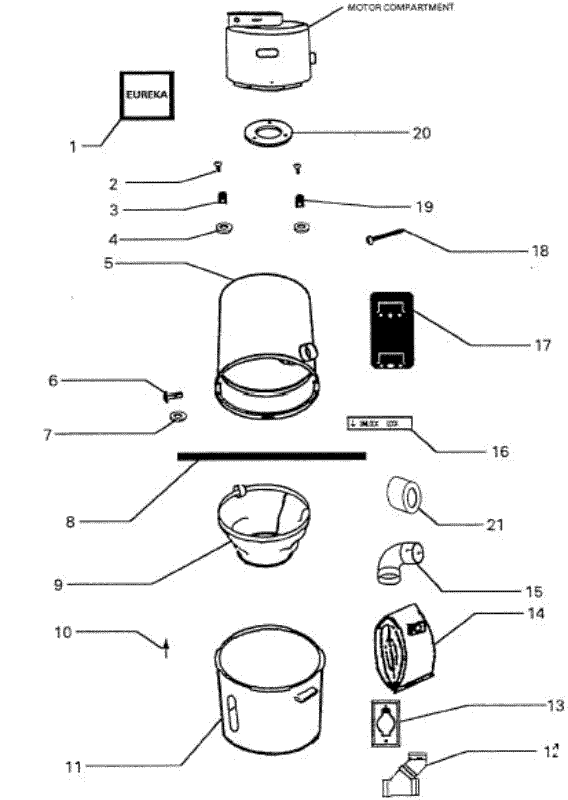

Parts for: Central Vac Power Unit
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Name Plate | 90903 | Not Available |
| 2 | Not Available | Eureka Screw (2) | EW312-9-9ZP | Not Available |
| 3 | Not Available | Eureka Clamp-L.H. Motor(Sub 251 (Nla) | 57490 | Not Available |
| 4 | Not Available | Eureka Washer.195X.500X.062(345 (Nla) | 90881 | Not Available |
| 5 | Not Available | Eureka Assy Body Cv825D (Nla) | 901150 | Not Available |
| 6 | Not Available | Eureka Rivet - Pop (Nla) | 56551 | Not Available |
| 7 | Not Available | Eureka Washer.195X.500X.062(345 (Nla) | 90881 | Not Available |
| 8 | Not Available | Eureka Gasket(Sub 195000) | 901042 | Not Available |
| 9 | Not Available | Eureka Filter Assy - Large Grey | 110-512 | Not Available |
| 10 | Not Available | Eureka Decal - Arrow (Nla) | 57064-2 | Not Available |
| 11 | Not Available | Eureka Dirt Bucket W/Ar(Sub 120-333) | 01890-4 | Not Available |
| 12 | Not Available | Eureka 90 Degree Sweep Tee | 56859 | Not Available |
| 13 | Not Available | Eureka Inlet Wh.Eureka Logo(Sv8016-2) | 90724 | Not Available |
| 14 | Not Available | Eureka Filteraire C.V. Bags(54585) | 90610B | Not Available |
| 15 | Not Available | Eureka "L"Slot 90 Sw (105-000) (Nla) | 90630 | Not Available |
| 16 | Not Available | Eureka Lock / Unlock Label | 37913-2 | Not Available |
| 17 | Not Available | Eureka Mounting Bracket(145-330) | 90789 | Not Available |
| 18 |  | Fill Tube, W/O Adapters 3CB/516-562 Part Number: 190379 for Kirby | 190379 | $16.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Eureka Mtg Clamp Rh(Sub 251-328) | 57449 | Not Available |
| 20 | Not Available | Eureka Gasket-7.8X5.5X.4375 | 90339 | Not Available |
| 21 | Not Available | Eureka Adapter | 56836 | Not Available |

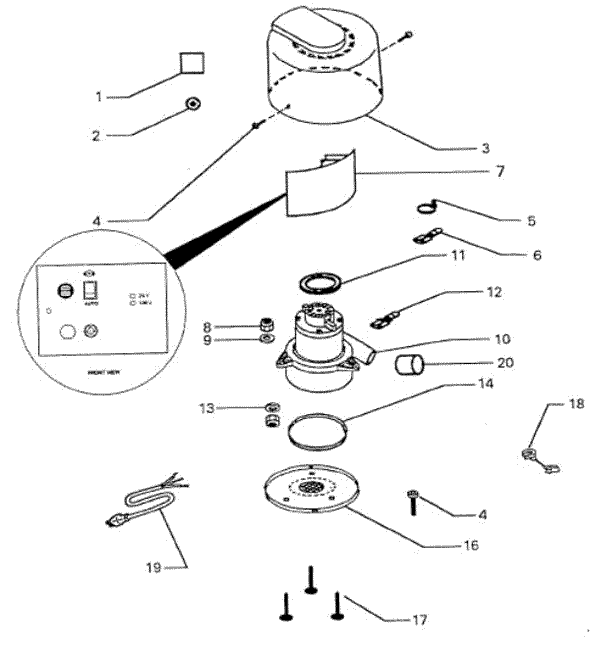

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Motor Caution Label(4401 (Nla) | 90753 | Not Available |
| 2 | Not Available | Eureka Label-Made In Can (Nla) | CDN-1 | Not Available |
| 3 | Not Available | Eureka Assy Hood (Nla) | 901151 | Not Available |
| 4 | Not Available | Eureka Screw Package | EW312-8-9ZP | Not Available |
| 5 | No Image | MOTOR, 7.2" 120 VOLT B/B 2 STAGE TANGENTIAL BYPASS Part Number: 117467-13 for Lamb | 11746713 | $567.68Read more |
| 6 | Not Available | Eureka Terminal Wt-57(335131) | 90561 | Not Available |
| 7 | Not Available | Eureka Circuit Module(Sub 120-001) | 90793 | Not Available |
| 8 | Not Available | Eureka Discontinued, Use 53213-4 | EW14-8ZP | Not Available |
| 9 | Not Available | Eureka Washer.195X.500X.062(345 (Nla) | 90881 | Not Available |
| 10 |  | Motor, 5.7" 120 Volt B/B 2 Stage Tangential Bypass Part Number: 116472-00 for Lamb | 11647200 | $316.70Read more |
| 11 | Not Available | Eureka Gasket-4.5X3.3X.4375 | 90338 | Not Available |
| 12 | Not Available | Eureka Straight Connector(335110) | 90788 | Not Available |
| 13 | Not Available | Eureka Washer.195X.500X.062(345 (Nla) | 90881 | Not Available |
| 14 | Not Available | Eureka Gasket-Motor 5.5 Od.(630235) | 90242 | Not Available |
| 16 | Not Available | Eureka Plate - Motor Mounting | 14554 | Not Available |
| 17 | Not Available | Eureka Bolt 1/4 X 3 1/2(345525) (Nla) | 90162 | Not Available |
| 18 | No Image | COVER, CORD INLET 535/545 CANISTERS Part Number: 6161248114 for Sanyo | 6161248114 | $4.66Read more |
| 19 | Not Available | Eureka Power Cord Assy(Sub 100-343) | 90747 | Not Available |
| 20 | Not Available | Eureka Ext: Exh Alum 3-1/4" | 145322 | Not Available |
