This is a list of parts and a diagram and schematic for: Eureka Model: C2032
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Commercial Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |

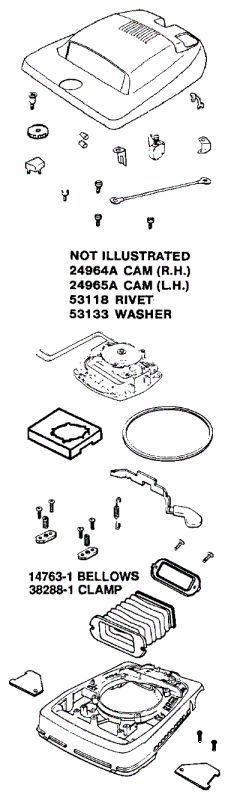

| 01 |  | Sanitaire Bellows for 887 (All Dirt Cup Vacuum Models) | WP11920 | $33.48Add to cart Special order: ships in 2 to 4 weeks |
| 02 | Not Available | Eureka 24834A-1 Discontinued, Use 24834A-3 | 24834A-3 | Not Available |
| 03 | Not Available | Eureka Cam (Right) | 24964A | Not Available |
| 04 | Not Available | Eureka Cam (Left) | 24965A | Not Available |
| 05 |  | Switch, Black Square On/Off Button Part Number: 268083 for Eureka | 268083 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 06 |  | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $1.17Add to cart |
| 07 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 08 |  | Clip, Switch 1400/1900/2000/C2000/C4000 Part Number: 37989 for Eureka | 37989 | $5.73Add to cart Special order: ships in 2 to 4 weeks |
| 09 |  | Knob, Black Height Adjustment C2000 Series Part Number: 380532 for Eureka | 380532 | $6.37Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Eureka Separator Assembly | 38067 | Not Available |
| 11 |  | Bracket, Metal Bushing C2000/C4000 Series Part Number: 382181 for Eureka | 382181 | $5.73Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Clamp, Metal Swivel Latch SC689/SC887 Series Part Number: 382881 for Eureka | 382881 | $11.69Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 14 | Not Available | Eureka Rivet - Shoulder Package | 53118 | Not Available |
| 15 |  | Bushing, Strn Relief SC679/SC689/SC887/SC888 10PK Part Number: 53122 for Eureka | 53122 | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Compatible alternateStrain Relief, Heyco 18/3 Black Plastic Grommet More Product Details | SS-3266 | $8.67Add to cart |
| 16 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 17 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $20.33Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Eureka Wire Nuts/Pkg 10 | 53214-1 | Not Available |
| 20 | Not Available | Eureka Screws - Package 10 | 53228-7 | Not Available |
| 21 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $4.92Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Eureka Hood Assembly - Packaged | 54005-9 | Not Available |
| 24 |  | Switch, Black Push Button Uprt/Canister 2 Wire | E541513 | $9.30Add to cart |
| 25 | Not Available | Eureka Wire & Terminal Assembly | 54177 | Not Available |
| 26 |  | Sanitaire Eureka Bissell Oreck OR101 OR102 motor 1 speed, 7amp, B/B motor designed to fit the SC6... | 533611 | $104.49Read more |
| 26 |  | Compatible alternateMotor, 1 Speed 4.0 Amp B/S 1400 Series SC679/SC689 Part Number: 159432 for Eureka More Product Details | 159432 | $70.30Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Compatible alternateMotor, 7 Amp SC899 Part Number: 5435217 for Eureka More Product Details | 5435217 | $84.11Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Eureka Base Assembly - 12" | 57902-1 | Not Available |
| 28 | Not Available | Eureka Screw Package | EW29-8-12ZP | Not Available |
| # | Part image | Description | SKU | Price |

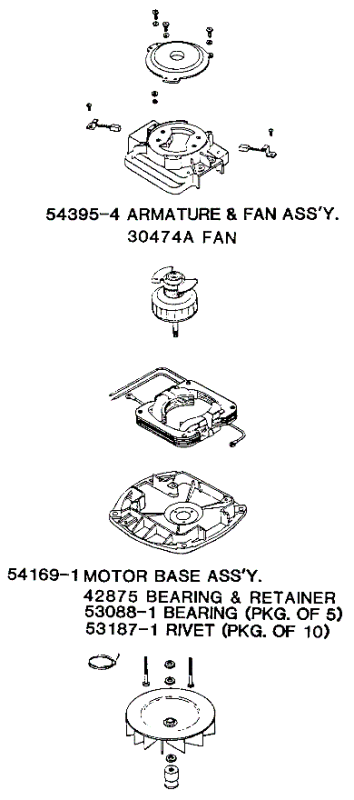

| 01 |  | Sanitaire commercial Fan, Clear Plastic Blower Hi Profile C2094D/SC888G | E12988 | $13.35Add to cart |
| 02 |  | Swivel Neck Support, RH, for 370 COMFORT Sebo vacuum cleaner repair part | 20217ER | $14.00Add to cart Special order: ships in 2 to 4 weeks |
| 03 | Not Available | Eureka Fan - Motor Cooling | 30474A | Not Available |
| 04 | Not Available | Eureka Motor Brush Assembly | FNLA | Not Available |
| 05 | Not Available | Eureka Pulley - Motor | 37012-2 | Not Available |
| 06 | Not Available | Eureka Bearing Retainer Assembly | 42875 | Not Available |
| 07 |  | Bearing, Rear 1CB-LGII/G3/G4/G5/G6/UG/DE Part Number: 115589 for Kirby | 115589 | $12.02Add to cart Special order: ships in 2 to 4 weeks |
| 08 | No Image | SCREW, BEARING PLATE SANITAIRE 10 PK Part Number: 53138 for Eureka | 53138 | $3.03Read more |
| 09 | No Image | PIGTAIL, MACHINE END CSS350 Part Number: 555-3142 for Bissell | 5553142 | $0.82Read more |
| 10 |  | Fiber Washer, Fan For Uprights W/12988/12988-1 Fans sanitaire and eureka commercial | E49017 | $5.97Add to cart |
| 11 | Not Available | Eureka Rivet Package | 53187-1 | Not Available |
| 12 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $12.02Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Nut, Hex Part Number: 532134 for Eureka | 532134 | $4.73Read more |
| 14 | Not Available | Eureka Screws - Package 10 | 53219-2 | Not Available |
| 15 | Not Available | Eureka Lockwashers - Package 10 | 53222-3 | Not Available |
| 16 | Not Available | Eureka Field Assembly | FNLA | Not Available |
| 17 | Not Available | Eureka Motor Base Assembly | 54169-1 | Not Available |
| 18 | | Sanitaire Eureka Bissell Oreck OR101 OR102 motor 1 speed, 7amp, B/B motor designed to fit the SC6... | 533611 | $104.49Read more |
| 19 | Not Available | Eureka Armature Kit | 15942-1 | Not Available |
| 20 | Not Available | Eureka Motor Cover Assembly | 54396 | Not Available |
| 21 | Not Available | Eureka Tie - Cable (Purchased) | 56802-2 | Not Available |
| # | Part image | Description | SKU | Price |

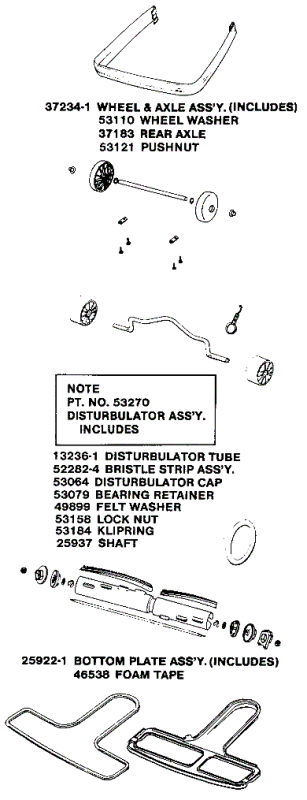

| 01 | Not Available | Eureka Tube - Disturbulator | 13236-1 | Not Available |
| 02 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Special order: ships in 2 to 4 weeks |
| 02 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order: ships in 2 to 4 weeks |
| 03 |  | Shaft, W/O Ball Bearing VGII Ultra Part Number: 25937SAN for Eureka | 25937SAN | $15.66Read more |
| 04 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 05 |  | Bumper, 31"x .75" Wide Clear Wrap Santaire SC888 Part Number: 285041 for Eureka | 285041 | $6.98Add to cart Special order: ships in 2 to 4 weeks |
| 05 |  | Compatible alternateBumper, 32" Clear Plastic Sanitaire 886/888 20-7310-02 More Product Details | ER-7400 | $7.21Add to cart |
| 06 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Special order: ships in 2 to 4 weeks |
| 07 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 08 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $7.76Add to cart Special order: ships in 2 to 4 weeks |
| 09 |  | Wheel Axle and Press Clips for Bissell BG101 BG102 Oreck OR101 OR102 and Sanitaire Commercial | 60161 | $10.37Add to cart |
| 10 |  | Gasket, 48-1/4" Foam Wide Track Bottom Plate Part Number: 465384 for Eureka | 465384 | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Felt Washer For: eureka,sanitaire | 49899 | $3.65Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Eureka Bristle Strip Package | 52282-4 | Not Available |
| 13 | Not Available | Eureka Cap - Disturbulator | 53064 | Not Available |
| 14 | Not Available | Eureka Cap - Cover | 53066 | Not Available |
| 15 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 16 |  | Carry Handle Cord Wrap Part Number 53.079 for Cleanmax Models CMC-1N,CMC-QD | 53079 | |
| 17 |  | CYCLONE ASSY, DC25 PINK Part Number: 915531-10 for Dyson | 91553110 | $66.90Read more |
| 18 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $5.18Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Klipring, Eur/Sani C2000/C4046/S647/SC887 Ser 10Pk Part Number: 53184 for Eureka | 53184 | $10.75Read more |
| 21 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 22 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | brush roll brushroll roller Designed for Sanitaire and eureka VG2 MPN: 20-3446-02 | ER2008 | $27.16Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Compatible alternateBrushroll, 12 Inch Hex End W/Ball Bearings VGII Part Number: 53270A for Sanitaire More Product Details | 53270A | $41.29Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Compatible alternateBrushroll, 12 In Aluminum Vgi Hex All-Bristle Part Number: 54555 for Eureka More Product Details | 54555 | $71.27Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

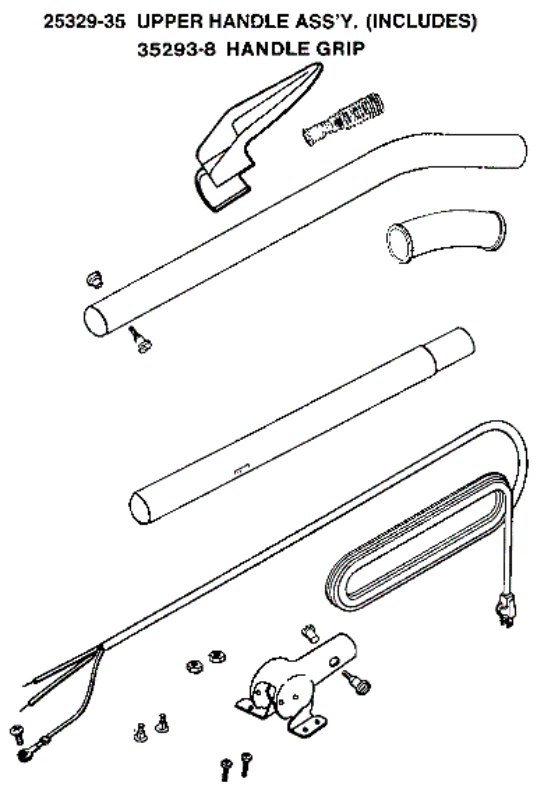

| 01 |  | Cord Hook, Black Large Top SC887/C2132/C2133 Part Number: 14766119N for Eureka | 14766119N | $5.95Add to cart Special order: ships in 2 to 4 weeks |
| 02 |  | Handle, Gray Upper Assembly SC887A Part Number: 2532935SV for Eureka | 2532935SV | $23.43Read more |
| 03 |  | Handle, Beige Vinyl Grip Fitall Part Number: 32-6340-72 for Fitall | 32634072 | $2.16Read more |
| 04 |  | Handle Socket, Chrome W/Bracket C2000 Series Part Number: 38183-1SV for Eureka | 381831SV | $15.41Add to cart |
| 05 | Not Available | Eureka Cord & Terminal Assembly | 52370-14 | Not Available |
| 06 |  | Strain Relief, Metal Spring Type SC888/689 Series Part Number: 53077SAN for Eureka and sanitaire | 53077SAN | $1.14Add to cart Special order: ships in 2 to 4 weeks |
| 07 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 08 | Not Available | Eureka Handle Screw Assembly Package | 53198-1 | Not Available |
| 09 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $3.65Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Eureka Tube - Handle (Lower) | 57751-2 | Not Available |
| # | Part image | Description | SKU | Price |

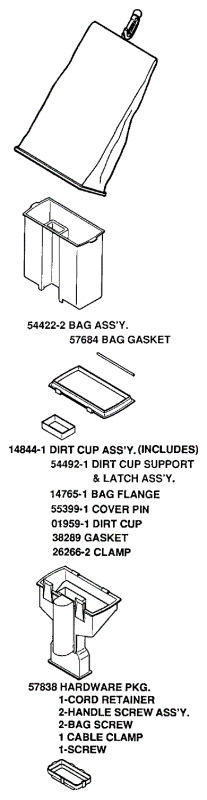

| 01 |  | DIRT CUP | 01959313N | $135.99Add to cart Special order: ships in 2 to 4 weeks |
| 02 |  | Flange, Bag SC689/SC695/SC882/SC887/C2132/C2133 Part Number: 147651 for Eureka | 147651 | $8.73Add to cart Special order: ships in 2 to 4 weeks |
| 03 |  | Dust Cup, W/Black Cloth Bag SC887/SC689 Part Number: 601221 for Eureka | 601221 | $118.44Add to cart Special order: ships in 2 to 4 weeks |
| 04 |  | Bissell BG102 part# 26266-2 | WP11938 | $6.55Add to cart Special order: ships in 2 to 4 weeks |
| 05 |  | Gasket, Dirt Cup SC887882/695/689/C2032/C2133A Part Number: 38289 for Eureka | 38289 | $5.42Add to cart Special order: ships in 2 to 4 weeks |
| 06 | Not Available | Eureka Bag Assembly - Packaged | 54422-2 | Not Available |
| 07 | Not Available | Eureka Support & Latch Assembly | 54492-1 | Not Available |
| 08 | No Image | Cover Pin Sanitaire Sc-887 D/C | 553991 | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 09 |  | Gasket, Dirt Cup SC689/SC882/SC887 Series Part Number: 58223 for Eureka | 58223 | $12.02Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | HOOK - SNAP | 576861 | $25.99Read more |
| 11 | No Image | RING STEEL | 57711 | $17.99Read more |
| 12 | Not Available | Eureka Hardware Pkg | 57838 | Not Available |
