Schematic and parts list for: Eureka Model: 9876
This is a list of parts and a diagram and schematic for: Eureka Model: 9876
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Bravo
Popular Supplies

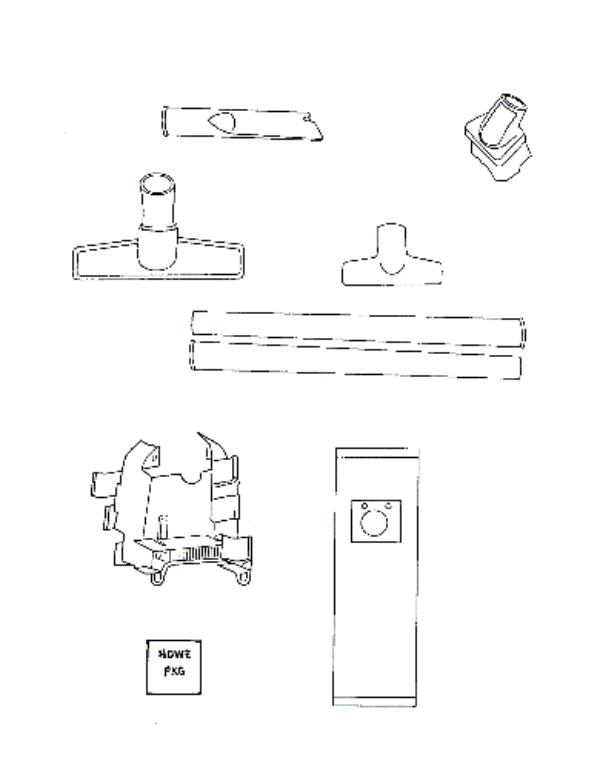

| # | Part image | Description | SKU | Price |
| 01 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $11.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Eureka Tool - Crevice | 54355-3 | Not Available |
| 03 | Not Available | Eureka Dusting Brush | 54505-1 | Not Available |
| 04 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Eureka Floor & Wall Brush | 54533-4 | Not Available |
| 06 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Eureka Hardware Pkg | FNLA | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Lens (Clear) | FNLA | Not Available |
| 02 | Not Available | Eureka Wand Assembly | 14990-1 | Not Available |
| 03 | Not Available | Eureka Wheel/Bushing Package | 27201-2 | Not Available |
| 04 | No Image | HANDLE RELEASE, BRAVO ALL MODELS Part Number: 27202A-1. for Eureka | 27202A1 | $57.38Read more |
| 05 | Not Available | Eureka Window Belt | FNLA | Not Available |
| 06 | Not Available | Eureka Discontinued Use 27251 | FNLA | Not Available |
| 07 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Eureka Wheel - Front | 38236A-1 | Not Available |
| 09 | Not Available | Eureka Slide | FNLA | Not Available |
| 10 | Not Available | Eureka Knob | 38241-1 | Not Available |
| 11 | Not Available | Eureka Axle Rear | 38242 | Not Available |
| 12 | Not Available | Eureka Clamp - Motor | FNLA | Not Available |
| 13 | Not Available | Eureka Ring-Bleeder | FNLA | Not Available |
| 14 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 16 | Not Available | Eureka Screw Package | 53238-22 | Not Available |
| 17 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 18 | Not Available | Eureka Brush Roll Assembly - Ctnd | 54325-1 | Not Available |
| 19 | Not Available | Eureka Package - Felt Washer | 54359 | Not Available |
| 20 | Not Available | Eureka Belt Cap & Gasket - Packa | 54376-1 | Not Available |
| 21 | Not Available | Eureka Motor Assembly - Pkgd | 54379-20 | Not Available |
| 22 | No Image | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $0.76Read more |
| 23 | Not Available | Eureka Hose Assembly - Ctnd | 54524-1 | Not Available |
| 24 | Not Available | Eureka Hood Assy - Packaged | 54571-5 | Not Available |
| 25 | Not Available | Eureka Base Assy - Cartoned | 54573-2 | Not Available |
| 26 | Not Available | Eureka Screw Package | 54669 | Not Available |
| 27 | Not Available | Eureka Replacement Diverter Valve | 54821 | Not Available |
| 28 | Not Available | Eureka Axle - Wheel | 57567-1 | Not Available |
| 29 | Not Available | Eureka Light Bulb | FNLA | Not Available |
| 30 | Not Available | Eureka Gasket | 57692 | Not Available |
| 31 | Not Available | Eureka Carriage Assembly | FNLA | Not Available |

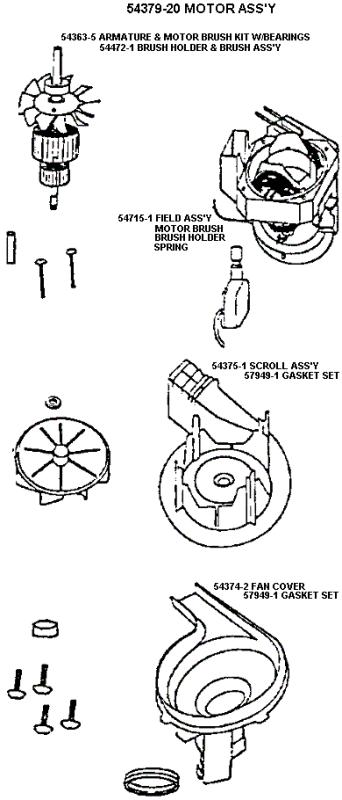

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Gasket | 27171 | Not Available |
| 02 | Not Available | Eureka Impeller | 27531 | Not Available |
| 05 | Not Available | Eureka Motor Assembly | 54363-5 | Not Available |
| 06 | Not Available | Eureka Discontinued Use 54374 | FNLA | Not Available |
| 07 | Not Available | Eureka Discontinued Use 54375 | FNLA | Not Available |
| 08 | Not Available | Eureka Motor Assembly | 54379-20 | Not Available |
| 09 | No Image | MOTOR HOUSING PLUG, BRAVO ALL MODELS Part Number: 54406 for Eureka | 54406 | $6.49Read more |
| 10 |  | NUT, FAN BRAVO HARD BODY Part Number: 54413 for Eureka | 54413 | $2.44Read more |
| 11 | Not Available | Eureka Brush Holder & Brush Assembly | 54472-1 | Not Available |
| 12 | Not Available | Eureka Switch Assembly | 54716-1 | Not Available |
| 13 |  | Washer, Between Fan/Lower Bearing Bravo/World Vac Part Number: 54811 for Eureka | 54811 | $4.08Read more |
| 14 | No Image | SEAL, MOTOR GASKET BRAVO Part Number: 57949-1 for Eureka | 579491 | $4.55Read more |

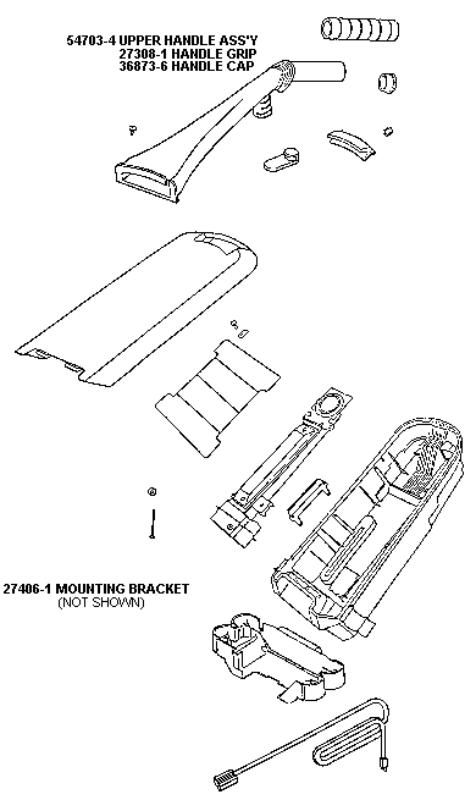

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Housing - Rear | 02055-1 | Not Available |
| 02 | Not Available | Eureka Bracket - Hose Support | FNLA | Not Available |
| 03 | Not Available | Eureka Support-Bag | FNLA | Not Available |
| 04 | Not Available | Eureka Gasket | 27171 | Not Available |
| 05 |  | GRIP, HANDLE BRAVO 9875A/AT FOAM Part Number: 27308-1 for Eureka | 273081 | $14.48Read more |
| 06 | Not Available | Eureka Cord & Plug Assembly | 27535-1 | Not Available |
| 07 | Not Available | Eureka Cap - Handle | 36873-6 | Not Available |
| 08 | Not Available | Eureka Hook - Cord Release | 37115-4 | Not Available |
| 09 | Not Available | Eureka Screw Package | 53238-24 | Not Available |
| 10 | Not Available | Eureka Screw Pkg | FNLA | Not Available |
| 11 | Not Available | Eureka Screw Package | 53238-38 | Not Available |
| 12 | No Image | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $0.76Read more |
| 13 | Not Available | Eureka Btm Housing | FNLA | Not Available |
| 14 | Not Available | Eureka Discontinued Use 54703 | FNLA | Not Available |
| 15 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 16 | Not Available | Eureka Spring-Latch | FNLA | Not Available |
