This is a list of parts and a diagram and schematic for: Eureka Model: 920A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

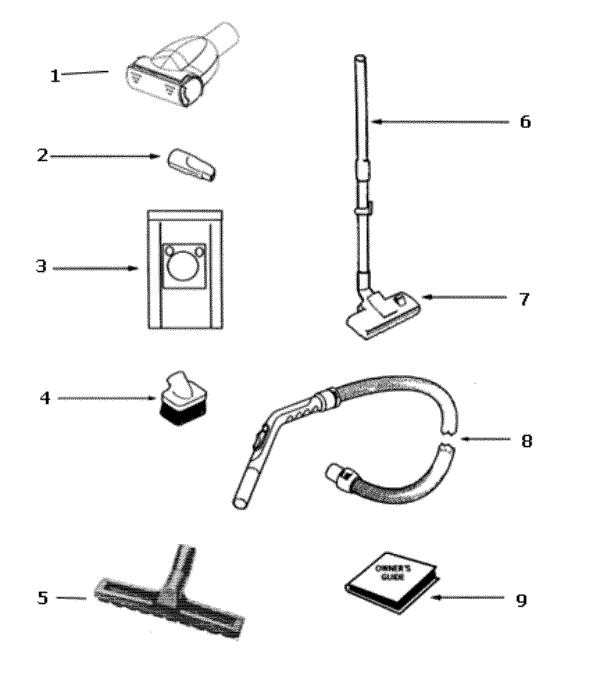

Parts for: Filter Air Canister
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Turbo Nozzle Assembly | 75391-17 | Not Available |
| 2 | Not Available | Eureka Crevice Nozzle | 241A16-AG | Not Available |
| 3 | Not Available | Eureka Paper Bag Pkg - Style OX | 61230F | Not Available |
| 4 | Not Available | Eureka Dusting Brush | 241A15-AG | Not Available |
| 5 | Not Available | Eureka Bare Floor Nozzle | 241A9-AG | Not Available |
| 6 | Not Available | Eureka Telescopic Wand Assembly | 241A5-T | Not Available |
| 7 | Not Available | Eureka Turbo Floor Brush | 2192333-05 | Not Available |
| 8 | Not Available | Eureka Hose Assembly | 241A2-S-AG | Not Available |
| 9 | Not Available | Eureka Owners Guide | 81836 | Not Available |

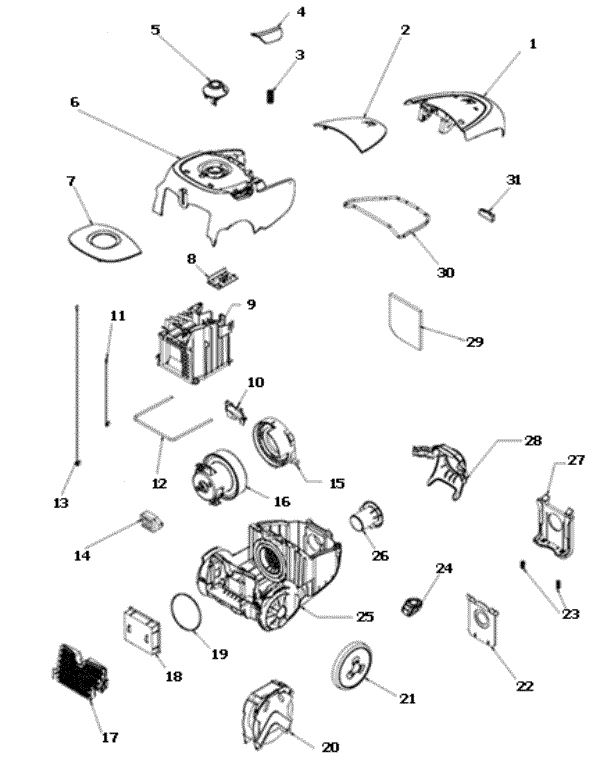

| # | Part image | Description | SKU | Price |
| xx | Not Available | Eureka | FNLA | Not Available |
| 1 | Not Available | Eureka Top - Bag Compartment Lid | 24901-AG | Not Available |
| 2 | Not Available | Eureka Lid - Bag Compartment | 24902-CB-EU3608 | Not Available |
| 3 | Not Available | Eureka Spring Package | 63157-7 | Not Available |
| 4 | Not Available | Eureka Button - Cord Reel | 24904-IW | Not Available |
| 5 | Not Available | Eureka Button - Speed Control | 24905-AG | Not Available |
| 6 | Not Available | Eureka Cover - Rear | 24903-IW | Not Available |
| 7 | Not Available | Eureka Panel - Top Rear | 24906-CB-EU3608 | Not Available |
| 8 | Not Available | Eureka Pcb Assembly | 24910-VW-12A | Not Available |
| 9 | Not Available | Eureka Housing - Motor | 24913 | Not Available |
| 10 | Not Available | Eureka Plate - Plug Recess | 24915-AG | Not Available |
| 11 | Not Available | Eureka Pcb Wire Assembly | 24912 | Not Available |
| 12 | Not Available | Eureka Seal - Bottom Motor Housing | 24919 | Not Available |
| 13 | Not Available | Eureka Motor Wire Assembly | 24911 | Not Available |
| 14 | Not Available | Eureka Block - Suspension | 24918-14 | Not Available |
| 15 | Not Available | Eureka Ring - Suspension | 24916-14 | Not Available |
| 16 | Not Available | Eureka Motor Assembly Cartoned | 61579-4 | Not Available |
| 17 | Not Available | Eureka Grill - Exhaust | 81665 | Not Available |
| 18 | Not Available | Eureka Filter Pkg-Eureka Cnstr E | 68944 | Not Available |
| 19 | Not Available | Eureka Seal - Filter Frame | 81664 | Not Available |
| 20 | Not Available | Eureka Cord Reel Assembly | 24928-UL-17 | Not Available |
| 21 | Not Available | Eureka Wheel - Rear | 24927-IW-CB | Not Available |
| 22 | Not Available | Eureka Paper Bag Pkg - Style OX | 61230F | Not Available |
| 23 | Not Available | Eureka Spring Package | 63157-8 | Not Available |
| 24 | Not Available | Eureka Wheel - Front | 24926-AG | Not Available |
| 25 | Not Available | Eureka Shell - Lower | 24920-AG | Not Available |
| 26 | Not Available | Eureka Tube - Air Inlet | 24921-AG | Not Available |
| 27 | Not Available | Eureka Retainer - Dust Bag | 24923-AG | Not Available |
| 28 | Not Available | Eureka Cover - Front | 24922-AG | Not Available |
| 29 | Not Available | Eureka Filter - Motor | 24932-S | Not Available |
| 30 | Not Available | Eureka Seal - Front Cover | 24908 | Not Available |
| 31 | Not Available | Eureka Dust Bag Indicator Assembly | 24909 | Not Available |
