Schematic and parts list for: Eureka Model: 9206
This is a list of parts and a diagram and schematic for: Eureka Model: 9206
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Bravo Upright

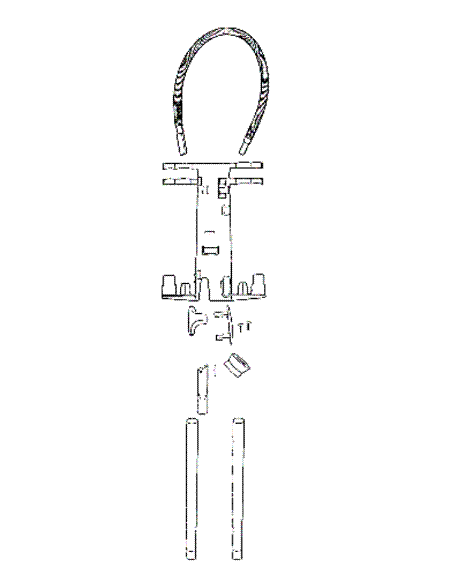

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Pack - Tool | 01945-1 | Not Available |
| 02 |  | Wand, 19" Blk Plstc Ext 1-Pc Upright/Canister Part Number: 140703 for Eureka | 140703 | $11.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Eureka Handle | FNLA | Not Available |
| 04 | Not Available | Eureka Screw Package | 53238-29 | Not Available |
| 05 | Not Available | Eureka Upholstery Nozzle Assembly | 53454-7 | Not Available |
| 06 | Not Available | Eureka Dusting Brush - Packaged | 53455-5 | Not Available |
| 07 | Not Available | Eureka Hose Assembly - Cartoned | 54323-3 | Not Available |
| 08 | Not Available | Eureka Tool - Crevice | 54355-3 | Not Available |

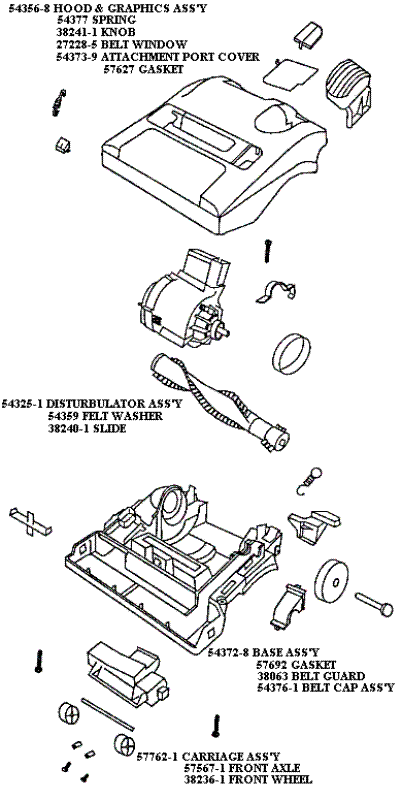

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Wheel/Bushing Package | 27201-2 | Not Available |
| 02 | No Image | HANDLE RELEASE, BRAVO ALL MODELS Part Number: 27202A-1. for Eureka | 27202A1 | $57.38Read more |
| 03 | Not Available | Eureka Window - Belt (Style 2) | 27228-5 | Not Available |
| 04 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Eureka Wheel - Front | 38236-1 | Not Available |
| 06 | Not Available | Eureka Slide | FNLA | Not Available |
| 07 | Not Available | Eureka Knob | 38241-1 | Not Available |
| 08 | Not Available | Eureka Axle Rear | 38242 | Not Available |
| 09 | Not Available | Eureka Clamp - Motor | FNLA | Not Available |
| 10 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 12 | Not Available | Eureka Screw Package | 53238-22 | Not Available |
| 13 | Not Available | Eureka Disturbulator Assembly | 54325-1 | Not Available |
| 14 | Not Available | Eureka Hood Conversion Kit | 54356-8 | Not Available |
| 15 | Not Available | Eureka Package - Felt Washer | 54359 | Not Available |
| 16 | Not Available | Eureka Base Assembly - Packaged | 54372-8 | Not Available |
| 17 | Not Available | Eureka Attachment Port Cover Assembly | 54373-9 | Not Available |
| 18 | Not Available | Eureka Belt Cap & Gasket | 54376-1 | Not Available |
| 19 |  | SPRING, ATTACHMENT DOOR BRAVO 6 PK Part Number: 54377 for Eureka | 54377 | $6.49Read more |
| 20 | Not Available | Eureka Motor Assembly | 54379-14 | Not Available |
| 21 | No Image | CARRIAGE CLIP Part Number: 54417-1 for Eureka | 544171 | $0.76Read more |
| 22 | Not Available | Eureka Screw Package | 54669 | Not Available |
| 23 | Not Available | Eureka Axle - Wheel | 57567-1 | Not Available |
| 24 | No Image | GASKET, INLET COVER BRAVOS Part Number: 57627 for Eureka | 57627 | $1.27Read more |
| 25 | Not Available | Eureka Gasket | 57692 | Not Available |
| 26 | Not Available | Eureka Carriage Assembly | FNLA | Not Available |

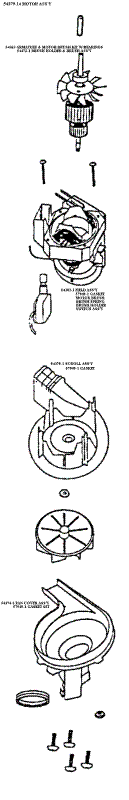

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Impeller | 27165 | Not Available |
| 02 | Not Available | Eureka Gasket | 27171 | Not Available |
| 03 | Not Available | Eureka Screw Package | 53238-24 | Not Available |
| 04 | Not Available | Eureka Screw Package | 53238-25 | Not Available |
| 05 | Not Available | Eureka Switch Assembly | 54152-3 | Not Available |
| 06 | Not Available | Eureka 54363 Motor Assembly Use 54379-93 | 54379-93 | Not Available |
| 07 | Not Available | Eureka 54374-2 Discontinued, Use 54374-3 | 54374-3 | Not Available |
| 08 | Not Available | Eureka 54375-1 Discontinued, Use 54375-2 | 54375-2 | Not Available |
| 09 | Not Available | Eureka Motor Assembly | 54379-14 | Not Available |
| 10 | No Image | MOTOR HOUSING PLUG, BRAVO ALL MODELS Part Number: 54406 for Eureka | 54406 | $6.49Read more |
| 11 |  | NUT, FAN BRAVO HARD BODY Part Number: 54413 for Eureka | 54413 | $2.44Read more |
| 12 | Not Available | Eureka Brush Holder & Brush Assembly | 54472-1 | Not Available |
| 13 |  | Washer, Between Fan/Lower Bearing Bravo/World Vac Part Number: 54811 for Eureka | 54811 | $4.08Read more |
| 14 | No Image | SEAL, MOTOR GASKET BRAVO Part Number: 57949-1 for Eureka | 579491 | $4.55Read more |

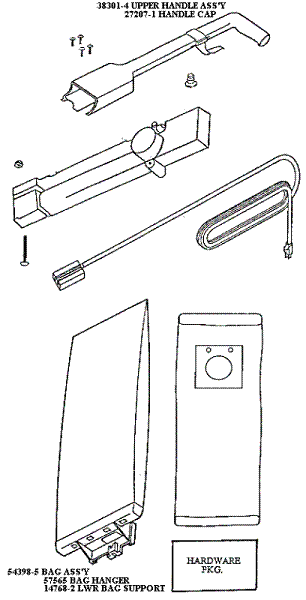

| # | Part image | Description | SKU | Price |
| 01 | No Image | LOWER HANDLE BRAVO 9205/9410 CLOTH BAG MODEL OEM Part Number: 01928A-1 for Eureka | 01928A1 | $16.20Read more |
| 02 | Not Available | Eureka Bag Support-Lower | 14768-2 | Not Available |
| 03 | Not Available | Eureka Cord & Plug Assembly | 27172-2 | Not Available |
| 04 | Not Available | Eureka Cap - Handle | 27207-1 | Not Available |
| 05 | Not Available | Eureka Clip-Hose | FNLA | Not Available |
| 06 | No Image | HANDLE, UPPER BRAVO ALL MODELS Part Number: 38301-4 for Eureka | 383014 | $10.55Read more |
| 07 | Not Available | Eureka Hardware Pkg | FNLA | Not Available |
| 08 | Not Available | Eureka Nuts - Package 10 | 53213-5 | Not Available |
| 09 | Not Available | Eureka Screw Package | 53218-2 | Not Available |
| 10 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 11 | Not Available | Eureka Snap Pin Pkg 10 | FNLA | Not Available |
| 12 | Not Available | Eureka Paper Bag Pkg Assembly | 54310 | Not Available |
| 13 | Not Available | Eureka Cloth Bag Assembly | 54398-5 | Not Available |
| 14 | Not Available | Eureka Hanger Bag | FNLA | Not Available |
