Schematic and parts list for: Eureka Model: 8296
This is a list of parts and a diagram and schematic for: Eureka Model: 8296
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Express Powerteam Canister

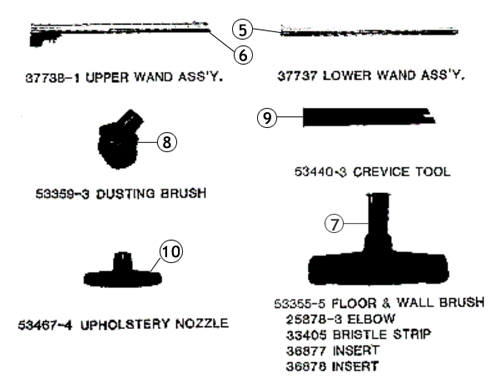

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Elbow | 25878-3 | Not Available |
| 02 | Not Available | Eureka Bristle Strip & Wall Brush | 33405 | Not Available |
| 03 | Not Available | Eureka Insert-Floor & Wall Brush | 36877 | Not Available |
| 04 | No Image | Bissell inner tank bladder for ProHeat 2X Carpet Cleaner models: 8920, 8930, 9200, 9300, 9500 66Q4 9200A 8920 89203 8920V 8920W 8930 8930N 9200 92002 92003 92005 92008 9200B 9200C 9200H 9200R 9200T 9200U 9200W 9200Y 9200P 92006 92009 9200M 9200Q 9400S | 2036878 | $19.99Read more |
| 05 |  | Foot Assembly Triangular Bissell repair part number: 2037737 | 2037737 | $18.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Eureka Upper Wand Assembly | 37738-1 | Not Available |
| 07 | Not Available | Eureka Floor & Wall Brush & Elbow | 53355-5 | Not Available |
| 08 |  | Dust Brush, Black Natural Bristles Part Number: 602901 for Eureka | 602901 | $16.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 | Not Available | Eureka Tool - Crevice | 53440-3 | Not Available |
| 10 | Not Available | Eureka Upholstery Nozzle Assembly | 53467-4 | Not Available |

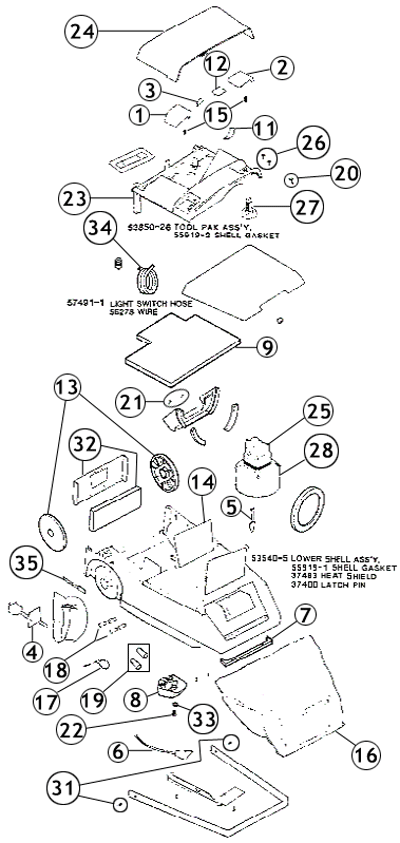

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Button - Cord Reel | 26442A-2 | Not Available |
| 02 | Not Available | Eureka Button - Switch | 26443A-11 | Not Available |
| 03 | Not Available | Eureka Lens | FNLA | Not Available |
| 04 | Not Available | Eureka Guide - Cord | 26450-1 | Not Available |
| 05 | Not Available | Eureka Speed Control Assembly | 26630-1 | Not Available |
| 06 | Not Available | Eureka Connector Assembly | FNLA | Not Available |
| 07 | Not Available | Eureka Handle - Lower | 26663-3 | Not Available |
| 08 | Not Available | Eureka Caster | 37403-1 | Not Available |
| 09 | Not Available | Eureka Sound Foam | 37408 | Not Available |
| 10 |  | Nozzle, Suction SpotBot 33N8 Series/78R5 2Pk | B-203-7483 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Eureka Plug | 37528-6 | Not Available |
| 12 | No Image | SCREW, THUMB BG15 Part Number: 203-7783 for Bissell | 2037783 | $4.58Read more |
| 13 | Not Available | Eureka Wheel Assembly | 37785-1 | Not Available |
| 14 | No Image | BODY, REAR SINGLE MOTOR BG15 Part Number: 203-7788 for Bissell | 2037788 | $66.34Read more |
| 15 | Not Available | Eureka Spring - Carpet Nozzle | 42797 | Not Available |
| 16 | Not Available | Eureka Paper Bag Package Assembly | 52358 | Not Available |
| 17 | Not Available | Eureka Tie - Cable | 53141 | Not Available |
| 18 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 19 | Not Available | Eureka Wire Splice 5 | 53214-3 | Not Available |
| 20 | Not Available | Eureka Screws - Package 10 | 53228-10 | Not Available |
| 21 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 23 | Not Available | Eureka Tool Pack Assembly - Packaged | 53850-26 | Not Available |
| 24 | No Image | TOOL COVER EXPRESS EUREKA 8280/8290 Part Number: 54274-1 for Eureka | 542741 | $22.96Read more |
| 25 | Not Available | Eureka Motor Assembly | 54292 | Not Available |
| 26 | Not Available | Eureka Screw Package | 55372-1 | Not Available |
| 27 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 28 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
| 29 | Not Available | Eureka Gasket - Shell | 55919-1 | Not Available |
| 30 | Not Available | Eureka Shell Gasket | FNLA | Not Available |
| 31 | Not Available | Eureka Clip - Furniture Guard | 55940-1 | Not Available |
| 32 | Not Available | Eureka Exhaust Cover Assembly | 56235-7 | Not Available |
| 33 | No Image | WASHER Part Number: 56376 for Eureka | 56376 | $4.40Read more |
| 34 | Not Available | Eureka Hose - Light Switch | 57491-1 | Not Available |
| 35 | Not Available | Eureka Thermostat | 57580 | Not Available |

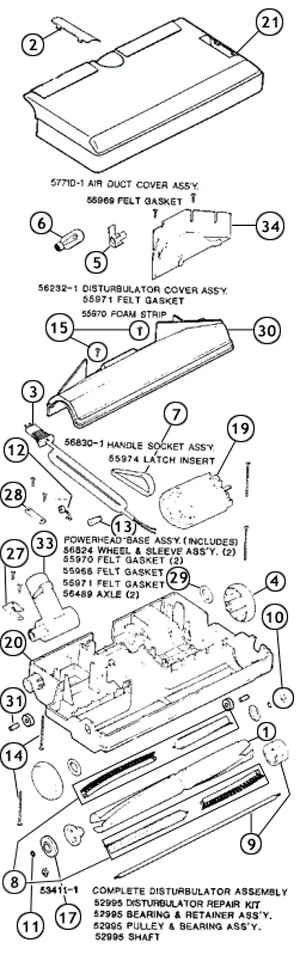

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Tube - Disturbulator | 13650 | Not Available |
| 02 | Not Available | Eureka Window - Belt | 26469-1 | Not Available |
| 03 | No Image | ***USE E-37755-1 08/10 CORD, 3 WIRE CV1362 HOSE T Part Number: 37755-1 for Eureka | 377551 | $0.00Read more |
| 04 | Not Available | Eureka Wheel Assembly | 37786-1 | Not Available |
| 05 | Not Available | Eureka Headlamp Socket Assembly | 38259 | Not Available |
| 06 | Not Available | Eureka Lamp - Headlight | 40009A | Not Available |
| 07 | Not Available | Eureka Belt Package Assy - Style | 52201D | Not Available |
| 08 | Not Available | Eureka Bristle Strip Set | 52988-2 | Not Available |
| 09 | Not Available | Eureka Disturb Repair K | 52995 | Not Available |
| 10 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $9.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | BUMPER, FMP14PW Part Number: 53.167 for Fuller Brush | 53167 | $15.07Read more |
| 12 |  | GROMMET, VICTORY CORD 10PK Part Number: 53190-1 for Eureka | 531901 | $6.52Read more |
| 13 | Not Available | Eureka Wire Splice 5 | 53214-2 | Not Available |
| 14 | No Image | SCREW, HANDLE BRAVO SOFT BODY 10PK Part Number: 5323818 for Eureka | 5323818 | $7.22Read more |
| 15 | Not Available | Eureka Screw Package | 53238-8 | Not Available |
| 16 | Not Available | Eureka Disturbulator Cap | 53242 | Not Available |
| 17 | Not Available | Eureka Cap - Disturbulator | 53243 | Not Available |
| 18 |  | ***SELL BI-2000 BRUSHROLL, 6996A PN Part Number: 53411-1 for Eureka | 534111 | $65.54Read more |
| 19 | Not Available | Eureka Motor Assembly - Cartoned | 53419-2 | Not Available |
| 20 | Not Available | Eureka Powerhead Base Assy - Pac | 53866-1 | Not Available |
| 21 | Not Available | Eureka Powerhead Hood Assy - Pac | 54016-4 | Not Available |
| 22 | No Image | GASKET, FELT Part Number: 55968 for Eureka | 55968 | $4.40Read more |
| 23 | Not Available | Eureka Gasket - Felt | 55969 | Not Available |
| 24 | No Image | GASKET, FELT Part Number: 55970 for Eureka | 55970 | $4.40Read more |
| 25 | No Image | GASKET, FELT Part Number: 55971 for Eureka | 55971 | $4.40Read more |
| 26 | No Image | LATCH INSERT, FOR QUICK RELEASE 6993 CANS Part Number: 55974 for Eureka | 55974 | $4.55Read more |
| 27 | Not Available | Eureka Spring Strap | 55979 | Not Available |
| 28 | Not Available | Eureka Strap | 55980 | Not Available |
| 29 | Not Available | Eureka Felt Washer | 56180 | Not Available |
| 30 | Not Available | Eureka Disturbulator Cover Assem | 56232-1 | Not Available |
| 31 |  | Clip, Motor Drive G3/G4/G5/G6/UG/DE/SENT Part Number: 601689A for Kirby | 601689A | $1.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Eureka Wheel & Sleeve Assembly | 56824 | Not Available |
| 33 | Not Available | Eureka Handle Socket & Cord Kit | 56830-1 | Not Available |
| 34 |  | PLATE, LINT PICKER DC07, DC14, DC15 Part Number: 905771-01 for Dyson | 90577101 | $29.44Read more |

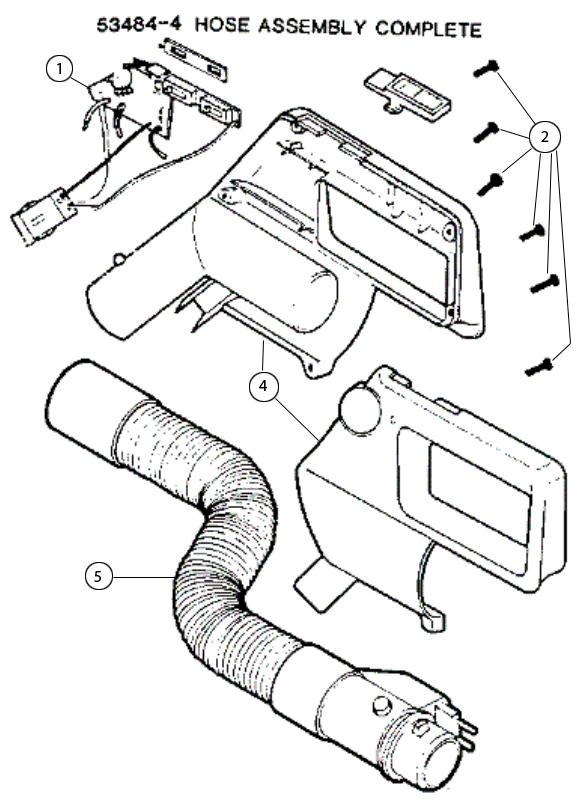

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Eureka Handle Assembly 3 Wire (Package) | 26709-2 | Not Available |
| 02 | No Image | 8280 HANDLE SCREWS(6 PER PACK) Part Number: 53257-1 for Eureka | 532571 | $4.92Read more |
| 03 | Not Available | Eureka Hose Assembly - Cartoned | 53484-4 | Not Available |
| 04 | Not Available | Eureka Handle Assembly 3 Wire (Package) | 54009-10 | Not Available |
| 05 | Not Available | Eureka Hose & Coupling Assembly | 56680-1 | Not Available |
