Schematic and parts list for: Eureka Model: 1950A
This is a list of parts and a diagram and schematic for: Eureka Model: 1950A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Traditional Upright
Popular Supplies

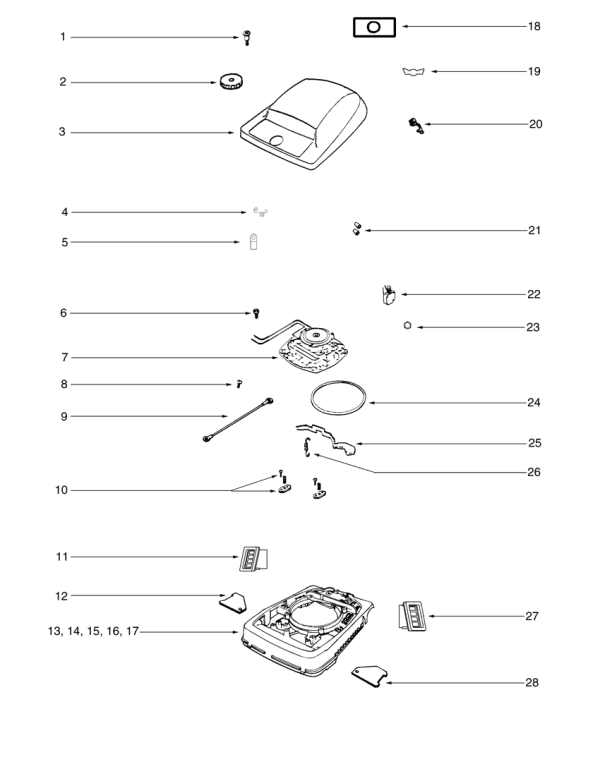

| # | Part image | Description | SKU | Price |
| 1 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $3.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Eureka Knob Assembly | 26834-1 | Not Available |
| 3 | Not Available | Eureka Hood & Nameplate Assy - P | 54097-4 | Not Available |
| 4 | No Image | COVER, POWER WAND HANDLE DC22 SCARLET Part Number: 913531-17 for Dyson | 91353117 | $20.41Read more |
| 5 | No Image | Clamp, 3/10 UPT Cable 5Pk Part Number: 53160 for Eureka | 53160 | $4.00Read more |
| 6 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $5.47Read more |
| 7 | Not Available | Eureka Motor Change Kit (7Amp)- | 54352-3 | Not Available |
| 8 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $4.08Read more |
| 9 | Not Available | Eureka Wire & Terminal Assembly | 55296 | Not Available |
| 10 | Not Available | Eureka Clamp & Screw Assy Pkg | 53140 | Not Available |
| 11 | Not Available | Eureka Duct Assy (R) (13226 | 56379 | Not Available |
| 13 | Not Available | Eureka Base Assy. | 54408-9 | Not Available |
| 14 | Not Available | Eureka Cam (Right) (24964A (Nla) | 24964A-1 | Not Available |
| 15 | Not Available | Eureka Cam (Left) (24965A (Nla) | 24965A-1 | Not Available |
| 16 | Not Available | Eureka Rivet - Shoulder Package | 53118 | Not Available |
| 17 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.94Read more |
| 18 | Not Available | Eureka Nameplate | 73192 | Not Available |
| 19 | Not Available | Eureka Badge Decal (Nla) | 73193 | Not Available |
| 20 | Not Available | Eureka Strain Relief Bushing - P | 53122-3 | Not Available |
| 21 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 22 | No Image | Switch, Metal Push Button SC886/887/888/889/899 | E-36409-13 | $10.99Add to cart |
| 23 | Not Available | Eureka Nut - Hex | 55446 | Not Available |
| 24 | No Image | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 25 | Not Available | Eureka Foot Pedal (1950A) (Nla) | 24834A-4 | Not Available |
| 26 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $2.00Add to cart |
| 27 | Not Available | Eureka Duct Assy (L) (13225 | 56380 | Not Available |
| 28 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |

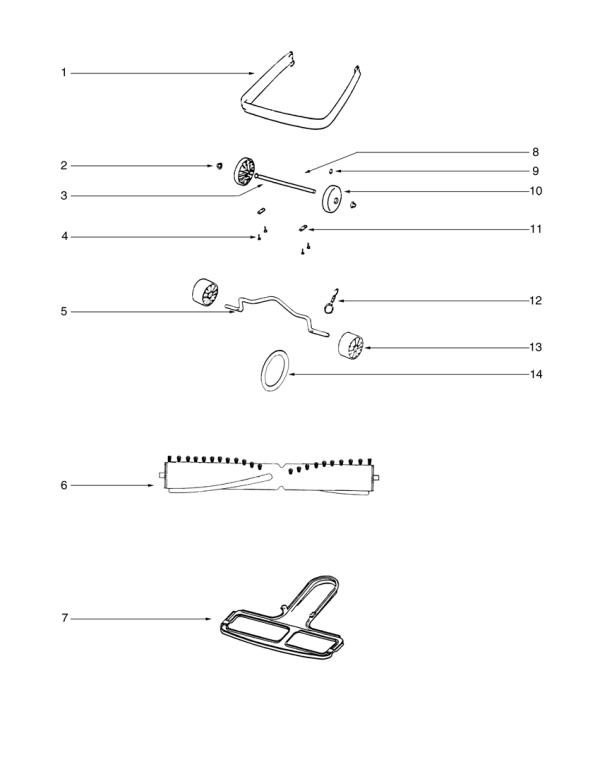

| # | Part image | Description | SKU | Price |
| 1 |  | Bumper, 31"x .75" Wide Clear Wrap Santaire SC888 Part Number: 285041 for Eureka | 285041 | $7.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $0.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $8.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $9.77Read more |
| 6 | Not Available | Eureka Disturbulator Assy - Cart | 53350-3 | Not Available |
| 7 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.13Read more |
| 8 | No Image | Wheel Axle and Press Clips for Bissell BG101 BG102 Oreck OR101 OR102 and Sanitaire Commercial | 60161 | $11.99Read more |
| 9 |  | CYCLONE ASSY, DC25 PINK Part Number: 915531-10 for Dyson | 91553110 | $66.90Read more |
| 10 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.98Read more |
| 11 |  | Clamp, Axle Most Uprights Part Number: 53201 for Eureka | 53201 | $0.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.53Read more |
| 14 | Not Available | Eureka Belt Pkg Assy (Upright) | 52100A | Not Available |

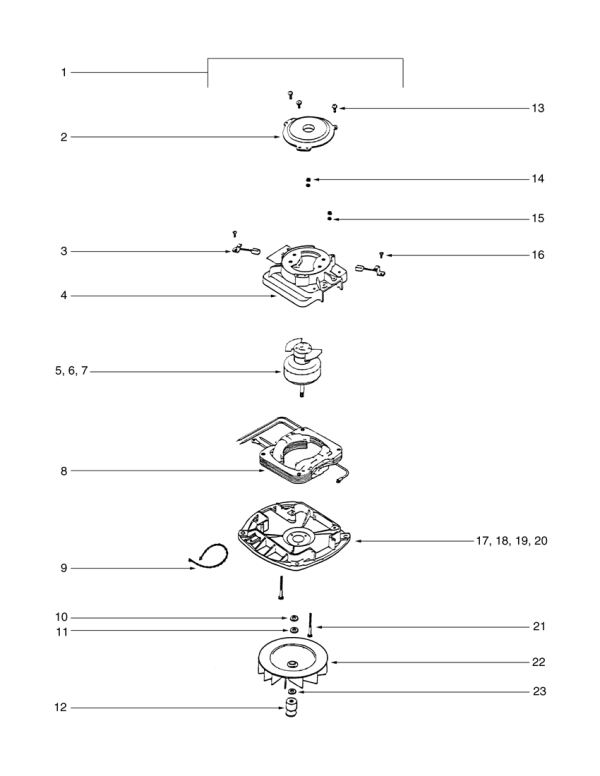

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Motor Change Kit (7Amp)- | 54352-3 | Not Available |
| 3 |  | Per EACH Eureka Sanitaire motor brush carbon brushes for commercial vacuums. Also for perfect and bissell BG101 BG102 and others | 30478 | $4.99Add to cart |
| 4 | Not Available | Eureka Motor Cover Assy - Label (Nla) | 54396 | Not Available |
| 5 | Not Available | Eureka Kit-Arm Repl | 54425-3 | Not Available |
| 7 | Not Available | Eureka Fan - Motor Cooling | 30474A | Not Available |
| 8 | Not Available | Eureka Field Assy (Nla) | 53441-2 | Not Available |
| 9 | Not Available | Eureka Tie - Cable (Purchased) | 46713-1 | Not Available |
| 10 |  | Washer, Between Fan/Lower Bearing Bravo/World Vac Part Number: 54811 for Eureka | 54811 | $4.08Read more |
| 12 | Not Available | Eureka Pulley - Motor Drive | 37012-2 | Not Available |
| 13 | No Image | SCREW, BEARING PLATE SANITAIRE 10 PK Part Number: 53138 for Eureka | 53138 | $4.46Read more |
| 14 | Not Available | Eureka Nut - Hex 8-32 | 56817 | Not Available |
| 15 | Not Available | Eureka Lk Wshrs-Pkg10 | 53222-4 | Not Available |
| 16 | Not Available | Eureka Screws - Package 10 | 53219-2 | Not Available |
| 17 | Not Available | Eureka Motor Change Kit (7Amp)- | 54169-1 | Not Available |
| 18 | Not Available | Eureka Retainer - Upper Bearing | 20217E | Not Available |
| 19 |  | Bearing, 8MM Common/Fits Many Motors Part Number: 530885 for Eureka | 530885 | $18.79Read more |
| 20 | Not Available | Eureka Rivets-Pkg10 | 53187-1 | Not Available |
| 21 | No Image | PIGTAIL, MACHINE END CSS350 Part Number: 555-3142 for Bissell | 5553142 | $0.82Read more |
| 22 | No Image | Sanitaire commercial Fan, Clear Plastic Blower Hi Profile C2094D/SC888G | E12988 | $14.99Add to cart |
| 23 | No Image | Fiber Washer, Fan For Uprights W/12988/12988-1 Fans sanitaire and eureka commercial | E49017 | $1.00Add to cart |

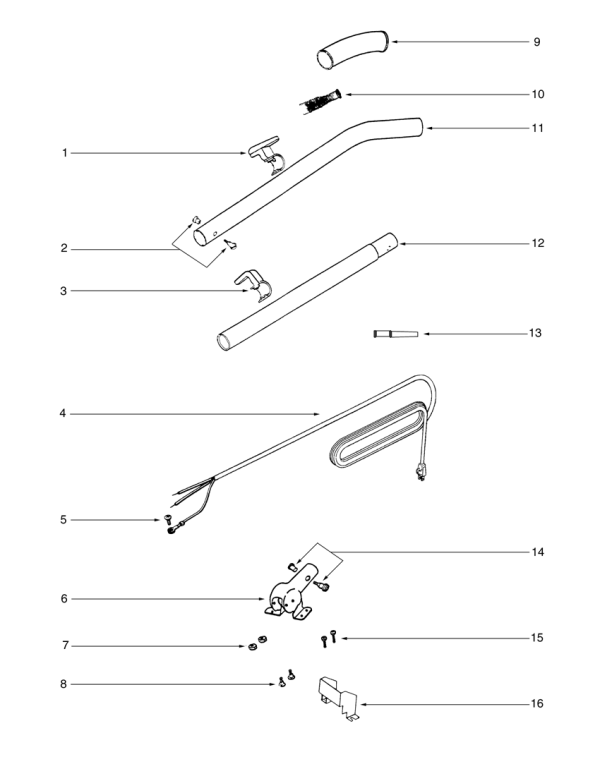

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Cord Retainer Assy-Black | 36965-2 | Not Available |
| 3 |  | Cord Hook, Lower S647/S635/S645/S661/S663 Part Number: 13521355N for Eureka | 13521355N | $6.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Eureka Cord - Low Lead (18 Ga) | 39630-1 | Not Available |
| 6 |  | Handle Socket, Chrome W/Bracket C2000 Series Part Number: 38183-1SV for Eureka | 381831SV | $16.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Eureka Nuts - Package 10 | 53213-5 | Not Available |
| 8 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $1.06Read more |
| 9 | Not Available | Eureka Grip - Handle | 25103A-4 | Not Available |
| 10 |  | Handle Support Part Number 53.077 for Cleanmax Models CMC-1N,CMC-QD | 53077 | Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Eureka Handle Assembly (Upper) | 26176-4SV | Not Available |
| 12 | No Image | Lower Handle for Sanitaire SC899 | WP11625 | $18.00Read more |
| 13 |  | Cord Sleeve, Held By Cord Hook S647/S663 Part Number: 36097355N for Eureka | 36097355N | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Eureka Handle Screw Assy Package | 53198-1 | Not Available |
| 15 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 16 |  | Shield, Handle Socket C2194A/B C4046B/D/E/F/F-1 Part Number: 36439 for Eureka | 36439 | $4.08Read more |

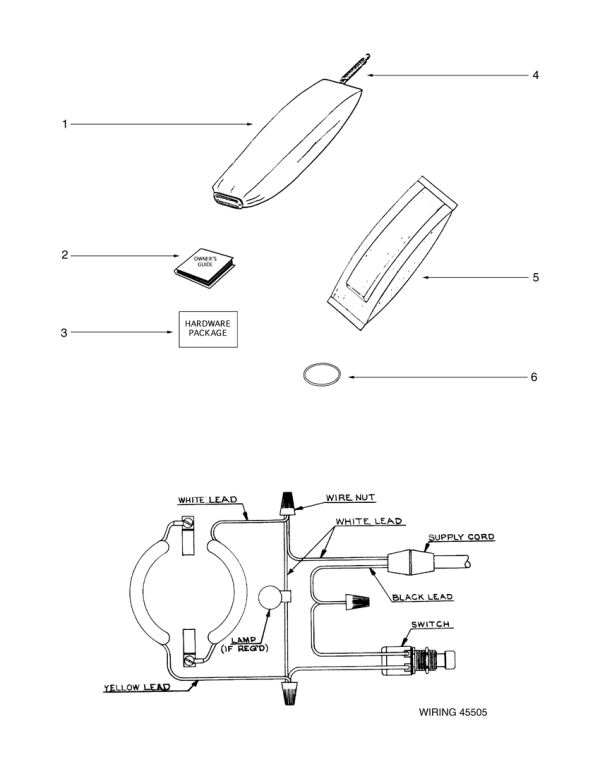

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Eureka Bag Assembly - Packaged | 53977-31 | Not Available |
| 2 | Not Available | Eureka Owner'S Guide | 73194 | Not Available |
| 3 | Not Available | Eureka Hardware Package | 73213 | Not Available |
| 4 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Eureka Paper Bag Package Assy (F | 57695A | Not Available |
| 6 | No Image | BASE, 12" 2000 SERIES GHOST GRAY Part Number: 49484-10 for Eureka | 4948410 | $47.40Read more |
