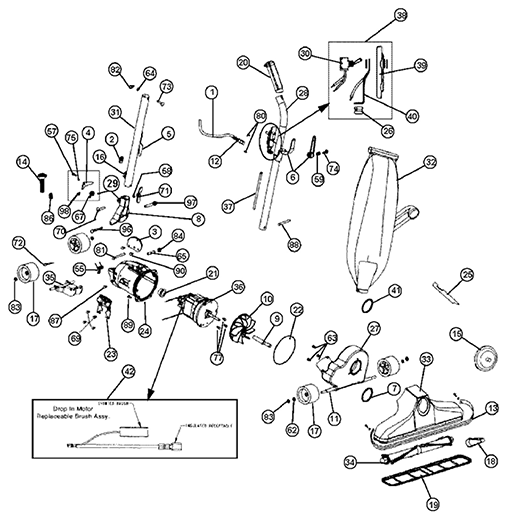

This is a list of parts and a diagram and schematic for: CR5128 Model: CR5128
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: (Z) - Royal Commercial Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CR5128 Power Cord - 50' 3-Wire | 1061136AU0 | Not Available |
| 2 | Not Available | CR5128 Grommet | 1230324000 | Not Available |
| 3 | Not Available | CR5128 Handle Stop Plate - Revised | 440001675 | Not Available |
| 4 |  | Latch - Hndl Fork / Royal N/S Metal Upright For: royal | 1133739B00 | $21.74Read more |
| 5 |  | Cord Hook, :( Metal Lower Dirt Devil CR5158 Comm Part Number: 1259316000 for Royal | 1259316000 | $12.94Read more |
| 7 |  | Gasket, :( Nozzle Dirt Devil Commercial Upr Part Number: 1285427000 for Royal | 1285427000 | $1.20Read more |
| 8 |  | Handle, Metal Polished Fork CR5130/UR38100 Part Number: 440001673 for Royal | 440001673 | $31.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Pulley, CR5128Z/30Z/58Z Part Number: 1380261000 for Royal | 1380261000 | $15.15Read more |
| 10 | No Image | FAN, CERTIFIED PILE BRUSH MACHINE Part Number: 1-608005-000 for Jansan | 1608005000 | $88.54Read more |
| 11 |  | Axle Stud/New Style Royal Fan Cases (As Of 8/86) For: royal | 1611101000 | $10.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | CR5128 Strain Relief - Power Cord | 1611305000 | Not Available |
| 13 | Not Available | CR5128 Bumper - Blue Black Nla | 1801201A00 | Not Available |
| 14 | Not Available | CR5128 Adjustment Bolt | 1870012000 | Not Available |
| 15 | Not Available | CR5128 Adjust-O-Rite Plate Assembly - Black | 2080169600 | Not Available |
| 16 | Not Available | CR5128 Cord Clip | 1670844600 | Not Available |
| 17 | Not Available | CR5128 Wheel, Upright | 1671705000 | Not Available |
| 18 |  | Belt, Metal Uprights With Inside Track Part Number: 1672260001 for Royal | 1672260001 | $6.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Metal Bottom Base Plate 14in for Royal 609, 7710, and 880 | WP11278 | $53.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | CR5128 Grip- Black | 1880314600 | Not Available |
| 21 |  | Grommet-Royal 1038 Motor/Rear For: royal | 1870006600 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | CR5128 Motor Housing O-Ring | 1870024600 | Not Available |
| 23 |  | Switch Plate-Royal 7710 Mtr Commercial Vac For: royal | 1870130P00 | $6.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | MOTOR HOUSING, 2075 Part Number: 1870201000 for Royal | 1870201000 | $59.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Belt Lifter, :( Part Number: 1880262000 for Royal | 1880262000 | $9.28Read more |
| 26 |  | Strain Relief Royal Pony Canister For: royal | 1880304000 | $0.31Read more |
| 27 |  | Fancase Assembly - Complete For: filter queen | 2670116000 | $168.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | CR5128 Upper Handle - Incl #6, #20 Quick Release - Polished / Can Only Be Used With 440001677 Lower Handle | 440001676 | Not Available |
| 29 |  | Royal Handle Fork with Release Latch 2028590000 for all metal royal vacuum cleaners models: ry850... | 2028590000 | $70.42Add to cart |
| 30 | No Image | Switch, Metal Toggle 12 Amp Uprights | RO-163309 | $28.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Compatible alternateRoyal Switch Assy-royal 1030 Comm. Upr/12amp More Product Details | 1163302000 | $28.07Add to cart Special order — allow 2-4 weeks. |
| 31 | Not Available | CR5128 Lower Handle Tube - Incl #5, #16 - Polished / Can Only Be Used With 440001676 Upper Handle | 440001677 | Not Available |
| 32 |  | Royal Dirt Devil Orange Shake Out Cloth Bag for models 1018, 1025, 1030, 1038,CR5128Z, CR5158Z an... | 2066248BG0 | $69.29Read more |
| 32 |  | Royal reusable royal orange outer cloth bag assembly with zipper takes type b bags for royal all ... | 2066242AU1 | $88.00Read more |
| 33 | Not Available | CR5128 Nozzle Assembly - Incls #13 | 9061126B00 | Not Available |
| 34 |  | BRUSH ROLL ASSY-ROYAL 14'' BALL BEARING: NO LONGER AVAILABLE: This product has been discontinued.... | 81344905 | $54.99Read more |
| 35 |  | Fork, Real Wheel and Axle ONLY Part Number: 2028574000 for Royal | 2028574000 | $23.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Royal all metal vacuum Motor, 10 Amp Metal Upright 1030/89130/1010/1050 | 2870114000 | $66.00Read more |
| 37 | No Image | CORD, JUMPER SWITCH TO MOTOR 1030Z Part Number: 3870323600 for Royal | 3870323600 | $7.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | CR5128 Switch And Plate Assembly | 2060837000 | Not Available |
| 39 |  | Switch Plate-Royal 1050 Commercial For: royal | 1608303000 | $9.61Read more |
| 40 | Not Available | CR5128 Strain Relief Stamping | 2031103000 | Not Available |
| 41 | Not Available | CR5128 Rubber Inlet Gasket | 1604108000 | Not Available |
| 55 | No Image | Spring - Royal Rear Wheel - Upright For: royal | 1003008000 | $1.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Spring Rod Roy- 994 For: royal | 1003009000 | $0.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | SCREW, 1018Z 1030Z 1058Z LATCH RETAINER Part Number: 440001674 for Hoover | 440001674 | $0.83Read more |
| 58 | Not Available | CR5128 Washer Adaptor Clamp Screw - Handle Fork | 1003311000 | Not Available |
| 59 | Not Available | CR5128 Spring - Cord Hook | 1003884000 | Not Available |
| 60 | Not Available | CR5128 Lock Washer | 1006318000 | Not Available |
| 61 | Not Available | CR5128 Handle Fork Spring | 1004723000 | Not Available |
| 62 | Not Available | CR5128 Wheel Retainer Washer | 1005138000 | Not Available |
| 63 |  | Screw, #10 x 3/4" Dirt Devil CR5158/089000/CR5158Z Part Number: 1023309000 for Royal | 1023309000 | $1.09Read more |
| 64 | Not Available | CR5128 Lock Washer - Handle Tube | 1074330000 | Not Available |
| 65 |  | Insert, Motor Housing Metal Everlast Uprights Part Number: 1110773000 for Royal | 1110773000 | $10.92Read more |
| 66 | Not Available | CR5128 Rod Adjustment Sleeve - Screw In | 1110775000 | Not Available |
| 67 |  | Spring, Handle Latch **New Style** Part Number: 1133738000 for Royal | 1133738000 | $0.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | CR5128 Screw #6-32 X 3/8 | 1UA0305000 | Not Available |
| 69 | No Image | SCREW, SELF TAPPING Part Number: 1186012000 for Royal | 1186012000 | $6.17Read more |
| 70 | Not Available | CR5128 Carriage Bolt - Handle | 1230713000 | Not Available |
| 71 |  | Wing Nut-Royal Upt. Hndl. Fork For: royal | 1285720000 | $3.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | CR5128 Rear Axel Screw | 1311031000 | Not Available |
| 73 | Not Available | CR5128 Bolt - Handle Tube / Curved Head | 1074329000 | Not Available |
| 74 | Not Available | CR5128 Screw - Cord Hook | 1597743000 | Not Available |
| 75 | Not Available | CR5128 Latch Spacer | 1601772000 | Not Available |
| 76 | Not Available | CR5128 Headlight Spring Clip | 1606210000 | Not Available |
| 77 | Not Available | CR5128 Motor Plate Screw | 1670013000 | Not Available |
| 80 |  | Screw-Royal 690 Rear Bearing Assy For: royal | 1801701000 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 |  | Bolt, Holds ForkK To Machine EverLast Metal Uprt Part Number: 1801708000 for Royal | 1801708000 | $4.57Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 |  | Fork Bolt Nut-All Models For: royal | 1801715000 | $1.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | CR5128 Wheel Retainer Cap Tinnerman Pn 250009Pg | 1801711000 | Not Available |
| 84 | Not Available | CR5128 Nut - Handle Fork Bolt Order 1801715000 | 1801713000 | Not Available |
| 85 | Not Available | CR5128 Screw | 1802244000 | Not Available |
| 86 | Not Available | CR5128 Spring - Adjuster Bolt | 1870013000 | Not Available |
| 87 | Not Available | CR5128 Screw #6-32 X 1/4"" - Motor Housing | 1880707000 | Not Available |
| 89 |  | Screw, Nozzle Head to Main Body CR5158/5158Z Part Number: 1980743000 for Royal | 1980743000 | $10.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | CR5128 Screw, 10-24 X 5/8"" Thread Forming Phil Fillester | 1990104000 | Not Available |
| 91 | Not Available | CR5128 Adjuster Rod | 1996011000 | Not Available |
| 92 | Not Available | CR5128 Retaining Pin - Adjuster Rod | 1996101000 | Not Available |
| 93 | Not Available | CR5128 E Ring - Adjuster Rod | 1996711000 | Not Available |
| 94 | Not Available | CR5128 Screw | 1133054000 | Not Available |
| 96 | Not Available | CR5128 Handle Fork Screw - Male Order 2700132000 | 1700132000 | Not Available |
| 97 | Not Available | CR5128 Handle Fork Screw - Female Order 2700132000 | 1700133000 | Not Available |
| 97 |  | Screw Kit, Handle Fork Male/Female Part Number: 2700132000 for Royal | 2700132000 | $11.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 98 | Not Available | CR5128 #10 Flat Lock Washer | 1028000000 | Not Available |
