This is a list of parts and a diagram and schematic for: CleanMax Model: ZM-700Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HEREParts for: ZM-700 Upright Vacuum
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |

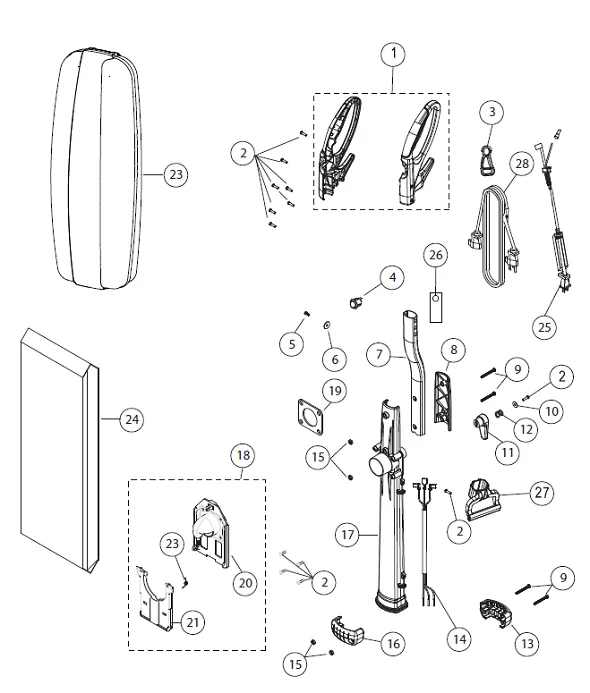

| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R1... | C2203514 | $25.99Add to cart |
| 2 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 3 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | $3.99Add to cart |
| 5 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart |
| 6 |  | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, ... | B0172500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... | B2203400 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... | B2203114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAN... | B2203314 | $2.99Add to cart |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 13 |  | s10s r10s Back Neck Coupling | WP10361 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | CleanMax Handle Wire Harness for ZM-500 ZM700 ZM-800 Vacuums | A4343514 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Neck Coupling Front Black | WP10347 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... | B2203014C | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... | D4842282 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... | B2203900 | $2.99Add to cart |
| 20 | No Image | Bag Mount for CleanMax and Riccar Vacuums R10S ZM-500 R10D ZM-700 R10P R17 | B2203814 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Bag Mount (Green) for Riccar Simplicity and CleanMax Vacuum Models R10S S10S ZM-500 R10D S10D ZM-... | B4342282 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | CleanMax Bag Collar Spring | B434-3400 | Not Available |
| 23 | No Image | CleanMax Hard Shell Outer Bag for ZM500, ZM700, ZM800 | B2206800 | $68.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Bulk 25 Pack Vacuum Bags Type L Green Dock for CleanMax Zoom 500 and Zoom 700 | CLH50 | $109.99Read more |
| 24 | No Image | Compatible alternateSIMPLICITY S10 ULW SERIES CHARCOAL-LINED HEPA BAG 6PK 6CS GREEN COLLAR More Product Details | SLHC6 | $31.99Add to cart Special order — allow 2-4 weeks. |
| 24 | No Image | Clean Obsessed Type R10 S/d/o/p Riccar Supralite HEPA Filter Bags, Simplicity S10p/s (Fits Maytag... | CH828 | $24.19Read more |
| 24 |  | Aftermarket Riccar Type L HEPA Vacuum Bags - 6pk | TACONYLBAG | $20.89Read more |
| 24 |  | Riccar HEPA Vacuum Bags Charcoal Infused Type L for R10S R10P R10CV and R17 - 6pk green dock | RLH6 | $32.99Add to cart |
| 24 | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R1... | B2205382C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | CleanMax Zoom Series HEPA Filtration Bags - 6pk | CLH6 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R1... | B2118800 | $3.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | D434-3814 Pigtail Cord Assembly For Zoom 500 & 700 | D4343814 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... | B3885900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | $5.99Add to cart |
| 28 |  | CleanMax Extension Cord Yellow - 30ft | WP11737 | $75.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

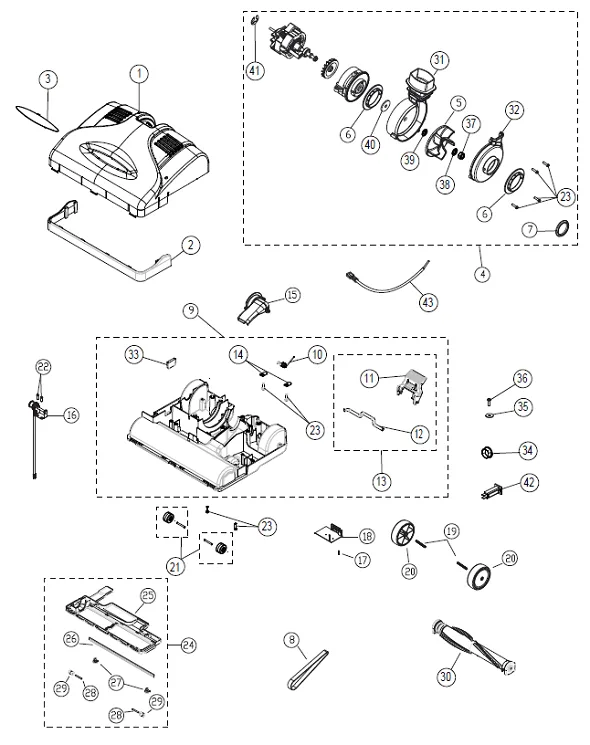

| 1A | No Image | CleanMax Nozzle Cover ZM-500 ZM-700 Black ABS Commercial Zoom | B22024ZM | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1B | No Image | Nozzle Assembly CleanMax ZM-700, ZM-500 Black | D22024ZM | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | CleanMax Furniture Bumber for ZM-500 ZM-700 ZM-800.6 and Above Furniture Guard | B2202600 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | CleanMax Lens Cover Black Commerical ZM-500 ZM-700 Zoom | B0180414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Motor Assembly for Riccar and Simplicity ULW S10 | D2204000 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Riccar Simplicity Direct Air Motor Assembly ULW with Pulley R10P S10P SAND R10 S10 | D2204100 | $142.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart |
| 8 |  | Poly V Belt ULW R10P S10P RSL5/C F3700/C ZM-600 S10SAND R10SAND riccar and simplicity | B0141200 | $11.99Add to cart |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 14 |  | Axle clamp for simplicity s10 freedom and riccar r10 supralights | WP10350 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Compatible alternateTitan Cord Hook - Lower Fuller Fbhd2t Upright Vacuumfits Cpu2 Titan T4000 More Product Details | 54018 | $3.12Add to cart Special order — allow 2-4 weeks. |
| 14 |  | Compatible alternateCarpet Pro Cord Hook Holder CPU2 More Product Details | 54050 | $2.99Add to cart |
| 14 |  | Compatible alternateFuller Brush Carpet Pro Inlet Tall N/S More Product Details | 54076 | $13.99Add to cart Special order — allow 2-4 weeks. |
| 14 |  | Compatible alternateLower Cord Hook for Carpet Pro CPU1 CPU2 and FBHD1 More Product Details | WP11266 | $3.99Add to cart Special order — allow 2-4 weeks. |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... | B2200214 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Idler and Hall Sensor Assy for ULW F3700 ZM600 | D3751400 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Plastic Dowel Pin(F3700/ F3700.SAND/F3700C) Part Number A018-1300 for Simplicity and Riccar Model... | A0181300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models F3400, F3500,... | B3170000K | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | ULW HALL SENSOR BOARD KIT W IMPROVED MOLEX CONNECTOR | B3171000BK | $66.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $2.99Add to cart |
| 20 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... | C2200531C | $4.99Add to cart |
| 21 | | Wheel Assembly and Axle Part Number * D010-2631 for Riccar Models R100, R200, R300, R300C, R500, ... | * D0102631 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart |
| 23 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 24 |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... | D2200414 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | CleanMax Baseplate Cover Order | Order #24 | Not Available |
| 26 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701700B | $2.99Add to cart |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 30 |  | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Agitator Wood ULW Assembly S10E, R10E,F3300 | D012-2800 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... | B0161914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Plug For Circuit Breaker Hole (F3700, F3700.
SAND, F3700C) Part Number A018-1414 for Simplicity a... | A0181414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 38 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... | B2204500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... | A7323000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Circuit Breaker 5 Amp for Riccar | A028-0114B | $4.99Add to cart |
| 43 | No Image | CleanMax Commercial Ground Wire ULW for ZM-500 | B3331100B | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | | Hall Sensor Lens Part Number A018-1100 for Maytag and Riccar and Simplicity Models M700,R20S, R20... | A0181100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | CleanMax ZM-700 Light Pipe Clear | A0181500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | | Lens Spacer Part Number A018-1200 for Maytag and Riccar and Simplicity Models M700,R20S, R20D, R2... | A0181200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

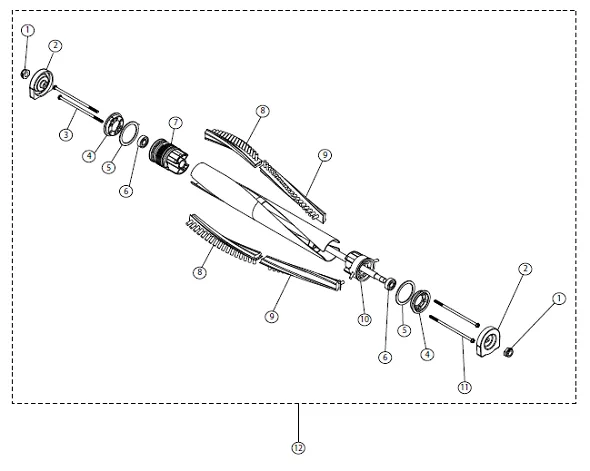

| 1 |  | Locking Hex Nut Part Number A3750100 for Simplicity Models SPB-400S.2 | A3750100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PR... | B0131600 | $7.99Add to cart |
| 3 | | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 |  | Agitator Bearing for Simplicity and Riccar | A3750200 | $4.99Add to cart |
| 7 |  | Pulley Clamping Design for Poly V Belt Part Number B013-1400 for Simplicity and Riccar Models F37... | B0131400 | $8.99Add to cart |
| 8 |  | Riccar and Simplicity Long Natural Brush Strips for ULW Vacuums | WP11868 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND... | B0130301B | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND,... | B0130401B | $4.50Add to cart |
| 9 |  | Riccar and Simplicity Natural Brush Strips for ULW Vacuums | WP11867 | $3.99Add to cart |
| 10 |  | Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity an... | B0131500 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
