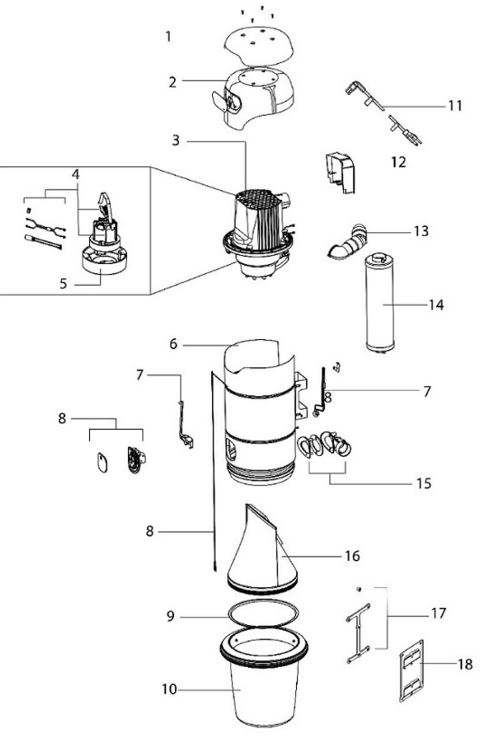

This is a list of parts and a diagram and schematic for: Beam Model: 650SCN51A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 650SCN51A Central Vacuum
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Beam Hood Assembly | 126566 | Not Available |
| 4 | Not Available | Beam Boxed Motor | 140628 | Not Available |
| 5 | Not Available | Beam Motor Gasket | 145154 | Not Available |
| 7 | Not Available | Beam Short Rear Utility | 105151 | Not Available |
| 9 | Not Available | Beam Dirt Receptacal Gasket | 195008 | Not Available |
| 11 | Not Available | Beam Cord | 100355 | Not Available |
| 12 | Not Available | Beam Ecs Assembly | 100638A | Not Available |
| 13 | Not Available | Beam Exhaust Fittings | 145324 | Not Available |
| 14 |  | Muffler - Sound Off-Beam Central Vac For: filter stream | 030185 | $45.76Read more |
| 15 | Not Available | Beam Intake Kit | 105158 | Not Available |
| 16 | Not Available | Beam Filter Bag | 110383B | Not Available |
| 17 | Not Available | Beam Grommet | 145508 | Not Available |
