Schematic and parts book for Tornado 98166 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | Hose High Pressure 20Ft Tornado Vacuum Solution | 95567A | $439.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | 100PSI 12 DOUBLE BEND WAND WITH 2 JETS | 98397 | $710.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
| XX |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| XX | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| XX |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |

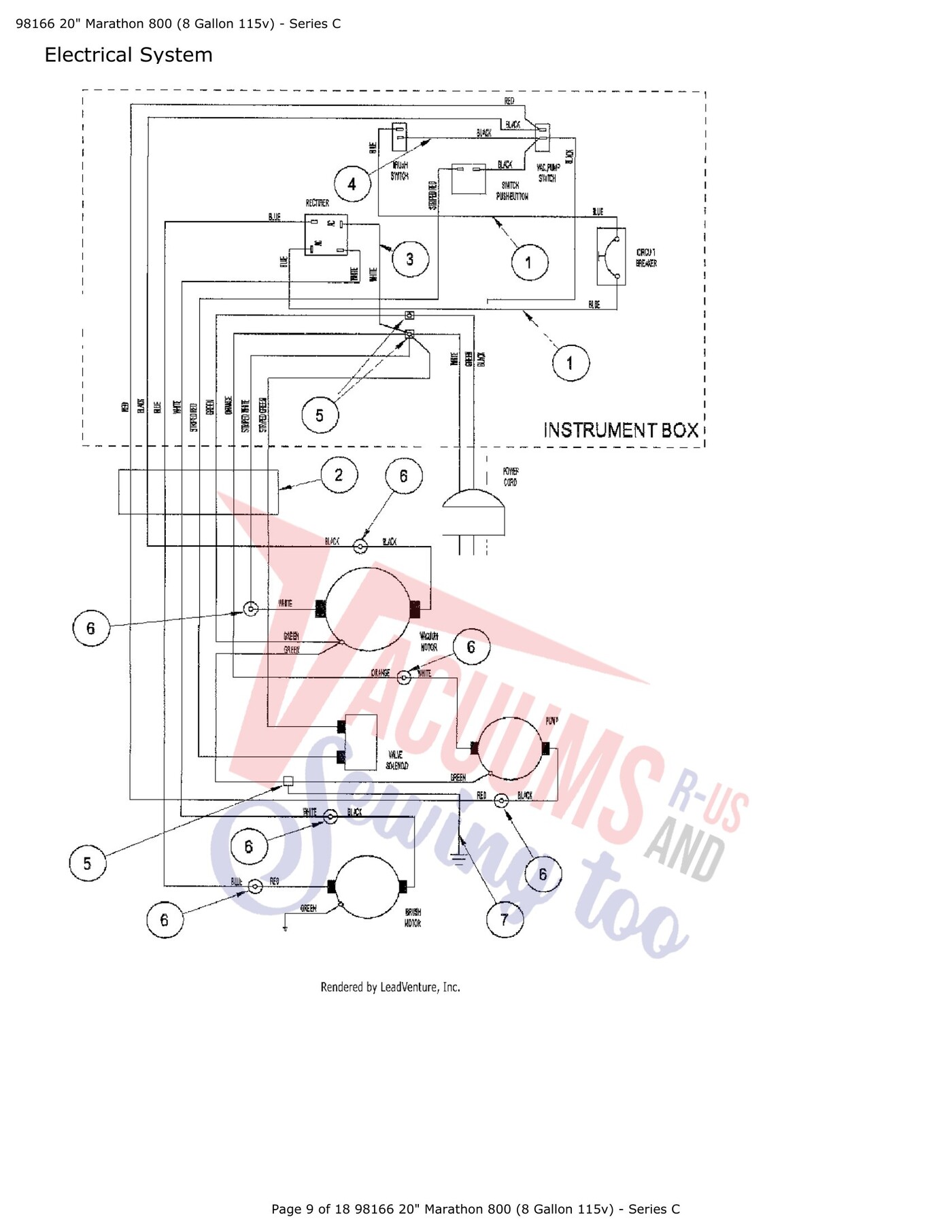

| # | Part image | Description | SKU | Price |
| XX | No Image | Clip, Lead Retaining Selfadhesive | 10428 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| XX |  | WIRE TIE 7 WHITE | 14560 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| XX |  | Hose, Steel Supported Blk 1 1/2 X 64 W/Cuffs | 18967 | $94.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | Cord, Extension 14/3 X 50FT 300V Yellow | 32217 | $148.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | Not Available | Power Cord 50' 230V EU Plug | 31070 | Not Available |
| 1 | No Image | Lead 16 Awg X 7" Blue | 19231 | $0.00Read more |
| 2 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Lead 16 Awg X 2" White | 19303 | $0.00Read more |
| 4 | No Image | Switches Wiring Harness Assembly | 19304 | $0.00Read more |
| 5 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| 6 | Not Available | Male Q.D. Terminal | 19229 | Not Available |
| 7 | No Image | Lead 18 Awg X 16" Green | 19369 | $0.00Read more |
| # | Part image | Description | SKU | Price |

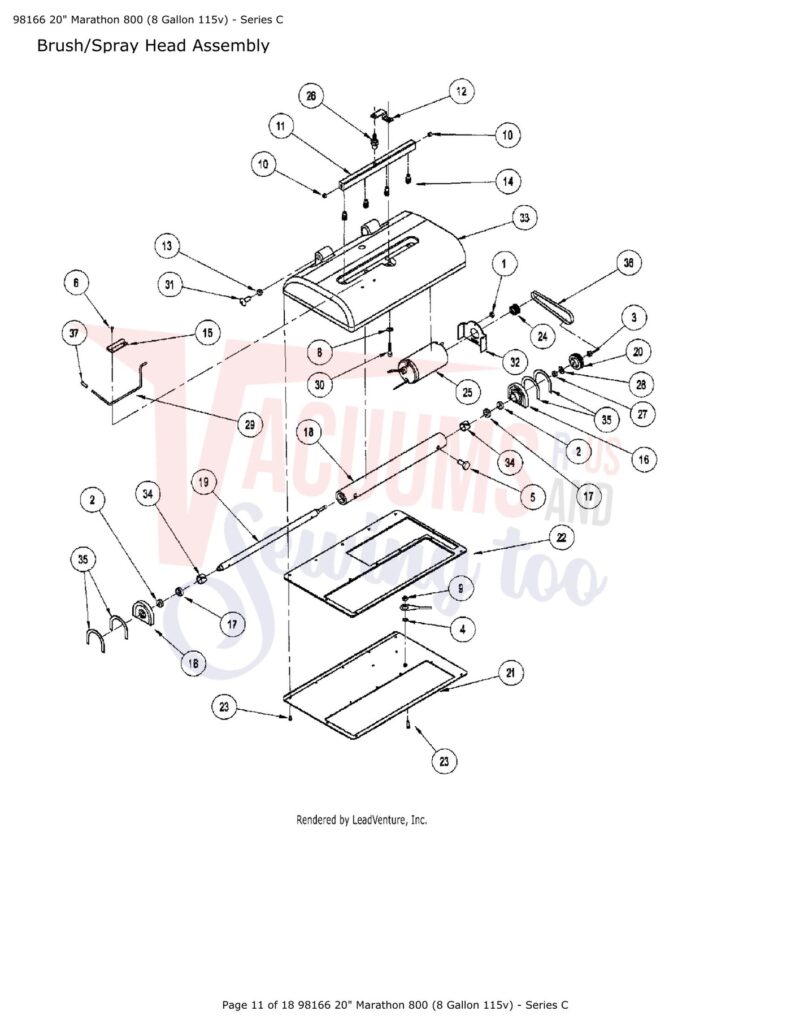

| XX | No Image | Brush Roller Assy 17 Marathon 800/1200 98166 98168 | 31806 | $599.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 3 | Not Available | Nut | 05282 | Not Available |
| 4 |  | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | SCREW HEX HD CAP No 10 24 X 1/2 (ZP) | 17957 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 10 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 11 | No Image | Spray Bar Manifold | 19150 | $0.00Read more |
| 12 | No Image | Bracket, Weldment Manifold Retaining | 19152 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Shroud, Bushing Pivot Nylon | 19153 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | CLAMP SHROUD LATCH LEVER | 19156 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Roller, Brush 17 Carpet Scrub(Marathon) | 19159 | $255.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Shaft, Brush Rotation 18 (Marathon 800/1200) | 19160 | $300.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Brush Plate Weldment Complete Shroud Use 31754 | 30959 | $189.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Gasket, Shroud Base Plate (Marathon 800/1200) | 19164 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS | 19165 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 | X9002 | $301.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Brass Adaptor Fitting | 19189 | Not Available |
| 27 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 28 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 29 | No Image | Latch, Lever Shroud | 19192 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | BOLT, 1/4-20 X 1 HEX SS | X8282 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| 32 | No Image | Brush Plate, Weldment and Motor Bracket | 30973 | $258.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | ASSEMBLY BRUSH WELDMENT | 31754 | $586.99Read more |
| 34 | No Image | Sleeve, Bearing .75 (Nyliner) | 19227 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | GASKET-BEARING BLOCK Part Number 19228 for Simplicity Models SCE | 19228 | $4.39Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | CAP SHROUD LATCH LEVER | 19275 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

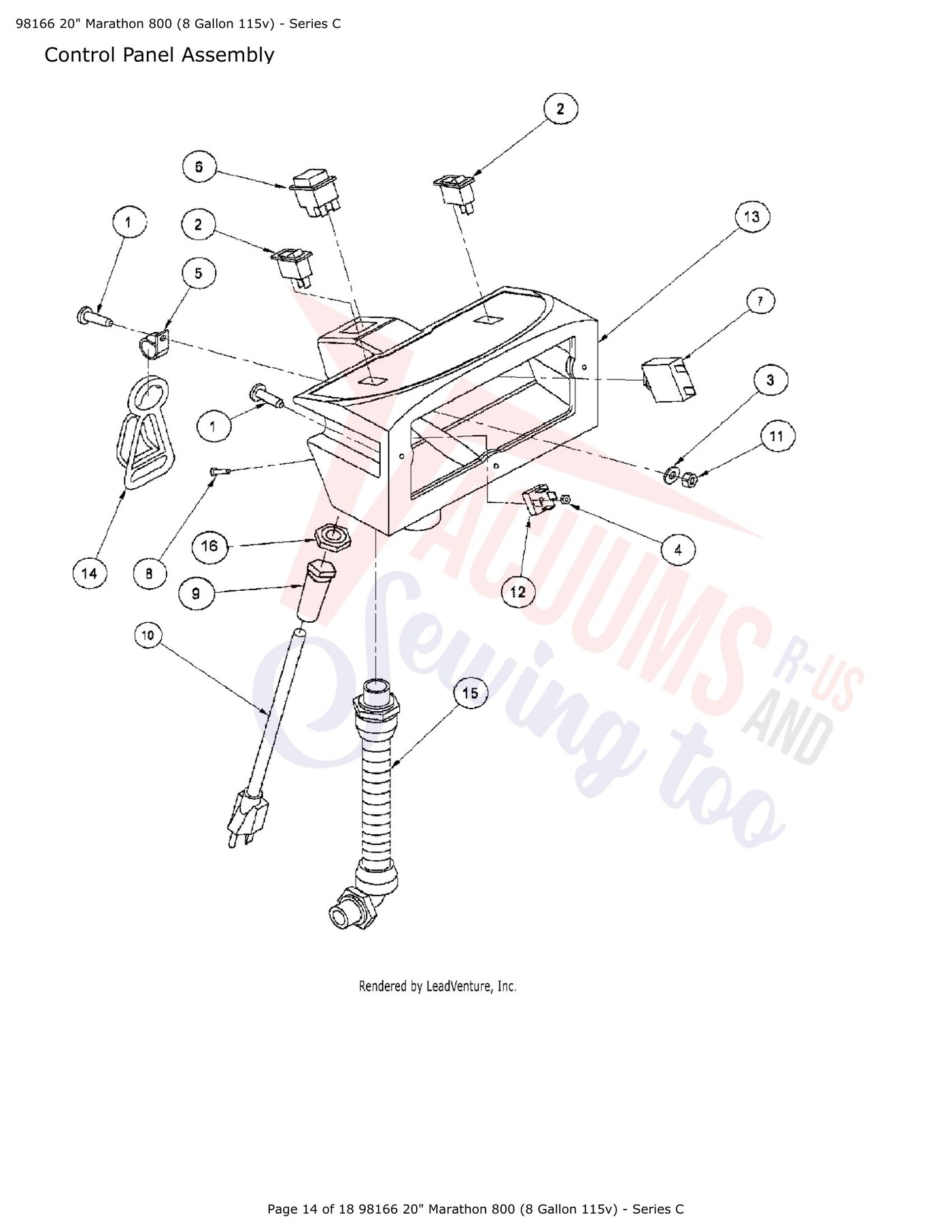

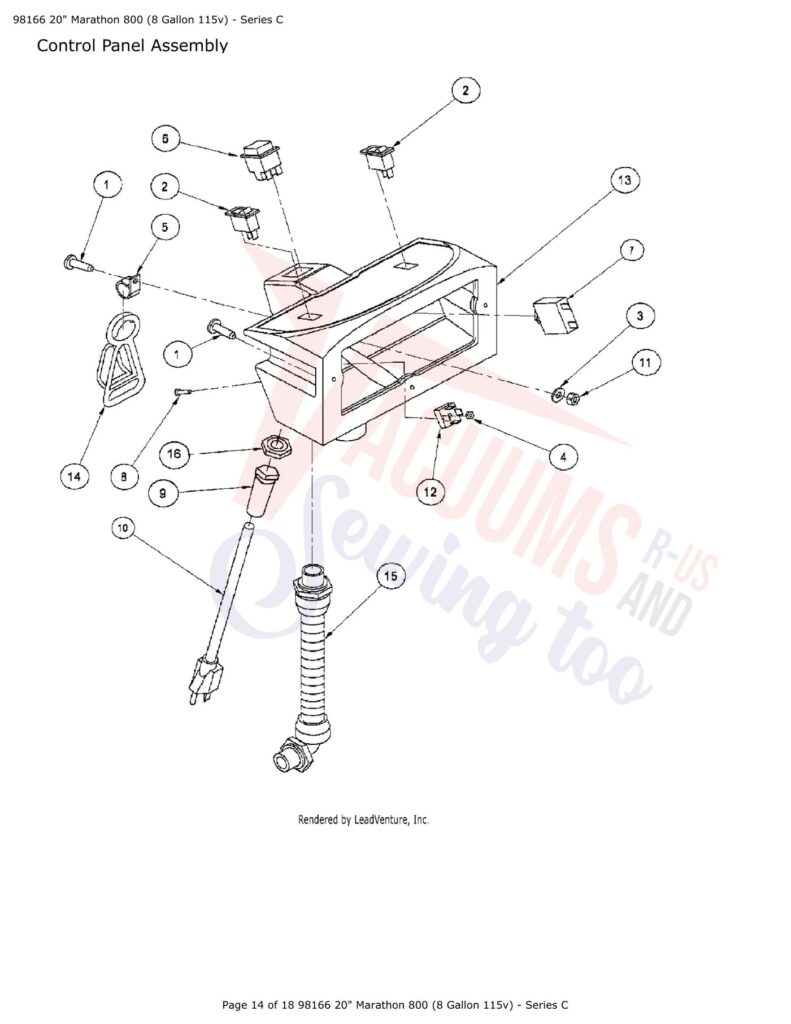

| # | Part image | Description | SKU | Price |
| XX | No Image | Control Module | 19315 | $0.00Read more |
| 1 |  | Screw Ph Truss HD No.10 24x3/4 ZP | 04735 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SWITCH ROCKER 98164 68 | 10670 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Nut 6-32 Hex Nylon | 17883 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SWITCH-PUSH BUTTON Part Number 19121 for Simplicity Models SCE | 19121 | $28.59Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Circuit Breaker,Extractor,2.5Amp,125V-250VAC | X1192 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) | 19124 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | White Plastic Standard Candle Covers 8" | 19929 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Cord, Extension 14/3 X 50FT 300V Yellow | 32217 | $148.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 12 | No Image | Rectifier, 1000 V 35 Amp, Previously 19182 | X1193 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Module, Control 800 | 19214 | $120.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | NUT HEX JAM 3/4 18 (ZP) SLO. | 30261 | $10.99Add to cart Special order: ships in 2 to 4 weeks |

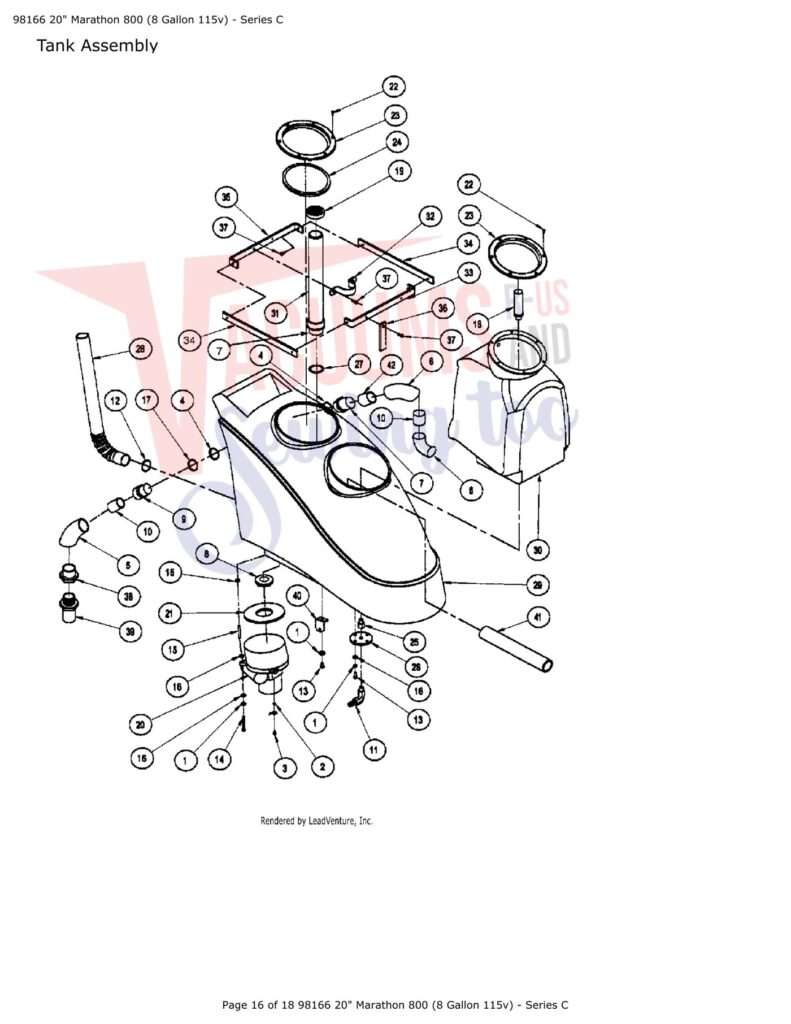

| # | Part image | Description | SKU | Price |
| XX | No Image | Self-Locking Insert | 12787 | $0.00Read more |
| XX |  | Bladder, 12 Gallon (Marathon 1200) | 19264 | $658.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 2 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 4 | No Image | Gasket 2.6 OD 1.875 ID 0.1875 Thick Rev01 | 05781 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | ELBOW 45 DEGREE 1 1/2 | 14918 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | FITTING SCH40 ELBOW 1 1/2FSF X 1 1/2FSF | 15087 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | PVC Male Adapter | 15088 | Not Available |
| 8 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 9 | No Image | Female Adapter Fitting | 15096 | $0.00Read more |
| 10 | No Image | ADAPTER INSERT 2 | 15100 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Fitting Brass Elbow 1/4 MPT x 3/8 ID HB | 15223 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Screw Hex HD Cap 1/4 20x4.25 ZP | 17644 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Washer,Plain 2.00 ID SS | 18886 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Filter,Extractor,Pumps,Soloscreen,Bladder | 19096 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Motor,Extractor,120,VAC,Ametek,3 STG,ETL | X1038 | $195.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | SCREW PHIL. TRUSS HD No 10 32 X 5/8 (SS) | 30436 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Gasket Tank Access Cover Marathon | 31416 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Brass Adaptor Fitting | 19133 | $0.00Read more |
| 26 | No Image | Bladder Mounting Plate | 19134 | $0.00Read more |
| 27 | No Image | RING O 1 5/8 DIA. (BLK) | 19140 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Bellow Hose EPDM/Blk Revc 1-1/2x23-1/2 Lg Crush | 16620 | $72.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Tank, Recovery (98166) Order W/19241 | X3857 | $639.91Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Bladder (8 Gallon) | 19215 | Not Available |
| 32 | No Image | Clamp, Standpipe Mounting | 19217 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Frame, Member Tank 11 In. Support(Front) | 19316 | $43.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Frame, Member Tank Rev B Support(Sides) | 19317 | $50.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Frame, Member Tank 12 In. Support | 19220 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Frame, Member Tank | 19318 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | FITTING SCH.40 ADAPTOR 1 1/4SMPT X 1 1/2MSF | 19268 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Fitting, Recovery Hose 98166 98169 1.25 SMPT X 1.5 | 19270 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Bracket Extractor Marathons Recover Tank Retaining | 19272 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | Recovery Tank Channel | 19325 | $0.00Read more |
| 42 | No Image | ADAPTER INSERT 1 1/2NOM (R/D MAR) 4.25PVC TUBE | 30215 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
