Schematic and parts book for simplicity S10SAND Freedom. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
Helpful Repair Videos

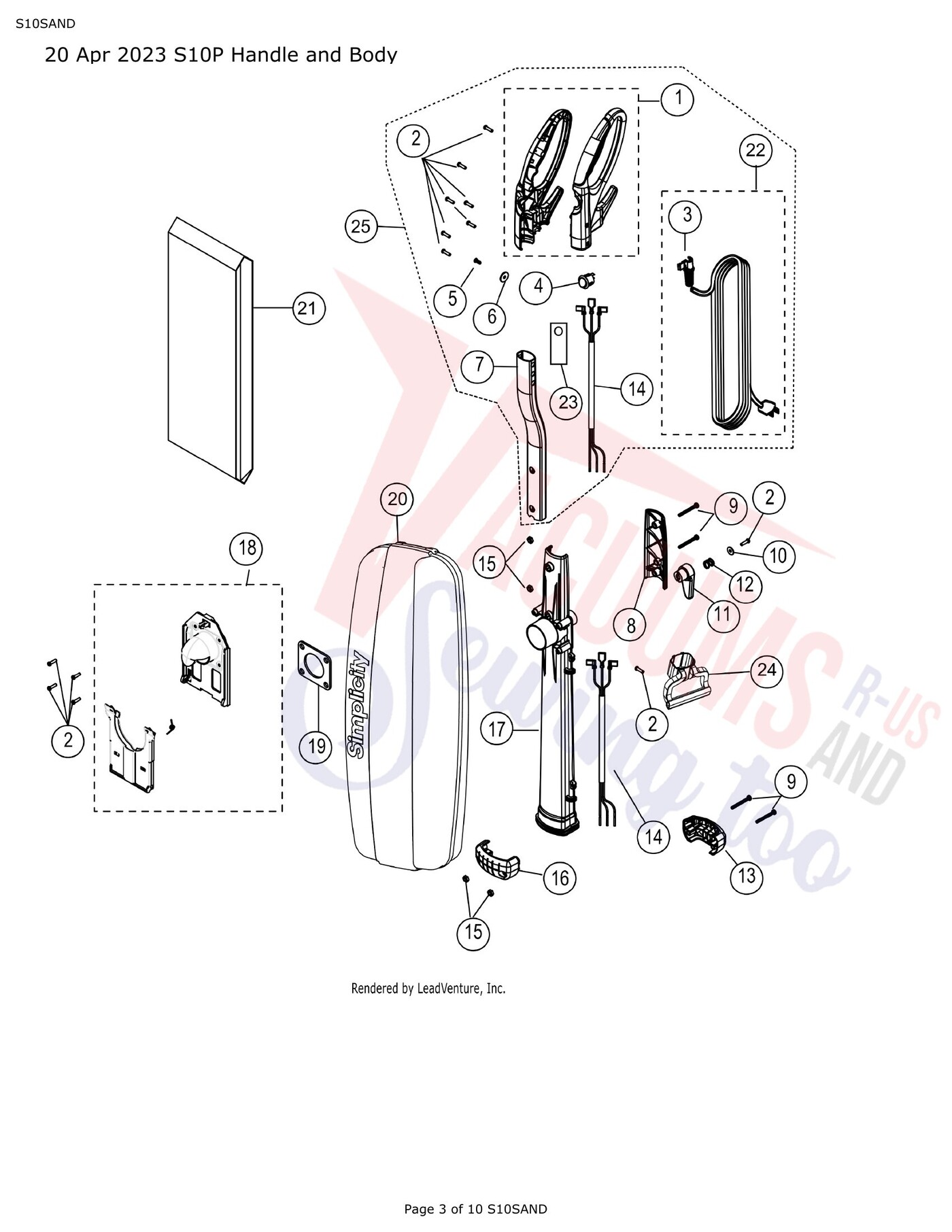

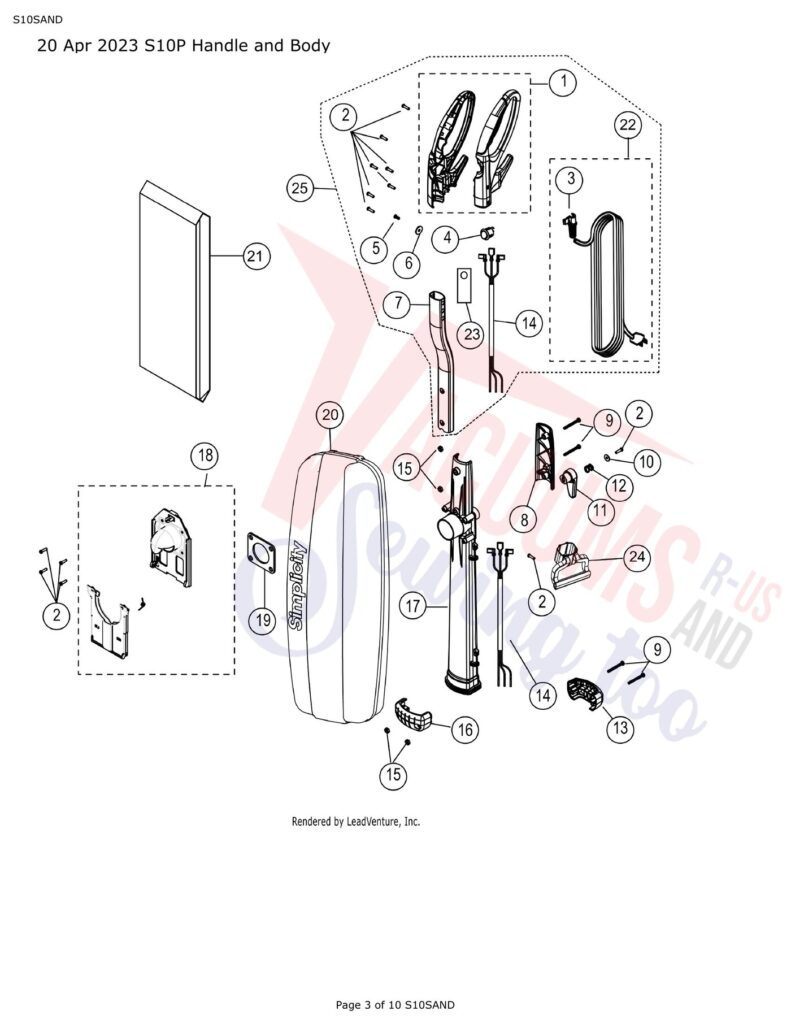

| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R1... | C2203514 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 3 |  | Strain Relief Part Number B333-3014B for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD... | B3333014B | $2.99Add to cart |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | $3.99Add to cart |
| 5 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, ... | B0172500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... | B2203400 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... | B2203114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAN... | B2203314 | $2.99Add to cart |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 13 | Not Available | Back Neck Coupling | B220-1114 | Not Available |
| 14 | | Wire Harness For Hall Sensor (R10P, R10SAND R17) Part Number A434-4143 for Riccar Models R10S, R1... | A4344143 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Front Neck Coupling | B220-1014 | Not Available |
| 17 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... | B2203014C | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... | D4842282 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... | B2203900 | $2.99Add to cart |
| 20 |  | Riccar R10S R10D R10P R17 hard cloth body external bag assy | D2205100 | $79.99Add to cart |
| 21a | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R1... | B2205382C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21b |  | Charcoal/HEPA Bag (Bulk Single) Part Number B220-5382D for Riccar and Simplicity Models R10CV, R1... | B2205382D | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21c |  | DO NOT USE THIS SKU Sub for Riccar Simplicity Freedom HEPA Bags with Activated Charcoal 6pk for S... | 098612552468 | Original price was: $22.77.$21.99Current price is: $21.99.Read more |
| 21d | Not Available | Charcoal /HEPA Bag (6 Pack) | SLHC-6 | Not Available |
| 21e | | Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R1... | B2118800 | $3.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | POWER CORD ASSEMBLY ULW 40' S10P R10P S10SAND R10SAND | D4344343 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... | B3885900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | $5.99Add to cart |
| 25 | | Handle Assembly (R10P, R10SAND R17) Part Number D220-3300 for Riccar Models R10S, R10D, R10P, R10... | D2203300 | $136.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

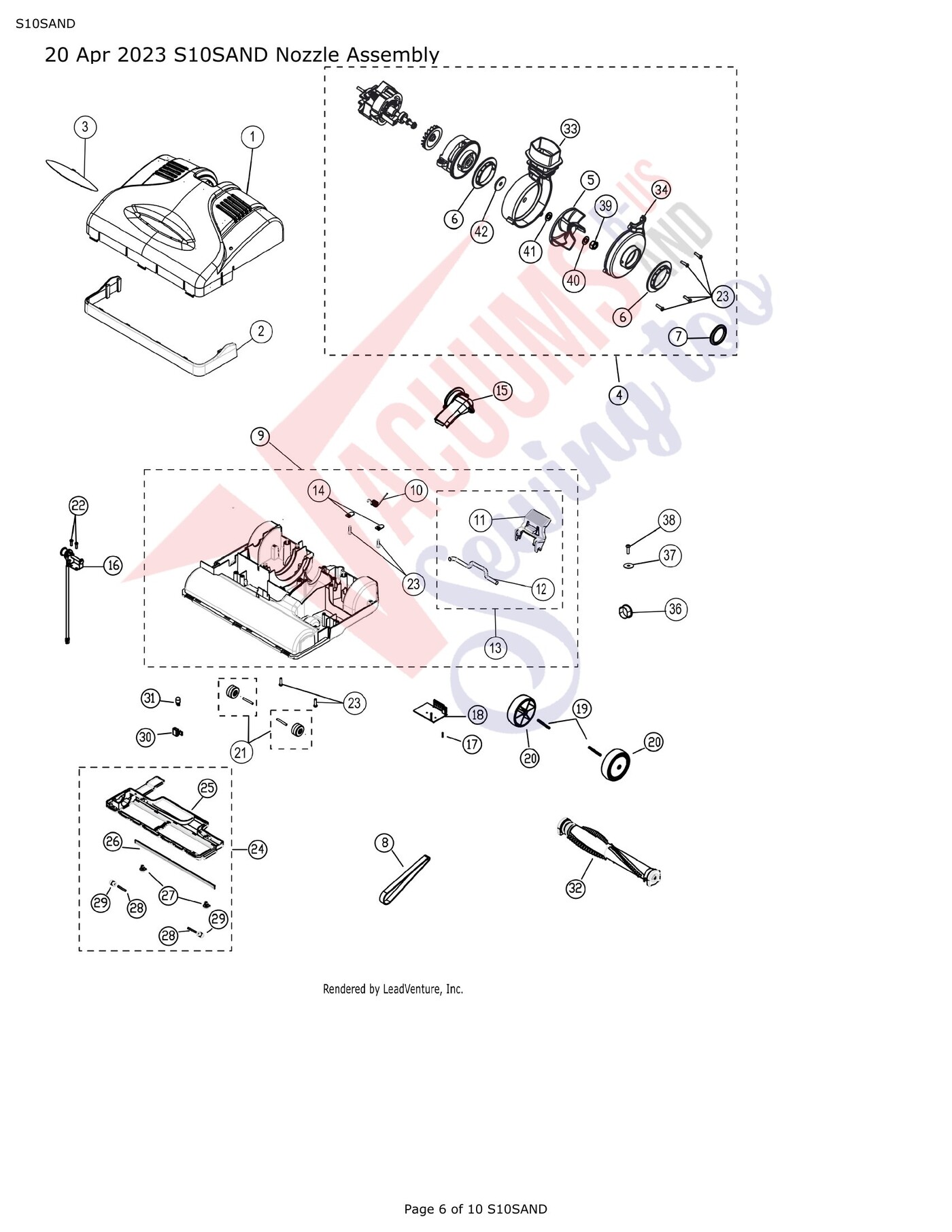

| # | Part image | Description | SKU | Price |
| 1 | Not Available | No Longer Available | NLA | Not Available |
| 2 | Not Available | Black Furniture Guard | B220-2614 | Not Available |
| 3 |  | Headlamp Lens Textured F3300 6000 Symmetry S10 S20 | B0180315C | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Riccar Simplicity Direct Air Motor Assembly ULW with Pulley R10P S10P SAND R10 S10 | D2204100 | $142.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Pivot Bushing | B220-4414 | Not Available |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Poly V Belt ULW R10P S10P RSL5/C F3700/C ZM-600 S10SAND R10SAND riccar and simplicity | B0141200 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Available ReconditionedReconditioned Basetray Assembly M500 S10 R10 More Product Details | D220-0114R | $36.99Add to cart |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 14 | Not Available | Axle Clamp | 54.136 | Not Available |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... | B2200214 | $3.99Add to cart |
| 16 |  | Idler and Hall Sensor Assy for ULW F3700 ZM600 | D3751400 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Plastic Dowel Pin(F3700/ F3700.SAND/F3700C) Part Number A018-1300 for Simplicity and Riccar Model... | A0181300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | PC Board | B317-1000K | Not Available |
| 19 | Not Available | Rear Wheel Axle | B010-2800C | Not Available |
| 20 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... | C2200531C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Front Wheel Assembly and Axle for UltraLightWeights | WP11198 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 24a |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... | D2200414 | $15.99Add to cart |
| 24b |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Baseplate Cover | BPC | Not Available |
| 26a |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart |
| 26b |  | Squeegee (Soft Carpet Baseplate) Part Number B015-3200 for Maytag and Riccar Models M500,R10S, R1... | B0153200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701700B | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 30 | | Light Socket Part Number A018-0900 for Simplicity and Maytag and Riccar Models F3100, F3300, F330... | A0180900 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Light Bulb | A350-0000 | Not Available |
| 32 |  | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart |
| 34 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 |  | Plug For Circuit Breaker Hole (F3700, F3700.
SAND, F3700C) Part Number A018-1414 for Simplicity a... | A0181414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Nut | A432-0605 | Not Available |
| 40 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... | B2204500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

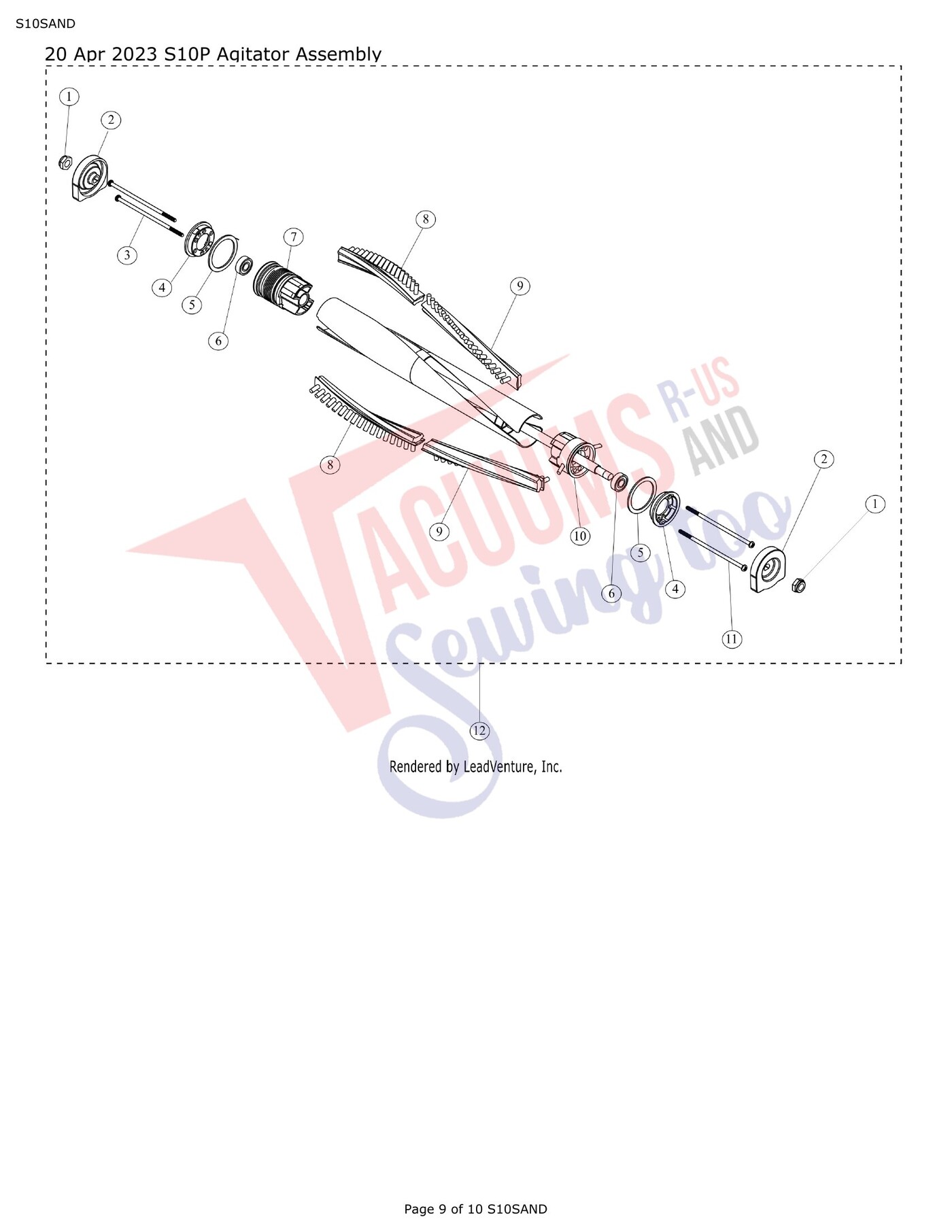

| # | Part image | Description | SKU | Price |
| 1 | Not Available | N/A | N/A | Not Available |
| 2 |  | Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PR... | B0131600 | $7.99Add to cart |
| 3 | | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Retainer Ring | B475-1900 | Not Available |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 | Not Available | Bearing | A735-0200 | Not Available |
| 7 |  | Pulley Clamping Design for Poly V Belt Part Number B013-1400 for Simplicity and Riccar Models F37... | B0131400 | $8.99Add to cart |
| 8a |  | Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8b |  | Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND... | B0130301B | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8c | Not Available | Long Brush Strip Natural (Softest) | B013-0300 | Not Available |
| 9a |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | $5.99Add to cart |
| 9b |  | Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND,... | B0130401B | $4.50Add to cart |
| 9c | Not Available | Short Brush Strip Natural (Softest) | B013-0400 | Not Available |
| 10 |  | Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity an... | B0131500 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
