Schematic and parts book for simplicity S10D Freedom

Compatible with 1 Simplicity model

S10D

Schematic and parts book for simplicity S10D Freedom. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Popular Supplies

Agitator Steel Assembly ULW Clamped R10S S10D R10D

Brush Roll Assembly Steel for Riccar and Simplicity R10D and S10D

$88.99

Product is special order — allow 2-4 weeks for delivery.

$88.99Add to cart

Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW

$6.99

$6.99Add to cart

Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS

$5.99

$5.99Add to cart

Replacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell style 1 and 4 pn: ULW-B2

$4.99

Original price was: $6.00.Current price is: $4.99.Add to cart

Helpful Repair Videos

How to Replace a Cord on a Riccar, Simplicity, or CleanMax Lightweight with the Switch in the Handle

Simplicity S10D schematic page 1 preview

Simplicity S10D schematic page 2 preview

Simplicity S10D schematic page 3 preview

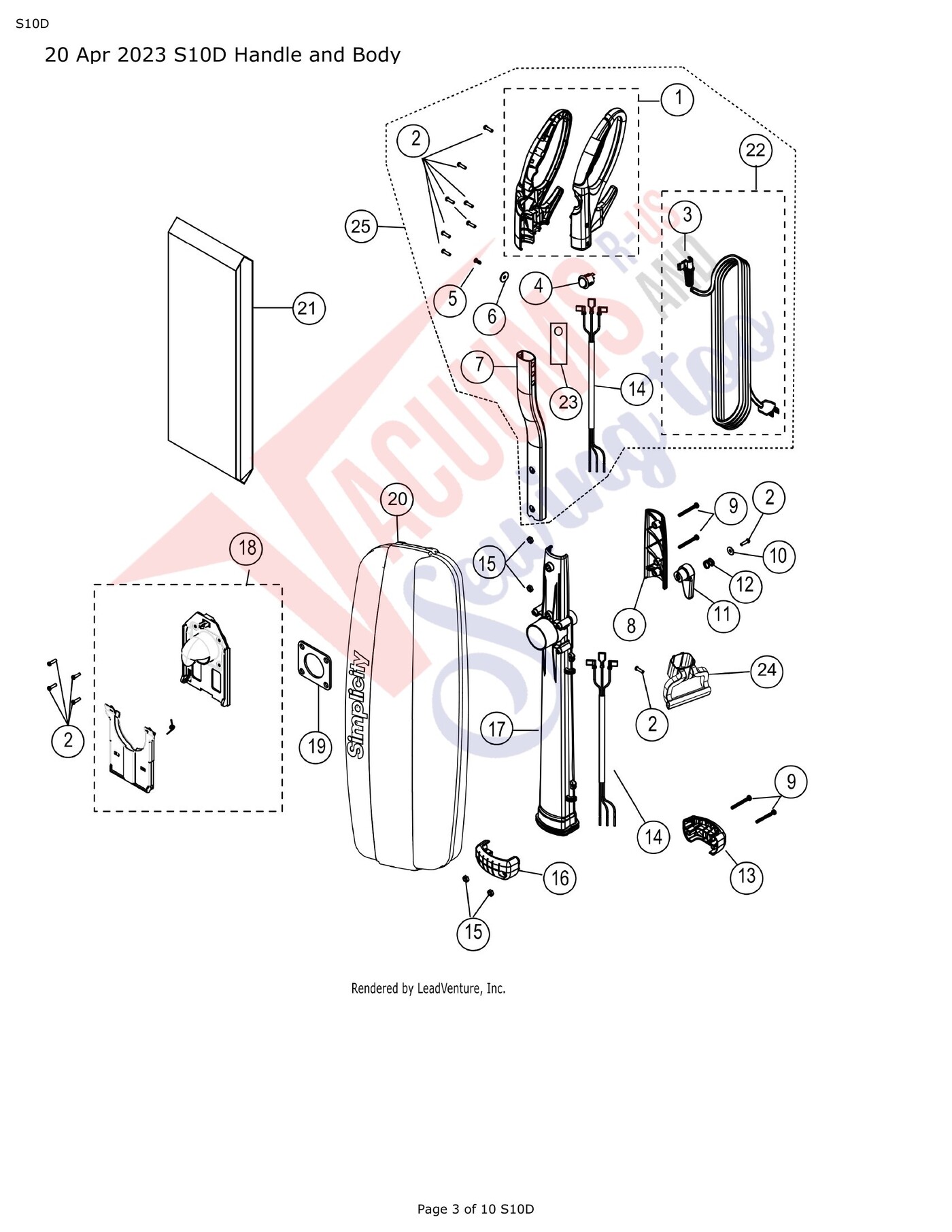

Simplicity S10D exploded schematic diagram (page 1)

Click to enlarge

#	Part image	Description	SKU	Price
1		Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R1... More Product Details	C2203514	$25.99Add to cart Product is special order please allow 2-4 weeks for delivery.
2	Not Available	Screw #8-18 x 5/8"	A732-8314	Not Available
3		Strain Relief Part Number B333-3014B for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD... More Product Details	B3333014B	$2.99Add to cart
4		Riccar and Simplicity 2 Speed Round Switch for Supralites More Product Details	A3281700	$3.99Add to cart
5		Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... More Product Details	A7328414	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
6		Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, ... More Product Details	B0172500	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
7		Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... More Product Details	B2203400	$12.99Add to cart Product is special order please allow 2-4 weeks for delivery.
8		Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... More Product Details	B2203114	$3.99Add to cart Product is special order please allow 2-4 weeks for delivery.
9		Screws #10 Handle Bolts S10E r10E More Product Details	A432-0705	$2.99Add to cart
10		Upper Cord Hook Washer Hardened More Product Details	A430-0405	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
11		Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAN... More Product Details	B2203314	$2.99Add to cart
12		Upper Cork Hook Spring More Product Details	B430-0200	$2.99Add to cart
13	Not Available	Back Neck Coupling	B220-1114	Not Available
14		Wire Harness Sensor Part Number A434-4043 for Maytag and Riccar Models M500, R10S, and R10D More Product Details	A4344043	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
15		Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... More Product Details	A4320805	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
16	Not Available	Front Neck Coupling	B220-1014	Not Available
17		Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... More Product Details	B2203014C	$16.99Add to cart Product is special order please allow 2-4 weeks for delivery.
18		Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... More Product Details	D4842282	$13.99Add to cart Product is special order please allow 2-4 weeks for delivery.
19		Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... More Product Details	B2203900	$2.99Add to cart
20	Not Available	Hard Shell Bag	D220-5400	Not Available
21a		HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R1... More Product Details	B2205382C	$4.99Add to cart Product is special order please allow 2-4 weeks for delivery.
21b		Charcoal/HEPA Bag (Bulk Single) Part Number B220-5382D for Riccar and Simplicity Models R10CV, R1... More Product Details	B2205382D	$4.99Add to cart Product is special order please allow 2-4 weeks for delivery.
21c		DO NOT USE THIS SKU Sub for Riccar Simplicity Freedom HEPA Bags with Activated Charcoal 6pk for S... More Product Details	098612552468	Original price was: $22.77.Current price is: $21.99.Read more
21d	Not Available	Charcoal /HEPA Bag (6 Pack)	SLHC-6	Not Available
21e		Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R1... More Product Details	B2118800	$3.29Add to cart Product is special order please allow 2-4 weeks for delivery.
22		35’ Power Cord Assembly (R10S, R10D) Part Number D434-4243 for Riccar Models R10S, R10D, R10P, R1... More Product Details	D4344243	$50.99Add to cart Product is special order please allow 2-4 weeks for delivery.
23		Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... More Product Details	B3885900	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
24		Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 More Product Details	B2206214	$5.99Add to cart
25		Handle Assembly (R10S, R10D) Part Number D220-3100 for Riccar Models R10S, R10D, R10P, R10SAND, R17 More Product Details	D2203100	$129.99Add to cart Product is special order please allow 2-4 weeks for delivery.

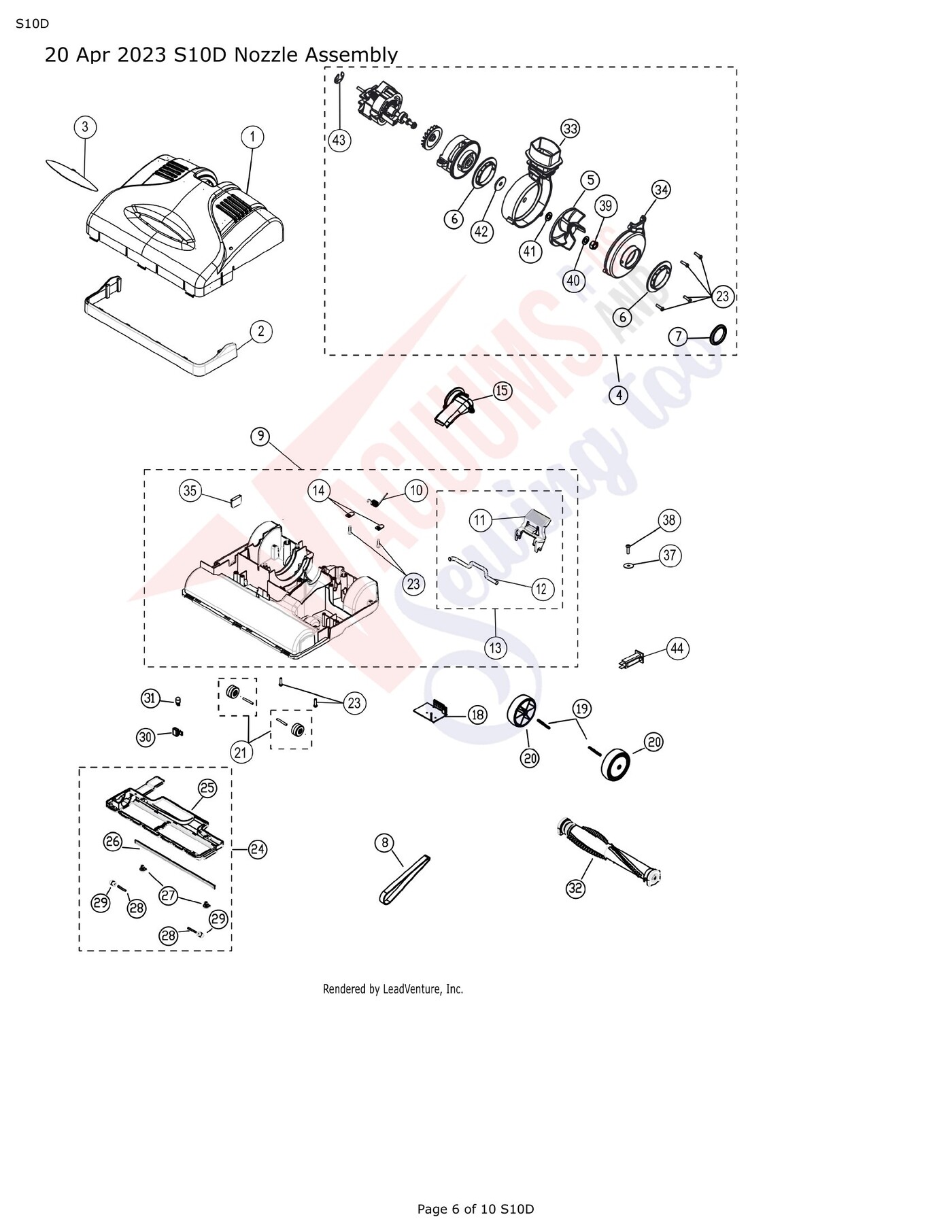

Simplicity S10D exploded schematic diagram (page 2)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	NOZZLE COVER S10D RASPBERRY METALLIC PLASTIC More Product Details	B2202336	$20.99Read more
2	Not Available	Black Furniture Guard	B220-2614	Not Available
3		Headlamp Lens Textured F3300 6000 Symmetry S10 S20 More Product Details	B0180315C	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
4		Motor Assembly for Riccar and Simplicity ULW S10 More Product Details	D2204000	$151.99Add to cart Product is special order please allow 2-4 weeks for delivery.
5		DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW More Product Details	B2204314	$17.99Add to cart Product is special order please allow 2-4 weeks for delivery.
6	Not Available	Pivot Bushing	B220-4414	Not Available
7		Direct Air Motor Inlet Seal ULW More Product Details	WP10774	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
8a	Not Available	Flat Belt (2 Pack)	SBF-2	Not Available
8b		Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums More Product Details	B0140814B	$6.00Add to cart Product is special order please allow 2-4 weeks for delivery.
8b		Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640 Also Fits Simplicity Freedom - Replacement For:... More Product Details	17394	$6.00Add to cart Special order — allow 2-4 weeks.
8b		Compatible alternateReplacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... More Product Details	36310001	Original price was: $6.00.Current price is: $4.99.Add to cart
8b		Compatible alternateRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk More Product Details	RBS2	$10.99Add to cart Special order — allow 2-4 weeks.
9		Basetray Assembly M500 S10 R10 More Product Details	D220-0114	$42.99Add to cart Product is special order please allow 2-4 weeks for delivery.
9		Available ReconditionedReconditioned Basetray Assembly M500 S10 R10 More Product Details	D220-0114R	$36.99Add to cart
10		Foot spring for riccar r10 and simplicity s10 freedom supralights More Product Details	B2200900	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
11		Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom More Product Details	B2200714	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
12	No Image	Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 More Product Details	B2200800	$3.99Add to cart
13		UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 More Product Details	D2200714	$13.99Add to cart
14	Not Available	Axle Clamp	54.136	Not Available
15		Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... More Product Details	B2200214	$3.99Add to cart
18		PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models F3400, F3500,... More Product Details	B3170000K	$21.99Add to cart Product is special order please allow 2-4 weeks for delivery.
19	Not Available	Rear Wheel Axle	B010-2800C	Not Available
20		Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... More Product Details	C2200531C	$4.99Add to cart Product is special order please allow 2-4 weeks for delivery.
21		Front Wheel Assembly and Axle for UltraLightWeights More Product Details	WP11198	$5.99Add to cart Product is special order please allow 2-4 weeks for delivery.
23	Not Available	Screw #8-18 x 5/8"	A732-8314	Not Available
24a		Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... More Product Details	D2200414	$15.99Add to cart
24b		ULW Baseplate Assembly for Soft Carpet More Product Details	D220-1414	$29.99Add to cart Product is special order please allow 2-4 weeks for delivery.
25	Not Available	Baseplate Cover	BPC	Not Available
26a		Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... More Product Details	B0153000B	$1.99Add to cart
26b		Squeegee (Soft Carpet Baseplate) Part Number B015-3200 for Maytag and Riccar Models M500,R10S, R1... More Product Details	B0153200	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
27		Base Plate Cover Screw Black for R10 and S10 More Product Details	B2200414	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
28		Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... More Product Details	B3701700B	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
29		Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... More Product Details	B3701843	$2.99Add to cart
30		Light Socket Part Number A018-0900 for Simplicity and Maytag and Riccar Models F3100, F3300, F330... More Product Details	A0180900	$3.99Add to cart Product is special order please allow 2-4 weeks for delivery.
31	Not Available	Light Bulb	A350-0000	Not Available
32		Brush Roll Assembly Steel for Riccar and Simplicity R10D and S10D More Product Details	D220-0200	$88.99Add to cart Product is special order please allow 2-4 weeks for delivery.
33		Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 More Product Details	B220-4014	$7.99Add to cart
34		Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 More Product Details	B220-4114	$4.99Add to cart Product is special order please allow 2-4 weeks for delivery.
35		Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... More Product Details	B0161914	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
37		Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... More Product Details	B0340100	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
38		Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... More Product Details	A7322500	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
39	Not Available	Nut	A432-0605	Not Available
40		Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... More Product Details	A7332200	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
41		Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... More Product Details	A7333300	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
42		Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... More Product Details	B2204500	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
43		E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... More Product Details	A7323000	$2.99Add to cart
44		Circuit Breaker 5 Amp for Riccar More Product Details	A028-0114B	$4.99Add to cart

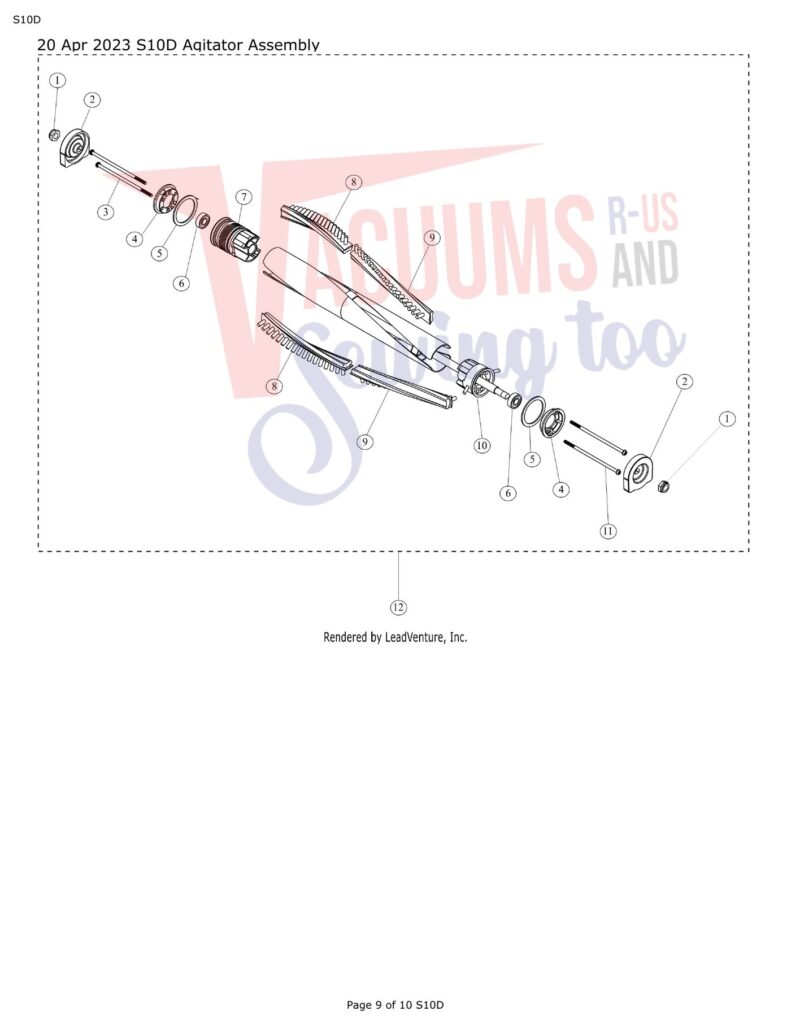

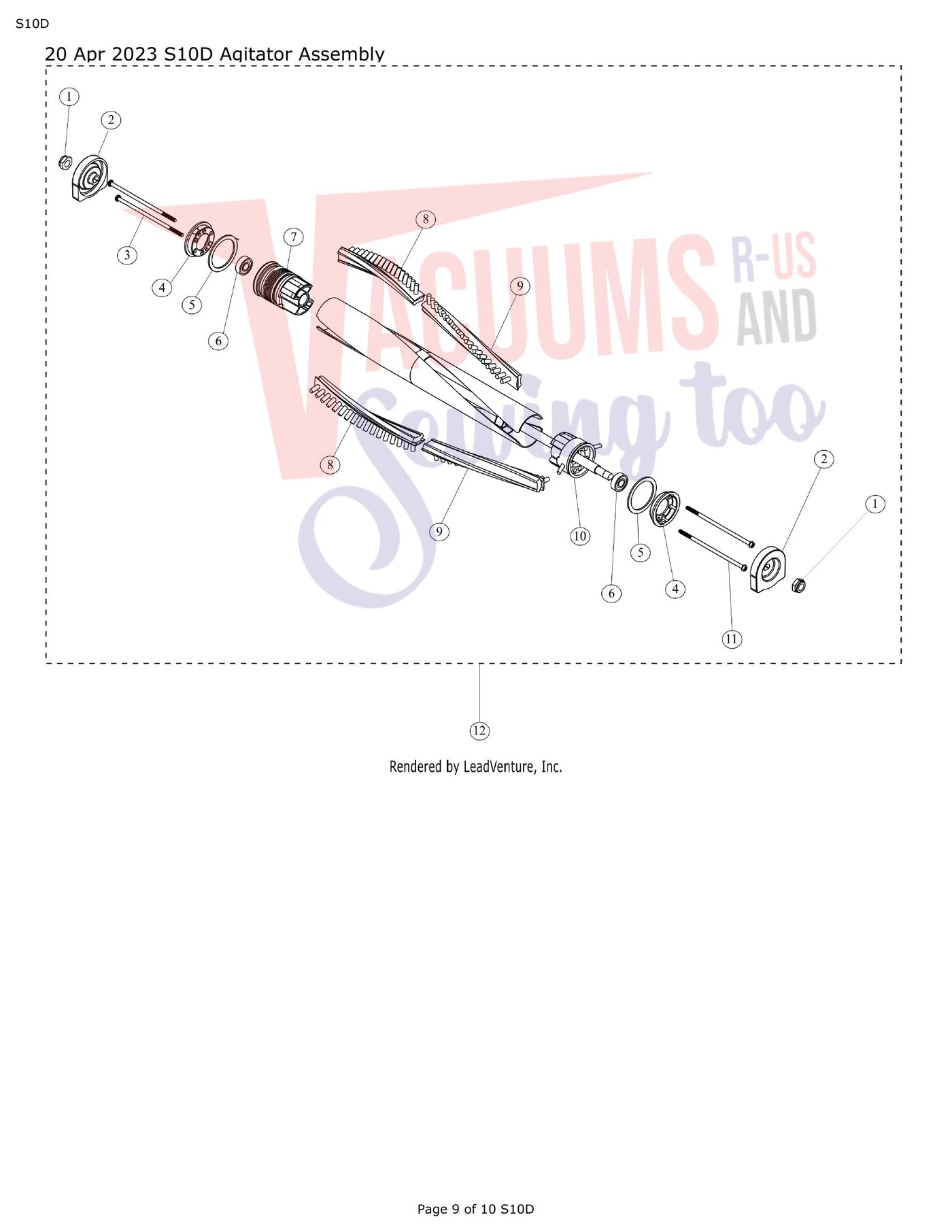

Simplicity S10D exploded schematic diagram (page 3)

Click to enlarge

#	Part image	Description	SKU	Price
1	Not Available	N/A	N/A	Not Available
2		Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PR... More Product Details	B0131600	$7.99Add to cart
3		Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... More Product Details	A7331810	$2.99Add to cart Product is special order please allow 2-4 weeks for delivery.
4	Not Available	Retainer Ring	B475-1900	Not Available
5		Felt Seal for ULW Metal Brush Rollers More Product Details	WP11569	$3.99Add to cart
6	Not Available	Bearing	A735-0200	Not Available
7	Not Available	Belt Pulley	B220-1200	Not Available
8a		Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW More Product Details	B0131000	$6.99Add to cart
8b		Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND... More Product Details	B0130301B	$4.50Add to cart Product is special order please allow 2-4 weeks for delivery.
8c	Not Available	Long Brush Strip Natural (Softest)	B013-0300	Not Available
9a		Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS More Product Details	B4750400B	$5.99Add to cart
9b		Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND,... More Product Details	B0130401B	$4.50Add to cart
9c	Not Available	Short Brush Strip Natural (Softest)	B013-0400	Not Available
10		Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity an... More Product Details	B0131500	$9.99Add to cart Product is special order please allow 2-4 weeks for delivery.
11		Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... More Product Details	A7331800	$2.19Add to cart Product is special order please allow 2-4 weeks for delivery.
12		Brush Roll Assembly Steel for Riccar and Simplicity R10D and S10D More Product Details	D220-0200	$88.99Add to cart Product is special order please allow 2-4 weeks for delivery.
