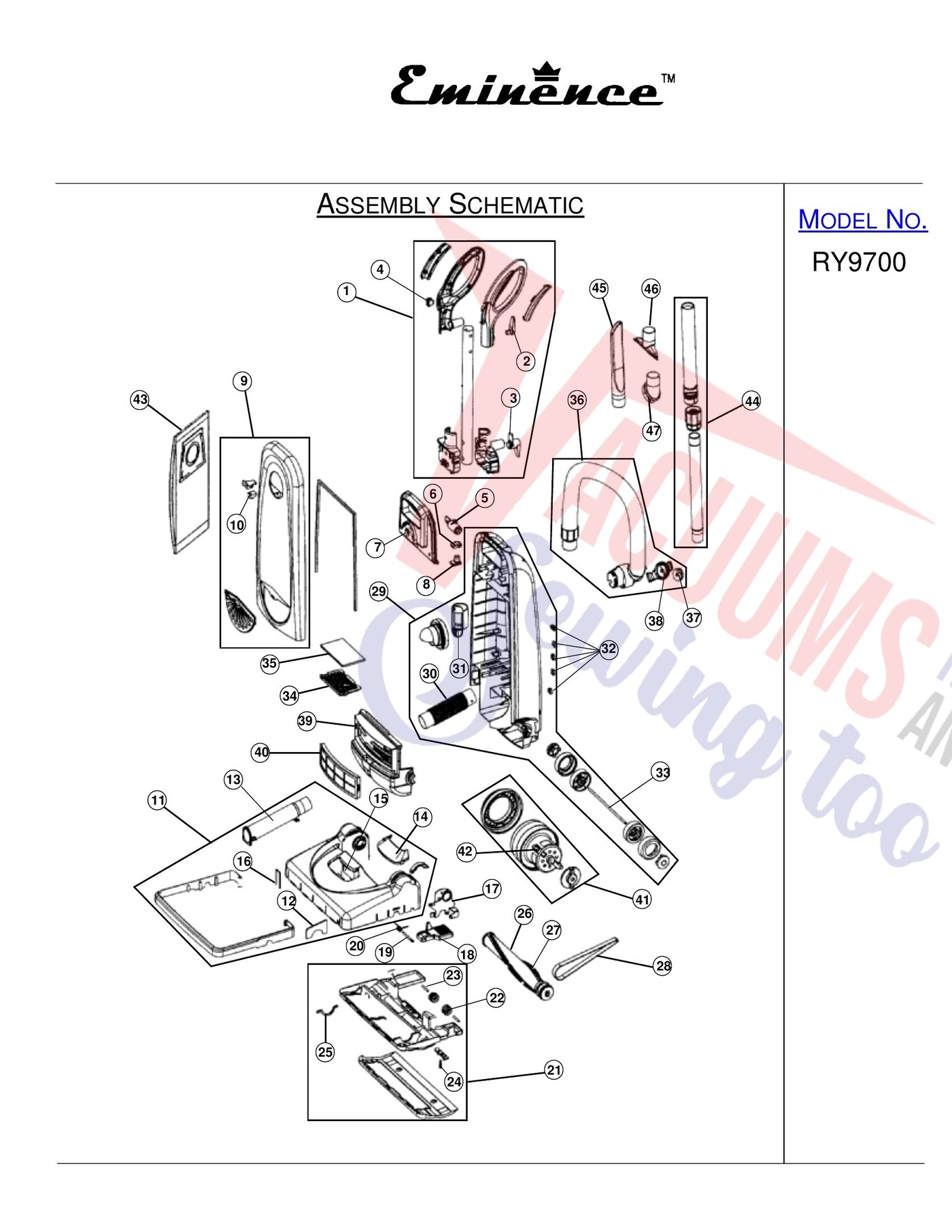

Schematic and parts book for royal RY9700 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSEMBLY | 3622605000 | Not Available |
| 2 | Not Available | UPPER CORD HOOK | 1PD0435000 | Not Available |
| 3 | Not Available | LOWER CORD HOOK | 1PD0450000 | Not Available |
| 4 | Not Available | SWITCH | 1PD0425000 | Not Available |
| 5 | Not Available | BODY HARNESS ASSEMBLY | 3622716200 | Not Available |
| 6 | Not Available | F.B.I. INDICATOR HARNESS | 3622716300 | Not Available |
| 7 | Not Available | F.B.I. LAMP INDICATOR | 1PD0185000 | Not Available |
| 8 | Not Available | VALVE INDICATOR | 3625402200 | Not Available |
| 9 |  | Blue Front Panel Mry9750 For: royal | 3621453700 | $45.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | LATCH SPRING | 1PD0281000 | Not Available |
| 12 | Not Available | FELT SEAL NOZZLE | 3624012900 | Not Available |
| 13 | Not Available | LOWER DIRT TUBE | 1PD0140000 | Not Available |
| 14 | Not Available | LAMP COVER | 3621453300 | Not Available |
| 15 | Not Available | 906 BULB | 1920906000 | Not Available |
| 16 | Not Available | SPRING BELT GUIDE | 3625111300 | Not Available |
| 17 | Not Available | BELT GUIDE | 3622505400 | Not Available |
| 18 | Not Available | HANDLE RELEASE PEDAL | 1PD0325000 | Not Available |
| 19 | Not Available | HANDLE RELEASE PEDAL PIN | 1PD0330000 | Not Available |
| 20 | Not Available | HANDLE RELEASE PEDAL SPRING | 1PD0335000 | Not Available |
| 21 | No Image | Bottom Plate Assembly - Royal Ry9700 For: royal | 3624503200 | $52.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | FRONT ROLLER | 1PD0145000 | Not Available |
| 23 | Not Available | FRONT ROLLER AXLE | 1PD0020000 | Not Available |
| 24 | Not Available | NOZZLE RELEASE SCREW | 1PD0025000 | Not Available |
| 25 | Not Available | FELT SEAL NOZZLE GUARD | 3624012800 | Not Available |
| 26 | Not Available | BRUSH ROLL ASSEMBLY | 3629311500 | Not Available |
| 27 | Not Available | BRUSH ROLL BRISTLE | 1PD0550000 | Not Available |
| 28 |  | Royal/Dirt Devil Style 21 Belt 1pk | 1PD0034600 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | BACK PANEL ASSEMBLY | 3620434000 | Not Available |
| 30 | Not Available | LOWER HOSE | 3623210800 | Not Available |
| 31 | Not Available | HOSE CONNECTOR | 1PD0190000 | Not Available |
| 32 | Not Available | TOOL CLIPS | 1PD0080000 | Not Available |
| 33 | Not Available | REAR AXLE | 1PD0085000 | Not Available |
| 34 | Not Available | FILTER SUPPORT | 3622401300 | Not Available |
| 35 | Not Available | INNER FOAM CHAMBER FILTER | 3621910300 | Not Available |
| 36 | Not Available | HOSE ASSEMBLY | 3623211000 | Not Available |
| 37 | Not Available | HOSE ADAPTOR COVER | 1PD0010600 | Not Available |
| 38 | Not Available | HOSE ADAPTOR VALVE | 1PD0030B00 | Not Available |
| 40 | Not Available | HEPA EXHAUST FILTER ASSEMBLY | 3621910200 | Not Available |
| 41 | Not Available | MOTOR ASSEMBLY | 3962820550 | Not Available |
| 42 | Not Available | THERMOSTAT | 3629005500 | Not Available |
| 43 | Not Available | TYPE U BAG - HEPA | 1116016000 | Not Available |
| 43 | Not Available | TYPE U BAG - HEPA / 7 PACK | 3115016000 | Not Available |
| 44 | Not Available | TELESCOPE WAND ASSEMBLY | 3624416600 | Not Available |
| 45 | Not Available | CREVICE TOOL | 3628101800 | Not Available |
| 46 | No Image | UPHOLSTERY TOOL, RY9750 Part Number: 3628101900 for Royal | 3628101900 | $8.65Read more |
| 47 | Not Available | DUSTING BRUSH | 3629311400 | Not Available |
