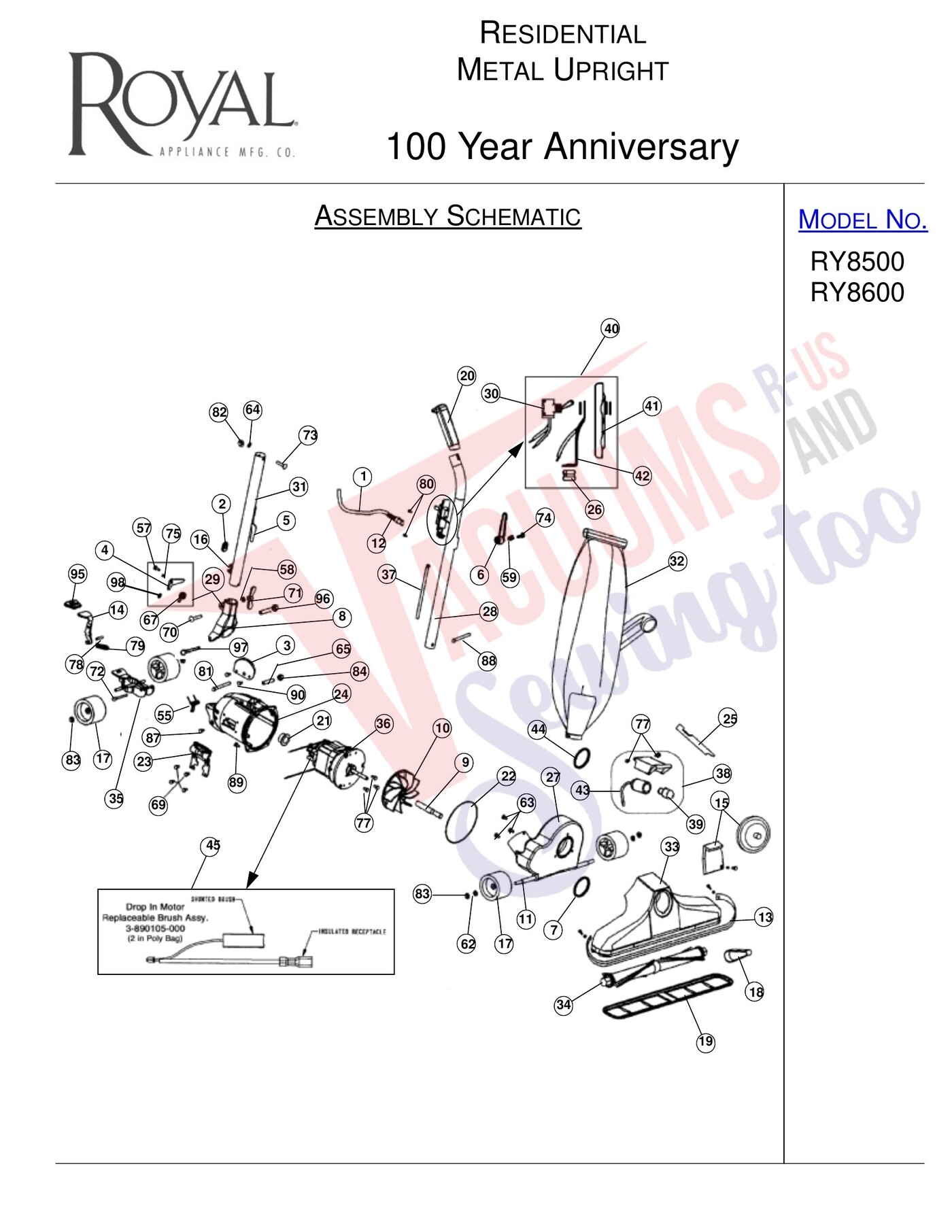

Schematic and parts book for Royal RY8500;RY8600;40;20;30;82;64;41;73 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | RY8600 CORD 40’ 3-WIRE - BLACK RY8600 | 088340 | Not Available |
| 1 | Not Available | RY8500 CORD 50’ 3-WIRE - GREY RY8500 | 061136 | Not Available |
| 2 | Not Available | RY8500 RY8600 GROMMET | 230324 | Not Available |
| 3 | Not Available | RY8500 RY8600 HANDLE STOP PLATE | 133716 | Not Available |
| 4 | Not Available | RY8500 RY8600 HANDLE RELEASE LEVER | 133739 | Not Available |
| 5 | Not Available | RY8500 RY8600 CORD HOOK - LOWER | 259316 | Not Available |
| 6 | Not Available | RY8500 RY8600 CORD HOOK - UPPER QUICK RELEASE | 259319 | Not Available |
| 7 | Not Available | RY8500 RY8600 GASKET NOZZLE SEALING | 285427 | Not Available |
| 8 | Not Available | RY8500 RY8600 HANDLE FORK REVISED - POLISHED | 028590 | Not Available |
| 9 | Not Available | RY8500 RY8600 SHAFT EXTENSION | 380261 | Not Available |
| 10 | Not Available | RY8500 RY8600 FAN / SLIP ON | 608005 | Not Available |
| 11 | Not Available | RY8500 RY8600 AXLE STUD | 611101 | Not Available |
| 12 | Not Available | RY8500 RY8600 STRAIN RELIEF - POWER CORD | 611305 | Not Available |
| 13 | Not Available | RY8500 RY8600 BUMPER - BLACK ORDER 180121A00 | 801201 | Not Available |
| 14 | Not Available | RY8500 RY8600 RELEASE PEDAL - INCREMENTAL | 690715 | Not Available |
| 15 | Not Available | RY8500 ADJUST-O-RITE PLATE ASSEMBLY - BLUE | 080169 | Not Available |
| 16 | Not Available | RY8500 RY8600 CORD CLIP | 670844 | Not Available |
| 17 | Not Available | RY8500 RY8600 WHEEL | 671705 | Not Available |
| 18 | Not Available | RY8500 RY8600 BELT | 672260 | Not Available |
| 19 | Not Available | RY8500 RY8600 NOZZLE GUARD - 14” | 672270 | Not Available |
| 20 | Not Available | RY8500 RY8600 HANDLE GRIP - BLACK | 880314 | Not Available |
| 21 | Not Available | RY8500 RY8600 GROMMET MOTOR | 870006 | Not Available |
| 22 | Not Available | RY8500 RY8600 MOTOR HOUSING O-RING | 870024 | Not Available |
| 23 | Not Available | RY8500 RY8600 SIDE PLATE | 870130 | Not Available |
| 24 | Not Available | RY8500 RY8600 MOTOR HOUSING - POLISHED | 871201 | Not Available |
| 25 | Not Available | RY8500 RY8600 BELT LIFTER | 880262 | Not Available |
| 26 | Not Available | RY8500 RY8600 STRAIN RELIEF - INTERNAL CORD | 880304 | Not Available |
| 27 | Not Available | RY8500 RY8600 FANCASE ASSEMBLY | 670116 | Not Available |
| 28 | Not Available | RY8500 RY8600 | 891051 | Not Available |
| 29 | Not Available | RY8500 | 028580 | Not Available |
| 30 | Not Available | RY8500 RY8600 SWITCH | 163302 | Not Available |

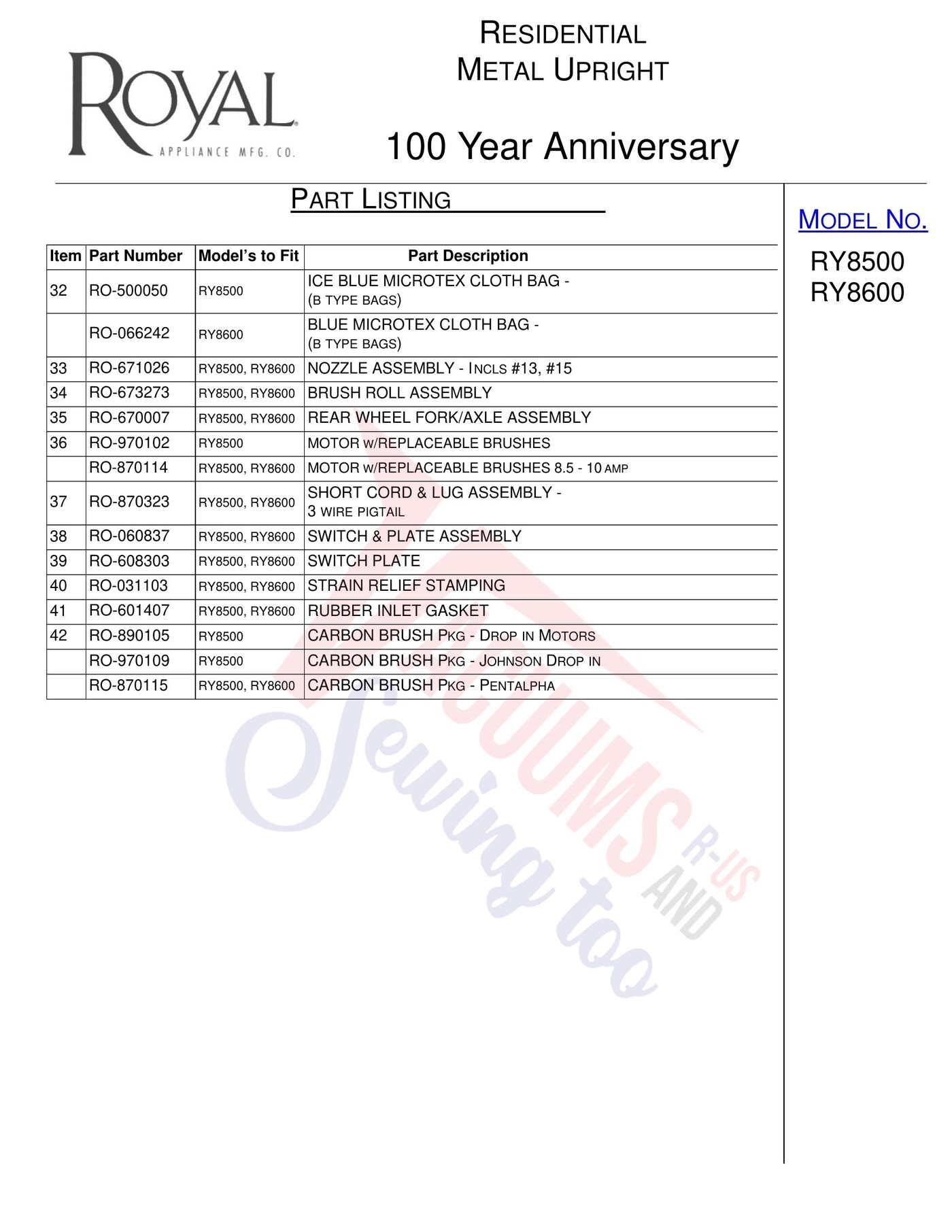

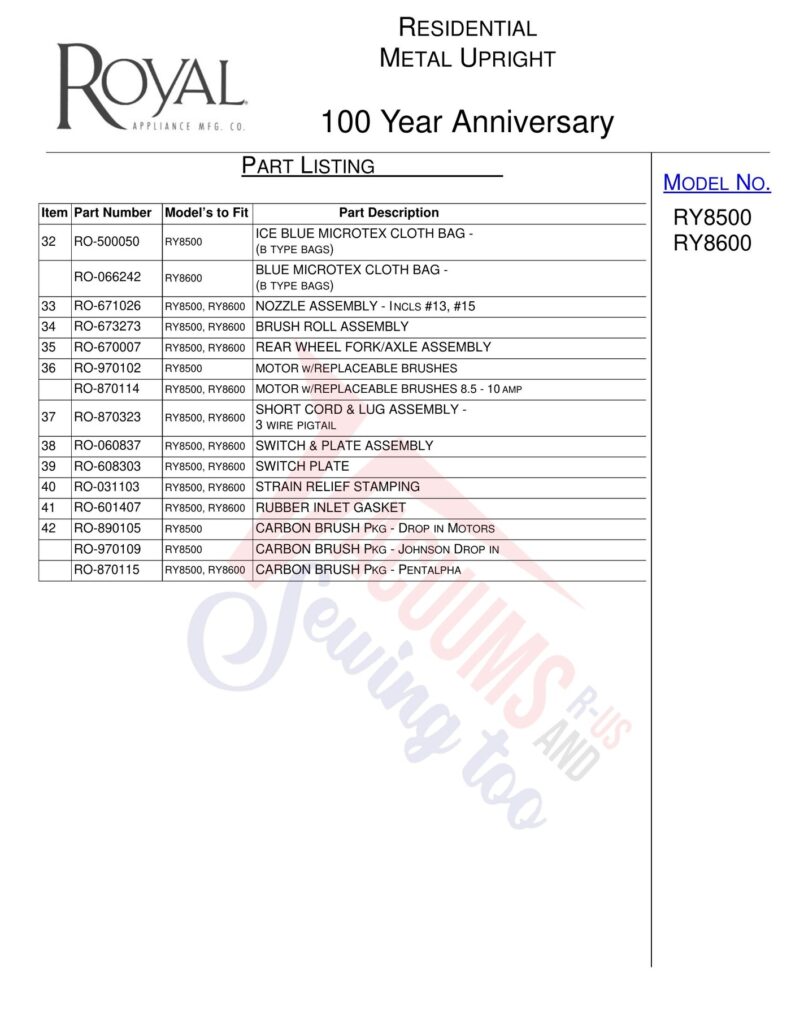

| # | Part image | Description | SKU | Price |
| XX | Not Available | RY8600 | 066242 | Not Available |
| XX | Not Available | RY8500 RY8600 MOTOR W/REPLACEABLE BRUSHES 8.5 - 10 AMP | 870114 | Not Available |
| XX | Not Available | RY8500 CARBON BRUSH PKG - JOHNSON DROP IN | 970109 | Not Available |
| XX | Not Available | RY8500 RY8600 CARBON BRUSH PKG - PENTALPHA | 870115 | Not Available |
| 32 | Not Available | RY8500 RY8600 | 500050 | Not Available |
| 33 | Not Available | RY8500 RY8600 NOZZLE ASSEMBLY - INCLS #13 #15 | 671026 | Not Available |
| 34 | Not Available | RY8500 RY8600 BRUSH ROLL ASSEMBLY | 673273 | Not Available |
| 35 | Not Available | RY8500 RY8600 REAR WHEEL FORK/AXLE ASSEMBLY | 670007 | Not Available |
| 36 | Not Available | RY8500 MOTOR W/REPLACEABLE BRUSHES | 970102 | Not Available |
| 37 | Not Available | RY8500 RY8600 | 870323 | Not Available |
| 38 | Not Available | RY8500 RY8600 SWITCH & PLATE ASSEMBLY | 060837 | Not Available |
| 39 | Not Available | RY8500 RY8600 SWITCH PLATE | 608303 | Not Available |
| 40 | Not Available | RY8500 RY8600 STRAIN RELIEF STAMPING | 031103 | Not Available |
| 41 | Not Available | RY8500 RY8600 RUBBER INLET GASKET | 601407 | Not Available |
| 42 | Not Available | RY8500 CARBON BRUSH PKG - DROP IN MOTORS | 890105 | Not Available |

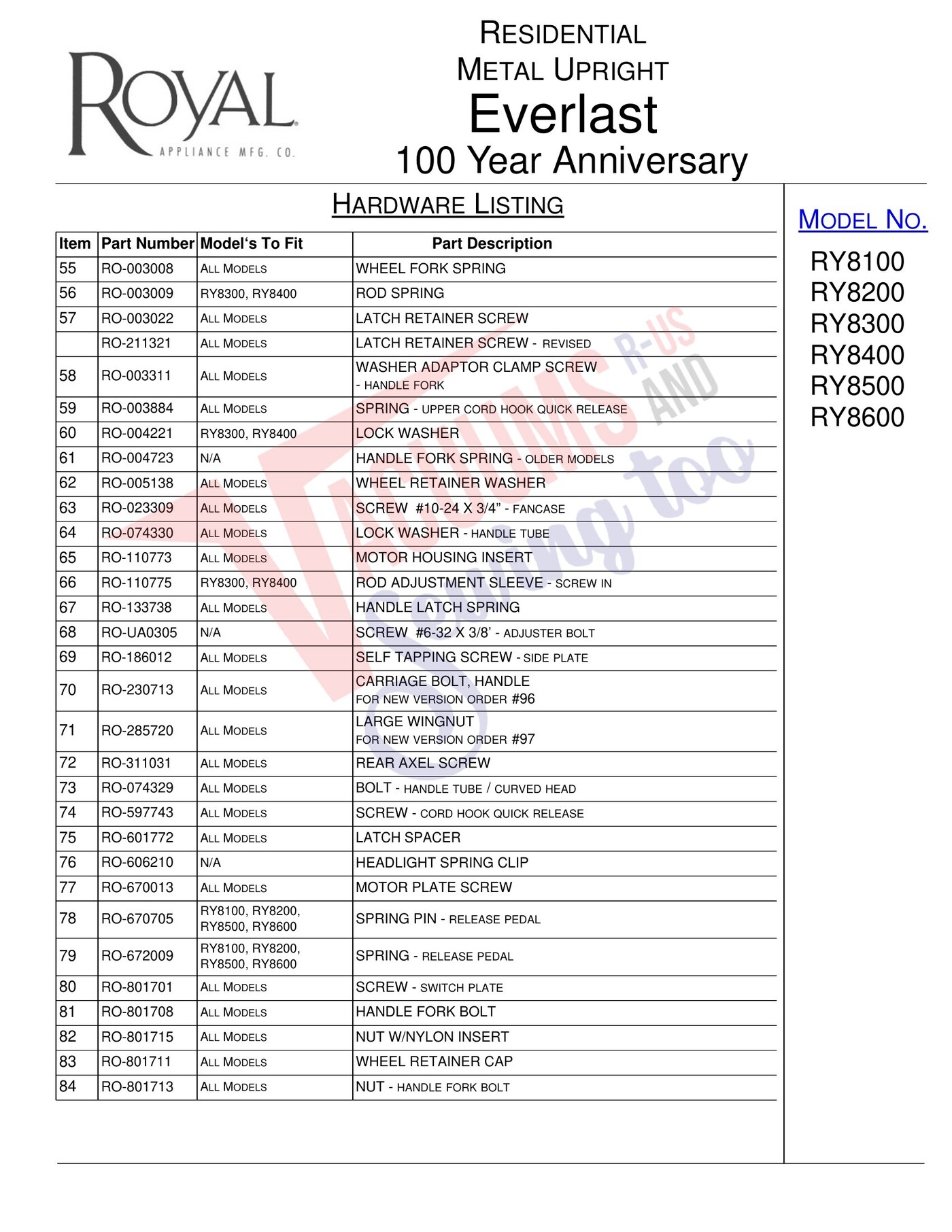

| # | Part image | Description | SKU | Price |
| XX | Not Available | ALL MODELS LATCH RETAINER SCREW - REVISED RY8400 | 211321 | Not Available |
| 55 | Not Available | ALL MODELS WHEEL FORK SPRING | 003008 | Not Available |
| 56 | Not Available | RY8300 RY8400 ROD SPRING | 003009 | Not Available |
| 57 | Not Available | ALL MODELS LATCH RETAINER SCREW RY8300 | 003022 | Not Available |
| 58 | Not Available | ALL MODELS - HANDLE FORK RY8500 | 003311 | Not Available |
| 59 | Not Available | ALL MODELS SPRING - UPPER CORD HOOK QUICK RELEASE RY8600 | 003884 | Not Available |
| 60 | Not Available | RY8300 RY8400 LOCK WASHER | 004221 | Not Available |
| 61 | Not Available | N/A HANDLE FORK SPRING - OLDER MODELS | 004723 | Not Available |
| 62 | Not Available | ALL MODELS WHEEL RETAINER WASHER | 005138 | Not Available |
| 63 | Not Available | ALL MODELS SCREW #10-24 X 3/4” - FANCASE | 023309 | Not Available |
| 64 | Not Available | ALL MODELS LOCK WASHER - HANDLE TUBE | 074330 | Not Available |
| 65 | Not Available | ALL MODELS MOTOR HOUSING INSERT | 110773 | Not Available |
| 66 | Not Available | RY8300 RY8400 ROD ADJUSTMENT SLEEVE - SCREW IN | 110775 | Not Available |
| 67 | Not Available | ALL MODELS HANDLE LATCH SPRING | 133738 | Not Available |
| 68 | Not Available | N/A SCREW #6-32 X 3/8’ - ADJUSTER BOLT | UA0305 | Not Available |
| 69 | Not Available | ALL MODELS SELF TAPPING SCREW - SIDE PLATE | 186012 | Not Available |
| 70 | Not Available | ALL MODELS | 230713 | Not Available |
| 71 | Not Available | ALL MODELS | 285720 | Not Available |
| 72 | Not Available | ALL MODELS REAR AXEL SCREW | 311031 | Not Available |
| 73 | Not Available | ALL MODELS BOLT - HANDLE TUBE / CURVED HEAD | 074329 | Not Available |
| 74 | Not Available | ALL MODELS SCREW - CORD HOOK QUICK RELEASE | 597743 | Not Available |
| 75 | Not Available | ALL MODELS LATCH SPACER | 601772 | Not Available |
| 76 | Not Available | N/A HEADLIGHT SPRING CLIP | 606210 | Not Available |
| 77 | Not Available | ALL MODELS MOTOR PLATE SCREW | 670013 | Not Available |
| 78 | Not Available | SPRING PIN - RELEASE PEDAL | 670705 | Not Available |
| 79 | Not Available | SPRING - RELEASE PEDAL | 672009 | Not Available |
| 80 | Not Available | ALL MODELS SCREW - SWITCH PLATE | 801701 | Not Available |
| 81 | Not Available | ALL MODELS HANDLE FORK BOLT | 801708 | Not Available |
| 82 | Not Available | ALL MODELS NUT W/NYLON INSERT | 801715 | Not Available |
| 83 | Not Available | ALL MODELS WHEEL RETAINER CAP | 801711 | Not Available |
| 84 | Not Available | ALL MODELS NUT - HANDLE FORK BOLT | 801713 | Not Available |

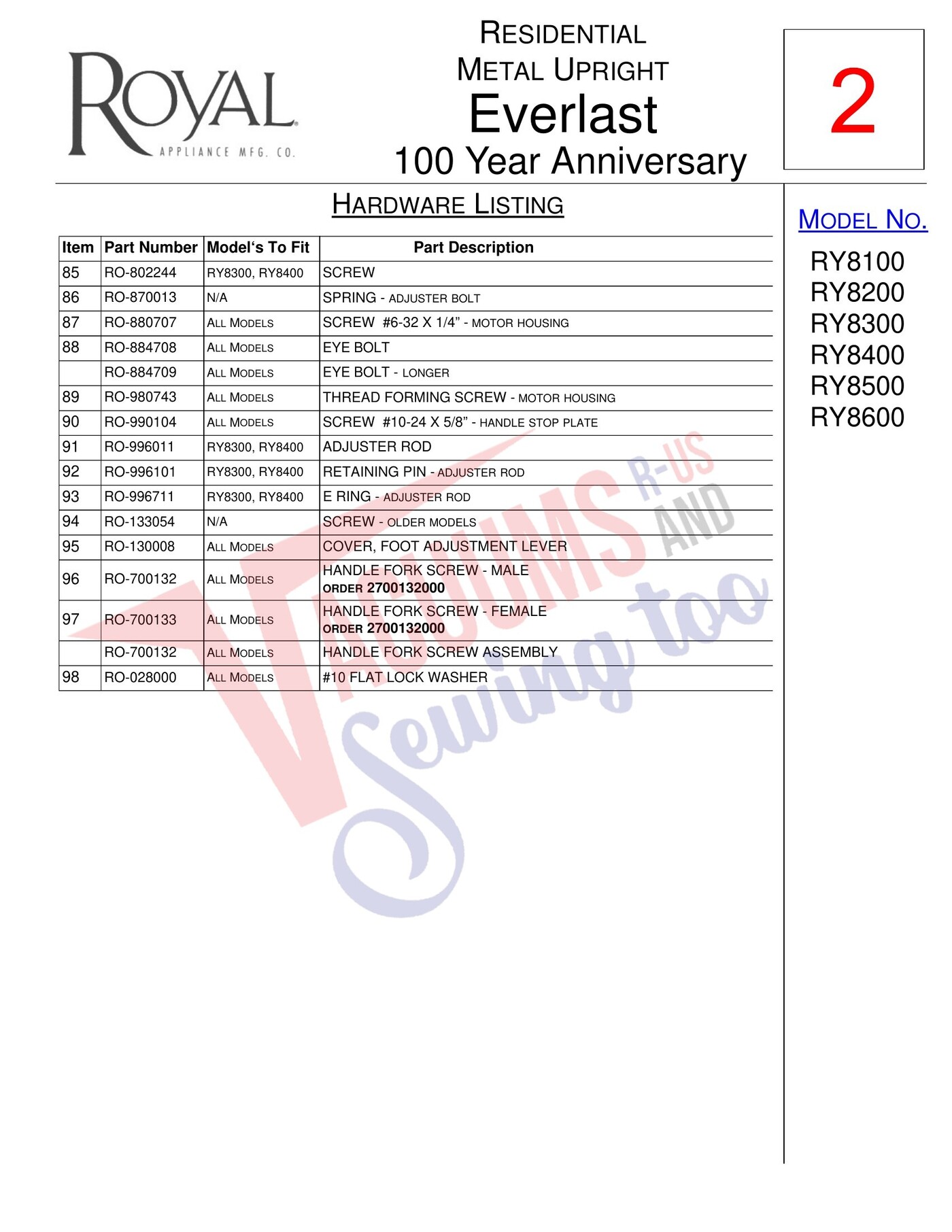

| # | Part image | Description | SKU | Price |
| XX | Not Available | ALL MODELS EYE BOLT - LONGER | 884709 | Not Available |
| 85 | Not Available | RY8300 RY8400 SCREW | 802244 | Not Available |
| 86 | Not Available | N/A SPRING - ADJUSTER BOLT | 870013 | Not Available |
| 87 | Not Available | ALL MODELS SCREW #6-32 X 1/4” - MOTOR HOUSING RY8300 | 880707 | Not Available |
| 88 | Not Available | ALL MODELS EYE BOLT RY8400 | 884708 | Not Available |
| 89 | Not Available | ALL MODELS THREAD FORMING SCREW - MOTOR HOUSING | 980743 | Not Available |
| 90 | Not Available | ALL MODELS SCREW #10-24 X 5/8” - HANDLE STOP PLATE | 990104 | Not Available |
| 91 | Not Available | RY8300 RY8400 ADJUSTER ROD | 996011 | Not Available |
| 92 | Not Available | RY8300 RY8400 RETAINING PIN - ADJUSTER ROD | 996101 | Not Available |
| 93 | Not Available | RY8300 RY8400 E RING - ADJUSTER ROD | 996711 | Not Available |
| 94 | Not Available | N/A SCREW - OLDER MODELS | 133054 | Not Available |
| 95 | Not Available | ALL MODELS COVER FOOT ADJUSTMENT LEVER | 130008 | Not Available |
| 96 | Not Available | ALL MODELS | 700132 | Not Available |
| 97 | Not Available | ALL MODELS | 700133 | Not Available |
| 98 | Not Available | ALL MODELS #10 FLAT LOCK WASHER | 028000 | Not Available |
