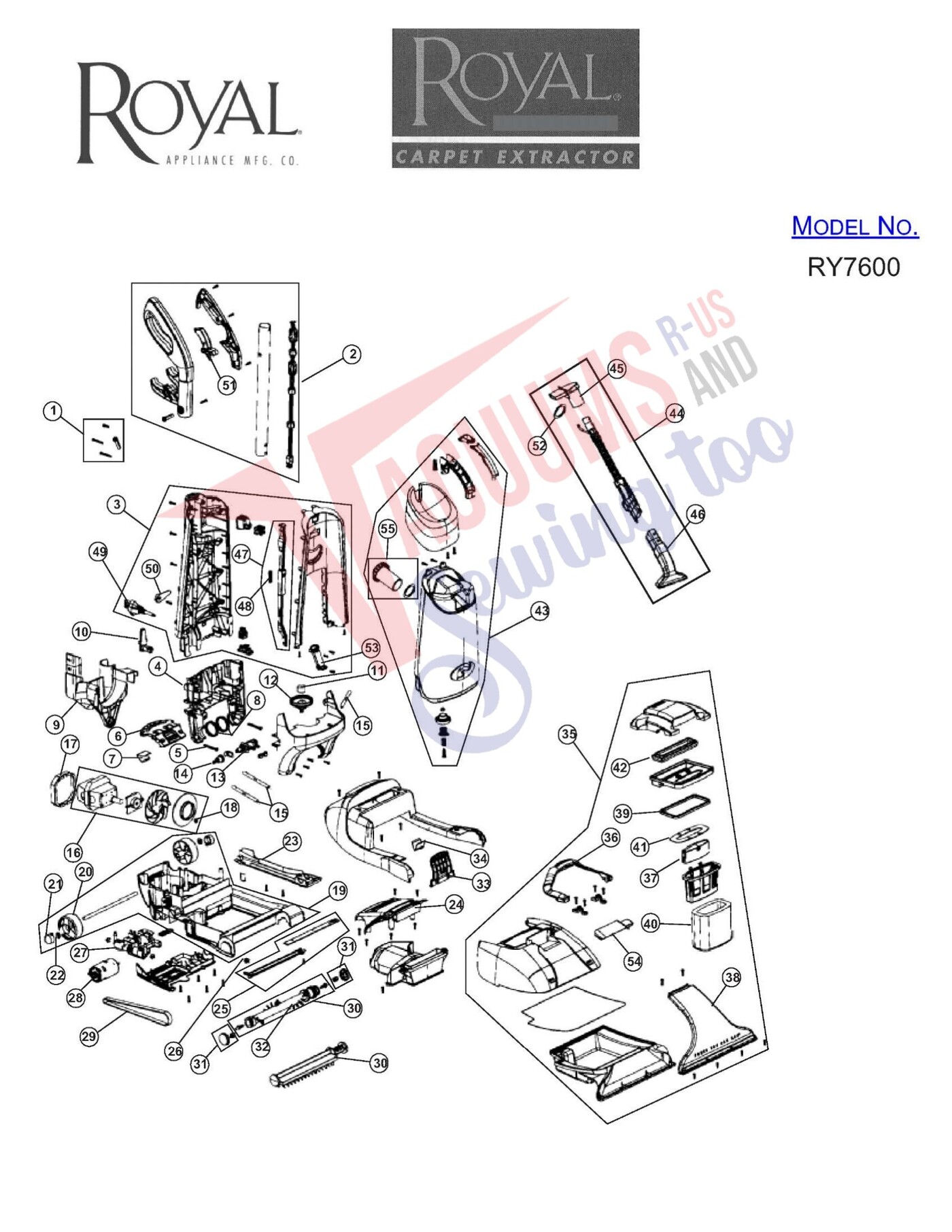

Schematic and parts book for royal RY7600 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW PACKAGE | 2VQ1760000 | Not Available |
| 2 | Not Available | UPPER HANDLE ASSEMBLY - BLUE | 2VQ2760000 | Not Available |
| 3 | Not Available | BACK PANEL ASSEMBLY - BLUE | 2VQ1505A00 | Not Available |
| 4 | No Image | Lower Back Panel - Black For: hoover | 1710502600 | $15.79Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | LOWER HANDLE SCREW | 1710672600 | Not Available |
| 6 | Not Available | HANDLE RELEASE / LOCK - GREY | 1700135B00 | Not Available |
| 7 | Not Available | HANDLE RELEASE PEDAL SPRING | 1700142000 | Not Available |
| 8 | Not Available | LOWER HANDLE PIVOT RINGS | 1700510000 | Not Available |
| 9 |  | Tool Caddy For: royal | 1VQ1515600 | $11.83Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | CORD HOOK - BLACK | 540611001 | Not Available |
| 11 | Not Available | TANK ADAPTER SCREEN | 1700595600 | Not Available |
| 12 |  | Adapter-Royal Ce7100 Tank Valve For: dirt devil | 1710580000 | $1.53Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | PORT HOSE CONN/VALVE | 2700575700 | Not Available |
| 14 | Not Available | PORT CONNECTOR | 1770140000 | Not Available |
| 15 | Not Available | 21" RUBBER TUBING | 1700567600 | Not Available |
| 16 | Not Available | MOTOR ASSEMBLY | 2700212000 | Not Available |
| 17 | No Image | GASKET, MOTOR CE7300 STEAMER Part Number: 1700210600 for Royal | 1700210600 | $6.55Read more |
| 18 | Not Available | FAN NUT | 1700270000 | Not Available |
| 19 | Not Available | BASE ASSEMBLY - BLACK | 2710100600 | Not Available |
| 20 | Not Available | REAR WHEEL | 1VQ1103600 | Not Available |
| 21 | Not Available | WHEEL HUB CAP | 1VQ1100600 | Not Available |
| 22 | Not Available | WHEEL RETAINER CAP | 1801711000 | Not Available |
| 23 |  | COVER, BELT STEAMER CE7100 Part Number: 1700115600 for Royal | 1700115600 | $3.41Read more |
| 24 | Not Available | MOTOR COVER - BASE - BLACK | 1700125600 | Not Available |
| 25 |  | Spray Plate Assembly - Dirt Devil Ce6000 Steamer For: dirt devil | 2700150600 | $1.74Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | WATER TUBE CLAMP | 1700568000 | Not Available |
| 27 | Not Available | PUMP | 1710400000 | Not Available |
| 28 | Not Available | BRUSH MOTOR | 1700301000 | Not Available |
| 29 |  | Belt, Flat Roommate Style 7 Part Number: 1400615600 for Royal | 1400615600 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | BRUSH ROLL ASSEMBLY | 2700335600 | Not Available |
| 31 | Not Available | BRUSH BEARING / END CAPS | 2700327000 | Not Available |
| 32 | Not Available | BRUSH STRIPS | 2700335000 | Not Available |
| 33 | Not Available | DIRTY WATER COVER LATCH | 1700735B00 | Not Available |
| 34 |  | SPRING, HANDLE LOCK CE7100 STEAMER Part Number: 1700140000 for Royal | 1700140000 | $0.64Read more |
| 35 | Not Available | DIRTY WATER TANK ASSEMBLY | 2VQ1750AP0 | Not Available |
| 36 |  | Handle Grip-Dirt Devil Ce7100 Dirty Water Tank For: dirt devil | 1700730600 | $4.16Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | FLOAT - DIRTY WATER TANK | 1700740900 | Not Available |
| 38 | Not Available | NOZZLE - DIRTY WATER TANK - CLEAR / NO LOGO | 2700100Q00 | Not Available |
| 39 | Not Available | SEAL - DIRTY WATER COVER | 1700725600 | Not Available |
| 40 | Not Available | FOAM FILTER - DIRTY WATER | 1700750600 | Not Available |
| 41 | Not Available | FLOAT SEAL - DIRT WATER TANK | 1700760600 | Not Available |
| 42 |  | Seal Dirty Water Tank Royal Ce-6100 Easy Steamer For: dirt devil | 1710230600 | $7.27Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | CLEAN WATER TANK ASSEMBLY | 2VQ1800A00 | Not Available |
| 44 | Not Available | 8' HOSE ASSEMBLY WITH ADAPTOR AND NOZZLE TOOL | 2VQ3760000 | Not Available |
| 45 | Not Available | DIRTY WATER HOSE ADAPTOR | 2770110600 | Not Available |
| 46 |  | Dirt Devil Upholstery Nozzle-royal 7100c | 2771600600 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | Not Available | LOWER HANDLE ROD W/SPRING | 1VQ1520600 | Not Available |
| 48 | Not Available | SPRING - LOWER HANDLE ROD | 1700525000 | Not Available |
| 49 | Not Available | 25' POWER CORD | 1700542600 | Not Available |
| 50 | Not Available | STRAIN RELIEF - BLACK | 1VQ1525600 | Not Available |
| 51 | Not Available | TRIGGER - BLUE | 1700625900 | Not Available |
| 52 | Not Available | HOSE ADAPTER SEAL | 1700758600 | Not Available |
| 53 | Not Available | WIRE CONNECTOR COVER - GREY | 1710507600 | Not Available |
| 54 | Not Available | HOSE DOOR - DIRTY WATER - CLEAR | 2700755Q00 | Not Available |
| 55 | Not Available | CLEAN WATER TANK FILL CUP | 2700805B00 | Not Available |
