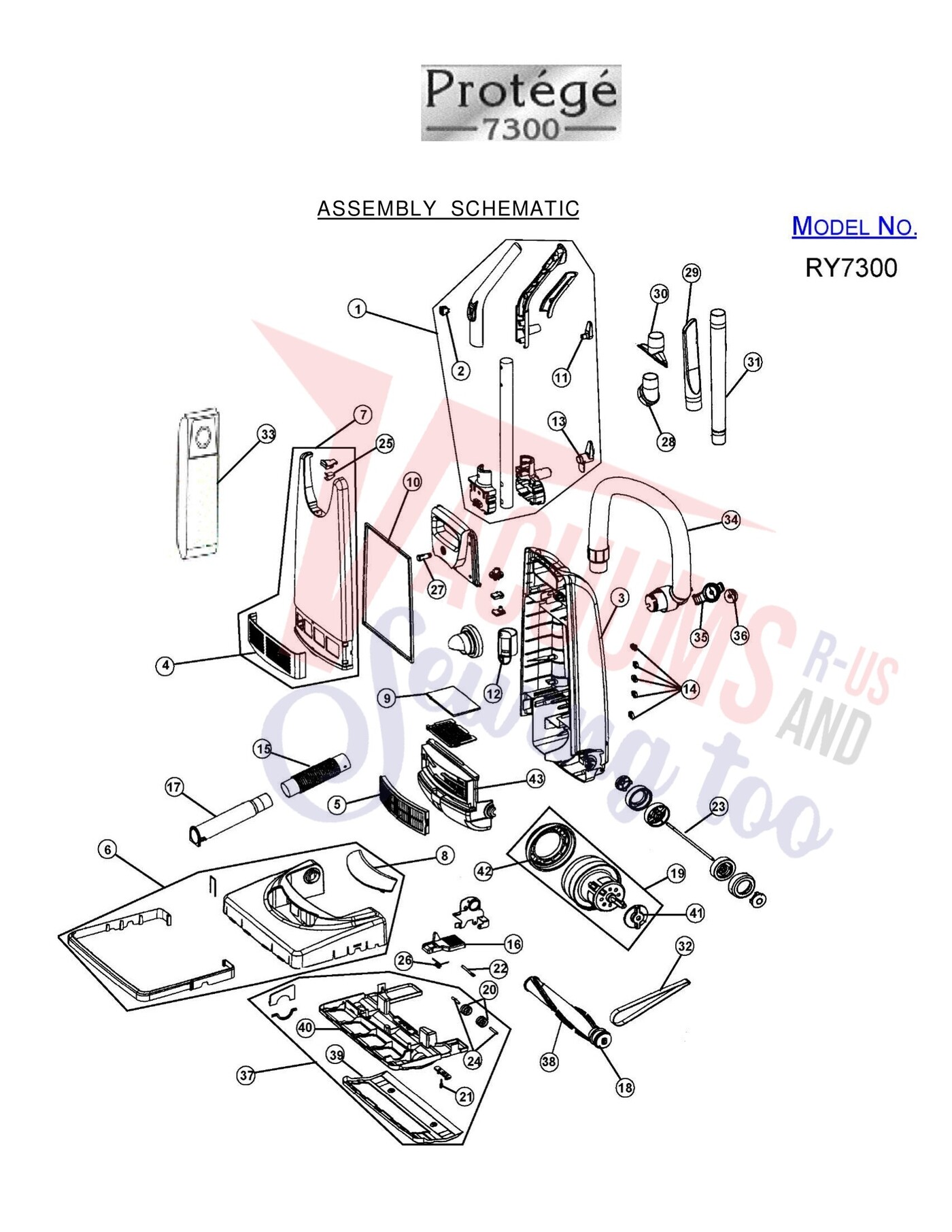

Schematic and parts book for royal RY7300 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| ** | Not Available | ATTACHMENT TOOL KIT | M308 | Not Available |
| 1 | Not Available | UPPER HANDLE ASSEMBLY | 2PD0455000 | Not Available |
| 2 | Not Available | SWITCH | 1PD0425000 | Not Available |
| 3 | Not Available | BACK PANEL | 1PD0030000 | Not Available |
| 4 | No Image | COVER, FILTER EXHAUST RY7200 Part Number: 1PD0070000 for Royal | 1PD0070000 | $2.53Read more |
| 5 | Not Available | EXHAUST FILTER & FRAME ASSEMBLY | 3621910200 | Not Available |
| 6 | Not Available | NOZZLE COVER ASSEMBLY | 2PD0103000 | Not Available |
| 7 | Not Available | FRONT PANEL ASSEMBLY | 2PD0030000 | Not Available |
| 8 | Not Available | LENS | 1PD0130000 | Not Available |
| 9 | Not Available | BAG CHAMBER FILTER | 1PD0265000 | Not Available |
| 10 | Not Available | FRONT PANEL GASKET | 1PD0175000 | Not Available |
| 11 | Not Available | UPPER CORD HOOK | 1PD0435000 | Not Available |
| 12 | Not Available | HOSE CONNECTOR | 1PD0190000 | Not Available |
| 13 | Not Available | LOWER CORD HOOK | 1PD0450000 | Not Available |
| 14 | Not Available | TOOL CLIP | 1PD0080000 | Not Available |
| 15 | Not Available | LOWER HOSE | 1PD0195000 | Not Available |
| 16 | Not Available | HANDLE RELEASE PEDAL | 1PD0325000 | Not Available |
| 17 | Not Available | LOWER DIRT TUBE | 1PD0140000 | Not Available |
| 18 | Not Available | BRUSH ROLL ASSEMBLY | 2PD0210000 | Not Available |
| 19 | Not Available | MOTOR ASSEMBLY | 2PD0056000 | Not Available |
| 20 | Not Available | FRONT ROLLER | 1PD0145000 | Not Available |
| 21 | Not Available | NOZZLE RELEASE SCREW | 1PD0025000 | Not Available |
| 22 | Not Available | HANDLE RELEASE PIN | 1pD0330000 | Not Available |
| 23 | Not Available | REAR WHEEL AXLE | 1PD0085000 | Not Available |
| 24 | Not Available | FRONT ROLLER AXLE | 1pD0020000 | Not Available |
| 25 | Not Available | FRONT PANEL SPRING | 1PD0281000 | Not Available |
| 26 | Not Available | HANDLE RELEASE SPRING | 1PD0335000 | Not Available |
| 27 | Not Available | FBI LAMP | 1PD0185000 | Not Available |
| 28 | Not Available | DUSTING BRUSH | 1PD0170000 | Not Available |
| 29 | No Image | CREVICE TOOL, RY7200 RY7300 Part Number: 1PD0160000 for Royal | 1PD0160000 | $5.85Read more |
| 30 | No Image | UPHOLSTERY TOOL, RY7300 Part Number: 1PD0165000 for Royal | 1PD0165000 | $6.46Read more |
| 31 | Not Available | TELESCOPIC WAND ASSEMBLY | 2PD0152000 | Not Available |
| 32 |  | Royal Protege Vacuum Belt Style 14 | 1PD0340600 | $6.60Read more |
| 33 | Not Available | TYPE U BAG / ROYALAIRE - 7 PACK | 3115016000 | Not Available |
| 34 | Not Available | HOSE ASSEMBLY | 2PD0246B00 | Not Available |
| 35 | Not Available | HOSE ADAPTOR COVER | 1PD0010600 | Not Available |
| 36 | Not Available | HOSE ADAPTOR VALVE | 1PD0030B00 | Not Available |
| 37 | Not Available | NOZZLE GUARD WITH BASE PLATE | 2PD0115000 | Not Available |
| 38 | Not Available | BRISTLE STRIPS (EA) BRUSH ROLL USES FOUR STRIPS | NOT AVAILABLE | Not Available |
| 39 | Not Available | BASE PLATE | 1PD0115000 | Not Available |
| 40 | Not Available | NOZZLE GUARD | 1PD0120000 | Not Available |
| 41 |  | Motor Grommet - Royal Ry 7200 Commercial For: royal | 3624009400 | $2.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | MOTOR GASKET | 3627901700 | Not Available |
| 43 | Not Available | MOTOR COVER | 3621437500 | Not Available |
