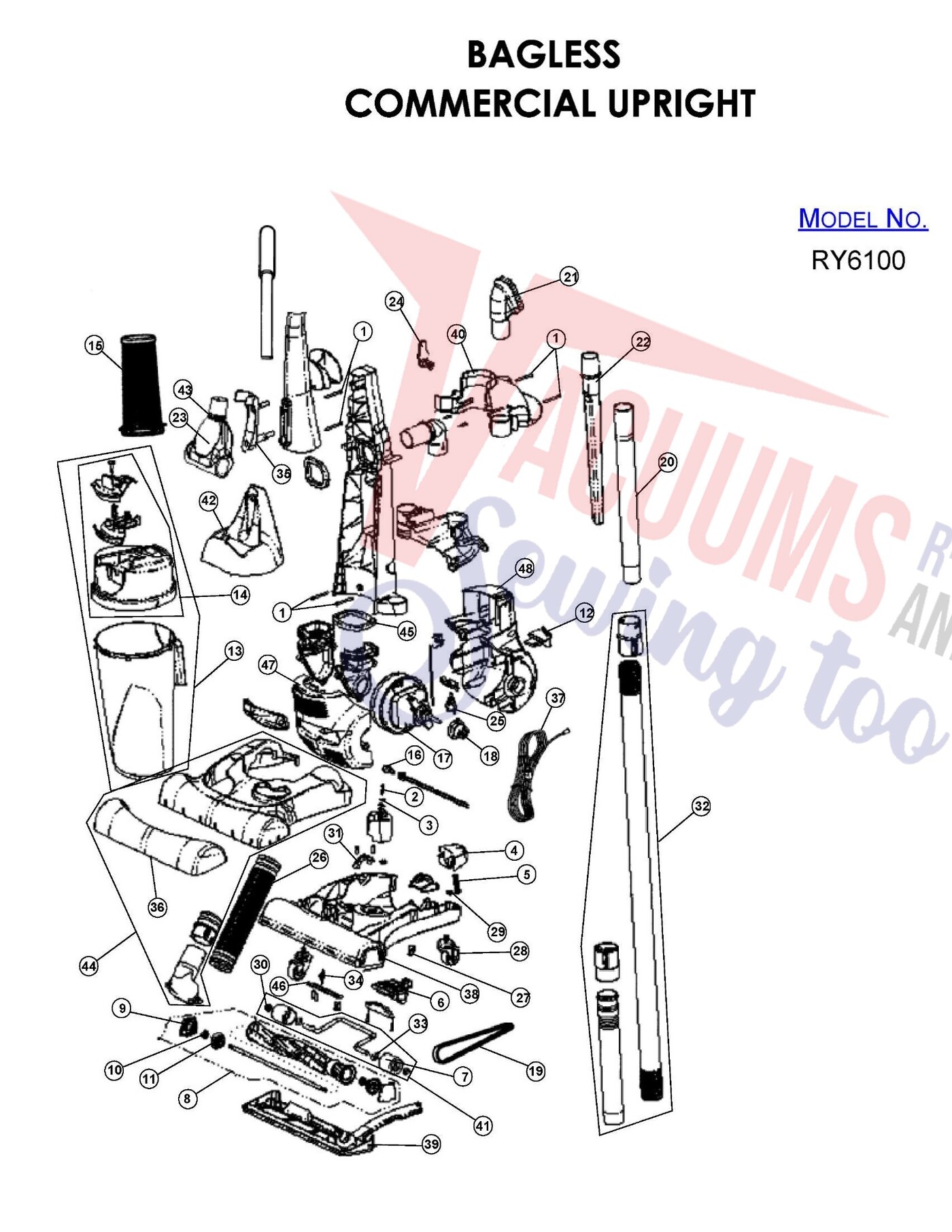

Schematic and parts book for royal RY6100 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW PACKAGE (2) | 2690330000 | Not Available |
| 2 | No Image | SCREW, HEIGHT ADJUSTMENT 086940 Part Number: 1JC0300000 for Royal | 1JC0300000 | $1.63Read more |
| 3 | Not Available | BUSHING - HEIGHT ADJUSTMENT | 1910298000 | Not Available |
| 4 | Not Available | HANDLE RELEASE PEDAL | 1JC0075G00 | Not Available |
| 5 |  | Release Spring For: royal | 1JC0007000 | $0.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | ROLLER LIFTER | 1JC0100600 | Not Available |
| 7 | Not Available | FRONT ROLLER | 1910330600 | Not Available |
| 8 |  | Part number 2JC0110000 is compatible with models M088400BK, R088300, M088300SC, M088400B, M088300... | 2JC0110000 | $35.20Read more |
| 9 | Not Available | END CAP | 1910380000 | Not Available |
| 10 | Not Available | BRUSH BEARING | 1881095000 | Not Available |
| 11 | Not Available | BEARING SUPPORT | 1910385000 | Not Available |
| 12 |  | PEDAL, SWITCH 088300 088400 088450 Part Number: 1JC0140G00 for Royal | 1JC0140G00 | $0.75Read more |
| 13 | Not Available | DIRT CUP ASSEMBLY | 2JC0220600 | Not Available |
| 14 | Not Available | DIRT CUP LID ASSEMBLY | 1JC0215600 | Not Available |
| 15 | Not Available | F1 - HEPA FILTER | 2JC0360000 | Not Available |
| 16 | Not Available | BULB - 906 | 1920906000 | Not Available |
| 17 | Not Available | MOTOR ASSEMBLY | 1JC0290000 | Not Available |
| 18 | Not Available | GROMMET | 1881130000 | Not Available |
| 19 |  | Belt, Royal Style 10 088650/088750/088300 Part Number: 3860140600 for Royal | 3860140600 | $6.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | EXTENSION WAND | 1JC0245600 | Not Available |
| 21 | Not Available | DUSTING BRUSH ASSEMBLY | 2JC0255600 | Not Available |
| 22 |  | Crevice Tool, 088300 Part Number: 1JC0250600 for Royal | 1JC0250600 | $1.50Read more |
| 23 | Not Available | TURBO TOOL | 2UTT200000 | Not Available |
| 23 | Not Available | COGGED BELT - TURBO TOOL | 1UTT020000 | Not Available |
| 24 | Not Available | CORD HOOK | 1790655600 | Not Available |
| 25 |  | Switch, Black Power Button 085500/UD70105 Part Number: 1860081000 for Royal | 1860081000 | $5.37Read more |
| 26 | Not Available | LOWER HOSE ASSEMBLY | 2881015600 | Not Available |
| 27 | Not Available | BELT CLIP GUIDE | 1720380000 | Not Available |
| 28 | Not Available | CASTER | 2863038600 | Not Available |
| 29 | Not Available | CASTER PAL NUT | 1863054000 | Not Available |
| 30 | Not Available | WHEEL RETAINER | 1912420000 | Not Available |
| 31 | Not Available | PIVOT CLAMP | 1820351600 | Not Available |
| 32 | Not Available | HOSE ASSEMBLY | 2JC0010600 | Not Available |
| 33 | Not Available | WIRE FORM WASHER | 1990249000 | Not Available |
| 34 | Not Available | WIRE FORM SPRING | 1910320000 | Not Available |
| 35 |  | Turbo Clip Royal D/D Vision Turbo For: dirt devil | 1JC0335600 | $2.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | BUMPER | 1JC0050B00 | Not Available |
| 37 | Not Available | POWER CORD - 50' / 3-WIRE | 1061136AU0 | Not Available |
| 38 | Not Available | NOZZLE BASE | 1JC0035600 | Not Available |
| 39 | Not Available | NOZZLE GUARD | 1JC0055600 | Not Available |
| 40 | Not Available | TOOL CADDY | 1JC0200B00 | Not Available |
| 41 | Not Available | WIREFORM ASSEMBLY | 2JC0060000 | Not Available |
| 42 | Not Available | TURBO TOOL CADDY | 1JC0330600 | Not Available |
| 43 | Not Available | TURBO TOOL LOCK NUT RING | 1UTT030000 | Not Available |
| 44 |  | Base - Royal Mry6100 Commercial Upright For: royal | 2JC0045600 | $24.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | INLET DUCT GASKET | 1JC0225000 | Not Available |
| 46 | Not Available | WIREFORM CLAMP | 1JC0065000 | Not Available |
| 47 | Not Available | FRONT MOTOR HOUSING | 1JC0175600 | Not Available |
| 48 | Not Available | REAR MOTOR HOUSING | 1JC0180600 | Not Available |
